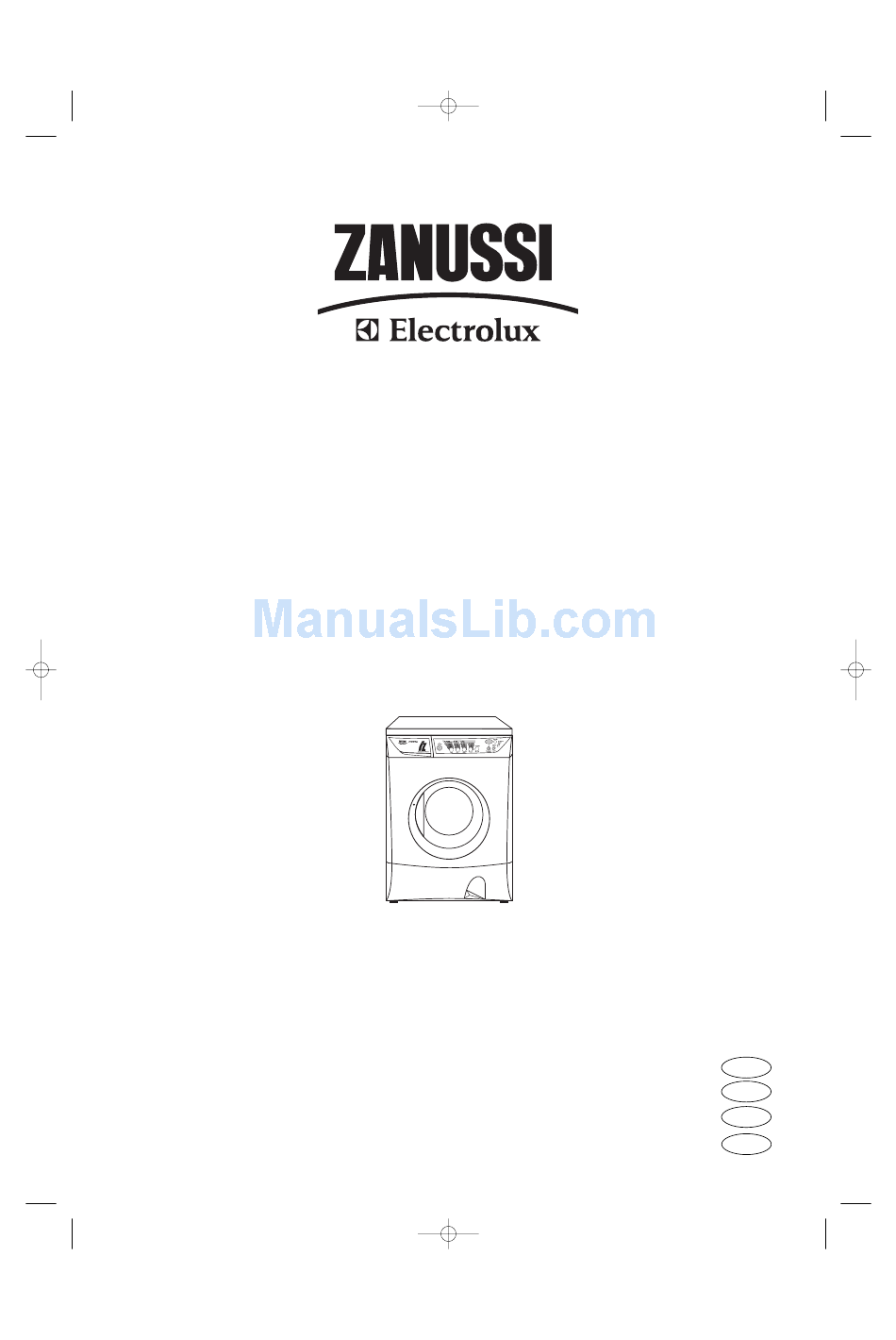

132990080.qxd 01/12/2003 15:44 Pagina WASAUTOMAAT LAVE-LINGE WASCHAUTOMAT WASHING MACHINE IZ 12 - IZ 14 - IZ 14 S GEBRUIKSAANWIJZING NOTICE D’UTILISATION GEBRAUCHSANWEISUNG INSTRUCTION BOOKLET 132990080... - Page 2 132990080.qxd 01/12/2003 15:45 Pagina Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
-
Page 3: Table Of Contents
132990080.qxd 01/12/2003 15:45 Pagina Contents Warnings 72-73 Maintenance Door seal Disposal Bodywork Detergent dispenser drawer Tips for environmental protection 73 Drain filter Water inlet filter Technical specifications Emergency emptying out Frost precautions Installation Unpacking Something not working? 91-92 Positioning Water inlet Water drainage Electrical connection Your new washing machine... -
Page 4: Warnings
132990080.qxd 01/12/2003 15:45 Pagina Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Use only the recommended quantities of fabric softener. An excessive amount could damage the •... -
Page 5: Disposal
132990080.qxd 01/12/2003 15:45 Pagina Child safety To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until • Children are often not aware of how dangerous the groove is vertical. electrical appliances can be. When the machine is working, children should be carefully supervised and not be allowed to play with the appliance. -
Page 6: Technical Specifications
132990080.qxd 01/12/2003 15:45 Pagina Technical specifications DIMENSIONS Height 85 cm Width 60 cm Depth 60 cm MAXIMUM LOAD Cotton Synthetics 2.5 kg Delicates 2.5 kg Woollens/Hand Wash SPIN SPEED 1200 rpm max. (IZ 12) 1400 rpm max. (IZ 14 - IZ 14 S) POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED... -
Page 7: Installation
132990080.qxd 01/12/2003 15:45 Pagina Installation Unpacking Fill all the holes with the plastic plugs supplied with the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. -
Page 8: Water Drainage
132990080.qxd 01/12/2003 15:45 Pagina The other end of the inlet hose which connects to the Any extension applied to the drainage hose should not machine can be turned in any direction. Simply loosen be longer than 200 cm and its diameter must not be the fitting, rotate the hose and retighten the fitting, smaller than that of the original hose. -
Page 9: Your New Washing Machine
132990080.qxd 01/12/2003 15:45 Pagina Your new washing machine This new washing machine, which is fitted with the Jet system, patented Zanussi, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Further savings are achieved by washing small loads of laundry, since water and electricity consumption is proportional to the quantity and type of laundry being washed. -
Page 10: Use
The relevant light will light up. Maximum speeds are: Hand wash • for cotton: 1,200 rpm (IZ12), 1,400 rpm (IZ14-IZ14S); When you select this programme, you obtain a • for synthetic fabrics, wool, and fabrics to be hand- particularly delicate washing, suitable for articles of washed: 900 rpm;... -
Page 11: Options Button
132990080.qxd 01/12/2003 15:45 Pagina • Draining and spin: 8 Display - Press the START/PAUSE button. The machine The following pieces of information are shown on the will drain the water, then spin the laundry at the display: maximum speed provided for the selected •... - Page 12 132990080.qxd 01/12/2003 15:45 Pagina Important! 9 START/PAUSE button The first time you use the washing machine, when you switch it on, it may display a blinking zero and give an This button has three functions: audible warning signal. This is due to the fact that the •...
- Page 13 132990080.qxd 01/12/2003 15:45 Pagina In this case, both the 11 DELAY button drain and the spin (at the This button makes it possible to delay the starting of speed provided for the the programme by up to 24 hours. The delay you have selected type of fabric) selected is shown on the display for about 3 seconds;...
-
Page 14: Washing Hints
132990080.qxd 01/12/2003 15:45 Pagina Laundry weights Washing hints The following weights are indicative: bathrobe 1200 g Sorting the laundry napkin 100 g Follow the wash code symbols on each garment label quilt cover 700 g and the manufacturer’s washing instructions. Sort the laundry as follows: sheet 500 g... -
Page 15: Detergents And Additives
132990080.qxd 01/12/2003 15:45 Pagina Ink: depending on the type of ink, moisten the fabric Quantity of detergent to be used first with acetone (*), then with acetic acid; treat any The type and quantity of detergent will depend on the residual marks on white fabrics with bleach and then type of fabric, load size, degree of soiling and rinse thoroughly. -
Page 16: International Wash Code Symbols
132990080.qxd 01/12/2003 15:45 Pagina International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C... -
Page 17: Operating Sequence
132990080.qxd 01/12/2003 15:45 Pagina 4. Switch the machine on Operating sequence Press the ON/OFF button to switch the machine on. The display will show three blinking dashes or a Before washing your first load of laundry, we blinking zero. The light above the button will light up. recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub. -
Page 18: Select The Temperature
132990080.qxd 01/12/2003 15:45 Pagina 6. Select the temperature 9. Select the QUICK WASH option Press the TEMPERATURE button if you wish to select Depress TIME SAVE button to select the QUICK a temperature value different from the one proposed WASH option, if your laundry is only slightly soiled. by the washing machine. -
Page 19: End Of Programme
132990080.qxd 01/12/2003 15:45 Pagina 12. How to change a programme Pay attention to the level and temperature of the water in the washing machine! during its cycle When you close the door and press the ON/OFF Before you make any change, you must pause the button again, the washing machine will resume the washing machine by pressing the START/PAUSE programme from the point where it had been... -
Page 20: Washing Programmes
3 rinses EXTRA RINSE blends: e.g. Short spin QUICK shirts, blouses, underwear 2.5 kg Delicates Main wash at SPIN SPEED ( for IZ12) 1.04 40°-30°C 40°-30°C or RINSE HOLD Delicate fab- or COLD cold wash PREWASH rics: e.g. 3 rinses... -
Page 21: Maintenance
132990080.qxd 01/12/2003 15:45 Pagina Maintenance 1. Door seal Check from time to time the door seal and eliminate eventual possible objects that could be trapped in the fold. 4. Drain filter The drain filter collects threads and small objects inadvertently left in the laundry. Check regularly that the filter is clean. -
Page 22: Water Inlet Filter
132990080.qxd 01/12/2003 15:45 Pagina 5. Water inlet filter If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked. Turn off the water tap. Unscrew the hose from the tap. Clean the filter with a stiff brush. -
Page 23: Something Not Working
132990080.qxd 01/12/2003 15:45 Pagina Something not working? Problems which you can resolve yourself. During machine operation it is possible that one of the following alarm codes appears on the display: - E10: problem with the water supply - E20: problem with water draining - E40: door open Once the problem has been eliminated, press the START/PAUSE button to restart the programme. -
Page 24: The Door Will Not Open
132990080.qxd 01/12/2003 15:45 Pagina Problem Possible cause • The door will not open: • The water level is above the bottom edge of the door. • The machine is heating the water. • The drum is turning. The door can only be opened when the relevant light has gone out. -
Page 25: Qxd 01/12/2003 15:45 Pagina
132990080.qxd 01/12/2003 15:45 Pagina From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
