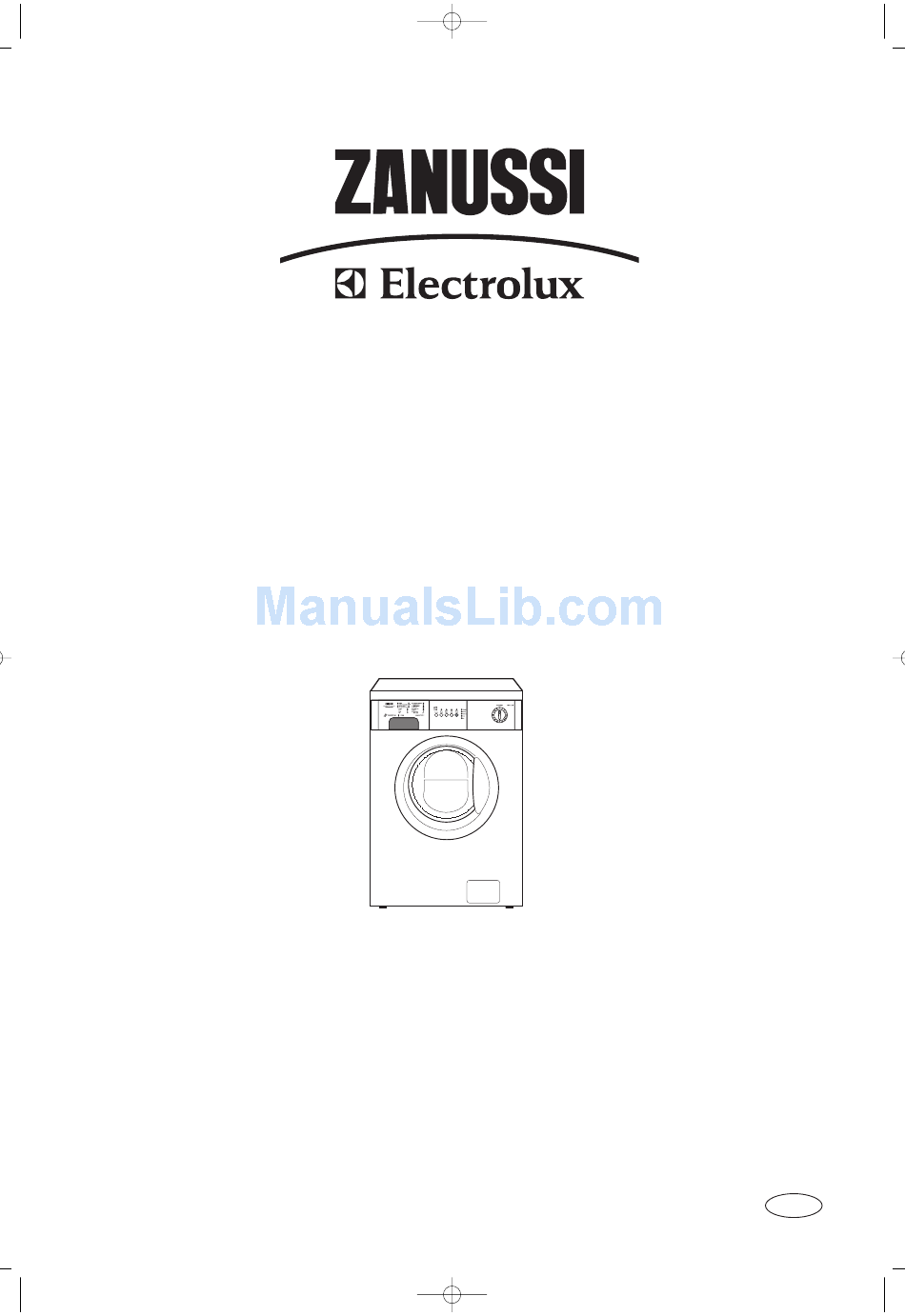

Page 1: Washing Machine
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 1 WASHING MACHINE ZWF1211W INSTRUCTION BOOKLET 35.292.999/1... -
Page 2: Important Safety Information
Repairs carried out by inexperienced persons may cause injury or serious Always unplug the appliance and turn off the water malfunctioning. Contact your local Zanussi supply after use. Electrolux Service Centre. Always insist on genuine Do not overload the appliance. See relevant section Zanussi Electrolux spare parts. -
Page 3: Table Of Contents
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 3 Contents Maintenance and Cleaning For the User 17-18 Descaling Important Safety Information After each wash Maintenance Wash Your New Washing Machine External cleaning Description of the Appliance Cleaning the dispenser drawer Door locked light Cleaning the drawer recess... -
Page 4: Your New Washing Machine
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 4 Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. The programme selector dial combines the In the interest function of programme and temperature selection, of the environment making it easier to set the programme. -
Page 5: Description Of The Appliance
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 5 Description of the Appliance 1 Detergent dispenser drawer 2 Programme guide 3 Control panel 4 Door opening handle 5 Drain pump 6 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener... -
Page 6: The Control Panel
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 6 The Control Panel 1 Programme guide 3 Prewash button Select this option if you wish your laundry to be Programme Option buttons prewashed before the main wash (not available for wool). The prewash ends with a short spin in programmes for... -
Page 7: Programme Information
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 7 ATTENTION! If you turn the programme selector dial to another programme when the machine is working, the lights of the programme progress display start to flash. The machine will not perform the new selected programme. -
Page 8: Operating Sequence
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 8 Operating Sequence Before the first wash, we recommend that you pour 2 3. Select the required programme litres of water into the main wash compartment Turn the programme selector dial to the programme the detergent drawer in order to activate the ECO valve. -
Page 9: Start The Programme
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 9 6. Start the programme 10.Opening the door after the programme has started Before starting the machine check that: the appliance is plugged in First set the machine to pause by pressing the “Start / Pause” button. Wait two or three minutes for the door the water supply tap is turned on lock to-released. -
Page 10: Washing 2 Kg Of Mixed Fabrics At 50°C
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 10 WASHING 2 KG OF MIXED FABRICS AT 50°C 4. Select the required programme Suppose you have 2 kg of lightly soiled mixed fabrics to wash. They are rather delicate fabrics and should not be Turn the programme selector dial to the programme washed at a high temperature. -
Page 11: Zwf1211W.qxd 30/3/06 16:54 Página
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 11 To start the selected programme, press the “Start / Pause” button; the corresponding light stops flashing. Only the “washing” pilot light stays on. The machine starts operating. 8. At the end of the programme The machine stops automatically. -
Page 12: Washing Hints
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 12 Washing Hints Do NOT overload the machine. Weigh the laundry the For wool, use gentle detergent only in small first few times you use the appliance. quantities. Bleach is very corrosive; it should be used with care The average weights of the most common items are and kept out of reach of children. -
Page 13: Which Detergent
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 13 And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose... -
Page 14: Wash Care Symbols
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 14 Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 15: Washing Programmes
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 15 Washing Programmes Programmes for cotton and linen Progr. Wash programme/ Degree of soil Programme Possible Max. time Description Washing symbol and type of laundry dial position load options mins. Wash at 90°C For heavy soiled cotton... -
Page 16: Washing Programmes
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 16 Washing Programmes Programmes for synthetics, mixed fabrics, delicates and wool Progr. Programme Wash programme/ Degree of soil Possible Max. Description time dial position Washing symbol and type of laundry options load mins. COLOUR-FAST Wash at 60 °C... -
Page 17: Maintenance And Cleaning
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 17 Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 18: Cleaning The Water Inlet Filter
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 18 • When no more water comes out, unscrew the pump Clean the filter using a hard bristle brush. cover and remove it. Always keep a cloth nearby to Tighten up the inlet hose. dry up spillage of water when removing the cover. -
Page 19: Something Not Working
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 19 Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. -
Page 20: Service And Spare Parts
4. The model and serial number of the appliance (found Service Force Centre covering your post code area. on the rating plate - see picture). For the address of your local Zanussi Electrolux Service 5. The purchase date Force Centre and further information about Service... -
Page 21: Guarantee Conditions
We, Zanussi Electrolux undertake that if, within 12 agreements. months of the date of the purchase, this Zanussi Products of Zanussi Electrolux manufacture which Electrolux appliance or any part thereof is proved to be are NOT marketed by Zanussi Electrolux. -
Page 22: Installation Instructions
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 22 Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. -
Page 23: Unpacking
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 23 Unpacking Plug the 3 holes with the plastic plugs which you All transit bolts and packing must be removed can find in the envelope containing the instruction before using the appliance booklet. You are advised to keep all the packaging for re-use in case the appliance has to be transported again. -
Page 24: Water Inlet
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 24 Water inlet Connect the hose to a tap with a 3/4” thread. Do not use previously used hoses for water connection. Place the drain hose into your standpipe, which should have an internal diameter of approximately 38mm thus ensuring there is an air break between the drain hose and standpipe. -
Page 25: Levelling
35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 25 2. Onto a sink outlet spigot. If the outlet spigot has not been used before, remove any blanking plug that may be in place. Any necessary adjustment can be made with a spanner. Accurate levelling prevents vibration, noise and displacement of the machine during operation. -
Page 26: Electrical Connection
Ensure that the cut off plug is disposed of safely. Should the appliance power supply cable need to be replaced, this should be carried out by your local Zanussi Electrolux Service Force Centre. Note When the appliance is installed the power supply cable must be accessible. - Page 27 35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 27...
- Page 28 35.292.999…ZWF1211W.qxd 30/3/06 16:54 Página 28 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
