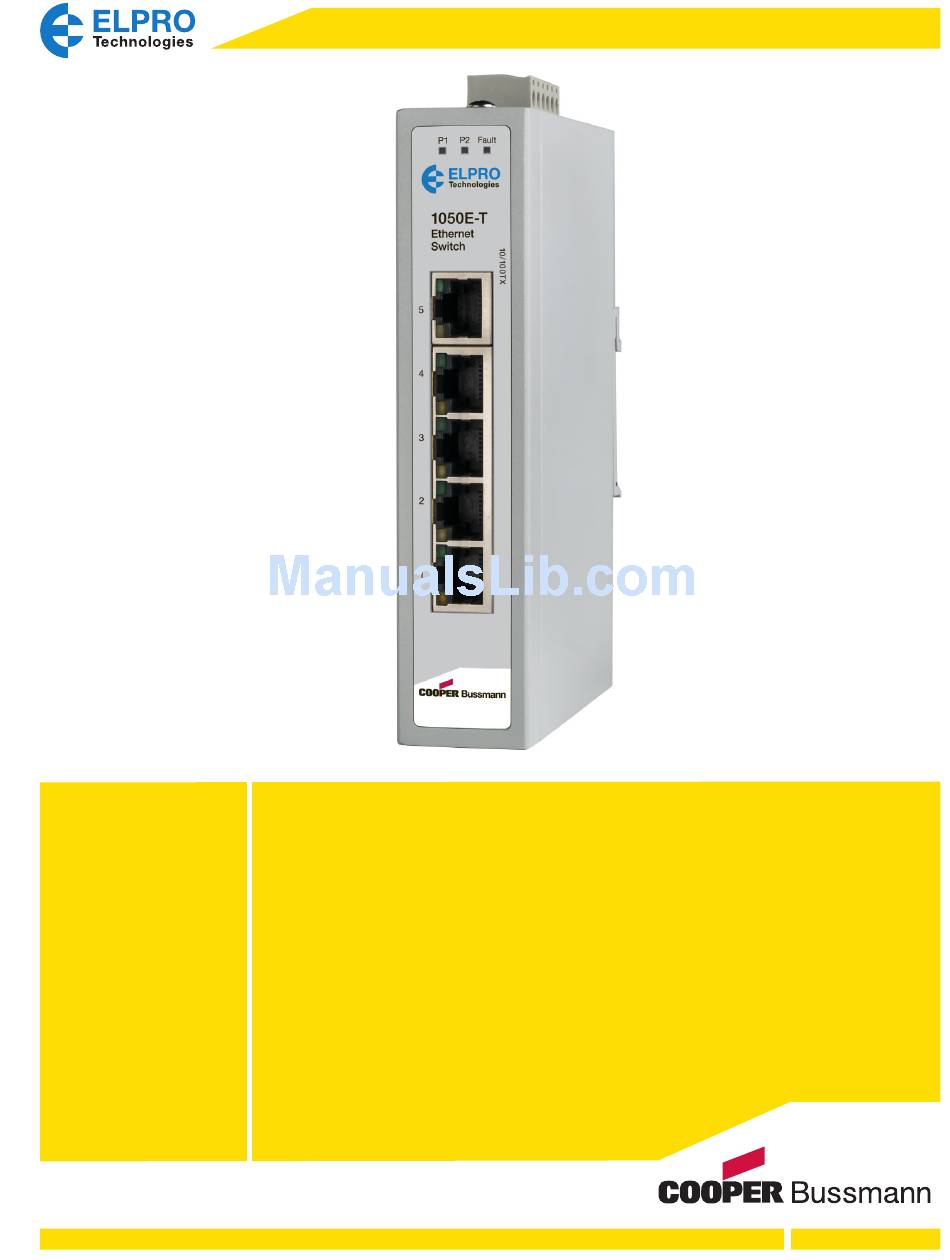

Page 1: User Manual
Cooper Bussmann 1050E-T Read and Retain for Unmanaged Ethernet Switch Future Reference User Manual Version 1.1.5... -
Page 2: Interference Issues
When operating at elevated temperature extremes, the surface may exceed +75 Celsius. For user safety, the 1050E-T should be installed in a restricted access location. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS. - Page 3 Cooper Bussmann 1050E-T Unmanaged Ethernet Switch User Manual Follow Instructions Read this entire manual and all other publications pertaining to the work to be performed before installing, oper- ating, or servicing this equipment. Practice all plant and safety instructions and precautions. Failure to follow the instructions can cause personal injury and/or property damage.
-
Page 4: Table Of Contents
Cooper Bussmann 1050E-T Unmanaged Ethernet Switch User Manual CONTENTS Chapter 1 - INTRODUCTION ....5 1.1 Module Identification ....5 1.2 Features and Benefits . -
Page 5: Chapter 1 - Introduction
Ethernet ports makes the 1050E-T suitable for harsh environments. Wide Operating Temperature The operating temperature of the 1050E-T is between -40°C and 75°C. Given this wide range, you can use the Industrial Switch in some of the harshest industrial environments. -
Page 6: Features And Benefits
Cooper Bussmann 1050E-T Unmanaged Ethernet Switch User Manual 1.2 Features and Benefits • IEEE 802.3 10Base-T, 802.3u 100Base-TX • Flow control on full duplex • RJ-45 connectors with auto MDI/MDIX functionality • Store-and-forward switching architecture • Relay alarm contact for system events • UL Class I Division II for Group A,B,C, and D hazardous locations... -
Page 7: Mechanical Specifications
12 Vdc to 48 Vdc; Under/Over Voltage Protection and Reverse Polarity Maximum Current 450 mA Draw 1.4 Mechanical Specifications The following diagram shows the exterior dimensions of the 1050E-T Ethernet switch. 1.5 Order Information Item Product Code Description Ethernet Switch... -
Page 8: Chapter 2 - Getting Started
Cooper Bussmann 1050E-T Unmanaged Ethernet Switch User Manual 2 - GETTING STarTED hapTEr 2.1 Package Contents • 1050E-T Ethernet Switch x 1 • Pluggable Terminal Block x 1 • Wall Mounting Plate x 2 2.2 Hardware Description Front Panel The front panel of the 5-port 10/100BaseTX Industrial Switch is shown below. -
Page 9: Wiring
Cooper Bussmann 1050E-T Unmanaged Ethernet Switch User Manual 2.3 Wiring Wiring the Power Inputs Follow these steps to insert the power wire. 1. Insert the positive and negative wires into the V+ and V- contacts on the terminal block connector. -
Page 10: Grounding
Cooper Bussmann 1050E-T Unmanaged Ethernet Switch User Manual Grounding To provide maximum surge and lightning protection, the 1050E-T should be effectively grounded via a GND screw located on the top of the unit next to the terminal connector block. All ground (earth) wiring should be minimum 14 AWG. -
Page 11: Cabling
2.5 Mounting Installation DIN-rail Mounting The 1050E-T ships from the factory with the DIN-rail mount kit installed. Follow these steps to mount the 1050E-T. 1. Insert the top of DIN-rail into the track. 2. Lightly push the button of DIN-rail into the track. -
Page 12: Wall Mount Plate Mounting
Cooper Bussmann 1050E-T Unmanaged Ethernet Switch User Manual 3. Check the module is firmly secured to the DIN-rail track. To remove the Industrial Switch from the track, reverse steps above. Wall Mount Plate Mounting Follow these steps to mount the switch using the wall mount plate. Unscrew the screws to remove the DIN-rail mount from the switch. -
Page 13: Appendix A - Glossary
Cooper Bussmann 1050E-T Unmanaged Ethernet Switch User Manual a - GLOSSarY ppENDIx Term Definition 100Base-TX 100Base-TX is a Fast Ethernet cabling standard. 100Base-TX devices can transfer data at a rate of up to 100 Mbps, and use two wire-pairs of wires inside a category 5 or above cable. - Page 14 Cooper Bussmann 1050E-T Unmanaged Ethernet Switch User Manual Notes: www.cooperbussmann.com/wirelessresources Rev 1.1.5...
- Page 15 Customer Assistance North America & Latin America 5735 W. Las Positas Suite 100 Technical Support: Pleasanton, California 94588 USA United States:+1 866 713 4409 Telephone: +1 925 924 8500 Australasia.: +61 7 3352 8624 elpro-sales@cooperindustries.com Other: +1 604 944 9247 Australia, New Zealand Email: ELPRO-Support@cooperindustries.com Cooper Technology Centre...
