Summary of Contents for M&S Systems PSW112
-
Page 1: Owners Manual

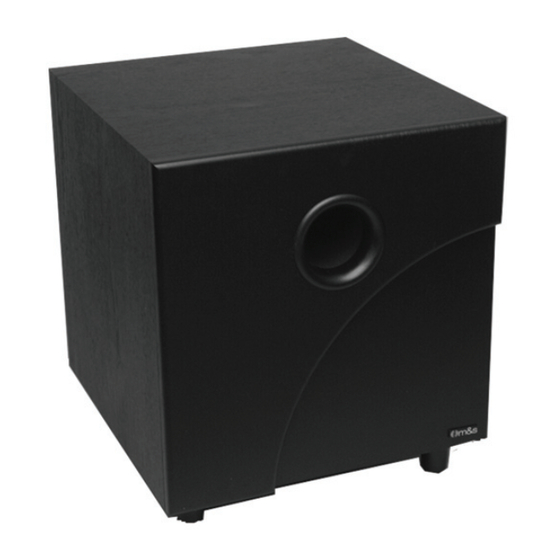

PSW112 Owners Manual Platinum Series Subwoofer Models PSW112 – Powered Subwoofer... -
Page 2: Key Features
PSW112 Owners Manual Page 2 Introduction Thank you for purchasing M&S Systems Home Audio products. Your M&S Platinum Series subwoofer will bring you years of listening enjoyment. Our products offer the finest in quality home theater and deliver superior performance at an affordable price. - Page 3 M&S Systems Page 3 PSW112 Subwoofer Each box contains one subwoofer available in black only. This is a freestanding down-firing subwoofer with adjustable crossover. Subwoofer Specifications Frequency Response 30Hz/140Hz Power Rating 100 Watts RMS Crossover 40Hz/140Hz (adjustable) Height 15 ¾”...
-
Page 4: Subwoofer Placement
PSW112 Owners Manual Page 4 Subwoofer Placement For the best sound, place the PSW112 subwoofer next to a wall or in a front corner of your room near your main speakers. Subwoofer Placement IMPORTANT! Do not cover or seal the back of the PSW112 subwoofer. -
Page 5: Connecting Your Subwoofer
First, turn off power to your entire system to prevent accidents such as short circuits from damaging your equipment. The PSW112 subwoofer can be connected to your system using one of three methods. The method you select is based on the configuration of your system. -
Page 6: Line Level Connections
PSW112 Owners Manual Page 6 The PSW112 Line Level Connections are shown in the picture below and can be found on the back of the subwoofer. Line Level Connections 3. Connect using speaker wires – Connect the wires from the amplifier to the “Speaker Level Inputs” and the wires going to the speakers should be connected to the “Speaker Level Outputs”. - Page 7 Speaker Level Connections Plug in the PSW112 power cord. Do not plug the PSW112 subwoofer into a switched outlet on your receiver. The PSW112 has an automatic stand-by circuit to ensure prompt power up and connecting the unit to a switched outlet will delay the output and lead to noise on power down.
- Page 8 PSW112 Owners Manual Page 8 Subwoofer Controls Your PSW112 subwoofer has several controls that allow you to configure the unit to reflect your personal music tastes. All controls are found on the back of the unit. Frequency Adjust – This adjusts the upper frequency range of the subwoofer.
-
Page 9: Subwoofer Controls
M&S Systems Page 9 X’Over Bypass – This control manages the frequency control of the subwoofer. X’Over Bypass Off – The subwoofer operates based on the frequency adjust control settings. X’Over Bypass On – The frequency adjust control setting is bypassed. This extends the subwoofer high-end range to approximately 300Hz. - Page 10 PSW112 Owners Manual Page 10 Service and Troubleshooting M&S Systems is committed to producing high quality products for the home. If you have any questions or problems with your subwoofer or if it is not operating properly, contact your M&S installer or call M&S Systems at 1-800-421-1587 and speak with one of our technical support specialists.
-
Page 11: Warranty
M&S Systems Page 11 Warranty M&S Systems warrants its products to be free of defects for 2 years. Except for the AirVac Gold power units. The warranty period begins on either (a) the date of purchase or installation date of this product or (b) the date of closing on a new residence in which this product was originally installed. - Page 12 M&S Systems Phone: (800) 421-1587 www.mssystems.com 115934 Rev B -...
