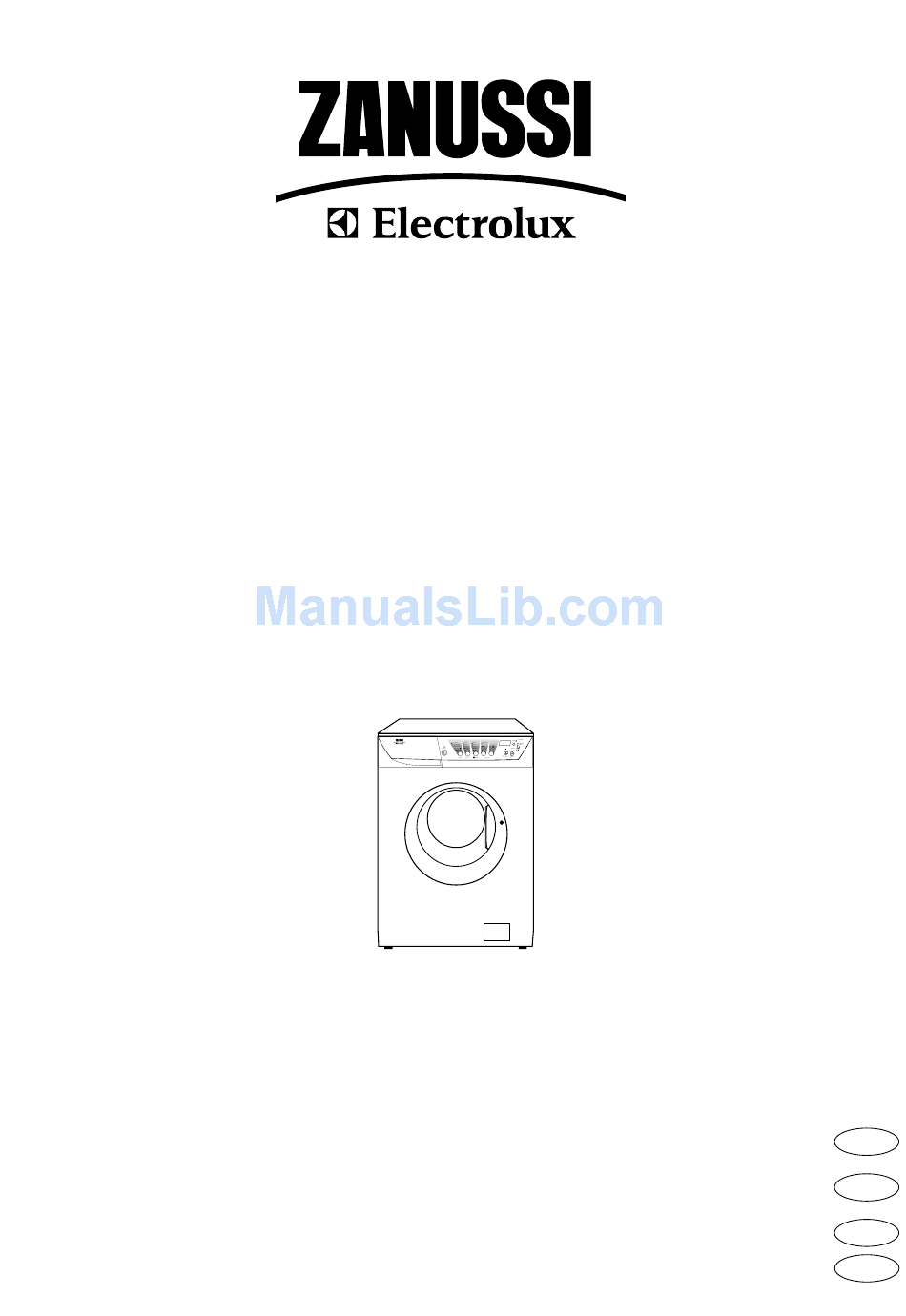

- Page 1 WASAUTOMAAT LAVE-LINGE WASCHAUTOMAT WASHING MACHINE FD 1026 - FD 1226 FD 1426 - FD 1626 N N L L GEBRUIKSAANWIJZING NOTICE D’UTILISATION GEBRAUCHSANWEISUNG USER MANUAL G G B B 132989690...
-
Page 2: Table Of Contents
Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged. -
Page 3: Warnings
Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. Installation • Always unplug the appliance and shut the water tap after use. • All internal packing must be removed before using the appliance. -
Page 4: Disposal
Cotton Synthetics 2,5 kg Delicates 2,5 kg Woollens/Hand wash SPIN SPEED 1000 rpm max. (FD 1026) 1200 rpm max. (FD 1226) 1400 rpm max. (FD 1426) 1600 rpm max. (FD 1626) POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED... -
Page 5: Installation
Installation Unpacking Fill all the holes with the plastic plugs supplied with the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws. -
Page 6: Water Drainage
The other end of the inlet hose which connects to Any extension applied to the drainage hose should the machine can be turned in any direction. Simply not be longer than 200 cm and its diameter must not loosen the fitting, rotate the hose and retighten the be smaller than that of the original hose. -
Page 7: Your New Washing Machine
Your new washing machine This new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. • The programme progress display shows the programme steps selected and the programme phase which is running. •... -
Page 8: Use
You can change these values by 1200 rpm for the model FD 1226; operating buttons 4 and 5. 1000 rpm for the model FD 1026; • for synthetic fabrics, wool and fabrics to be hand- Hand wash washed: 900 rpm;... - Page 9 To complete the cycle, first press the • AA 40°: this option can be selected for cottons and SPECIALS/ANNULL. button (3 dashes appear on the synthetics lightly or normally soiled with a display), and then choose one of the following temperature of 40°C or higher.
- Page 10 Important! 9 START/PAUSE button The first time you use the washing machine, when you switch it on, it may display a blinking zero and give an audible warning signal. This is due to the fact that the washing machine has performed a washing cycle during the manufacturer’s inspection tests, and this cycle has not been erased after its completion.
- Page 11 The SPECIALS/ANNULL. button is then used to 11 DELAY button cancel or advance the programme to the required This button makes it possible to delay the starting of phase. the programme by 30, 60, 90 minutes then 2 hours The SPECIALS/ANNULL. button can only operate up to 23 hours.
-
Page 12: Washing Hints
Synthetics: drum no more than half full; Washing hints Delicate fabrics and woollens: drum no more than one third full. Sorting the laundry Washing a maximum load makes the most efficient use of water and energy. Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. -
Page 13: Detergents And Additives
Ball point pen and glue: moisten with acetone (*), Quantity of detergent to be used lay the garment on a soft cloth and dab the stain. The type and quantity of detergent will depend on Lipstick: moisten with acetone as above, then treat the type of fabric, load size, degree of soiling and stains with methylated spirits. -
Page 14: International Wash Code Symbols
International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not... -
Page 15: Operating Sequence
Operating sequence 5. Select the desired programme/fabric Press the FABRICS (TEXTILE) button repeatedly, in Before the first wash we recommend that you pour 2 order to select the desired programme/fabric. The litres of water into the main wash compartment relevant light will light up. of the detergent drawer in order to activate the ECO valve. - Page 16 FD 1026 FD 1226 9. Select the DELAY button Before you start the programme, if you wish the starting to be delayed, press the DELAY button repeatedly, or keep it pressed, to select the desired delay. The selected delay time value (up to 23 hours) will appear on the display for 3 seconds, then the duration of the programme will appear again.
- Page 17 Press the SPECIALS/ANNULL. button repeatedly When the water has been drained, the display shows to erase the programme that has just been a blinking zero. You may now select a new carried out. If you omit to do this, the next time programme and press the START/PAUSE button to you switch the washing machine on, the blinking start it.
-
Page 18: Washing Programmes
* This data is given purely as an indication: the consumption values may vary in relation to the quantity and type of laundry, the temperature of the water supply and the ambient temperature. The data refers to the highest temperature provided for each programme. ** Only for the model FD 1026 and FD 1226... -
Page 19: Maintenance
Maintenance 1. Bodywork Detergent can also accumulate inside the drawer recess: clean it with an old toothbrush. Refit the Clean the outside of the machine with soap and drawer after cleaning. water only. Rinse with clean water and dry with a soft cloth. -
Page 20: Emergency Emptying Out
• Place a bowl on the floor to collect any spillage. 7. Frost precautions • Pull out the emergency emptying hose, place it in If the machine is installed in a place where the the bowl and remove its cap. temperature could drop below 0°C, proceed as •... -
Page 21: Something Not Working
Something not working? Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 22: The Door Will Not Open
Problem Possible cause • The door will not open: • The programme is still running, the drum is turning. • The door lock has not been released. • The water level is above the bottom edge of the door. • The machine is heating the water. The door can only be open when the relevant light has gone out •...
