132991210

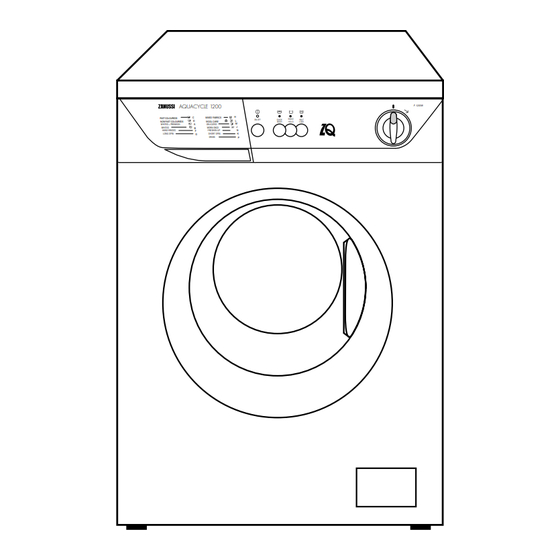

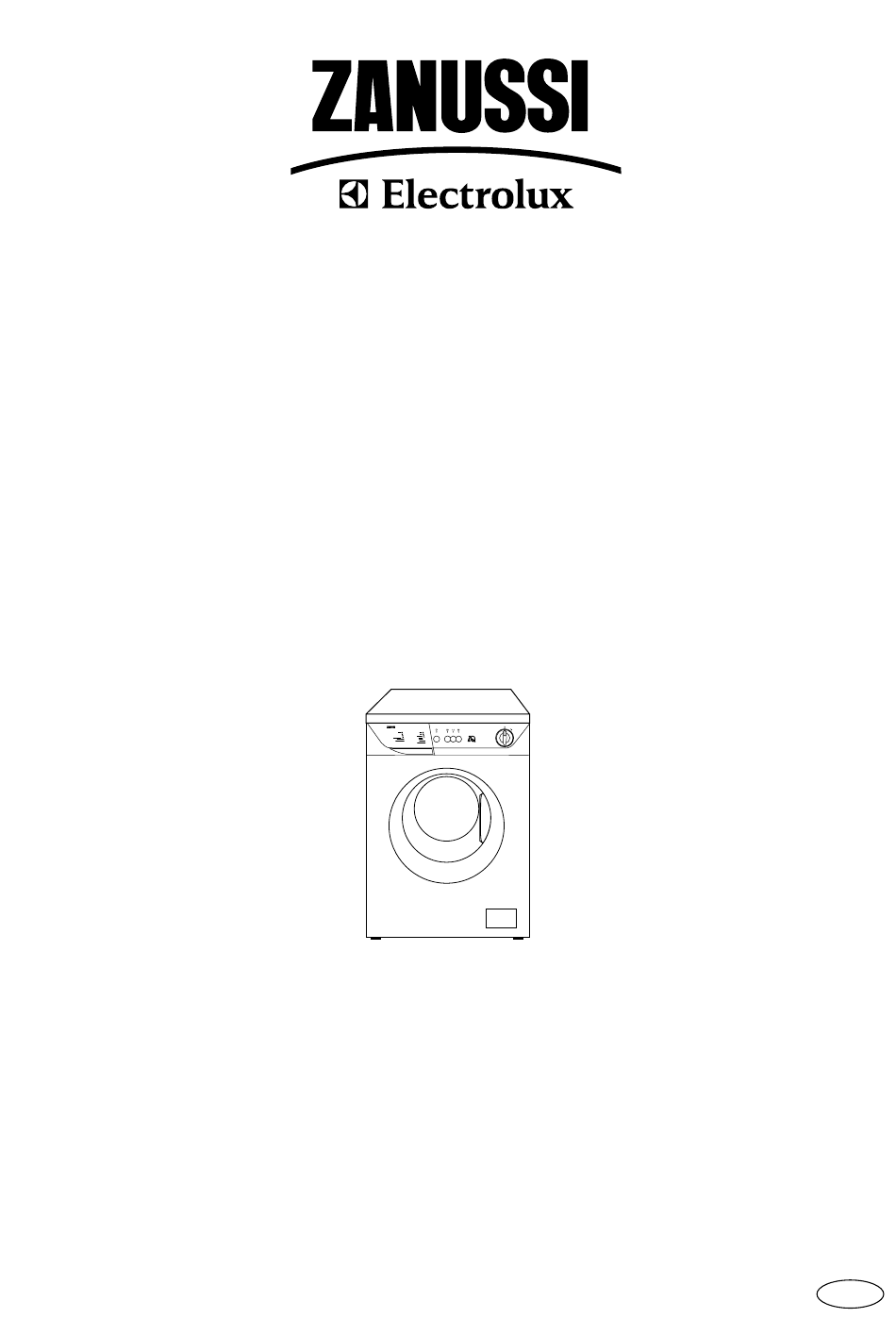

WASHING MACHINE
F 1203 W
INSTRUCTION BOOKLET
AQUACYCLE 1200
F 1203W
C
MIXED FABRICS
H
FAST COLOUREDS
ON-OFF
QUICK
RINSE
HALF
NON FAST COLOUREDS
D
WOOL CARE
L
HOLD
WASH
LOAD
WHITES + PREWASH
A
DELICATES
M
J
WHITES
B
WORN ONCE
HAND RINSES
F
FRESHEN UP
N
LONG SPIN
G
SHORT SPIN
K
DRAIN
P
GB
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zanussi Electrolux F 1203 W
Summary of Contents for Zanussi Electrolux F 1203 W
- Page 1 WASHING MACHINE F 1203 W AQUACYCLE 1200 F 1203W MIXED FABRICS FAST COLOUREDS ON-OFF QUICK RINSE HALF NON FAST COLOUREDS WOOL CARE HOLD WASH LOAD WHITES + PREWASH DELICATES WHITES WORN ONCE HAND RINSES FRESHEN UP LONG SPIN SHORT SPIN...
- Page 2 Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.
- Page 3 Contents For the User For the Installer Important Safety Information Installation Instructions Your New Washing Machine Technical Specifications Description of the Appliance Unpacking Detergent dispenser drawer Positioning Water inlet Child safety feature Water drainage 23-24 The Control Panel Levelling Special conditions Operating sequence 7-10 In the interest of the environment...
- Page 4 Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Automatic cooling of the wash water to 60°C In the interest before draining, with the 95°C programme. This of the environment reduces thermal shock to fabrics, helping to prevent creasing.
- Page 5 Description of the Appliance 1 Detergent dispenser drawer 2 Programme guide 3 Control panel 4 Door opening handle AQUACYCLE 1200 F 1203W FAST COLOUREDS MIXED FABRICS ON-OFF QUICK RINSE HALF NON FAST COLOUREDS WOOL CARE WASH HOLD LOAD WHITES + PREWASH DELICATES WHITES WORN ONCE...
- Page 6 The Control Panel PROGRAMME F 1203 W AQUACYCLE 1200 FAST COLOUREDS MIXED FABRICS ON-OFF QUICK RINSE HALF NON FAST COLOUREDS WOOL CARE WASH HOLD LOAD WHITES + PREWASH DELICATES WHITES WORN ONCE HAND RINSES FRESHEN UP LONG SPIN SHORT SPIN...
- Page 7 Operating Sequence 3. Measure out the fabric Before the first wash, we recommend that you pour 2 litres of water into the main wash compartment softener the detergent drawer in order to activate the ECO valve. If required, pour fabric softener into the compartment Then run a cotton cycle at 60°C, without any laundry in marked (the amount used must not exceed the...
- Page 8 6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply taps are turned on the drain hose is correctly and securely positioned the door and the detergent dispenser drawer are closed. Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating.
- Page 9 4. Select the required option WASHING 2 KG OF MIXED FABRICS AT 50°C Suppose you have 2 kg of mixed fabrics to wash. They Depress the QUICK WASH or RINSE HOLD button if are rather delicate fabrics and should not be washed at a required.
- Page 10 7. At the end of the programme After the last rinse, the machine stops with the water left in the wash tub, to prevent the fabric from creasing. To drain the water, select programme “K” (short spin) or “P” (drain). The door is controlled by a safety device which releases 2 minutes after the end of the programme.
- Page 11 Washing Hints Do NOT overload the machine. Weigh the laundry the For wool, use gentle detergent only in small first few times you use the appliance. quantities. Bleach is very corrosive; it should be used with care The average weights of the most common items are and kept out of reach of children.
- Page 12 And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended your own personal choice.
- Page 13 Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine.
- Page 14 Washing Programmes Programmes for cotton and linen Progr. Wash programme/ Degree of soil Programme Possible Description time Washing symbol and type of laundry dial position options Load mins. Prewash at 40 °C WHITES QUICK WASH For heavy soiled cotton Wash at 95°C 4.5 kg HALF LOAD 3 rinses...
- Page 15 Washing Programmes Programmes for synthetics, mixed fabrics, delicates and wool Progr. Wash programme/ Degree of soil Programme Possible time Description Washing symbol and type of laundry dial position options Load mins. Synthetic or mixed Wash at 50 °C fabrics, underwear, MIXED 3 rinses coloured garments,...
- Page 16 Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the C0073 C0072 machine.
- Page 17 • When no more water comes out, unscrew the pump Clean the filters using a hard bristle brush. cover and remove it. Always keep a rag nearby to dry Tighten up the inlet hoses. up spillage of water when removing the cover. P1090 P1115 The dangers of freezing...
- Page 18 Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.
- Page 19 Please note that a valid purchase receipt or For Customer Service in Ireland please contact us at the guarantee documentation is required for in- address below: guarantee service calls. Zanussi Electrolux Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland Tel: +353 (0)1 4090751 Mod.
- Page 20 Standard guarantee conditions Appliances found to be in use within a commercial environment, plus those which are subject to rental We, Zanussi Electrolux, undertake that if, within 12 agreements. months of the date of the purchase, this ZANUSSI Products of Zanussi Electrolux manufacture which ELECTROLUX appliance or any part thereof is proved are NOT marketed by Zanussi Electrolux.
- Page 21 Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
- Page 22 Unpacking Fill all the holes with the plastic plugs supplied with the instruction booklet. All transit bolts and packing must be removed before using the appliance. You are advised to keep all the packaging for re-use in case the machine is to be transported again. Using a spanner unscrew and remove the two rear bottom screws.
- Page 23 Water inlet Water drainage The inlets on the back of the appliance are colour coded, This appliance is designed to be permanently plumbed blue for cold and red for hot. into your home's water supply and drainage system. Connect the hoses to a tap with a 3/4” thread. The appliance drain hose should hook into a standpipe, the hook in the drain hose is formed using the plastic Do not use already employed inlet hoses.
- Page 24 Special conditions If you intend the drain hose to empty into a sink, make sure that the sink is empty and the plug hole is not If the floor is carpeted or covered with crumbly or soft blocked. Use the plastic “U-Piece” supplied. material, insert a rigid support base under the feet to prevent noise, vibration or displacement.
- Page 25 Electrical connection The wire coloured brown must be connected to the terminal marked «L» or coloured red. Any electrical work required to install this appliance Upon completion there must be no cut, or stray strands should be carried out by a qualified electrician or of wire present and the cord clamp must be secure over competent person.
- Page 26 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.
