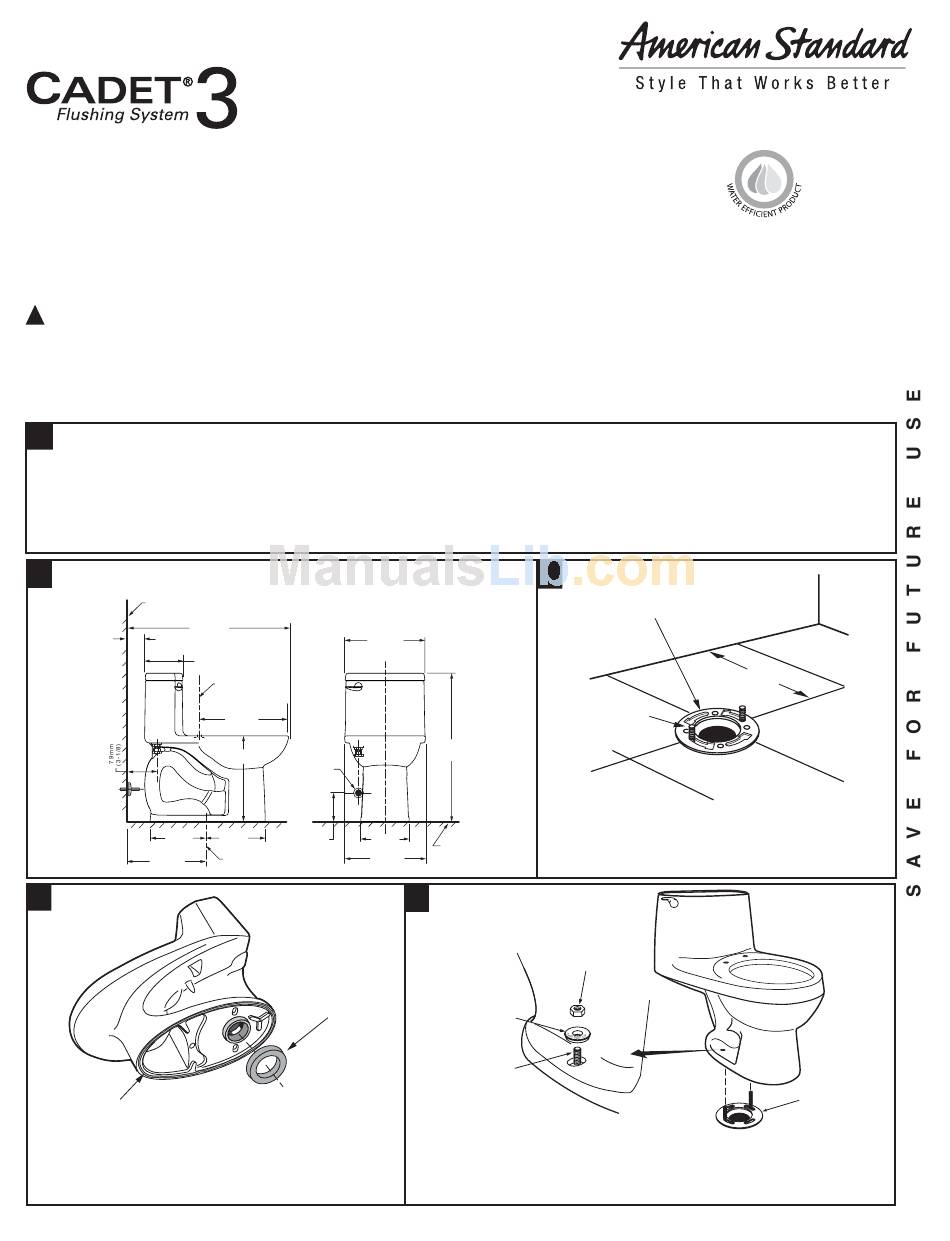

INSTALLATION INSTRUCTIONS

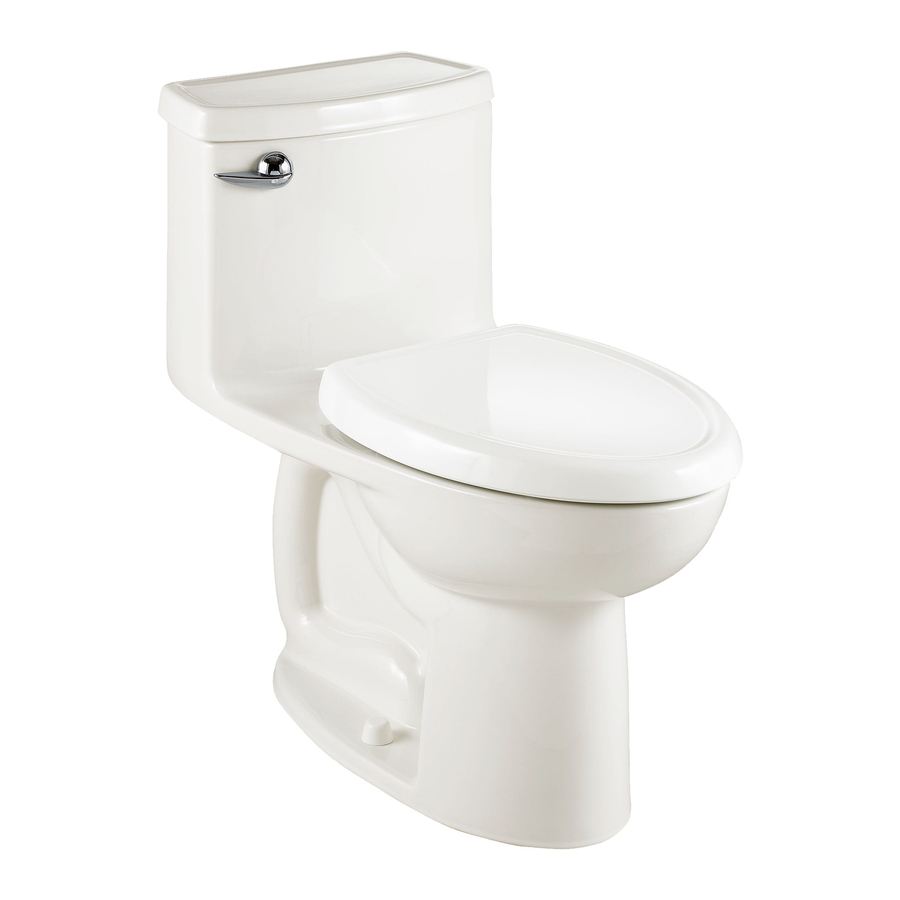

COMPACT CADET ® 3 - 1.6 GPF ONE-PIECE TOILET
COMPACT CADET ® 3 FloWise™ - 1.28 GPF ONE-PIECE TOILET
Model 2568 – Compact Elongated Right Height™ with Seat
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product is installed
properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure
your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.

RECOMMENDED TOOLS AND MATERIALS

Putty Knife Regular Screwdriver
Hacksaw Wax Ring/Gasket
1

REMOVE OLD TOILET

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!

ROUGHING-IN DIMENSIONS:

2
NOTE: Distance from wall to closet flange centerline must be as listed below:
FINISHED WALL
724mm
(28-1/2)
16 ± 6mm
(5/8 ± 1/4)
159mm
(6-1/4)
267mm
(10-1/2)
305mm
(12)
4
SEALANT

INSTALL WAX SEAL

Invert toilet on floor (cushion to prevent damage), and
install wax ring evenly around waste flange (horn), with
tapered end of ring facing toilet. Apply a thin bead of
sealant around toilet base.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .
© A S A m e r i c a , I n c . 2 0 0 8
Adjustable Wrench
Flexible Supply Tube
381mm
(15)
C/L OF SEAT POST
HOLES 140mm
(5-1/2) CENTERS
422mm
(16-5/8)
419mm
(16-1/2)
SUPPLY
AS
REQ'D
292mm 140mm
*
241mm
(11-1/2) (5-1/2)
(9-1/2)
C/L OF OUTLET
394mm
(15-1/2)
WAX RING
Sealant
Closet Bolts
3
CLOSET BOLTS
724mm
(28-1/2)

INSTALL CLOSET BOLTS

Install closet bolts in flange channel, turn 90 ° , and slide
FINISHED
FLOOR
into place 6" (152 mm) apart and parallel to wall.
5
NUT
WASHER
BOLT

POSITION TOILET ON FLANGE

a. Unplug floor waste opening and install toilet on closet flange so bolts project
through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers marked "THIS
SIDE UP" must face up!
Tape Measure
Carpenters Level
CLOSET FLANGE
A
73 01 2 70 -1 0 0 R e v. A
FLANGE
