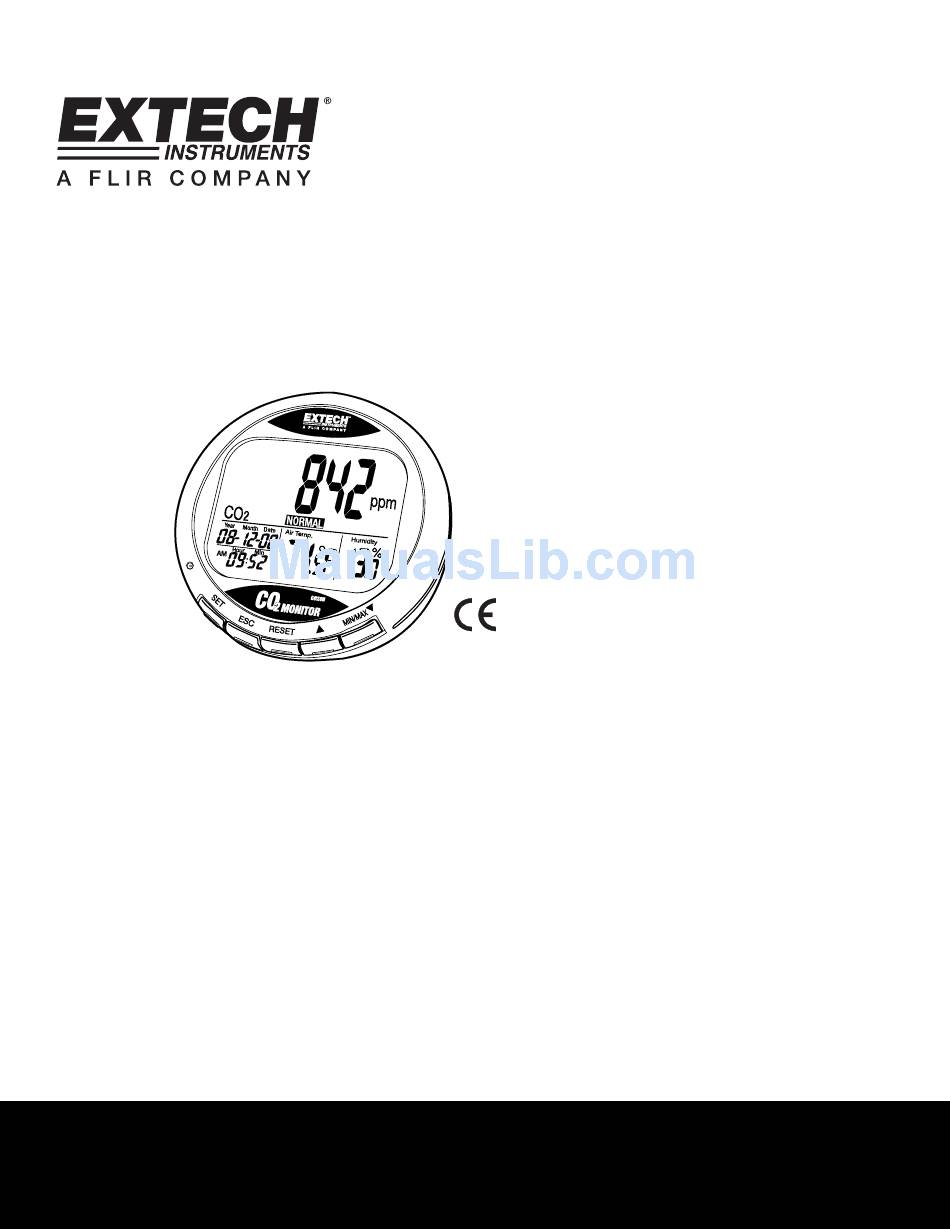

- Page 1 User's Guide Monitor Model CO200 Please visit our website for more information www.alpine-components.co.uk...
-
Page 2: Meter Description
Introduction Congratulations on your purchase of this Model CO200 Carbon Dioxide Meter. This meter measures CO level, air temp., humidity, date and time. With visible and audible alarms, this is an ideal instrument for indoor air quality (IAQ) diagnosis. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. -
Page 3: Operation
RESET button for more than 1 second to activate it. The fan icon keeps flashing when beeps are manually shut down. It stops only when readings fall under the lower limit CO200-EU-EN-V1.1-11/11... -
Page 4: Relay Output
100ppm increments. The alarm range is 700 to 1000ppm. When the value has been set, press the SET button to confirm the NORMAL limit and to proceed to P1. for setting the upper POOR limit. Press the ESC button to exit without saving the setting. CO200-EU-EN-V1.1-11/11... -
Page 5: Temperature Scale
▲ button or the MIN/MAX▼ button. Press the SET button to save the setting and then enter P3. or press the ESC button return to P3. without saving the setting. Repeat as above to finish the setting of P3. (Date), P3. (Hour) and P3. (Minute) CO200-EU-EN-V1.1-11/11... - Page 6 Press the SET and the meter will go to P4. to switch the status then press either the ▲ button to save the settings or the ESC button to exit without saving the settings. Default settings: Parameter Default 700ppm 1000ppm 1000ppm ° CO200-EU-EN-V1.1-11/11...
- Page 7 To abort the calibration, press the RESET button for more than 1 second. Note: Keep away from any animal, human or plant which might affect the CO concentration during the calibration. CO200-EU-EN-V1.1-11/11...
-
Page 8: Specifications
117x102x102mm (4.6x4x4”); 204g (7.2 oz.) Maintenance CLEANING AND STORAGE 1. The meter should be cleaned with a damp cloth and mild detergent when necessary. Do not use solvents or abrasives. 2. Store the meter in an area with moderate temperature and humidity. CO200-EU-EN-V1.1-11/11... -
Page 9: Troubleshooting
Humidity Display Air temp. measurement Refer to temperature error code for has error code problem solving The RH calibration has Please return for repair failed RH sensor or measuring Return for repair circuit has failed CO200-EU-EN-V1.1-11/11... - Page 10 Germany, Japan, Australia, UK: 5000ppm, 8 hours weighted average occupational exposure limit is 5000ppm. Copyright © 2010 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. CO200-EU-EN-V1.1-11/11...
