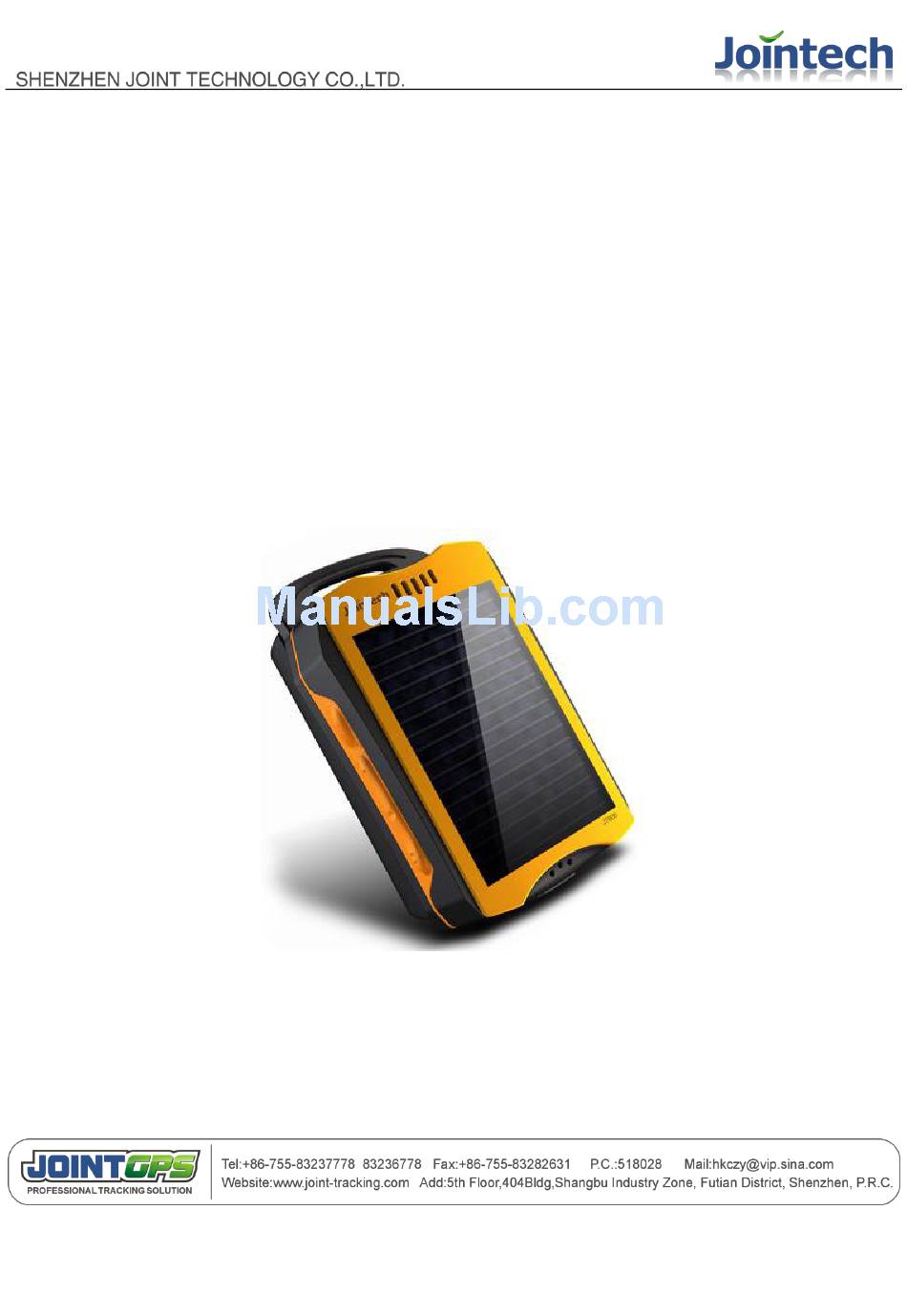

  • Page 1 JT600 User Manual Ver 1.6 Shenzhen joint technology co,;ltd 10-09-2012 - 1 -...

  • Page 2: Table Of Contents

    Content JT600 User Manual ......................................- 1 - Content ........................................... - 2 - ⅠPreface ..........................................- 4 - Ⅱ Updates ..........................................- 4 - Ⅲ Product Function ......................................- 5 - Ⅳ Profile and Description ....................................- 6 - 4.1 Profile ......................................... - 6 - 4.2 Operation Button ....................................
  • Page 3 5.6.1 SMS Command Framework and List ..........................- 28 - 5.6.2 Short Message Command Example ............................. - 31 - Ⅵ Product Specification ....................................- 35 - 6.1 Physical Parameters and Environmental ..........................- 35 - 6.2 GPS module parameter ..................................- 36 - 6.3 GSM module parameter ...................................

  • Page 4: Content

    ⅠPreface All the content in this manual is accurate, however, with the continuous research and development of Joint Technology Co.,Ltd, we might update the operational manual from time to time. The manual you are reading now is reflecting of present state of art of the products described therein, we have endeavored to give a description that is as complete and clear as possible in order to make it easy for you to use our products.

  • Page 5: Ⅲ Product Function

    Ⅲ Product Function Product Function Data transmission mode(SMS/TCP) Track and Control by SMS/GPRS Track by time interval Track by Calling(reply a location short message to mobile phone) Base station Location (CELL ID and LAC) Two-way voice function Automatic answer the call Listen-in function(Voice monitoring) History data (43200 pcs Saving in Flash) History data upload to center automatically...

  • Page 6: Ⅳ Profile And Description

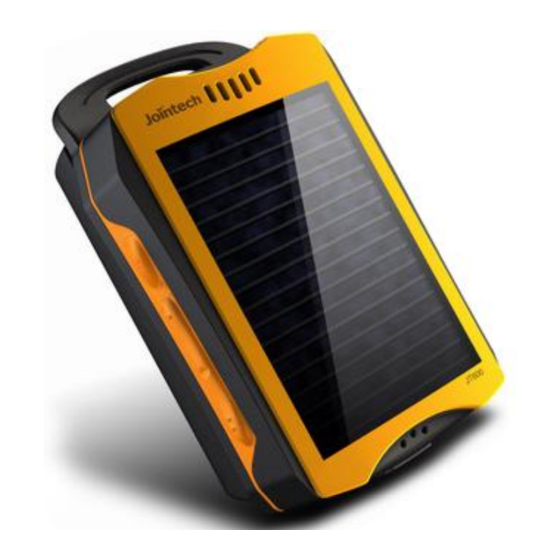

    Vibration detecting Factory reset Ⅳ Profile and Description 4.1 Profile Solar battery panel Backup battery Arc Hook Panel Power on/off CALL Ⅰ CALL Ⅱ Water-proof strip - 6 -...

  • Page 7: Operation Button

    When an incoming call CALL Ⅱ once Self Geo-fence ON No incoming call. and self Press this button Geo-fence off Note: JT600 will be vibrating if you set this twice within 3sec successfully. and there is a message which - 7 -...
  • Page 8 And inserted SIM card Send SOS alert to VIP numbers Normal. Power on Press this button Note: JT600 will be vibrating if SOS alert for 3 sec was sent successfully. press the SOS button once, the LED Normal. Power on...

  • Page 9: Working Mode

    4.3 Working mode GPS Module Wakeup GSM Module Working mode while Note condition while sleeping sleeping both GSM and GPS module work Press any properly, the device can be used Standard button/coming Sleep Power on to call and receive incoming call, call/SMS send and receive text messages at any time.

  • Page 10: Voice Communication

    (Table 2) 4.4 Voice communication JT600 has the two-way voice function, It can dial preset phone numbers and receive phone call as well. When a call coming, the unit will ring, press CALL Ⅰbutton once to receive the call. Press CALL Ⅰ or CALL Ⅱ button for 3 seconds to call the preset VIP number.

  • Page 11: Led Indications

    5.4 Configure by PC setup software Refer to the manual 《 JT600 Mini-USB Cable Driver InstallationV1.2.pdf》 ,Install the Mini-USB cable driver, and plug it to PC. Copy “JT600 Assistant V3.1” software to your PC and Open it. - 11 -...

  • Page 12: Pc Setup Software Introductions

    Note: If you open this software in Win 7 system, Please right click its ICON, and Click “Run as administrator”, Or This software won’t show the COM port number. 5.4.1 PC setup Software Introductions 5.4.1.1 Main Settings Name Parameter Explain Note - 12 -...
  • Page 13 Get The COM port number after Refer to the manual《JT600 Com Port plugged the Configuration cable Mini-USB Cable Driver InstallationV1.2.pdf》 Baud Rate 9600 Fixed value Open/Close Open/Close Click it, and Connect to PC Click it ,Pop-up a window shows all...
  • Page 14 Maximum value 90, minimum value 10. than 20%, there is a low battery Battery alert. China GMT+8. 480minutes JT600 outputs Greenwich time. It has to be Time adjusted to local time. To set time zone behind difference GMT use –(Minus sign) Enable this function, and you Default, This function is disabled.
  • Page 15 3) It’s better to hold on 2 times ring before hang Enable this function, And Default, This function is disabled. Automatic JT600 will answer the coming answer the checkbox 1)The SIM card in tracker must be activated call call automatically after ring 3 call screening function.
  • Page 16 Write above settings to the White tracker. Item Parameter(e.g.) Explain Note Click it ,enable “Normal If you choose this Uploading Normal Uploading” mode,JT600 will upload data as Radio button Uploading preset time interval and data transmission mode all the time. - 16 -...
  • Page 17 Fixed time time points. before getting into the sleep mode. point The device supports 48 time points JT600 will wake up when uploading in maximum, but the interval the time at 8:00,9:00,12:00, between each two points should be above 30 minutes. GSM and GPS 14:00,18:30,19:30.
  • Page 18 10 minutes in every difference to local time. awaken, so the interval for data uploading should be set less than 10 2)JT600 must locate minutes, otherwise the data cannot position at the first time. be uploaded properly. Data transmission mode Uploading location Short message to SMS primary number.
  • Page 19 Geo-fence/Uploading mode) except IP address,Port,SMS Factory Primary number, VIP numbers, Default APN,APN account,Another name and time difference.and JT600 will be reset to Normal Uploading and SMS mode. show the “operation success” pop-up Show tip checkbox window when read or write the setting message successfully.

  • Page 20: Authorization Number

    5.4.1.2 Authorization Number Item Parameter(e.g.) Explain Note Set the first VIP number. Press the CALL Ⅰ Supports country code. And It Call 1 +8615017924411 receives SMS reply message, alert Button for 3 sec,JT600 will call this number. message. - 20 -...

  • Page 21: Geo-Fence Setting

    Set the second VIP number. Press the CALL Supports country code. And It Button for 3 sec,JT600 will call this Ⅱ Call 2 +8613017924411 receives SMS reply message, alert number. message. VIP number 3 Supports country code. And It +8615017924413 receives SMS reply message, alert message.
  • Page 22 - 22 -...
  • Page 23 - 23 -...
  • Page 24 Item Parameter(e.g.) Explain Note Click this record and Get the Please Load the Google Geo-Fence on Google map. Map at right side. 1 to 64 Double Click this record and begin to edit this fence. Read all Geo-fence settings Read All Please Load the Google Geo-fence Map at right side.

  • Page 25: Advanced Operations

    Item Parameter(e.g.) Explain Note Define the default map view when Default Map View you load Google Map Load Google Map Load Google map PC has internet access. Click Google Map and Get current Current Location latitude and longitude Show All Geo-fence Show All Geo-fence on Google Map Clear All Geo-fence Clear All Geo-fence on Google Map...
  • Page 26 The Interface for people who know JT600 protocol well. You can send any ASCII command in protocol on this interface. - 26 -...

  • Page 27: Location Short Message Format

    Item Parameter(e.g.) Explain Note ASCII command Please read JT600 protocol carefully. Send Send this command Clear Clear the below commands records Save all records to PC It’s useful for engineer to Save analysis your Operations. 5.5 Location Short Message format GPS data is sent via SMS.

  • Page 28: Configure By Sms

    Google map link. Click http://maps.google.com/?q=22.549737N,114.076685E this link to view fix location via mobile phone; 2)If GPS signal is invalid, JT600 repies CELL ID and LAC. CELL ID and LAC are got from Base station and showed in decimal system.
  • Page 29 APN user APN username. If it’s blank. no need input it. Parameter[6]: APN pass APN password. If it’s blank. no need input it. (P08,1,1,11323.1234,2312.2321,11326.4312,2308.1233,area Enquire/Set Parameter[1]: means setting, means enquiring Geo-fence Parameter[2]: means Geo-fence ID.JT600 supports 64 fences. - 29 -...
  • Page 30 (P12,1,480) (P12,0,480) / (P12,0) Parameter[1]: means setting, means enquiring Enquire/Set time Parameter[2]: means 60*8=480 minutes. 480 is example. difference JT600 outputs Greenwich time. So It must be adjusted to local time. Require SOS LED (P13,1,1) (P13,1,0) flashing - 30 -...

  • Page 31: Short Message Command Example

    1 to 7. 1 indicates minimum volume. 7 indicates maximum volume. (P15,13919192020) Require Listen-in Parameter[1]: 13919192020 means cell phone number. After you send this remotely command ,JT600 will call this number. Enquire current (P16) battery (P17,1,jointech) Enquire/Set another Parameter[1]: means setting,...
  • Page 32 Set SMS (P03,1,13504562154) Primary // SMS Primary number number CALLⅠnumb (P11,1,1,15017935411) Set CALL Ⅱ (P11,1,2,15014059956) number - 32 -...
  • Page 33 John ,09-28 12:11:02,Speed:32km/h, Battery:80%,GPS:13,STANDARD, http://maps.google.com/?q=22.549737N,114.0766 Enquire current (P02) position (P12,1,480) Set time //GMT +8 difference 8*60=480 minutes in china (P10,1,20) Set Low battery alert //20% - 33 -...
  • Page 34 Set Another (P17,1,John) name Listen-in (P15,15017935411) remotely The following commands are used for real-time monitoring setting. Data transmission via GPRS. Set SMS (P03,1,13504562154) Primary // SMS Primary number number - 34 -...

  • Page 35: Ⅵ Product Specification

    (P07,1,1) Set working (P07,1) mode //Standard mode (30000000001,P05,211.154.136.219,8888,cmne (P05,1,211.154.136.219,8888,cmnet, t,,) //cmnet Set IP address GPRS APN in china and APN The whole command: parameter (P05,1,211.154.136.219,8888,APN,A PN user,APN pass) Set Data (30000000001,P04,60,0,1) (P04,1,60,0,1) uploading //upload GPS data every 60 seconds interval for continuously SMS or GPRS Ⅵ...

  • Page 36: Gps Module Parameter

    Inbuilt Battery 1800mAh Back-up battery 2500mAh 6.2 GPS module parameter Chipset SiRF Star III Frequency L1,1575.42MHz Code C/A Code Protocol NMEA 0183 V2.2 Default:GGA,GSA,GSV,RMC Support:VTG,GLL,ZDA SiRF binary and NMEA Command Available Baud 4,800 to 57,600 bps adjustable Rate Channels FLASH 4Mbits Sensitivity -159dBm...

  • Page 37: Gsm Module Parameter

    Velocity Maximum < 4G Acceleration Update Rate DGPS WAAS,EGNOS,MSAS Datum WGS-84 6.3 GSM module parameter SIM900 Frequency bands Quad-band: GMS 850,EGSM 900,DCS 1800,PCS 1900. The band can be set by AT COMMAND, and default band is EGSM 900 and DCS 1800. Compliant to GSM Phase 2/2+.
  • Page 38 Unstructured Supplementary Services Data (USSD) support MT, MO, CB, Text and PDU mode SMS storage: SIM card Support transmission of SMS alternatively over CSD or GPRS. User can choose preferred mode. Supported SIM card: 1.8V ,3V SIM interface Speech codec modes: Audio features Half Rate (ETS 06.20) Full Rate (ETS 06.10)

  • Page 39: Ⅶ Standard Package And Optional Accessories

    Ⅶ Standard package and optional accessories Item Accessories name Unit Explain Accessories picture Main body( including 1800mAh Standard battery) Mini-USB charging/configuration Standard cable The latest information can be CD（user manual/ configure Standard downloaded from software） www.joint-tracking.com Charging(directly) Optional Back-up battery（2500mAh） Optional - 39 -...

  • Page 40: Ⅷ Faq

    1. The unit can only be powered on whiles SIM card put in. The unit will powered off as soon as the SIM card pulled out. 2. If you connected the upgrade cable with JT600,It would be shutdown. To power on the unit, you have to pull and plug SIM card and press power button once.
  • Page 41 all Your Portable GPS Tracker is a radio transmitter and receiver. It is at the highest certified power level, the well below the maximum value. This is power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure.
