Installation Instructions

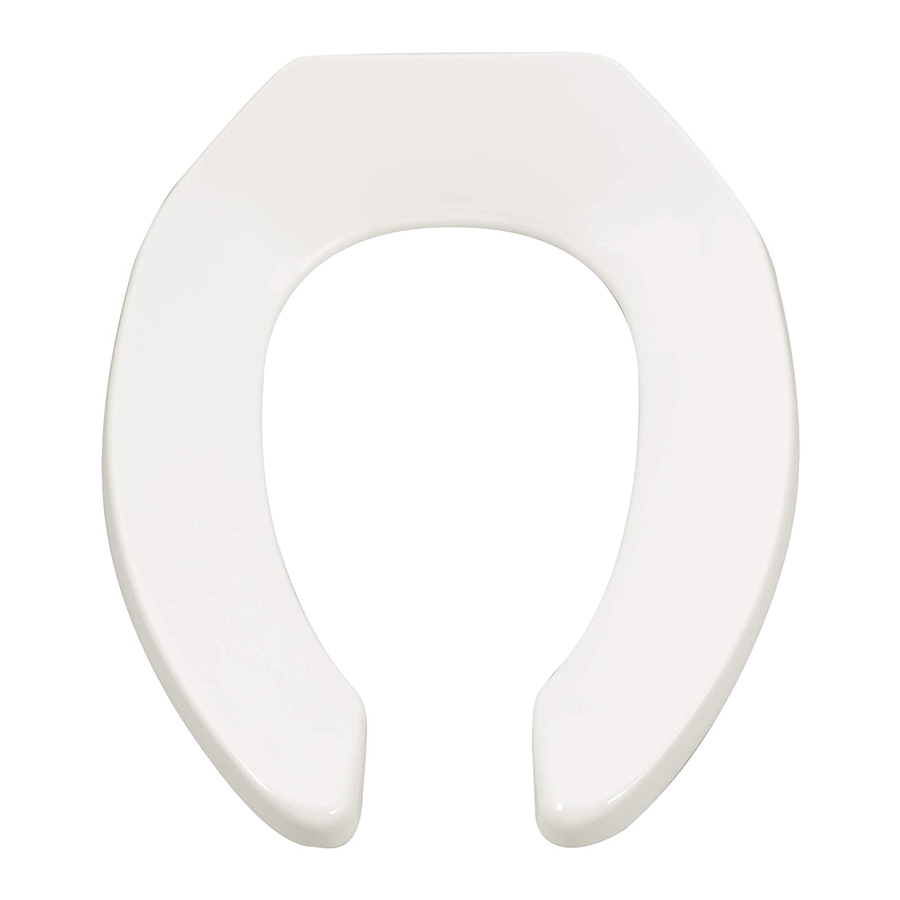

COMMERCIAL TOILET SEATS
MODELS: 5901 Elongated Heavy Duty
5905 Elongated Extra Heavy Duty
5910 Elongated Extra Heavy Duty Plus
Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure
that your installation proceeds smoothly — please read these instructions carefully before you begin.
Side View of the toilet seat installation parts.
Hinge
Toilet Bowl
Hinge Post
2
2. Properly align the toilet seat and install the
metal washer, metal lock washer and metal
nut onto the hinge post.
© 2007 American Standard Inc.
™
Soft Rubber Washer
Metal Washer
Metal Lock Washer
Metal Nut
5901
5905
1
1. Insert the hinge posts into the bowl bolt
holes making sure that the soft rubber
washer is beneath the hinge and on top
of the toilet bowl.
3
3. Tighten the nut on the hinge post using a
wrench. Caution: Do not over-tighten the
bolts as it could crack the toilet bowl.
1
5910
7 6 0 1 1 9 - 1 0 0
