  • Page 1: User Manual

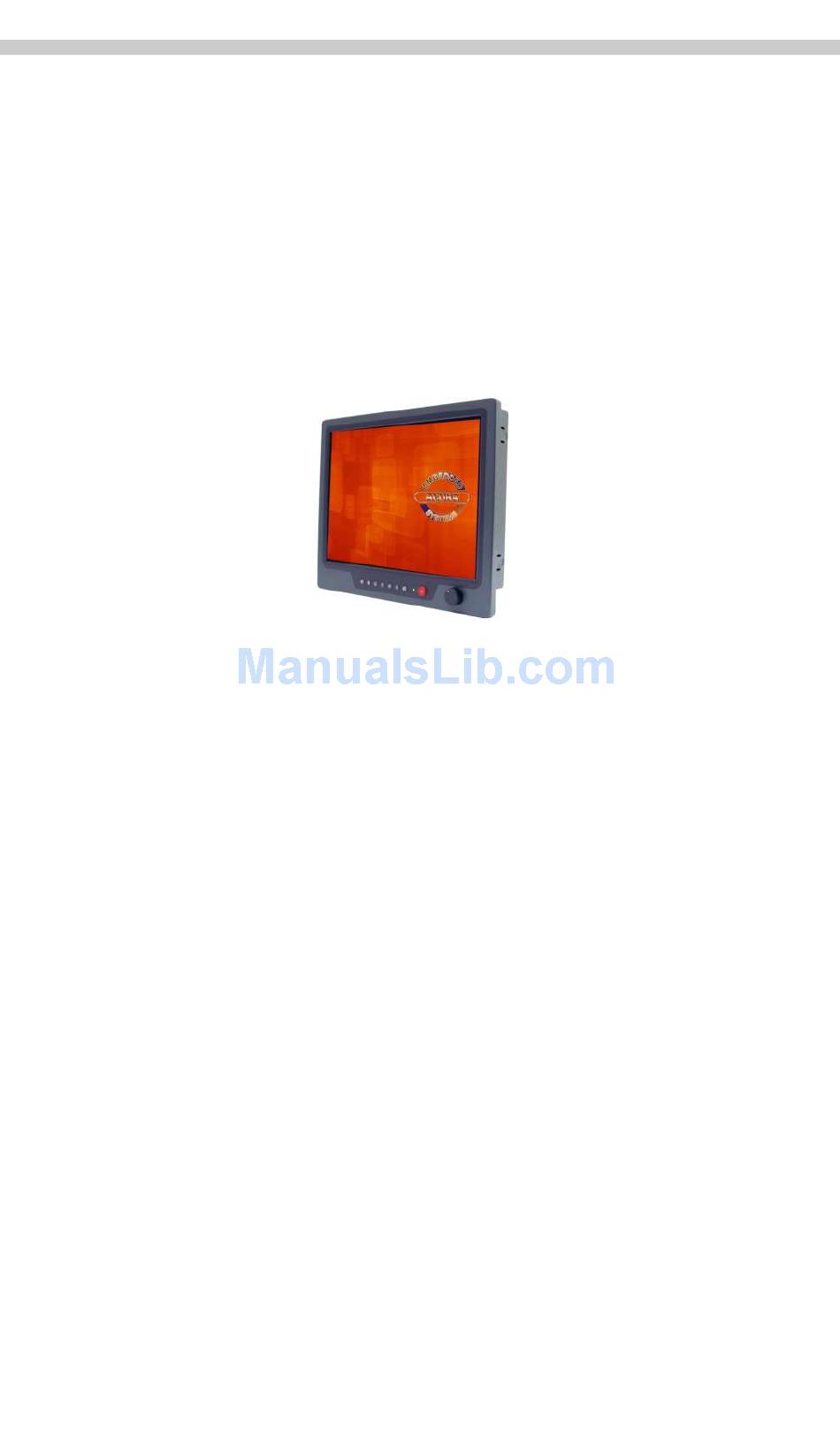

    AcuBrite 12-Nav Manual ACUBRITE™ 12-Nav USER MANUAL ACUBRITE 12-Nav Monitor (2nd Edition 10/25/2012)

  • Page 2: Table Of Contents

    AcuBrite 12-Nav Manual TABLE OF CONTENT TABLE OF CONTENT ......................... 1 1.0 INTRODUCTION..........................3 2.0 CONTROL AND FEATURES ......................4 3.0 INSTALLATIONS..........................4 4.0 TOUCH DRIVER INSTALLATIONS …....................9 5.0 OSD OPERATIONS ......................... 25 6.0 TECHNICAL SPECIFICATION ....................31 7.0 MAINTENAINCE AND TROUBLESHOOTING...

  • Page 3: Important Information

    IMPORTANT INFORMATION EMC conformance All Acura Embedded System products are designed to the best industry standards for use in the recreational environment. The design and manufacture of Acura’s equipments and accessories conform to the appropriate Electro Magnetic Compatibility (EMC) standards, but correct installation is required to ensure that performance is not compromised.

  • Page 4: Introduction

    AcuBrite 12-Nav Manual Packing List Before installation, please ensure the following items have been shipped: 1 x Acubrite12-Nav Series Display 4 x Mounting bracket lugs and 4 stainless steel threaded studs 1 x Power Cable (5000 mm) 1 x VGA Cable (3000 mm)

  • Page 5: Control And Features

    AcuBrite 12-Nav Manual 2.0 CONTROL AND FEATURES Your Acubrite 12-Nav Sunlight Viewable Display has the following controls and features: Front View Back View 3.0 INSTALLATIONS It is important that your new display is installed and operated in accordance with the instructions provided in this handbook.
  • Page 6 The back of the monitor includes mounting points that you can use to mount the monitor as your installation requires. Mounting holes on the Acubrite 12-Nav Series Display allow the monitor to be mounted by rear mounted using VESA75 or VESA100 mount PANEL (Flush) MOUNT For installation, there are four tapped mounting holes on the two sides of the unit’s panel.
  • Page 7 AcuBrite 12-Nav Manual Preparing the installation site 1. Select an installation site that has sufficient space behind for cable connections and ventilation. 2. Tape the supplied flush mount template in the required position. 3. Using a jigsaw, carefully remove the shaded portion of the template.
  • Page 8 Your Sunlight Viewable display is designed to run on boat’s power systems, with AC/DC adaptor Acubrite 12-Nav series are equipped with 9~36V DC wide range power input. For power connection, please make sure the power cable is tightly connected by two screws of the terminal block.
  • Page 9 AcuBrite 12-Nav Manual Power connections The power connection to the display should be made at either the output of the battery isolator switch, or at a DC power distribution panel. Acubrite12-Nav recommends that power is fed directly to the display via its own dedicated cable system and MUST be protected by a thermal circuit breaker or fuse, fitted close to the power connection.

  • Page 10: Touch Driver Installations

    AcuBrite 12-Nav Manual 4.0 TOUCH DRIVER INSTALLATIONS Both AR glass and Resistive touch screen solutions are used for our products. If you have a customized or tailored product, please check the specifications in this manual or provide us your third-party specifications.
  • Page 11 AcuBrite 12-Nav Manual 1.Put the TouchKit CD to CD-ROM. 2.Change directory to Win9X_ME 3.Double click the Setup.exe , then windows starts to run the installation program. Notice that do not plug the USB controller on the system before the installation has been finished.
  • Page 12 AcuBrite 12-Nav Manual 7.Select the appropriate folder where set-up files will be installed. Then Press [Next >] to continue installation. 8.Then type in the name of program folder for TouchKit or press [Next >] to continue. There will be a default name for it.
  • Page 13 AcuBrite 12-Nav Manual Configuration Utility and Right Button Emulator There are five property pages in TouchKit utility, and they are General, Setting,Edge coefficient, Monitors and About . Each property page contains different functions for users to do the adjustments. Therefore, users can easily manage all the TouchKit controllers through TouchKit utility.
  • Page 14 AcuBrite 12-Nav Manual <Add> / <Remove> Please check the touch panel devices (including its controller) are equipped well, Then click [Add] button to add all of those RS-232 and PS/2 devices to the Panel List dialogue box There is one devices found. Press [Yes] to continue.
  • Page 15 AcuBrite 12-Nav Manual <4pts Cal> Correct 4 point locations on screen with the panel. Press [4 pts Cal], screen displays as follows. Touch the blinking symbol on panel until beep or stop blinking <Draw Test> Test the drawing position related to the display screen on panel. Click on the [Draw Test] button. There will be a squared blue display showing.
  • Page 16 AcuBrite 12-Nav Manual Press [25ptCal] to do 25 points calibration. Correct 25 point locations on screen with the panel. Touch the blinking symbol on panel until beep or stop blinking. After the calibration, the new record will overwrite the old one.
  • Page 17 AcuBrite 12-Nav Manual <No Sound> Users could choose to make no soun d while using the touch panel. <Touch Down> The system will make a sound while touching the panel. <Lift Up> The system will not make any sound until finger leaves the touch panel.
  • Page 18 AcuBrite 12-Nav Manual There are five modes in shutdown utility for user convenience. [Standby] to enter standby mode that saves power consumption. [Shutdown] to turn off PC. [Reboot] to restart PC. [Cancel] to escape from the Shutdown utility dialog. [Exit] to disable the Shutdown utility.
  • Page 19 AcuBrite 12-Nav Manual If users want to cancel the function of TouchKit Hide Cursor, do the steps again and choose the other scheme. The Double Click adjustment provides users to set up the tolerance while double clicking. They are as follows : <Double Click Speed>...
  • Page 20 AcuBrite 12-Nav Manual In some case, if it is difficult to touch items at the edges of the touch panel, users can set adjustment to reach the edges of the screen image. <Top> If users set the Edge to <Smaller>, TouchKit will reduce the horizontal position of the top edge. If users set the Edge to <Larger>...
  • Page 21 AcuBrite 12-Nav Manual <Edge Compensation Switch> Users can choose Edge compensation Enable / Disable from left bottom corner of Touchkit Utility. Using +10% and -10% button to adjust the smaller or larger of edge. If users press +10% button, the top, bottom, left and right edges will extend 10% of orientation to touch screen, and cursor will be moved 10 pixel of X and Y Axis to right and top.
  • Page 22 AcuBrite 12-Nav Manual <Split Monitors> To use the Split Monitor function, users need to select which controller you want to launch this function, then check the Multiple Monitors box and Split Monitor at the same time as showing as the follow picture. Press the [Split Setting] button to set up the activate area.
  • Page 23 AcuBrite 12-Nav Manual MONITOR ROTATION SETTING TouchKit driver package for Windows 98/ME/2000/XP provides two easiest ways to rotate the touch panel while the display is rotated. Rotating display by way of nVidia or ATI driver Rotating display by way of Pivot.
  • Page 24 AcuBrite 12-Nav Manual 4. However 180 degree rotation of touch panel can not be done in one step, users need to rotate 90 degree twice. < Rotating display by way of RotTray icon provided by TouchKit> 1. To rotate the display, please install Pivot pro 6.05 first. Then reboot PC to Activate Pivot.
  • Page 25 AcuBrite 12-Nav Manual 8. Here below are the value data for different version of Pivot: Follow these steps to uninstall TouchKit. 1.Go to Start / Programs / TouchKit / Uninstall , and exe cute it. 2. TouchKit setup dialog appears, and prepares to uninstall.

  • Page 26: Osd Operations

    5.0 OSD OPERATIONS Introduction Your Acubrite 12-Nav Sunlight Viewable display can be controlled using the On Screen Display (OSD) menu and/or the 8 buttons on the front bezel of the unit. The OSD menu enables you to change the way in which your display is set up and is accessed using the Menu button.
  • Page 27 AcuBrite 12-Nav Manual VR BRIGHTNESS Key If you want to enable the VR Brightness function, you need to press “MENU” KEY and then choose VR function. When you rotate the VR knob, the VR BRIGHTNESS status bar will appear as below image (dimming range from 1~50): When you enter the VR BRIGHTNESS mode, it will be no function if you press the BRIGHTNESS KEY.
  • Page 28 When you press “Auto”, monitor will adjust all parameters automatically. MENU KEY When you press “MENU” KEY, the Acubrite 12-Nav OSD main menu screen will appear as below: If you release the “MENU” KEY for 30 seconds without any action, the menu OSD screen will disappear automatically.
  • Page 29 AcuBrite 12-Nav Manual VIDEO 1 & 2 & 3’ setting screen: VIDEO Setting Item Description: CONTRAST Contrast Adjustment SHARPNESS Horizontal edge sharpness Color Adjustment R_LEVEL Red Color level Adjustment G_LEVEL Green Color level Adjustment B_LEVEL Blue Color level Adjustment TEMPERATURE Color...
  • Page 30 AcuBrite 12-Nav Manual 2. Press the “MENU” key to rename the “RGB” to any desired source input (ex. Sonar, Radar…etc). You may press “RIGHT/LEFT” key to select from (A~Z, 0~9, “.”, “-“) character. If done, just press “MENU” key to jump to next character for renaming step by step.
  • Page 31 AcuBrite 12-Nav Manual You may choose “SYSTEM RETURN” selection item on the OSD Screen to restore all of the parameter setting to factory default value. When you press “UP” or “RIGHT” KEY, the parameter will show “YES” and confirm it.

  • Page 32: Technical Specification

    AcuBrite 12-Nav Manual 6.0 TECHNICAL SPECIFICATION 6.1 Specification- ACUBRITE 12-Nav LCD Display 12" LED Backlight Backlight 245.76 x 184.32 mm Active Display Area 1000 cd/m2 * Brightness 1024x768 (XGA) Resolution 800:1 Contrast Ratio 0.24(H) x 0.24 (V) Pixel Pitch (mm)
  • Page 33 AcuBrite 12-Nav Manual 6.2 ME Drawing- ACUBRITE 12-Nav Page 32...

  • Page 34: Maintenaince And Troubleshooting

    If you still have a problem after referring to the table below, contact your local dealer, national distributor or Acura Embedded System Inc Technical Services Department for further advice.
  • Page 35 AcuBrite 12-Nav Manual With the unique set of products, Acura Embedded Systems remains committed to its goal of providing trouble-free and customer-friendly service. A special customer service unit has been set up specifically to cater to our esteemed customers' needs.
  • Page 36 AcuBrite 12-Nav Manual...
