Summary of Contents for SoundMax SM-CSP10

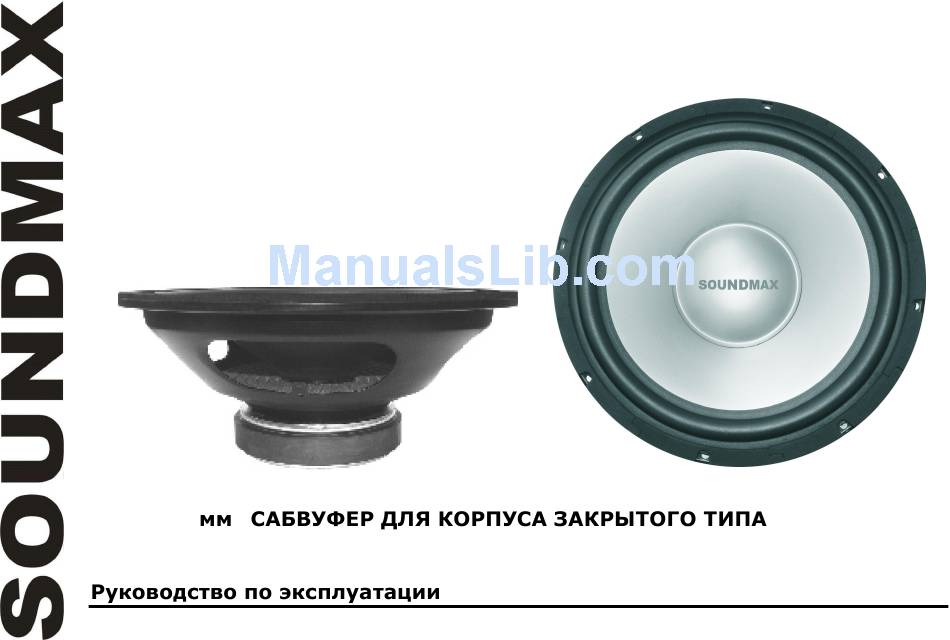

- Page 1 SM-CSP10 10” SUBWOOFER FOR SEALED TYPE BOX 10” (254 Instruction manual...
-
Page 2: Important Safeguards
Description SM-CSP10 Polypropylene cone Rubber edge Steel stamped basket Antiresonance covering Important safeguards The owner’s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. Do not install the subwoofer where it may be subjected to excessive heat moisture, dust or where it will be kicked repeatedly, brushed or bumped. -
Page 3: Mounting The Subwoofer
Mounting the subwoofer How to install Connect the speaker to the speaker cords. Be sure to connect corresponding terminals i.e. “Left” to “left”, “-” to “-”, etc. install the speaker in the trunk (behind the rear seat), use an audio board corresponding to the size of trunk. - Page 4 If unit fails to operate properly Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION No sound The volume control regulator set Adjust sound level in the minimal position The audio cassette receiver is...
-
Page 5: Specification
Specification Loudspeaker one woofer: 254 (10”) Polypropylene cone Magnet 29.4 Oz Max output power 250 W RMS output power 80 W Sealed box volume 26 l Impedance 4 Ohm Sensitivity 88 dB Frequency response 40 Hz – 1000 Hz Dimensions (L x H x W) 300 x 155 x 300 mm Weight 3.2 kg... - Page 6 SM-CSP10...
- Page 7 12-15...
- Page 9 : 254 (10”) 29.4 (0,8 40 - 1000 300 x 155 x 300...
