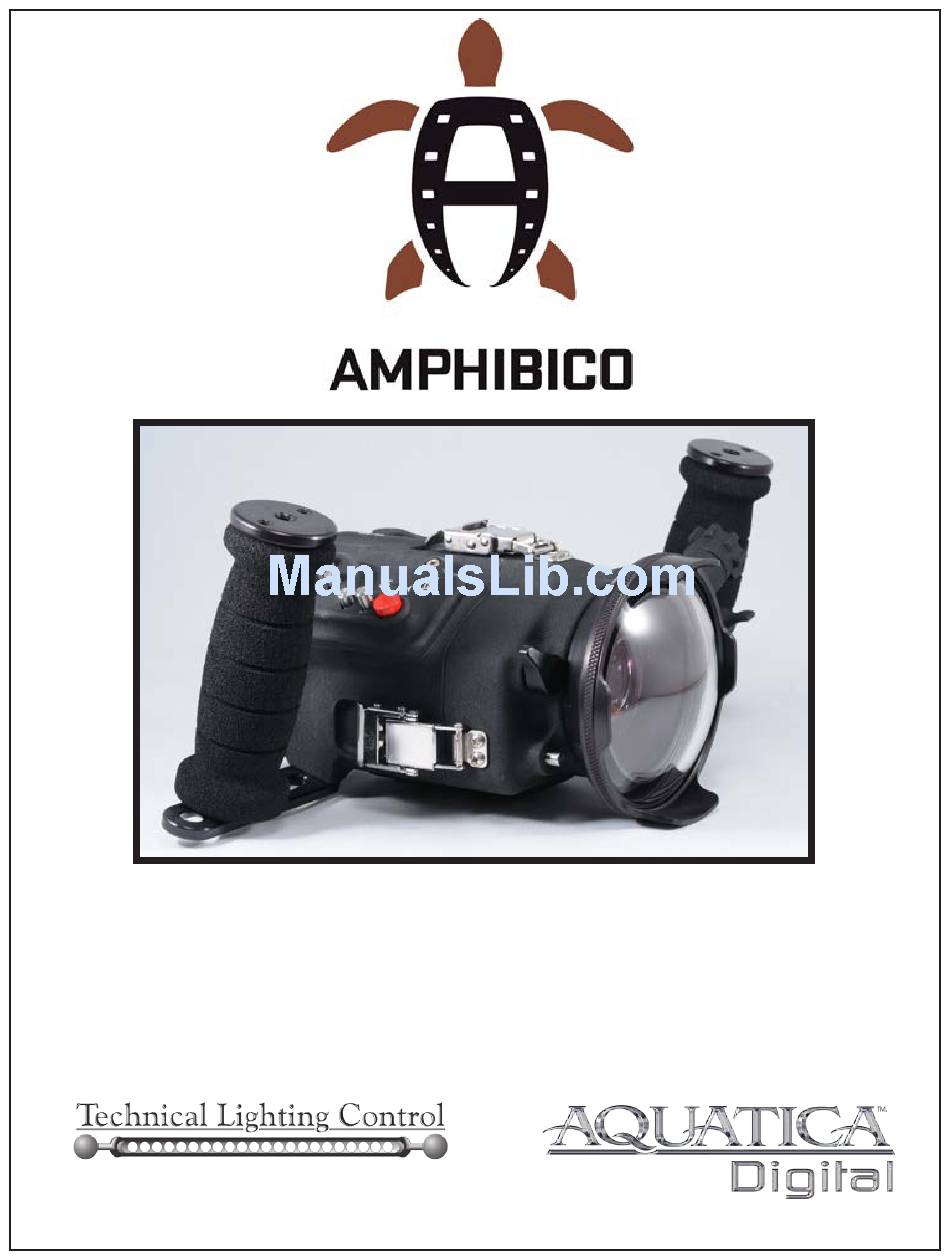

- Page 1 AMPHIBICO WAVE HOUSING OPERATING MANUAL (FOR THE FOR THE SONY HDR-CX/PJ 710, 730, 740 & 760 CAMCORDERS) PRODUCT # WAVH0760...
-
Page 2: Safety Precautions
Thank you for having selected the AMPHIBICO Digital HD Video Housing System for your underwater videography. The AMPHIBICO Digital HD Video Housing is the result of a long and continuing relationship with the most demanding underwa¬ter videographers in the world. Each housing is handcrafted, quality checked and pressure tested to a 300 feet equivalent by a small group of specially trained individuals, each of whom takes the utmost pride and satisfaction in offering the best underwater video housing in the world. - Page 3 Power ON/OFF control knob Remote Control Cover Focus Exp. AE shift & WB shift knob Focus Exp., AE shift & WB shift trigger Housing four point bayonet mount Color Correction filter Flip filter lever Port release push button Hydrophone Latches (x 3) Grips handles (x 2) Grip’s Accessories mounting holes (1/4”-20) Grips mounting brackets...
- Page 4 1. POWER ON/OFF KNOB: Rotate to turn camcorder ON or OFF 2. REMOTE CONTROL COVER: This cover need to be removed, the camcorder remote control installed in position and the cover installed back in position, (please see remote control section and the O-ring maintenance section for further details). 3.
-
Page 5: Preparation Of The Housing
FEATURES The Amphibico Digital HD WAVE housing series is issued from the world’s most technologically advanced underwater housing lineage, ergonomically designed to place all the essential camcorder controls under your finger tips and features the following: A. Bayonet mounted lens system B. - Page 6 PREPARATION OF THE HOUSING 1) Opening the housing: Three stainless steel safety latches hold securely the front and rear of the housing. They have a positive locking mechanism, so to open them you must first depress the metal tab in the center of latch while pulling on the rear of latch lever. Once both housing sections are separated, remove the camcorder saddle from rear portion of housing.
- Page 7 The Amphibico Digital HD Video Housing System features a locking bayonet mount. To mount the lens port ring simply: A. Place the housing on a flat steady surface.
-
Page 8: Using The Housing
TRANSPORTING THE AMPHIBICO HOUSING Store the Amphibico Digital HD Video housing in a sturdy, shock proof container. When travelling by air, remove or loosen the port. This allows for equalization of the air pressure inside the housing to the external air pressure. Failure to do so may cause serious damage to the lens port. - Page 9 Of the Latches: The three latches of the Amphibico Pro Digital are designed to have a locking action to prevent accidental opening. Always ensure that the locking mechanism is secure. Watch for the build-up of corrosion or salt residue around the latches. This will appear as a white material.
-
Page 10: Warranty
- each of whom takes the most pride and satisfaction in offering you the best underwater camera housings in the world. All Amphibico products are guaranteed against defects in material or workmanship for 2 full years from the date of purchase for consumer use.
