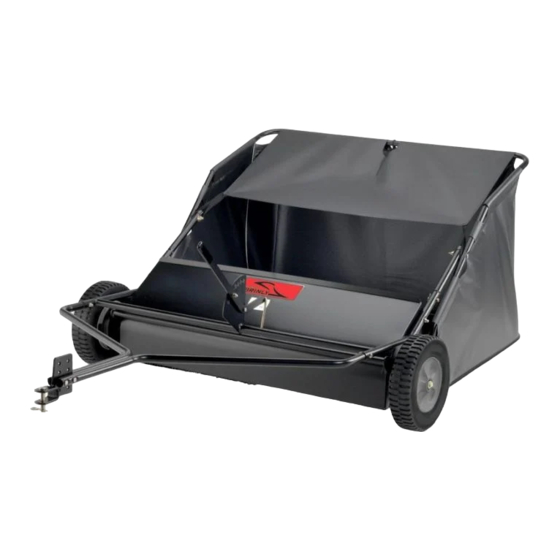

Brinly STS-42 LXH Owner's Manual
  1. Manuals
  2. Brands
  3. Brinly Manuals
  4. Lawn Sweeper
  5. STS-42 LXH
  6. Owner's manual

Brinly STS-42 LXH Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

O W N E R ' S M A N U A L
L A W N S W E E P E R
S W E E P E R MO DEL :
ST S-42 LX H
US PATENT 6,640,532
Assembly
Installation
Operation

Repair Parts

For use with Riders
and Lawn/Garden Tractors
For the latest product updates and setup tips:
Visit us on the web!
www.brinly.com
Important: This manual contains information for the safety of
persons and property. Read it carefully before assembly and
operation of the equipment!
L-1789E-F

Advertisement

Table of Contents
loading

Related Manuals for Brinly STS-42 LXH

Summary of Contents for Brinly STS-42 LXH

  • Page 1: Repair Parts

    Lawn/Garden Tractors For the latest product updates and setup tips: Visit us on the web! Important: This manual contains information for the safety of www.brinly.com persons and property. Read it carefully before assembly and operation of the equipment! L-1789E-F...

  • Page 2: Table Of Contents

    CONGRATULATIONS on your the purchase pf your new Brinly-Hardy Lawn Sweeper! Your lawn sweeper is designed, engineered and manufactured to give you the best possible dependability and performance. CUSTOMER RESPONSIBILITIES Please read and retain this manual. The instructions enables you to assemble and maintain your lawn roller properly.

  • Page 3: Safety

    TOWING SAFELY TO HELP PREVENT BODILY INJURY DUE TO LOSS OF STABILITY OR CONTROL. Stopping distance increases with speed and weight of towed load. Travel slowly and allow extra time and distance Do not exceed maximum towing capacity of towing vehicle to stop.

  • Page 4: Parts Reference

    PARTS REFERENCE Tools Required for Assembly: 1/2” Wrench (2) 9/16” Wrench (2) Pliers Safety Glasses Gloves L-1789E-F...

  • Page 5: Parts List

    PARTS LIST DESCRIPTION QTY. REF. NO. PART NO. R-2251-10 Hitch Clevis Assembly R-2254-10 Tow Tube Lift Handle R-2270-10 R-1946 Instruction Decal B-5924 Logo Decal 11M0808P Carriage Bolt, ¼" x ½" Hex Bolt, 5/16" x ¾" 2M1012P Hex Lock Nut, ¼" B-1673P B-4786 Nylon Insert Lock Nut, 5/16"...
  • Page 6 Step 1. 5/16" Nylon Lock Nut Qty. 4 5/16" x 1-1/2", Carriage Bolt Qty. 4 a) Attach Upper Frame Assembly(35) to Brush Housing Assembly(31). b) Assemble Lift Link(14) as shown. Step 2 5/16" Hex Nut Qty. 1 Lock Pin Qty. 1 5/16"...

  • Page 7: Assembly

    Step 2a 5/16" Nylon Lock Nut Qty. 1 5/16" x 1-3/4", Hex Bolt Qty. 1 5/16" Flat Washer Spring Qty. 2 Qty. 1 c) Complete the assembly by adding a) Assemble Lift Handle(3) to Lift Link(14). the spring, washer and locknut. b) Install hex bolts (38) as shown.
  • Page 8 Step 4. ATTACHING CLEVIS Attach the Hitch Clevis Assembly(1) to the Tow Tubes (2), as shown. a) Install Hex Bolts (63) through Tow Tubes (2) and Hitch Clevis Assembly (1), as shown b) Install Lock Nuts (9) to Hex Bolts. Tighten loosely. 5/16"...
  • Page 9 T O P E D G E O F P A G E Step 5. PATENT NO. US 6,640,532 B1 11" 10" Manual Hitch Clevis Assembly 9" 11" TOP EDGE OF PAGE 10" 9" 8" 7" 6" 8" NOTE: Step 4 is for attaching the Hitch Clevis Assembly (1) to the TowTubes(2), When complete, the tow tubes(2) will be approximately level with the pavement: a) Using this page, set the manual on the floor and...
  • Page 10 Step 6. a) Install hex nuts to hamper stop rod(54). b) Assemble rear tube(53) with holes up to lower tube(52). c) Install hamper stop rod(54) to lower tube(52). 3/8" Hex Nut Qty. 2 Step 7. a) Lower the assembly in Step 6 into the bottom of hamper(55).
  • Page 11 Step 8. a) Locate and align the holes in the upper rear tube (53) with the side tubes (56). Locate and align the holes in the lower rear tube (53) with the bottom tube (52). b) Stand in the bottom of the hopper. Insert the end of the spring rod (58) into the lower holes aligned in step a.

  • Page 12: Operation

    Step 10. Hairpin Cotter, .08 x 1-3/16" Qty. 2 Clevis Pin, 5/16" x 2" a) The windscreen can be allowed to hang vertically in the back of the hamper or can be Qty. 2 attached as shown. Thread the elastic loops over the washer as shown, or the loops can be placed between the hamper mount tube (57) and the side tubes (56).
  • Page 13 The following maximum loaded weight capacity is the average LEVELING HAMPER weight of the sweeper plus the weight loaded in the hamper. After the brush height has been set, the tow tubes may require adjustment Model Weight Capacity to level the tow tubes to the ground. This can be accomplished by removing the clevis and adjusting the clevis up or down, (refer to step 5) After the tow STS-42 LX H 87 lbs dry...
  • Page 14 The hamper pull rope (50) can be routed to the tow vehicle operator’s area FREQUENTLY ASKED QUESTIONS and temporarily secured. The operator can then empty the hamper while seated in the operating position. Sweeper does not pick up: To empty hamper: 1.

  • Page 15: Service

    SERVICE Do not allow material to remain in the hamper for extended periods of SPECIFICATIONS time. Clean the hamper using a water hose and allow to dry prior to storage. Maximum Towing Speed........5 mph Check all moving parts for wear and freedom of movement. Hamper Capacity..........20 cu.ft.
  • Page 16 MANUFACTURER’S LIMITED WARRANTY Pull Behind Accessories The provisions as set forth in this warranty provide the The limited warranty set forth below is given by Brinly-Hardy Company with respect to new merchandise purchased and sole and exclusive remedy arising from the sale.
