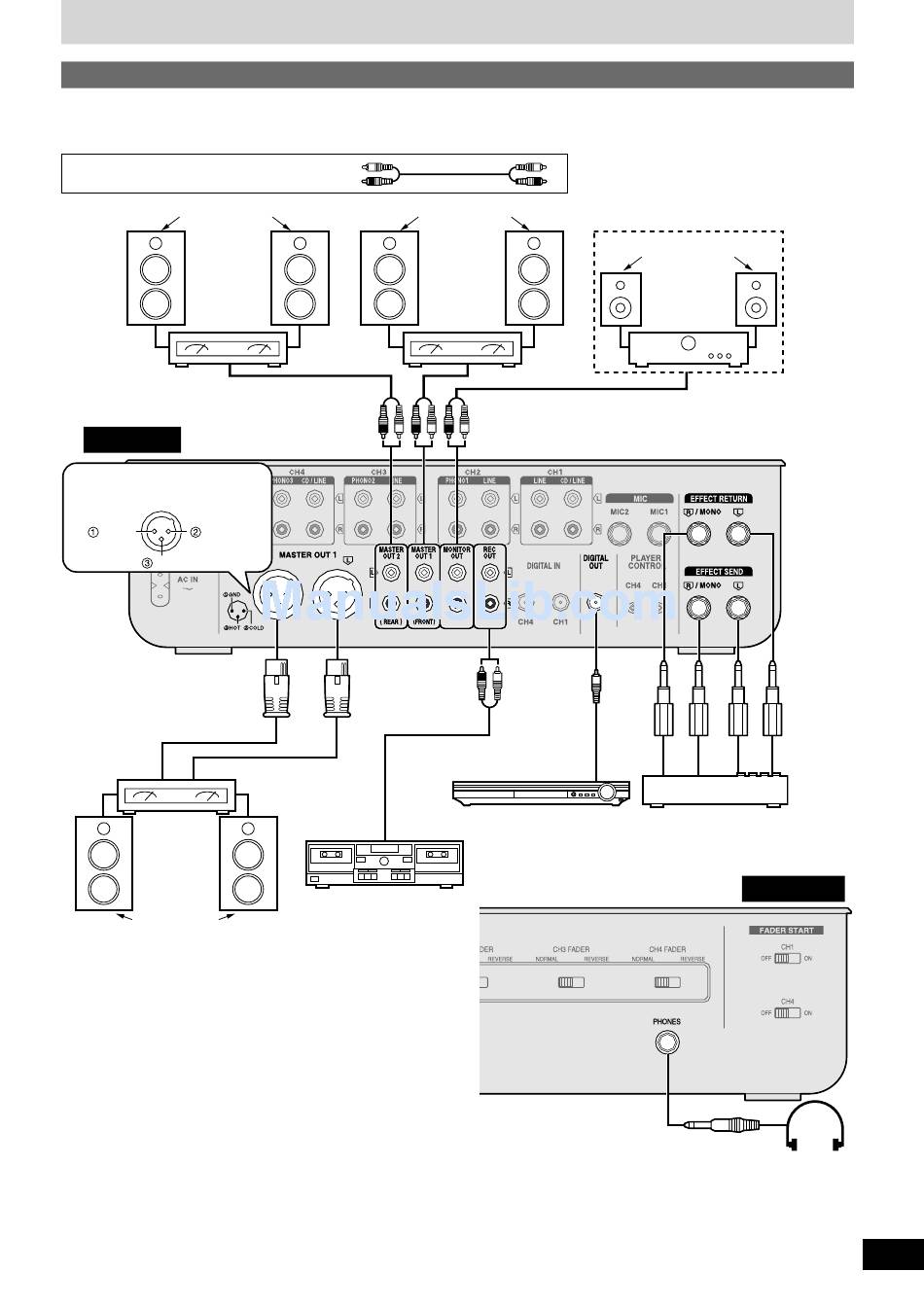

Connections

Output side connections

Connect the various equipment to the DJ mixer using stereo phono cables, connection cables and appropriate cables (Each sold separately).
When connecting, make sure to turn all equipment power off.
Stereo phono cables
Speakers
(Not included)
Amplifier
(Not included)
Rear panel
Connect when using an amplifier that
has XLR terminals. Terminal polarity is
indicated in the diagram below.
Ground
Cold (–)
Hot (+)
Amplifier
(Not included)
(XLR terminal
compatible)
Speakers
(Not included)
When using a monaural input effector
•Connect to the R/MONO terminal.
•The mixed left (L) and right (R) signal is output to the effector, and the left (L) and right (R) signal from the effector is input.
When listening with headphones
•Turn down the volume using the MONITOR LEVEL control knob before connecting.
•Avoid listening for prolonged periods of time to prevent hearing damage.
White (L)
Red (R)
Speakers
(Not included)
Amplifier
(Not included)
Cassette deck (Not included)
(Not included)
Monitor amplifier
(Not included)
Connection
cable
(Not included)
Type:
RCA coaxial
AV Control Receiver
Effector (Not included)
(Not included)
Connect if you want to use an
external effector or sampler etc.
to adjust the sound.
Speakers
Type:
6.3 mm
monaural
Front panel
Type:
6.3 mm stereo
Headphone
(Not included)
7
RQT7231
