Universal 79130 Owner's Manual

Gym equipment
Hide thumbs

Advertisement

Quick Links

Download this manual

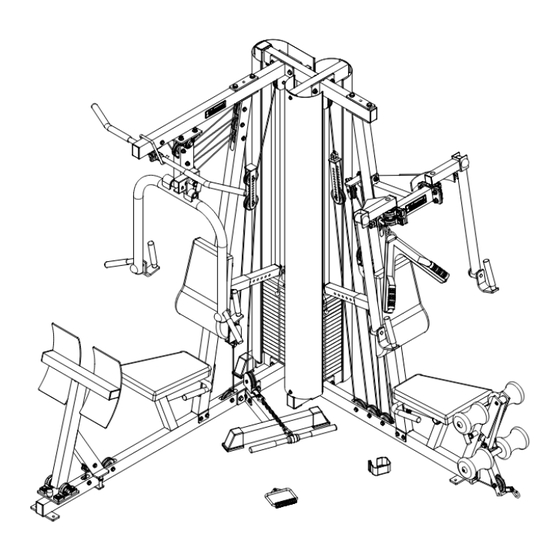

OWNER'S MANUAL
Model No. 79130
Serial Number:
Date of Purchase:
Place of Purchase:
Revised 2.8.04

Advertisement

loading

Related Manuals for Universal 79130

Summary of Contents for Universal 79130

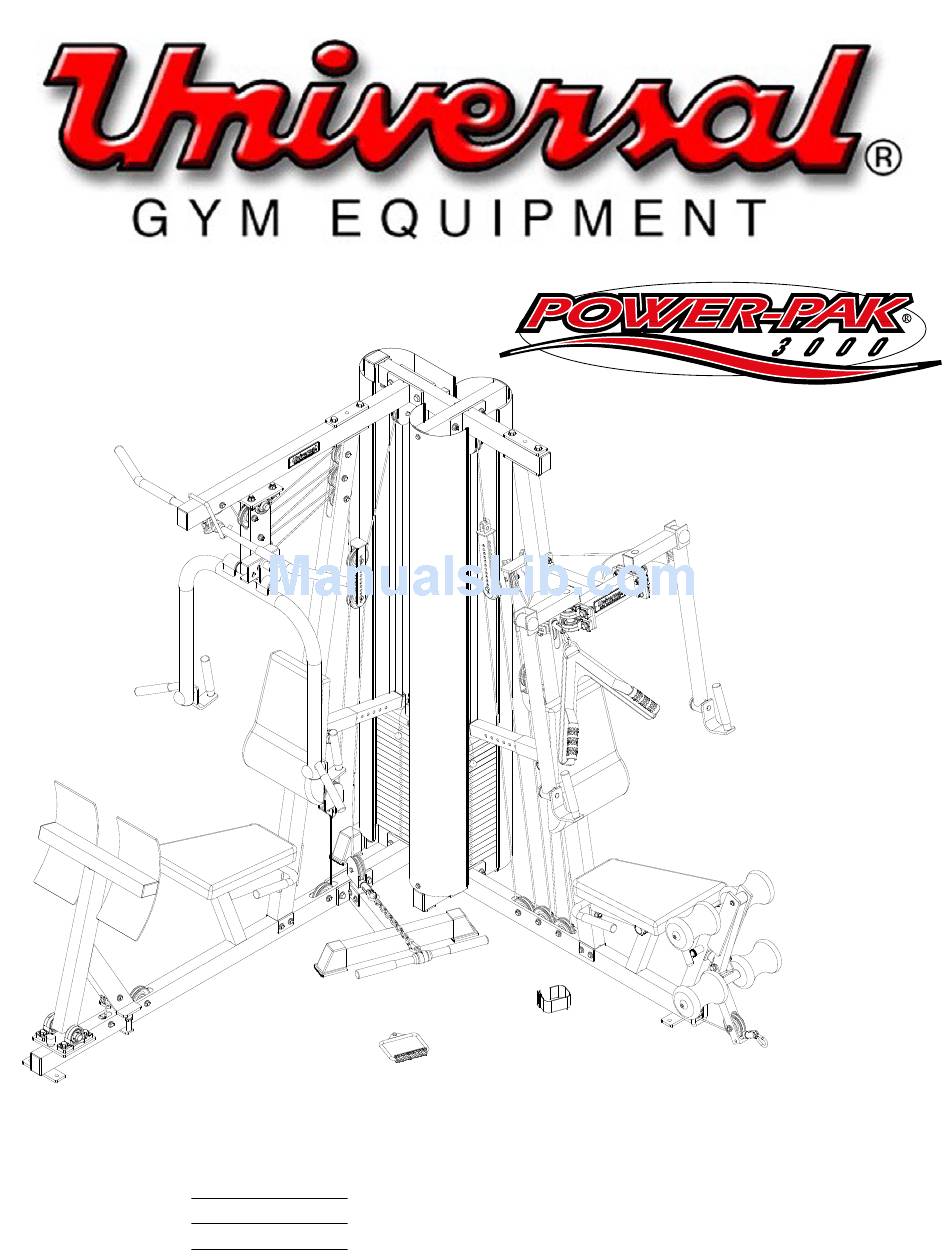

  • Page 1 OWNER’S MANUAL Model No. 79130 Serial Number: Date of Purchase: Place of Purchase: Revised 2.8.04...
  • Page 2 It can actually transform our body composition by reducing body fat and increasing the proportion of lean muscle in our bodies. Be sure to read through this owner’s manual carefully. It is the authoritative source of information about your Universal Gym Equipment PowerPak 3000.

  • Page 3: Important Safety Instructions

    Wipe cushions clean after each workout. Tighten hardware once every six months. KEEP THESE INSTRUCTIONS Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
  • Page 4 NAME, MAILING ADDRESS AND TELEPHONE NUMBER DATE OF PURCHASE WHERE PRODUCT WAS PURCHASED (NAME OF RETAIL STORE, CITY) MODEL NUMBER (79130) PART ORDER NUMBER AND DESCRIPTION All details depicted in this owner’s manual, and of the product itself, are subject to change without notice.

  • Page 5: Parts List

    Snap Hook 05381 Marque Universal 05452 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 6 5/16 x 1/4 Inner Hex Head Bolt 05491 1" Spacer 05492 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp.
  • Page 7 BLANK PAGE Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 8 Step 6. Thread ADJUSTABLE STOPPERS (80) into PRESS BASE FRAME (2). Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp.
  • Page 9 3” HEX HEAD BOLTS (88), 3/8” WASH- ERS (100) and 3/8” NYLON NUTS FIGURE 2 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
  • Page 10 WEIGHT PLATES (46), in both stacks, 1/2” to left of hole as shown. Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
  • Page 11 FIGURE 3 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 12 Pull out on SPRING KNOB (78) in BACK SUPPORT (26) and insert ADJUSTABLE BACK ARM (20) into BACK SUPPORT and release SPRING KNOB at desired position to lock in place. Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ®...
  • Page 13 FIGURE 4 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 14 Insert RIGHT ANGLE ROLLER HANDLE BARS (19A) into PEC DEC ARMS (14) and fasten with 1/2” WASHERS (99), 1/2” NYLON NUTS (103) and 1/2” CAP for NUTS (73). Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ®...
  • Page 15 DETAIL SCREWS FIGURE 5 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 16 Pull out on SPRING KNOB (78) in BACK SUPPORT (26) and insert ADJUSTABLE BACK ARM (20) into BACK SUPPORT and release SPRING KNOB at desired position to lock in place. Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ®...
  • Page 17 DETAIL SCREWS FIGURE 6 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 18 Pull out on LONG POP PIN (79A), swing PRESS ARM (22) to desired position and release POP PIN to lock in place. Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ®...
  • Page 19 DETAIL SCREWS PINS FIGURE 7 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 20 Insert adjustment bolt of TOP CABLE (51) through RING of SELECTOR PIN (48) and thread into SELECTOR ROD Step 82. Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
  • Page 21 ADJUSTMENT BOLT T3,T4,T5,T6 RING FIGURE 8 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 22 Place BALL end of LOWER CABLE (52) in SLOT of bracket on the PRESS UPRIGHT (4). Step 86. Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
  • Page 23 SLOT FIGURE 9 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 24 Place LEG PRESS CABLE (53) in groove of PULLEY (66) and attach at REAR SLOT in PRESS BASE FRAME (2) with 3/8” x 3” HEX HEAD BOLT (88), 3/8” WASHER (100), 3/8” BUSHINGS (76) and 3/8” NYLON NUT (104). Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ®...
  • Page 25 REAR SLOT SLOT FIGURE 10 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 26 Step 96. Insert BALL end of WEIGHT CABLE (54) into SLOT in FLOATING PULLEY BLOCK WITH HOOK (25). Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
  • Page 27 ADJUSTMENT BOLT RING SLOT FIGURE 11 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 28 Insert ball end of PEC DEC CABLE (55) into SLOT of RIGHT PEC DEC CAM (16). Step 101. Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com.
  • Page 29 K1, K5 15 or 16 SLOT FIGURE 12 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 30 (66) and attach to PEC DEC UPRIGHT with 3/8” x 3” HEX HEAD BOLT (88), 3/8” WASHERS (100), 3/8” BUSH- INGS (76) and 3/8” NYLON NUT (105). Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ®...
  • Page 31 FIGURE 13 A2, A3 A5, A7 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 32 If only a slight amount of adjustment is needed thread the cable adjustment bolt into the SELECTION ROD (37) until the slack has been removed and then tighten locking nut against SELECTION ROD. Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ®...
  • Page 33 FIGURE 14 Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 34 If your dealer is unable to help you, please use the following number to contact Universal Gym Equipment about your war- ® ranty claim: 1-800-476-9856 (US) between the hours of 8:00 am and 5:00 pm (CST). Or write to Universal Gym Equipment ®...
  • Page 35 BLANK PAGE Phone 1-800- Please contact Universal Gym Equipment/FFA Corp. for missing or defective parts at one of the following: ® 472-9856 or Fax 1-662-495-5038 or E-mail at customerservice@universalgymequipment.com. Mailing address: Universal Gym Equipment/FFA Corp. - 100 Tubb Ave. West Point, MS 39773.
  • Page 36 We ask that you answer the following questions regarding your Universal Gym Equipment purchase. And as a way of saying thank you for your feedback, we will offer an exclusive Universal Gym Equipment t-shirt to you free of charge.
