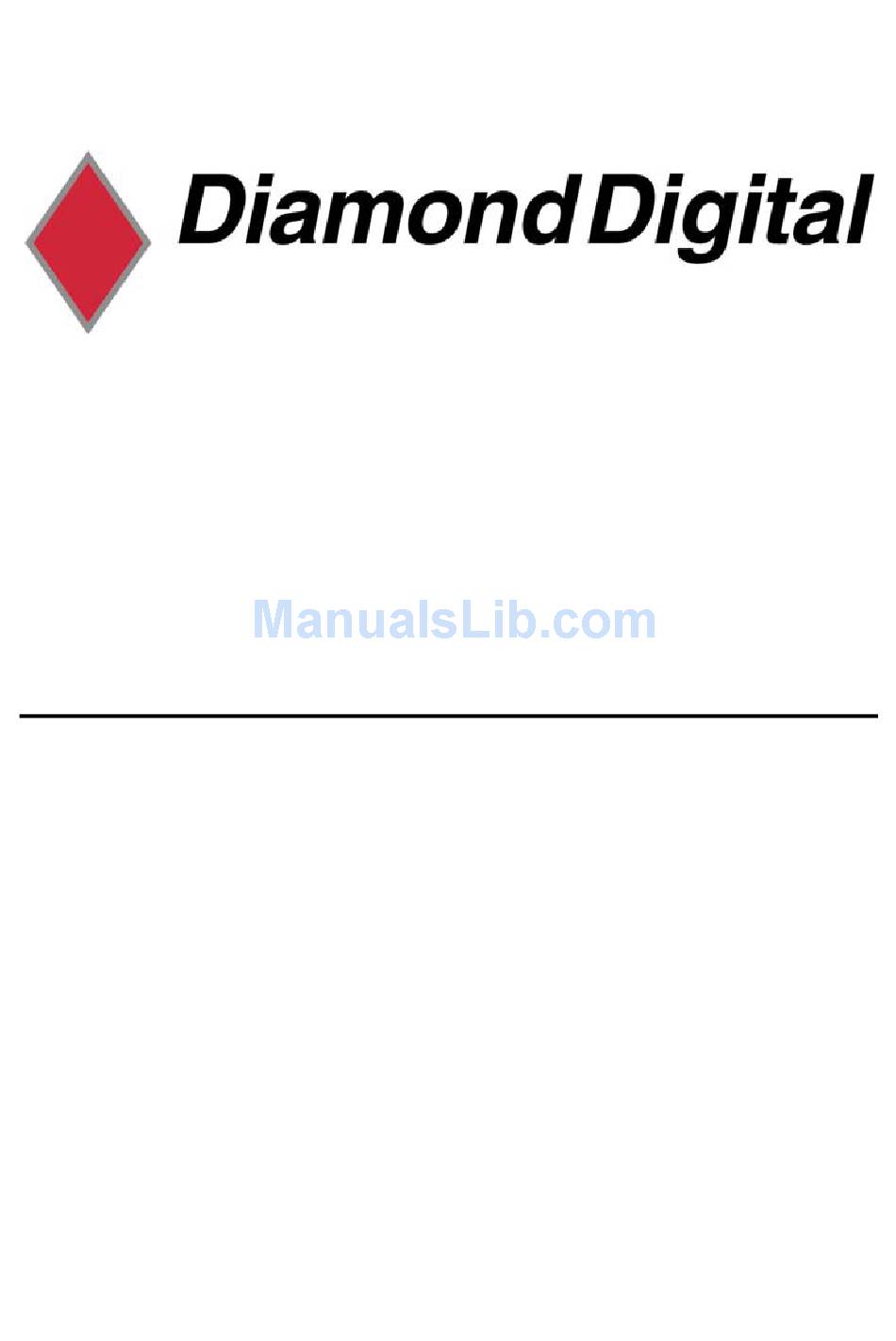

- Page 1 Diamond Digital DV151J/B Colour TFT LCD Monitor 15” (38 cm) LCD Panel Size...
- Page 2 Copyright 2004, Mitsubishi Electric Australia Pty. Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission.
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions ..........1 Features................2 3 Unpacking the Monitor .............3 4 Hardware Installation ............5 5 Windows driver installation ..........8 6 Setting the Display Resolution ........9 Choosing the Best Resolution...........9 Supported Graphics Modes and Refresh Rate Selection 10 7 Adjusting the Monitor.............13 User Controls ..............13 Adjusting the Monitor's Display ........14... -
Page 4: Reference Information
Diamond Digital is a registered trademark of Mitsubishi Electric Australia Pty. Ltd. Microsoft and Windows are registered trademarks of Microsoft Corporation. -
Page 5: Important Safety Instructions
Important Safety Instructions Please read the following safety instructions before installing or cleaning your Diamond Digital monitor: 1. Unplug the monitor’s power cable from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a soft cloth to clean the monitor housing. -
Page 6: Features
(typical) ♦ High Contrast Ratio – 500:1 (typical) ♦ True Colour Display With 16.7M (6bit + FRC) colour, the DV151J/B monitor offers you better image quality. ♦ High Quality Ratiometric Expansion With any resolution within the monitor’s specified range, your Diamond Digital DV151J/B monitor can expand the image to full screen. -
Page 7: Unpacking The Monitor
Unpacking the Monitor Please check that the following items are included with your monitor. If they are missing or damaged, please contact your place of purchase immediately LCD monitor User’s Manual Audio Cable VGA Cable... -
Page 8: Power Cord
Power Cord Locate the model name and the serial number label on the back of your monitor, and write the details of the monitor and your place of purchase in the space on page (ii) of this manual for future reference. -
Page 9: Hardware Installation
Hardware Installation Connecting the Monitor Base Remove the base from the packing box and place it on the desk. Next, remove the LCD display and carefully seat it on the base. (See fig.1-1 ) Figure 1-1 Viewing Angle Adjustment The LCD Monitor is designed to allow users to have a comfortable viewing angle. - Page 10 Connecting the Display to your Computer Using the VGA cable Power off your computer. Connect one end of the VGA signal cable to the LCD Monitor’s VGA port. (See Fig 1-3) Connect the other end of the signal cable to the VGA port on your PC. Figure 1-3 Make sure connections are secure.
- Page 11 Instructions for VESA Mounting To detach the LCD Monitor from its stand, unscrew the two screws for the monitor stand and pull it downwards to remove, then unscrew the two screws for the monitor stand bracket and pull this down to remove. Figure 1-6 Interface for Arm Applications Before installing the mounting device, please...
-
Page 12: Windows Driver Installation
Windows driver Installation The DV151J/B is fully Windows Plug and Play compatible so no specific Windows drivers are required for installation. Windows 98, ME, and 2000 The first time you start Windows after connecting your new monitor, the system will detect the monitor and automatically start the Add New Hardware wizard. -
Page 13: Setting The Display Resolution
LCD. In the case of the DV151J/B the LCD resolution is 1024 x 768 pixels. This is also known as the “native” resolution of the monitor. Lower resolutions can be displayed at full screen through an interpolation circuit. -
Page 14: Supported Graphics Modes And Refresh Rate Selection
Table 1 on the next page. Other graphics signals may be displayed poorly or not at all. Note that the DV151J/B’s preset modes correspond to VESA or Apple Macintosh standard graphics signals for these resolutions. All recent models of graphics adaptors... - Page 15 should be able to support these modes. For the native resolution of 1024 x 768 pixels, for example, refresh rates of 60, 70 and 75 Hertz are supported. With Windows 95, 98, ME, 2000 or XP you can change the refresh rate of the graphics signal as follows: 1.
-
Page 16: Standard Timing Table
Table 1 Standard Timing Table If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing. H. Freq. V. Freq. Pixel Freq. Resolution Mode (KHz) (Hz) (MHz) 640 x 350 31.469 70.087 25.175 VGA-350... -
Page 17: Adjusting The Monitor
Adjusting the Monitor User Controls A brief description and the location of all LCD Monitor function controls and indicators: Figure 2-1 Stereo Speakers PC Audio Stereo output. Speaker Volume Use to adjust the speaker volume (clockwise to increase, Control anti-clockwise to decrease). Power Switch Turns the display on and off. -
Page 18: Adjusting The Monitor's Display
External The monitor speakers will be disabled when using an Headphone Jack external headphone or external speakers. Adjusting the Monitor's Display OSD Function Menu To access the OSD Main menu, simply press one of the Function Select control buttons, and the menu diagram will pop up on the screen as shown on Fig. -
Page 19: Picture Optimisation
OSD V-Position This function moves the OSD menu window up or down. This function is to choose a display that allows maximum graphics text quality. The resolution selection can either be 640 x 400 or Graph Text 720 x 400. Please refer to Chapter 3 “ Standard Timing” Table for of different timing modes. -
Page 20: Manual Picture Adjustment
Manual Picture Adjustment Adjustments to the displayed image and audio volume are made using the On-Screen Display (OSD), and the buttons on the front of the monitor. To manually adjust the image: 1. Display your operating system desktop 2. Open the OSD menu by pressing one of the Function keys on the monitor. 3. - Page 21 The procedures described in this chapter should be performed for every resolution and type of graphics signal that you wish to use. For example, if a particular application requires a resolution of 800 x 600 pixels, but all other applications use the monitor’s native resolution, you will need to display the test pattern and make adjustments twice.
-
Page 22: Frequently Asked Questions
Frequently Asked Questions The image is blurred, how can I get the best quality picture? Read chapter 6, Setting the Display Resolution, and select a graphics ♦ signal with the correct resolution and refresh rate. Then read chapter 7, Adjusting the Monitor, and make adjustments to the displayed image based on these instructions. - Page 23 No image is displayed, what can I do? Check that the light (LED) next to the monitor’s power button is lit and is ♦ green in colour. If the LED is green, press one of the Function Select buttons on the monitor to access the On Screen Display. If the message NON PRESET MODE appears there, please read chapter 6, Setting the Display Resolution and reset the graphics card to one of the monitor’s supported graphics signals.
-
Page 24: Specifications
Specifications Diamond Digital DV151J/B Model: Display Characteristics Display Type 15“ active matrix Thin Film Transistor Liquid Crystal Display Viewable Diagonal Area 38 cm / 15” Native (Maximum) Resolution 1024 x 768 pixels Colours 16 million (6 bit + FRC) Contrast Ratio... - Page 25 Input Signal Line Frequency 24 – 61kHz multi-frequency Image Frequency (Refresh Rate) 55 - 75Hz Video Signal RGB analogue (Positive polarity) 0.7 Vpp/75 Ohm Synchronization Separate TTL, composite TTL Signal Connection 15-pin mini D-sub Physical Characteristics Power Management VESA DPMS, Energy Star Maximum Power Consumption 30 Watts Power Saving Mode...
-
Page 26: Service Contacts
Service Contacts If problems remain after checking this manual, please contact your place of purchase or contact: Australian Service Contacts Visit the Customer Support section of Mitsubishi Electric Australia’s web site at www.mitsubishielectric.com.au for details of your nearest Mitsubishi Electric Authorized Service Center or contact the Service Department for your state: New South Wales and Australian Capital Territory 348 Victoria Road... -
Page 27: New Zealand
Victoria and Tasmania 4 / 303 Burwood Hwy East Burwood, VIC, 3151 Telephone: (03) 9262-9899 Fax: (03) 9262-9850 Western Australia 5 / 329 Collier Road Bassendean, WA, 6054 Telephone: (08) 9377-3411 Fax: (08) 9377-3499 New Zealand Contact: BDT New Zealand Ltd. 1 Parliament St.
