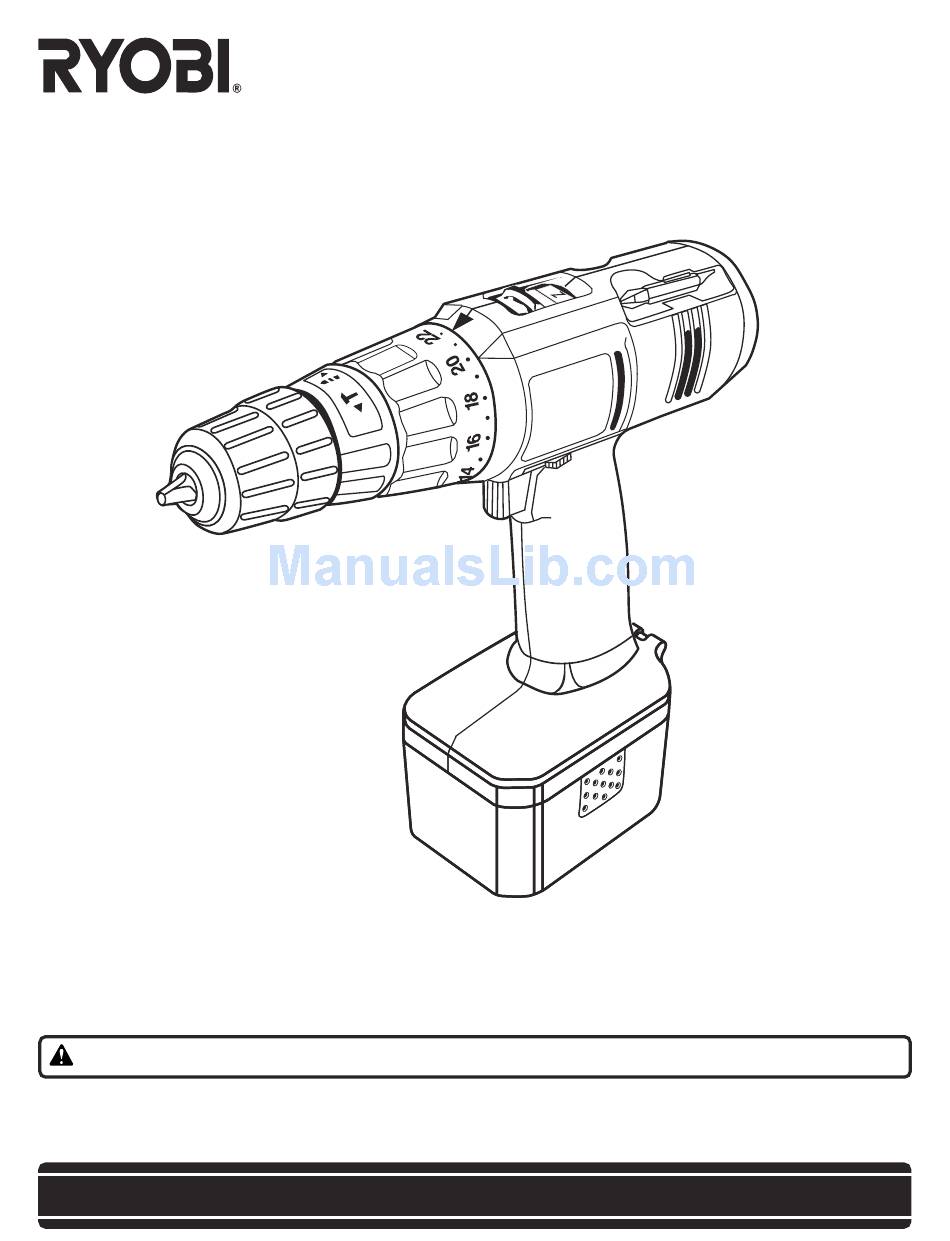

THANK YOU FOR BUYING A RYOBI CORDLESS IMPACT DRILL-DRIVER.
Your new cordless impact drill-driver has been engineered and manufactured to Ryobi's high standard for dependability, ease of
Operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
CAUTION: Carefully read through this entire operator's manual before using your new cordless impact drill-driver .
Pay close attention to the Rules for Safe Operation, Warnings, and Cautions. If you use your cordless impact drill-driver properly
and only for what it is intended, you will enjoy years of safe, reliable service.
Thank you again for buying Ryobi tools.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
CORDLESS IMPACT DRILL-DRIVER
MODEL NO. CID1442P/CID1802P
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ryobi CID1442P
Summary of Contents for Ryobi CID1442P
- Page 1 THANK YOU FOR BUYING A RYOBI CORDLESS IMPACT DRILL-DRIVER. Your new cordless impact drill-driver has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
- Page 2 Use battery only with charger listed. MODEL BATTERY CHARGING ASSEMBLY/CHARGER CID1442P 1311166 1426804 1310918 2601038 CID1802P Use battery operated tool only with specifically designated battery pack.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES Tool Use and Care I Use clamps or other practical way to secure and I Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting support the workpiece to a stable platform. Holding edges are less likely to bind and are easier to control. - Page 4 SPECIFIC SAFETY RULES AND/OR SYMBOLS ■ Do not operate charger with a damaged cord or plug. Important Safety Instructions For Charger If damaged, have replaced immediately by a quali- ■ Save these instructions. This manual contains im- fied serviceman. Following this rule will reduce the risk portant safety and operating instructions for charger.
- Page 5 WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, • crystalline silica from bricks and cement and other masonry products, and •...
- Page 6 Ryobi Note: This situation occurs when continuous use of your Authorized Service Center for electrical check.
- Page 7 OPERATION MODEL CID1442P KNOW YOUR IMPACT DRILL-DRIVER See Figure 1. Before attempting to use any tool, familiarize yourself with all operating features and safety requirements. WARNING: Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury.
- Page 8 OPERATION MODEL CID1802P LED FUNCTION OF CHARGER 2601038 See Figure 2.. LED WILL BE LIGHTED TO INDICATE STATUS OF CHARGER AND BATTERY PACK: Red LED lighted = Fast Charging Mode Green LED lighted = Fully Charged Battery Pack Yellow and Green LED Lighted = Control Charge or Defective Battery Pack.
- Page 9 OPERATION WARNING: If any parts are missing, do not operate tool until the missing parts are replaced. Failure to do so could result in possible serious personal injury. SWITCH See Figure 3. Your drill starts and stops by depressing and releasing the switch trigger.
- Page 10 OPERATION REVERSIBLE See Figure 3. This tool is reversible. The direction of rotation is controlled by a selector located above the switch trigger. With the drill held in normal operating position, the direction of rotation selector should be positioned to the left of the switch for drilling.
- Page 11 9a. IMPACT ACTION See Figure 9b. The drilling action on models CID1442P and CID1802P can be altered to hammer action mode for drill masonry by turning the mode dial located at the front of the torque control mechanism.
- Page 12 OPERATION WARNING: Always wear safety goggles or safety glasses with side shields when operating tool. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. DRILLING See Figure 10. When drilling hard, smooth surfaces, use a center punch to mark the desired hole location.
- Page 13 OPERATION CHUCK REMOVAL See Figures 11, 12, and 13. I Lock the switch trigger by placing the direction of rotation selector in center position. See Figure 3. I Insert a 5/16 inch or larger hex key wrench into the chuck of your drill and tighten the chuck jaws securely.
- Page 14 DO NOT ABUSE POWER TOOLS. Abusive practices can WARNING: damage the tool, as well as the work piece. When servicing use only identical Ryobi replacement WARNING: parts. Use of any other parts may create a hazard or cause product damage.
- Page 15 RYOBI NEW ZEALAND PTY. LTD. AUCKLAND: 503 Mt Wellington Highway, Mt Wellington, N.Z. Tel: (09) 573 0230 - Free Call: 0800 279 624 - Fax: (09) 573 0231 - Email: info@ryobi.co.nz Contact during normal business hours. This Guarantee Form Should Be Retained By The Customer At All Times For your record and to assist in establishing date of purchase (necessary for in-guarantee service) please keep your purchase docket and this form completed with the following particulars.
