Page 1: Table Of Contents
4.5 What to do if... 5 Installation 5.1 Electrical connection 5.2 Positioning We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com...
Page 2: Instructions
Instructions 1 Instructions • Do not try to repair the appliance yourself or without the intervention of 1.1 General safety instructions a qualified technician. • If the power supply cable is Risk of personal injury damaged, contact technical support • Never touch the heating elements immediately and they will replace it.
Page 3: Manufacturer Liability
Instructions For this appliance 1.4 Disposal This appliance must be disposed of • Ensure that the appliance is switched off separately from other waste before replacing the bulb. (Directives 2002/95/EC, 2002/ • Do not rest any weight or sit on the open 96/EC, 2003/108/EC).
Page 4: Identification Plate
Instructions 1.7 How to read the user manual Our appliances are packed in non- polluting and recyclable materials. This user manual uses the following reading • Consign the packing materials to the conventions: appropriate selective collection centres. Instructions Plastic packaging General information on this user Danger of suffocation manual, on safety and final...
Page 5: Description

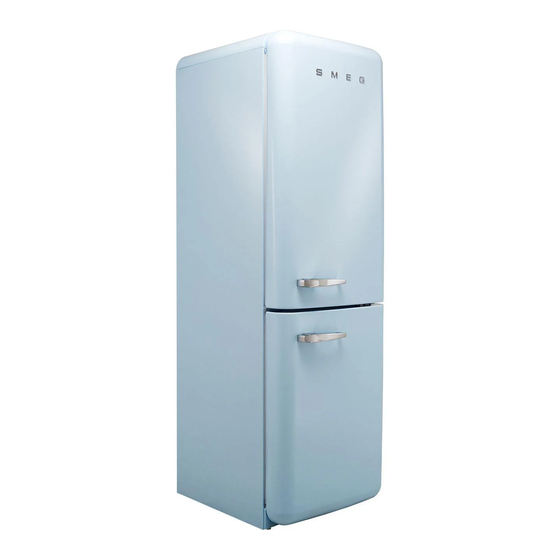

Description 2 Description 2.1 General Description 1 Control panel 5 Defrost water outlet 2 Oven light 6 Freezer compartment 3 Fan 7 Fridge door 4 Refrigerator compartment 8 Freezer door 2.2 Parts definition Control panel Interior lighting For setting the temperature inside the The interior of the appliance is lit when the refrigerator and freezer compartments.

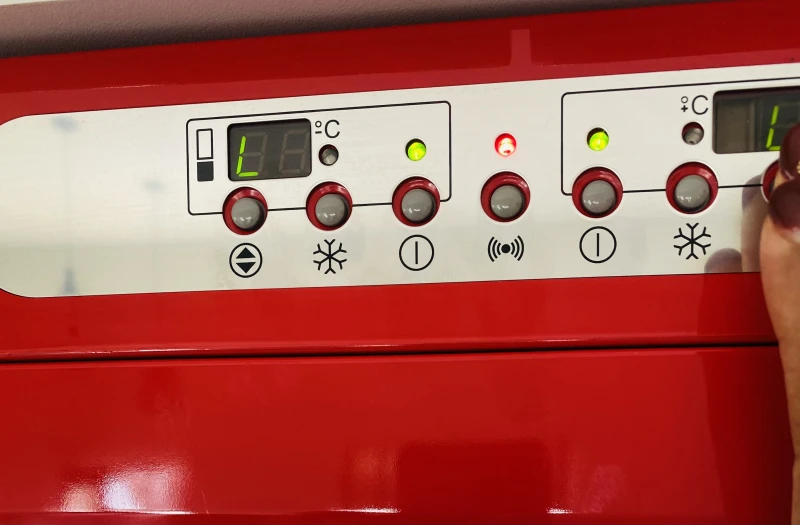

Page 6: Control Panel
Description Freezer compartment Distributes the temperature and reduces For storing frozen foods, freezing fresh condensation on the shelves and other foods and producing ice cubes. surfaces. Defrost water outlet (static models only) At the back of the fridge compartment, under the refrigeration plate, there is a groove and a hole for collecting the water from defrosting.
Page 7: Available Accessories
Description 2.4 Available accessories Fruit and vegetable drawer Some models are not provided with all accessories. Shelves For storing fruit and vegetables, maintaining a constant humidity level. Freezer drawers For optimising fridge space and placing foodstuffs inside the refrigerator compartment. Bottle rack For storing frozen foods and foods to be frozen.
Page 8 Description Door balconies and shelves Egg holder Useful for storing eggs, this can be positioned in various balconies and shelves in the freezer door, according to requirements. Ice tray For storing foodstuffs in small containers. For producing ice cubes; to be placed in The shelf in the lower part of the door is the freezer compartment.
Page 9: Use
3 Use 3.3 First use The fridge temperature can be set 3.1 Instructions between +1°C and +9°C. Improper use The freezer temperature can be set Risk of damages to the appliance between -16°C and -24°C. 1. Plug the appliance into a wall socket. •...
Page 10: Alarm
4. Use the corresponding temperature • If the freezer compartment does not reach the required temperature within 24 buttons to set the temperatures of the hours of the alarm being turned off, it will fridge and freezer. The desired sound again. temperature will flash on the display.
Page 11: Using The Accessories
3.4 Using the accessories Door balconies and shelves Suitable for storing eggs, butter, dairy Shelves products, conserves and other small food These can be positioned at different heights packages/containers. The lower part of the on the guides according to requirements. door has a shelf for bottles.
Page 12 Fruit and vegetable drawer Freezer drawers Located at the bottom of the refrigerator For storing frozen foods and foods to be compartment, which is fitted with a glass frozen. To remove them, pull them towards shelf to cover fresh foods that require you and lift the front part of each drawer.
Page 13: Using The Refrigerator Compartment
3.5 Using the refrigerator Super Cool Fridge Function compartment The Super Cool fridge function is Arranging foods used for quick cooling of large quantities of foodstuffs Arrange the foods on the various shelves, taking care that they have an airtight 1.
Page 14: Using The Freezer Compartment
3.6 Using the freezer compartment Frozen foods storage life table Activate the Super Freeze freezer function Foodstuff Time 24 hours before freezing fresh foodstuffs. Super Freeze Freezer Function Fruit, beef max 10-12 months The Super Freeze freezer function is used for quick freezing of large vegetables, veal, poultry max 8-10 months quantities of foodstuffs...
Page 15: Noises During Operation
3.7 Noises during operation 3.8 Heated front surface The refrigerator and freezer compartments There is a front surface heating system are cooled by means of a compression inside the cabinet to limit the formation of system. In order to maintain the preset condensation around the door seal.
Page 16: Food Storage Advice
3.10 Food storage advice Refrigerator compartment • Keep conserves, wine, biscuits etc. in the Practical energy saving advice upper part. • Correct use of the appliance, correct • Keep dairy products, ready meals, packaging of foodstuffs, a constant pastries, fruit juices, beer etc. in the temperature and food hygiene have central part.
Page 17: Cleaning And Maintenance
Cleaning and maintenance 4 Cleaning and maintenance 4.2 Cleaning the appliance A special antibacterial protection on the 4.1 Instructions appliance's interior walls prevents bacterial growth and keeps them clean. They must Improper use nevertheless be cleaned regularly in order Risk of damage to surfaces to keep them in good condition.
Page 18: Defrosting
Cleaning and maintenance 4.3 Defrosting Defrosting the freezer compartment The freezer compartment must be defrosted No-Frost models perform this when the thickness of the ice inside reaches procedure automatically. 3-5 mm. Occasional presence of frost • Place a container on the floor in front of inside the freezer compartment is the freezer compartment.
Page 19: Replacing The Lamp
Cleaning and maintenance 4.4 Replacing the lamp 4.5 What to do if... 1. Remove the bulb cover using a tool (e.g. The appliance does not work: a screwdriver). • Make sure that the appliance is plugged in and that the main switch is turned on. The compressor starts to function too often or functions continuously: •...
Page 20 Cleaning and maintenance The refrigerator compartment is not Excessive ice has built up inside the freezer sufficiently cold: compartment: • The thermostat is set at too high a • The thermostat is set at too low a temperature. temperature. • The door is being opened too often or •...
Page 21: Installation
Installation 5 Installation 5.2 Positioning Heavy appliance 5.1 Electrical connection Danger of crush injuries Power voltage Danger of electrocution • Position the appliance with the aid of a second person. • The appliance must be connected to earth in compliance with electrical Pressure on the open door system safety standards.
Page 22 Installation Choice of location to the top of the condenser. Always install the refrigerator in a dry place with satisfactory ventilation. Depending on its climate class (stated on the nameplate inside the refrigerator compartment), the appliance can be used in different temperature conditions.
