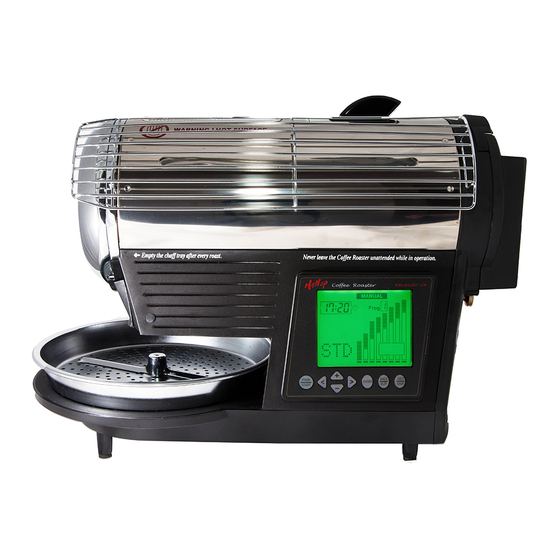

Coffee roaster
Hide thumbs Also See for KN-8828:
Table of Contents

Advertisement

Quick Links

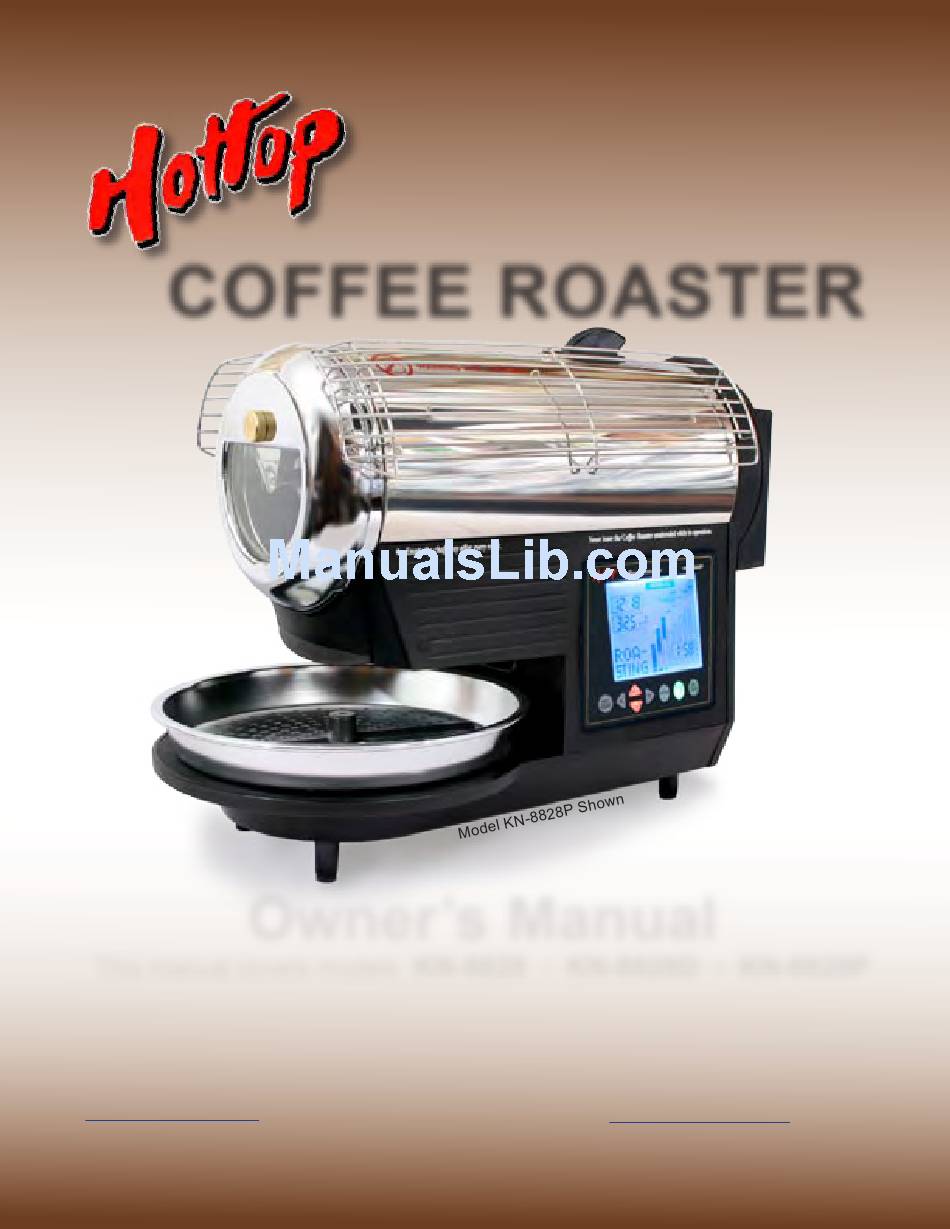

COFFEE ROASTER
Owner's Manual
This manual covers models
Manufactured by Chang Yue Industrial Corp.®
No. 170, Chung Lun, Chung Sha Tsun, An Ding Shian
Tainan, Taiwan
Tel: 886-6-593-2311 Fax: 886-6-593-4834
www.hottop.com.tw
Email: hottop@ms12.hinet.net
Includes Preliminary Information for KN-8828P
Programmable Model
Information subject to change without notice
KN-8828 - KN-8828D - KN-8828P
REV. 1007-31-A
March 8, 2007
Hottop USA
25 Katelan Court
Cranston, Rhode Island 02921
Fax: (401) 946-0268
www.hottopusa.com
Email: hottop@hottopusa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KN-8828 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hottop KN-8828

Summary of Contents for Hottop KN-8828

  • Page 1 Information subject to change without notice REV. 1007-31-A March 8, 2007 COFFEE ROASTER Owner’s Manual KN-8828 - KN-8828D - KN-8828P This manual covers models Manufactured by Chang Yue Industrial Corp.® Hottop USA No. 170, Chung Lun, Chung Sha Tsun, An Ding Shian...
  • Page 2 WARNING! This device is capable of high temperatures. If used without due caution it can constitute a safety hazard. The outer surface will become hot enough to cause very serious burns and the bean roaster has the potential to ignite flammable materials on or near the roaster.

  • Page 3: Table Of Contents

    The remainder of this manual’s contents pertains to all models except where noted in the text. All information in this manual is ©2007 Chang Yue Industrial Corp.® and Hottop USA. No portion of this manual may be reproduced without the expressed written permission of Chang Yue Industrial Corp.®. Owners of the Hottop Coffee Roaster may reproduce the roasting chart for their personal use only.

  • Page 4: I - Important Safety Precautions

    I - IMPORTANT SAFETY PRECAUTIONS When using this electrical appliance, these safety precautions must always be followed: SAVE THESE INSTRUCTIONS in a safe place and REFER TO THEM OFTEN WARNING: Read and Understand All Instructions, Precautions, Labels and Warnings BEFORE Using This Coffee Roaster! Keep these instructions for future reference and be sure anyone operating the machine reads and understands them before allowing them to use the Coffee Roaster.
  • Page 5 • This appliance has a polarized plug. One blade is wider than the other. As a safety feature, this plug will fit in a polarized outlet in only one way. If the plug does not fit fully in the outlet, reverse the plug.
  • Page 6 Rear Filter Main Cooling Fan Bean Insertion-Chute Cover Top Filter Front Cover Gold Knob Roasting Chamber Control Panel Viewing Window Base Cooling Tray Chaff Tray Bean Agitation Arm...
  • Page 7 This diagram represents all the parts that are designed to be removed by the consumer with the exception of the Heat-Guard Grills. 1 - Rear Filter 2 - Bean Insertion Chute Cover 3 - Cooling Tray 4 - Chaff Tray 5 - Gold Knob 6 - Front Cover 7 - Bearing Plate Screws (4)

  • Page 8: Coffee Roasting- A Brief History

    II - Coffee Roasting- A Brief History It wasn’t that long ago that it was common for people to buy raw coffee beans from the stores and then roast these at home for fresh coffee. That was particularly true in rural areas that were removed from the small roasters found in city neighborhoods.

  • Page 9: Introduction To The Roasting Process

    III - Introduction to the Roasting Process The changes that the coffee bean goes through during the roasting process are amazing. Those small, hard beans, when properly exposed to controlled heat, grow in size and change in color, becoming the source of one of the world’s most cherished beverages.

  • Page 10: Timing Of The Cracks

    • The voltage in your home (it can vary as much as 12-15 volts from place to place) For the KN-8828, use a stopwatch and begin timing from when you pour the beans into the machine. For the KN-8828D and KN-8828P in its “Auto” mode, use the time displayed on the digital readout as a countdown timer.

  • Page 11: Bean Color As A Roast Indicator

    *1 KN-8828 - These times are taken using a stopwatch, starting from when the beans were added to the roaster. *2 KN-8828D - Starting with 19 minutes programmed time on the machine, these are the times as indicated on the digital display as the machine counts down the roasting time.

  • Page 12: Basic Operation Of The Hottop Coffee Roaster

    For your first experimental batch select a variety that is easy to roast. Most any of the varieties from Central or South America will do fine. Guatemalan, Colombian, Brazilian, Bolivian, or Costa Rican are all good choices. These coffees have very loud cracks that are easy to recognize. Moreover, these are also rela- tively inexpensive, so if anything goes wrong, you don’t have to feel too bad about discarding the beans.

  • Page 13: Model Kn-8828 - Roasting Step By Step

    V - Model KN-8828 - Roasting Step by Step NOTE: Black and yellow words refer to the buttons on the control panel of the same name. NOTE: Red numbers below in parentheses, such as (5), refer to the diagram on page 7...

  • Page 14: Quick Reference Operating Instructions

    Hottop Coffee Roaster - KN-8828 Quick Reference Operating Instructions WARNING : Read and understand the owner’s manual and all the safety precautions and use the directions on page 12 and 13 before following these step-by-step instructions! WARNING: Never leave the roaster unattended during a roast! Plug the Hottop Coffee Roaster into the proper outlet.

  • Page 15: Model Kn-8828D Roasting Step By Step

    VI - Model KN-8828D Roasting Step by Step Black and yellow words refer to the buttons on the control panel of the same name. Red numbers below in parentheses, such as (5), refer to the diagram on page 7. WARNING: Never leave the roaster unattended during a roast! Read all directions and safety precautions before following these directions! 1.

  • Page 16: Quick Reference Operating Instructions

    Hottop Coffee Roaster - KN-8828D Quick Reference Operating Instructions WARNING: Read and understand the owner’s manual and all the safety precautions, and use page 12 and 15 before following these step-by-step instructions! WARNING: Never leave the roaster unattended during a roast! Plug the Hottop Coffee Roaster into the proper outlet.

  • Page 17: Model Kn-8828P

    The KN-8828P is a programmable roaster with many advanced features giving the user a lot of control over the roasting profile. It allows an easy, automatic mode that is much like the KN-8828 and KN-8828D described previously in this manual. In addition to the Automatic mode, the “KN- 8828P”...

  • Page 18: Active Buttons Illuminated

    SELECTING OPERATING MODE The KN-8828P operates in either “Auto” mode or “Manual” mode. Auto mode is much like the way that the KN-8828 and the KN-8828D operated. Manual Mode operates using one of ten Programs that are used to control all aspects of operation.

  • Page 19: Kn-8828P Auto Mode

    Hottop Coffee Roaster KN-8828P AUTO Mode WARNING : Read and understand this owner’s manual and all the safety precautions before following these step-by-step instructions! WARNING: Never leave the roaster unattended during a roast! The KN-8828P gives the user the option to roast using an automatic mode that operates much like the earlier versions of our roaster.
  • Page 20 In the display’s Message Center you will now see “Preheat.” The roaster is coming up to temperature. The amount of time this process takes varies. When it is time to add the beans, the machine will beep and the Mes- sage Center will show the “Add Beans”...

  • Page 21: Program

    Hottop Coffee Roaster KN-8828P MANUAL Mode Roasting with Programs WARNING : Read and understand the owner’s manual and all the safety precautions, before using the manual Mode of the KN-8828P! “Manual Mode” allows the user to control the roaster to create a roasting profile that they prefer.

  • Page 22: Segment Temperature

    SEGMENT TEMPERATURE The temperature range for each segment which is available for programming varies, from lowest in the early segments to highest in later segments. This is reflected in the “stair step” appearance of the temperature bars in the LCD display. During the roast, each segment dynamically displays its progress of the temperature: The upper portion of each Segment display where the black bars are located represents the range of programmed temperature this way:...

  • Page 23: Selecting A Program

    SELECTING A KN-8828P PROGRAM Before you can begin roasting with a Program you must select which Program to use. For your first roast we suggest trying “Program 0” which is the factory default Program. This will help you understand how Programs operate before attempting to create your own roasting profiles. Follow these directions to select a Program: Plug the machine into an appropriate outlet and the “POWER/START”...

  • Page 24: Roasting With A Program

    ROASTING WITH A PROGRAM - KN-8828P Select a Program with which to roast as described on the previous page. If you have not yet created any additional Programs use “Program 0” which is the default Program when entering Program mode. After Selecting a program, begin the roasting process by pressing the green POWER-START button.
  • Page 25 It is possible to adjust the temperature of an active segment during the roast. Use the + and - buttons to adjust the temperature. Either button can be held down to move through the adjustment range more quickly. If you reach either extreme in the temperature range for that segment, that particular button will no longer be available.

  • Page 26: Copying An Existing Program

    COPYING AN EXISTING PROGRAM - KN-8828P If you would like to create a new Program it can be easier and a bit quicker to begin with one that is already created. Here is how to copy a Program and paste it into another Program slot: Select the Program you wish to duplicate (see Page 24 for instructions on “Selecting a Program”) Press SET/SAVE Press SET/SAVE again.

  • Page 27: Understanding Programs And Segments

    Understanding Programs and Segments - KN-8828P Now that you have a basic understanding of how a Program roasts coffee, you can begin to create and modify your own Programs. This section will help you understand the parameters of programming the KN-8828P. This chart visually shows the eight Program Segments and the temperature range of each available for programming.
  • Page 28 A Sample KN-8828P Program and It’s Roast For a better understanding on how a Program affects the roast we present this graph of an actual sample roast and the program that created it. Time (minutes) Display Temperature Program Temperature Plus Time SEG.

  • Page 29: Modifying A Program

    Modifying a KN-8828P Program Any Program (except Program 0) can be modified. Modification can be anything from changing a single entry (such as “Temperature” for “Segment 3”) to creating an entire program from scratch. The process described be- low is illustrated in this flow chart: Enter the “Program”...

  • Page 30: Program Name

    PROGRAM NAME This next adjust allows you to change the Program’s name (indicated as *3 in the flow chart on page 29). This can be a three-character, alpha-numeric name you choose from these available characters: Capital letters from A to Z Numerals from 0 to 9 “_”...

  • Page 31: Advanced Manual Control

    Advanced Manual Control For those looking for a more precise control over their roasts there are methods that can be used to modify the roast profile while the coffee is roasting. This procedure will take a bit of practice and experi- ence because you will need to predict the end of first crack, but with time this method can help achieve superior results.

  • Page 32: Cleaning And Care (All Models)

    VIII - Cleaning and care (all models) Roasting coffee can be a bit messy. The chaff that comes off the beans, bits and pieces of coffee beans, and stray beans themselves can get strewn about, in and out of the roaster. To create the best coffee possible, to ensure safe operation, and to extend the life of your Hottop Coffee Roaster, it is very important to do some regular maintenance and cleaning.

  • Page 33: After 5 To 10 Roasts

    B. After 5 to 10 roasts 1- Drum Removal (Refer to diagram on page 7) NOTE: For all tasks related to disassembly or repair of the Hottop Bean Roaster, we urge you to refer to the Repair section of our website at www.hottopusa.com. There you will find illustrated, step-by-step instructions to assist you.

  • Page 34: 3- Exterior Cleaning

    holes in the front plate and that the drum shaft goes into the hole in the center of the front plate. Hold the Bearing Plate (8) in place and verify that it is fully seated on the front of the machine and that the alignment pins (11) are in their locating holes.

  • Page 35: Roasting Styles Overview

    IX - Roasting styles overview This section contains a brief explanation of the various roasts you can achieve with the Hottop Coffee Roaster, and will give you a general idea of how roast level affects taste. There are numerous factors that affect the roast level at a given time or level setting on the machine.

  • Page 36: Experiment With Roasts

    a sharp, pungent smell. The coffee usually acquires a similar sharp taste, with the flavor being predomi- nantly “roast” and less that of “coffee.” Some people do enjoy this “French” style but if you are purchasing quality beans this level of roast removes a lot of the taste that you paid for. Roasting even darker, “Spanish”...

  • Page 37: Coffee Varieties And Roast Styles

    first. When trying to decide what roast-level setting (KN-8828) to use or how long (KN-8828D or KN- 8828P) to roast for a new (to you) coffee, there is no way for us to be able to accurately tell you what to use.

  • Page 38: Central-American, Colombian And African Coffees -38

    8828D), use less beans, or add “PLUS” time at the end of the roast to get them darker. • Is the coffee too dark? Try using a lower roast level (KN-8828) or less roast time (KN-8828D), use more beans, or eject the beans manually at an earlier time in the roast when they look right to you.

  • Page 39: Tips And Hints

    KN-8828P, program more time into the KN-8828D or KN-8828P in AUTO mode, or use a higher roast number on the KN-8828). You can also reduce the batch size to 225 grams of beans. If, on the other hand, the roasted coffee comes out too dark, try increasing the batch size to 270 grams or decreasing the roast time.

  • Page 40: Bean Cleaning

    Roasting decaffeinated coffee is more difficult than roasting “regular” coffee. The decaffeination process makes the color of the beans more difficult to discern and the cracks occur in much reduced num- bers. For this reason, we highly recommend learning to roast with “regular” coffee before attempting to roast decaf.

  • Page 41: Keep Records

    as these “low tech” methods allow you to control the brewing temperature and can actually make better coffee than most drip machines. If the coffee is too bitter many people will reduce the amount of coffee they use per cup. That is the opposite of what you need to do.

  • Page 42: Resources

    XI - Resources For specific information not contained in this manual visit our website at www.hottopusa.com. There you will find a troubleshooting guide as well as an FAQ filled with lots of hints and tips that will be of assistance to you. There is also a complete repair guide should you decide to undertake repairs on your own.
  • Page 43 Roast Number: Date: Time: Coffee Used: First Crack Begin First Crack End Second Crack Begin Roast Style Roast Level/Time/ Program Name Total Roast Time manual/auto eject (circle) Ambient Temp Tasting Notes: Roasting Notes: PROGRAM # PROGRAM NAME SEGMENT TIME TEMPERATURE...
  • Page 44 This manual covers the following models: - KN-8828 - KN-8828D - KN-8828P Hottop USA Manufactured by Chang Yue Industrial Corp.® 25 Katelan Court No. 170, Chung Lun, Chung Sha Tsun, An Ding Shian Cranston, Rhode Island 02921 Tainan, Taiwan Fax: (401) 946-0268 Tel: 886-6-593-2311 Fax: 886-6-593-4834 www.hottopusa.com...
