One for All 3 Zapper User Manual

Urc-6530/31
Hide thumbs Also See for 3 Zapper:
Table of Contents

Advertisement

Quick Links

R
URC-6530/31
702291
Universal remote
UK
D
F
E
P
I
NL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3 Zapper and is the answer not in the manual?

Questions and answers

Related Manuals for One for All 3 Zapper

Summary of Contents for One for All 3 Zapper

  • Page 1 URC-6530/31 702291 Universal remote...

  • Page 2: Table Of Contents

    Table of Contents PICTURE OF THE ONE FOR ALL REMOTE INSTALLING THE BATTERIES FEATURES AND FUNCTIONS SETTING UP THE ZAPPER Direct Set-Up Search Method Code Blink Out CODELIST Television Videorecorders Satellite Receivers Cable Converters ADVANCED OPERATION Controlling Colour & Brightness...

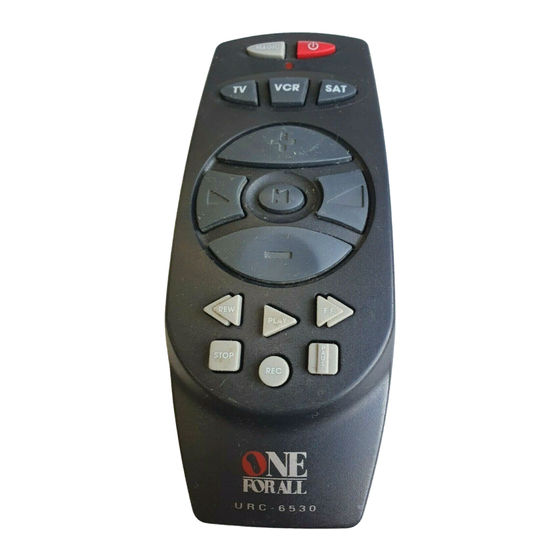

  • Page 3: Picture Of The One For All Remote

    WWW.ONEFORALL.COM...

  • Page 4: Installing The Batteries

    Installing The Batteries The ZAPPER needs 2 new “AAA/LRO3” alkaline batteries. Remove the battery cover from the back of the ZAPPER by pressing down on the tab. Match the batteries to the +/- marks inside the battery case, then insert the batteries. Press the battery cover back into place.
  • Page 5 Mute/OK The Mute key operates the same function it did on your orginal remote. It is also used to activate the Scan feature (page 10). Volume+/-, Programme +/- The Volume and Programme keys operate just as on your original remote control. These keys are also used to program the ZAPPER for your devices and to control the Colour and Brightness settings of your television (page 10).

  • Page 6: Setting Up The Zapper

    Setting Up The ZAPPER Direct Set-Up To set up the ZAPPER for your Television, Video and Satellite Receiver (or Cable Converter) follow the instructions below. To set up your Television: Find your Television code in the Set-Up Code section (page 66-80).
  • Page 7 Important notes: - To set up your Video Recorder, Satellite Receiver or Cable Converter, follow the same instructions above, only press the VCR or SAT key during step 2. - Some codes are quite similar. If your device does not respond or is not functioning properly with one of the codes, follow steps 1-6 with each code listed for your brand.

  • Page 8: Search Method

    Search Method If your Television, VCR, Satellite or Cable Converter does not respond to the ZAPPER after trying all the codes listed for your brand, try searching for your code. The Searching Method allows you to find the code of your devi- ce by scanning through all the codes contained in the memory of the ONE FOR ALL remote control.

  • Page 9: Code Blink Out

    Code Blink Out After you have used the Search Method, you can find out which code the ZAPPER responded to by blinking back the code. It’s useful to know your Television, Video, Satellite Receiver or Cable Converter code for future refe- rence.

  • Page 10: Advanced Operation

    Advanced Operation Controlling Colour & Brightness Depending on the functions of your original remote control, the ZAPPER may operate the colour and brightness settings of your Television. Colour up = Press then hold Colour down = Press then hold Brightness up = Press then hold Brightness down =...

  • Page 11: Trouble-Shooting

    Solution: Your brand is not listed in the Try the search method. ONE FOR ALL code section? The ONE FOR ALL does not A) Try all the codes listed for your operate your device? brand. B) Try the search method.
  • Page 12 4310047 Ansonic 22413 21321 12323 11132 11322 Televisions 22423 13314 22114 23234 21114 14424 11141 23341 12331 4310050 Apollo 24232 Fernseher 4310053 Arc en Ciel 23144 24422 12342 14121 31431 22142 14123 4310054 Arcam 14231 23144 14232 Téléviseurs 4310057 Aristona 11322 31341 11141 4310059 Arthur Martin 13314 23211 14342 4310060 ASA...
  • Page 13 4310128 Britannia 14231 14232 4310210 Daytron 11132 22423 11322 4311444 Brother 21131 4310216 de Graaf 14211 11341 13314 4310133 Bruns 12224 23341 4310214 Decca 12131 11412 31121 11322 14421 4310134 BSR 13314 21323 14432 14232 4310138 BTC 14233 4311459 Deitron 11322 14233 4310139 Bush 14233 14334 13314 22242 11132...
  • Page 14 4310301 Finlandia 14211 22233 22324 22332 13314 4310353 Granada 11322 23211 14313 22321 22324 12131 11141 11342 12131 12341 14211 4310302 Finlux 12332 12331 11322 22233 14232 14232 12141 11321 22214 31121 12131 13314 12141 31121 12123 24232 22144 13314 12224 12323 23234 32424 24341 4310354 Grandin 21233 14233 23211 11322 11132...
  • Page 15 4310396 Indesit 14342 14222 4311735 Kuba Electronic 21344 4310397 Indiana 11322 4311117 Kyoshu 21131 23241 23313 4311343 Ingelen 24324 32313 13314 4310451 Kyoto 23112 13314 4310398 Ingersoll 11132 4312153 Lecson 11322 4310401 Inno Hit 11132 12131 11322 14233 21313 4311451 Lemair 23234 14232 12141 31121 14424 12323 4310454 Lenco...
  • Page 16 4310521 Memphis 22212 12131 11132 23112 4311806 Novak 11141 4310522 Mercury 11322 11132 4311013 Novatronic 11322 12332 22423 4310525 Metz 12224 14114 31224 23444 14344 4310588 Oceanic 13314 23211 22332 21323 14211 14222 31333 13444 21214 22344 31414 24232 23121 11322 4312100 Odeon 21131 4310526 MGA...
  • Page 17 4310642 Pioneer 11322 23341 22413 22224 22332 4310701 Roadstar 11132 21131 14233 23313 11322 12342 13314 21244 21233 4311132 Pionier 22413 4310703 Robotron 12224 4310644 Plantron 11322 21131 11132 4311885 Rodex 11322 4311066 Playsonic 14232 4311196 Rowa 21131 4310645 Policom 31431 12323 12342 14121 14123 4311197 Roxy 24111...
  • Page 18 4310773 Siemens 13444 31224 31333 14131 14114 4310855 TEC 14232 21221 11132 14424 24224 14222 22124 13242 11322 22144 22212 21114 4311916 Siera 11322 31341 11141 4311320 Tech Line 11322 4310776 Siesta 22413 4312107 Techica 14233 4310780 Silva 14231 11322 4310856 Technema 22111 4310781 Silver...
  • Page 19 4310915 Tristar 14233 14112 Video Recorders 4310916 Triumph 13412 31121 22233 31341 11322 14414 4312014 Tsoschi 21233 Videorecorder 4312017 TVTEXT 95 31341 4310919 Uher 12141 11322 11432 14143 22111 21344 22423 23313 22413 21114 Magnétoscopes 4311148 Ultra 14111 4310920 Ultravox 12224 12323 22423 14424 14231 13314 14222 11322 Vídeos...
  • Page 20 4320126 Brinkmann 14212 4320349 Goodmans 11111 12131 14411 21223 11443 4321030 Brionvega 22231 11322 11221 22224 12212 14212 4320139 Bush 12131 21223 21434 22142 22143 23214 22311 14212 22311 11111 12212 4320352 Graetz 11332 12331 14411 22231 4320147 Canon 13324 4320353 Granada 12331 11343 11411 12212 21242 4320150 Carena...
  • Page 21 4321009 Lumatron 21223 4320648 Portland 11221 21223 4320485 Luxor 12333 11343 11334 12131 11443 4320656 Prinz 11111 12231 12331 11344 11411 4320658 Profex 22113 4320492 Magnavox 12212 23214 4320660 Profitronic 12212 14411 4320496 Manesth 12131 11342 12212 14212 4320662 Proline 11111 22111 22112 4320500 Marantz 12212 11123 11443 21324 14212...
  • Page 22 4320809 Soundwave 11322 14212 4321143 Ssangyong 12131 Satellite Receivers 4320813 Standard 21223 4320817 Starlite 11322 12331 4320823 Stern 21223 Satellitenempfänger 4320824 Strong 21144 4320828 Sunkai 14212 21324 21223 4320831 Sunstar 11111 Récepteurs satellites 4320832 Suntronic 11111 4320833 Sunwood 12131 4320839 Supra 11322 14411 Receptores de satélite 4320843 Symphonic...
  • Page 23 4331155 Austar 24412 4331042 DST 23322 4331037 Avalon 23141 4330240 Dual 22422 4330088 Axiel 33241 4330244 Dune 22412 4330089 Axis 31213 22412 22343 4330248 Echostar 23141 24123 33241 34132 4330095 Barcom 12341 14232 4330250 EIF 23312 4330103 Beko 24124 4330251 Einhell 22142 14414 23322 21311 14441 4330106 Best 14232 22412 24133...
  • Page 24 4330365 Hanuri 31131 4331051 Marave 23312 4331677 Harting 4330505 Mascom 23433 und Helling 22142 24423 4330506 Maspro 12241 22211 22131 24344 34343 4331047 Hase & Igel 33421 34132 13342 31434 33421 4330371 Heliocom 22411 4331052 Master's 23133 4330377 Hinari 22333 13424 23322 4330508 Matsui 22231 31434 34123 22333 13342 4330379 Hirschmann...
  • Page 25 4330623 Panda 24124 12114 12341 13342 4330753 SEG 23322 22412 31234 22141 32242 4330627 Paristad 23312 31123 31124 4330630 Patriot 31114 33241 4330756 Seleco 32211 22341 4330636 Philips 14131 21321 14241 13424 24124 4331141 Servi Sat 23312 32211 22131 33234 34343 34123 32322 4330762 Sharp 31242 41322 32142 14232 33241 31434...
  • Page 26 4330905 Toshiba 24124 Convertitori di reti 4330992 TPS 41421 4330910 Trendline 31112 4332010 Trendplain 31112 Kabel Decoders 4330911 Triad 22244 22144 22112 22142 22421 4330912 Triasat 23243 24422 4331061 Triax 23243 24422 14131 23141 34132 4331155 Austar 21221 4330915 Tristar 22422 4331531 BT 12332 11114...
  • Page 27 GARANTIA A UNIVERSAL ELECTRONICS INC>/ONE FOR ALL garante ao cliente a a protecção deste produto no que respeita a defeitos de fabrico de material, dentro de um período de uso correcto e normal de 1 ano a partir da data da compra do mesmo produto. Este produto será substituido sem qualquer encargo no caso de ter sido comprovada qualquer avaria dentro do período de 1 ano e após o seu retorno ( custos de envio da responsabilidade...
  • Page 28 Garantieservice erheben können. GARANTIE UNIVERSAL ELECTRONICS INC./ONE FOR ALL garantit à l’acheteur d’ o rigine que ce produit est certifié franc de défauts matériels et de main d’œuvre durant une période d’un (1) an à partir de la date d’achat original à la condition exclusive que ce produit ait été utilisé de manière normale et correcte.

This manual is also suitable for:

Urc-6530Urc-6531Urc-6532
