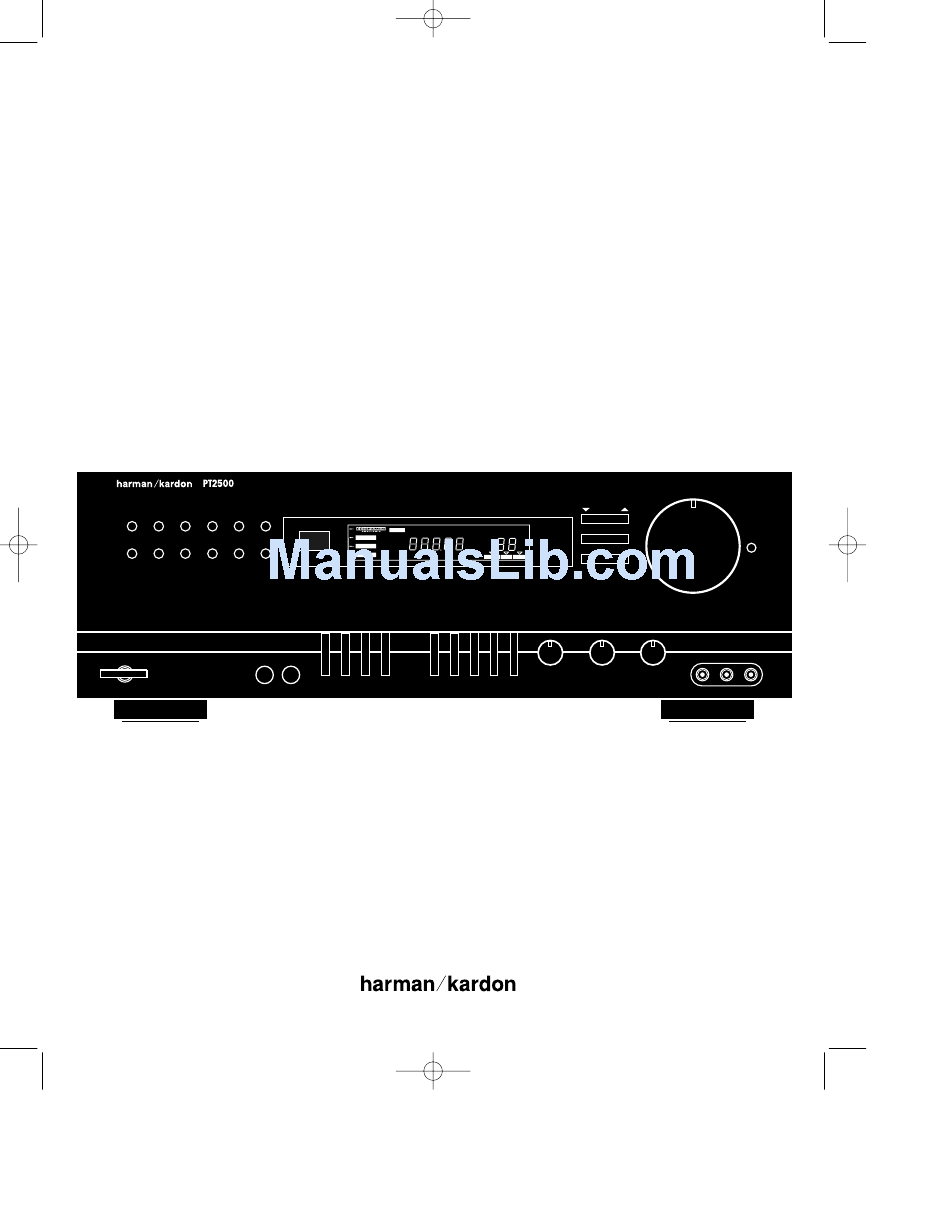

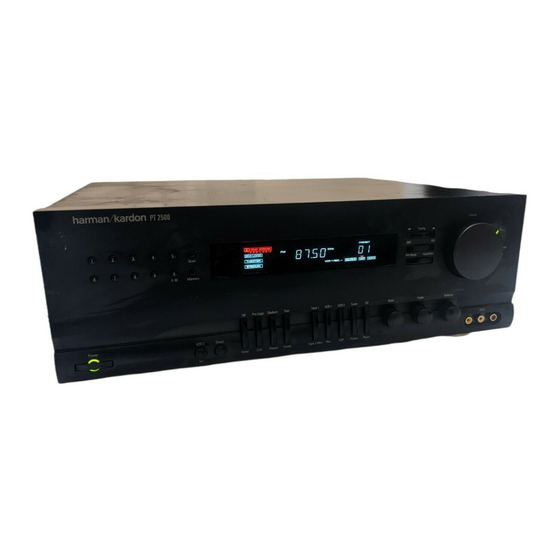

  • Page 1 •PT2500(g).qx 10/23/96 7:36 AM Harman Kardon A/VSurround Tuner Controller Scan 0-30 Memory VCR 2 Direct Power Owner’s Manual PT2500 rev (G) 10/23/96 Page 16 PT2500 DIRECT MEMORY PRESET CENTER DOLBY 3-CH MODE DELAY Tuned TIME NORM FMST THEATER SLEEP WIDE...

  • Page 2: Table Of Contents

    80 Crossways Park West Woodbury, NY 11797 ©1996 Harman Kardon, Incorporated PT2500 rev (G) 10/23/96 Page 1 Table of Contents Features ....... . 1 Unpacking and Installation .

  • Page 3: Introduction & Safety Information

    A few minutes spent learning the functions of the various controls will enable you to take advan- tage of all the power the PT2500 is able to deliver. If you have any questions about this product, its installation or operation, please contact your dealer.
  • Page 4 When placing the unit on a shelf, be certain that the shelf and any mounting hardware can support the weight of the product. PT2500 rev (G) 10/23/96 Page 3 Make certain that proper space is pro- vided both above and below the unit for ventilation.

  • Page 5: Unpacking And Installation

    Using this Manual For easy identification of the inputs, out- puts and controls on the PT2500, a sepa- rate reference card accompanies this manual. Printed on that card are dia- grams of the front and rear panels and the remote control.

  • Page 6: Front Panel Controls

    1 Power Switch: Press this button to turn the PT2500 on or off. In order to use the power button on the remote this power switch must be pressed once and left in the “stand-...

  • Page 7: Rear Panel Connections

    AC power that may used with any AC device up to 100 watts. The power will remain on at this outlet regardless of whether the PT2500 is on or off. ‡ Switched Accessory AC Power Outlet: This outlet provides AC power to connected products only when the PT2500 is turned on.

  • Page 8: System Remote Control

    10/23/96 7:36 AM Using the Reference Card supplied with this manual, familiarize yourself with each of the controls on the PT2500’s infrared remote control. This section of the manual will also serve as a quick ref- erence to the operation of any of these controls.

  • Page 9: System Component Connections

    IMPORTANT NOTE: Do not connect amplifier trigger cables to the “IR Remote Control” jacks on this or any other equipment. If you are using the PT2500 to switch video inputs, connect either MONITOR output ‹ to a video input on your TV or projector.
  • Page 10 When using the PT2500 with an external 5.1 digital audio decoder such as the Harman Kardon ADP303, connect all abc to the Channel Outputs decoder’s inputs.
  • Page 11 PT2500 rev (G) 10/23/96 Page 10 Installation & Configuration To calibrate your system, follow these steps: 1. Turn on the PT2500 and the compan- ion power amplifier. 2. Select the Dolby ProLogic mode using button on the Surround Mode front panel.
  • Page 12 Theater and Stadium modes is adjusted in 8 ms increments from 8ms to 96 ms. Center Channel Mode The PT2500 permits you to tailor the center channel output to match the type of speakers used in your home theater. Press the...

  • Page 13: Operation

    • To use the remote for power on/off it is necessary to turn the unit on from the front panel switch and to leave the switch in the “on” position. The PT2500 may then be turned off using the but- Power on the remote.
  • Page 14 •PT2500(g).qx 10/23/96 7:36 AM Tuner Operation The PT2500’s built in tuner is capable of tuning AM, FM or FM Stereo broadcast stations. Stations may be tuned manually, automatically or via presets. Manual Tuning 1. Press the button Tuner select the tuner as an input.

  • Page 15: Troubleshooting

    The “Stereo” display is not illuminated, or Tuner sound distorts and/or volume level is too low Tuner is intermittent or continuously buzzing or hissing Stations cannot be preset PT2500 rev (G) 10/23/96 Page 14 Troubleshooting Make sure that the... Unit is plugged into a live outlet...

  • Page 16: Specifications

    Phono Overload: RIAA EQ Accuracy (20Hz-20KHz): Tone Control Range Bass @100Hz: Treble @10KHz: Loudness Contour @–40dB, 100Hz/10kHz: +6dB/+3dB Printed in Korea PT2500 rev (G) 10/23/96 Page 15 Specifications Tuner Section: FM Usable Sensitivity, Mono (dBf): 74dB 50dB Quieting Sensitivity, Stereo (dBf):...
