- Page 1 TU 970 OWNER’S MANUAL Power for the Digital Revolution ®...
-
Page 2: Table Of Contents
Table of Contents 3 Introduction 4 Front Panel Controls 5 Rear Panel Connections 6 Remote Control Functions 7 Installation and Connections 8 Operation Basic Operation Station List Preset Setting Function Control Station Order Signal Error Rate Preset Tune RDS Operation 12 Troubleshooting Guide 13 Technical Specifications 2 TABLE OF CONTENTS... -
Page 3: Introduction
TU 970 is able to deliver. If you have any questions about this product, its installation or operation, please contact your dealer. -
Page 4: Front Panel Controls
2 System Power Control: Press this button to turn on the TU 970; press it again to turn the unit off (to Standby). Note that the Power Indi- cator 1 next to the switch will turn blue when the unit is on. -
Page 5: Rear Panel Connections
Rear Panel Connections Optical and Coaxial Digital Outputs FM Antenna AM Antenna Analog Audio Outputs Optical and Coaxial Digital Outputs: Connect one of these jacks to the optical or coaxial digital input of your pre amplifier or inte- grated amplifier, if available. Note that these digital outputs only contain the digital signal from the DAB stations. -
Page 6: Remote Control Functions
Select Button Memory Button 0 Standby/Power On: Press this button to turn on the TU 970; press it again to turn the unit off (to Standby). Note that the Power Indi- cator 1 next to the switch will turn blue when the unit is on. -
Page 7: Installation And Connections
1. Connect the analog output of the TU 970 to the tuner input of your pre amplifier or integrat- ed amplifier. 2. For DAB signals, connect the optical or coaxial... -
Page 8: Operation
(–) polarity indicators shown in the bottom of the battery compartment. • When using the TU 970 for the first time, it will be placed in a standby mode, as indicated by the amber color of the Power Indicator 1. -
Page 9: Preset Setting
Select Button !8 to activate the change. Function Control The DAB mode in the TU 970 contains a menu structure to access various system options. To enter the menu, press the Function Button on the front panel 4 or on the remote control 6 once. -
Page 10: Preset Tune
FM/AM Tuner Operation The TU 970’s tuner is capable of tuning AM, FM and FM Stereo broadcast stations. Stations may be tuned manually or automatically, or they may be stored as favorite station presets and recalled from a 30-position memory. -
Page 11: Rds Operation
If the system still malfunctions, a system reset may clear the problem. To reset the TU 970, press and hold the Func- tion/FM Mode Button 4 for 5 seconds, until the Information Display shows... -
Page 12: Troubleshooting Guide
Troubleshooting Guide This unit is designed for trouble-free operation. Most problems users encounter are due to operating errors. If you have a problem, first check this list for a possible solution. If the problem persists, consult your authorized Harman Kardon Service Center. If the problem is... -
Page 13: Technical Specifications
Technical Specifications FM Section Frequency Range 87.50 MHz to 108.00 MHz (50 kHz steps) Signal-to-Noise Ratio 65dB (Mono) 60dB (Stereo) Presets Section Frequency Range 522 kHz to 1620 kHz (9 kHz steps) Signal-to-Noise Ratio 35dB Presets DAB Section RF Section Band lll, 174MHz-240MHz Input: 50 Ohm, nominal Max signal: -3dBm typ... - Page 14 250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com Harman Consumer International: 2, Route de Tours, 72500 Château-du-Loir, France © 2003 Harman Kardon, Incorporated Part CQX1A887Z...
Need help?
Do you have a question about the TU 970 and is the answer not in the manual?
Questions and answers

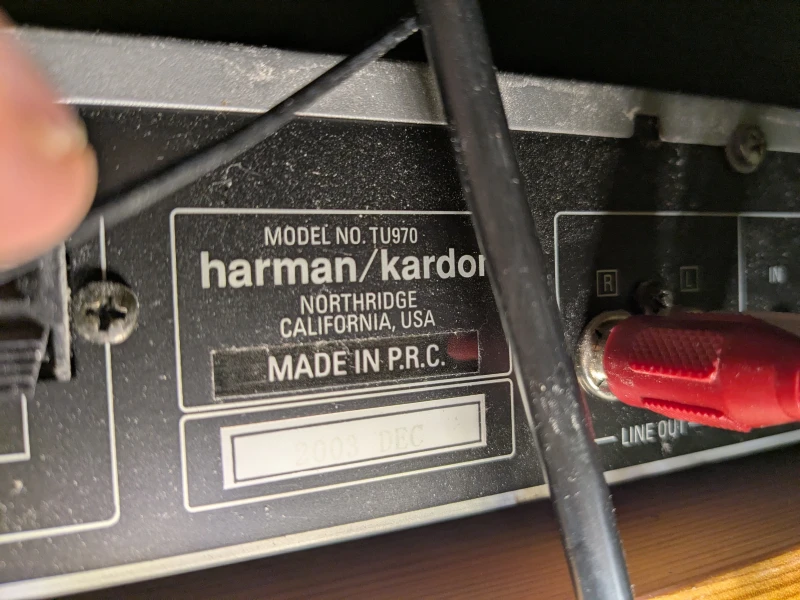

Why is there no volume control on Harman Kardon TU 970 or the remote control?
The Harman Kardon TU 970 is a tuner, not a receiver or amplifier. Tuners are designed to receive and process radio signals but do not include built-in amplification or volume control. Instead, they output audio to an external amplifier or receiver, which handles volume adjustment. Therefore, the TU 970 and its remote control do not have volume controls.
