UCOM COCOON 1100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

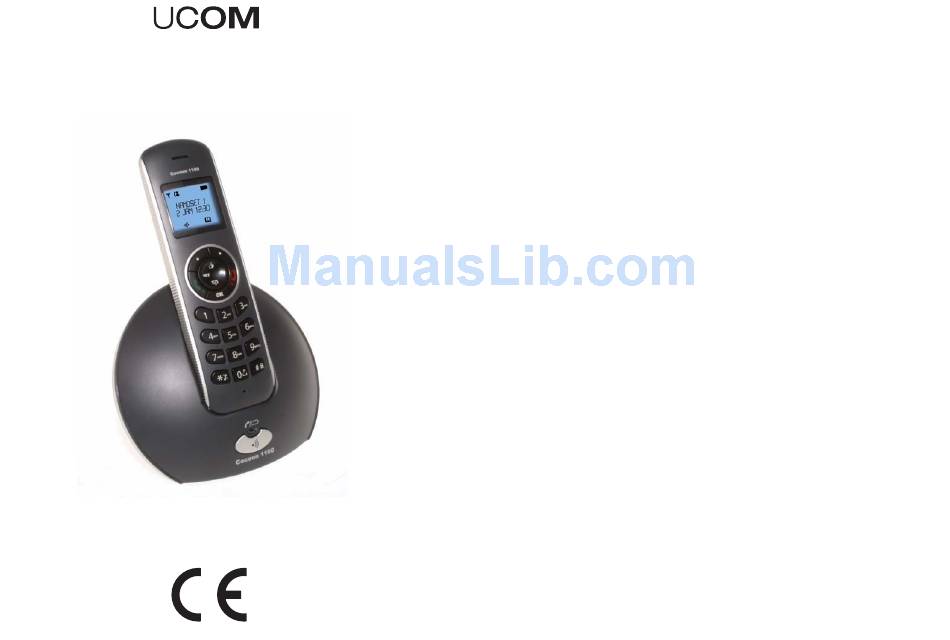

COCOON 1100
CORDLESS PHONE
USER GUIDE
1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COCOON 1100 and is the answer not in the manual?

Questions and answers

Related Manuals for UCOM COCOON 1100

Summary of Contents for UCOM COCOON 1100

  • Page 1 COCOON 1100 CORDLESS PHONE USER GUIDE...
  • Page 2 Intended Purpose: This product is intend to be connected indoor to a analogue telephone line. You have acquired a Cocoon 1100, which is a product made in accordance with the Digital Enhanced Cordless Telecommunications (DECT). DECT technology is characterized by high-security protection against interceptions as well as high-quality digital transmission.

  • Page 3: Table Of Contents

    Safety advice Disposal of the device (environment) Cleaning ECO mode (low-radiation) Installation Installing the base Installing the batteries Getting to know your telephone Keys / LED Display (LCD) Icons Display keys Base LED Navigating the menu Menu overview Handset operation Turning the handset on / off Setting the language Making Calls...
  • Page 4 The phone book 10.1 Adding a number and a name to the phone book 10.2 Looking up a number in the phone book 10.3 Changing a name or number in the phone book 10.4 Deleting one or all entries from the phone book 10.5 View name and number of an entry in the phone book 10.6 Copy a phonebook entry to another handset 10.7 Copy all phonebook entries to another handset...

  • Page 5: Safety Advice

    Cocoon 1100 Safety advice The following safety advice must always be followed before using electrical equipment. Please read carefully through the following information concerning safety and proper use. Make yourself familiar with all the functions of the equipment. Be careful to keep these advice notes and if necessary pass them on to a third party.

  • Page 6: Disposal Of The Device (Environment)

    Cocoon 1100 Poisoning danger: • Keep batteries away from small children. Note: • Only use the charger plug supplied. Do not use other chargers, as this may damage the batteries cells. • The wall outlet for the power supply must be close and accessible.

  • Page 7: Installation

    Cocoon 1100 Installation Before you use the telephone for the first time, you must first make sure the batteries are charged. If not, the telephone will not work optimally. Installing the base For installation, do the following: • Plug one end of the adaptor into the 230V outlet and the other end into the adapter jack on the bottom of the base.

  • Page 8: Installing The Batteries

    Cocoon 1100 Installing the batteries • Open the battery compartment (see below). • Insert the batteries respecting the (+ and -) polarity. • Close the battery compartment. • Leave the handset on the base unit for 16 hours. The handset charging indicator (LED) on the base unit will light up.

  • Page 9: Display (Lcd)

    Cocoon 1100 Base Line / Handset charging indicator (LED) Paging key Cocoon 1100 Display (LCD) Icon line Text lines Soft menu/Option menu line Battery indicator: • The battery is fully charged • The battery is 25% drained • The battery is half drained (50%) •...

  • Page 10: Icons

    Cocoon 1100 Icons On hook Off hook Ringing Internal communication between 2 handsets Handsfree speaker ON Keypad locked Upper case Lower case Possible scroll direction Call log entries* (steady) New unanswered calls (blinking) New voice mail message Handset ringer off...

  • Page 11: Navigating The Menu

    Cocoon 1100 Navigating the menu The handset has a menu system which is easy to use. Each menu leads to a list of options. When the handset is switched On and in standby, press the left menu key under to open the main menu.

  • Page 12: Handset Operation

    Cocoon 1100 Handset operation Turning the handset on / off • To turn the handset on, press the on key or lift the handset off its base unit. • To turn the handset off, press and hold down the off key , till the handset switches off.

  • Page 13: Receiving A Call

    Cocoon 1100 7.3.4 Redial one of the last 10 numbers dialed • Press the redial key . The number you last called appears on the display. • Press the redial key a few times until the desired number appears on the display.

  • Page 14: Activate / Deactivate Handsfree Function

    Cocoon 1100 and press ‘Save’ . Edit the number and press ‘Save’ again. Select the desired melody and press ‘Save’ to confirm. • ‘Delete all calls’: to delete all entries in the redial list. Press to confirm. Activate / deactivate handsfree function This function allows you to communicate without having to pick up the handset.

  • Page 15: Pause Key

    Cocoon 1100 7.11 Pause key If you dial a telephone number and you would like to add a pause to this number, press the Pause key P at the desired place in the number. When you dial or redial this number, the pause (3 seconds) is automatically included.

  • Page 16: Setting The Ringer Melody On The Handset

    Cocoon 1100 • You can turn the handset ring volume off during ringing by pressing the option key ‘Silent’. • By pressing the key for 3 seconds you can disable the handset ringer. The symbol will appear on the display. To re- activate, press key again for 3 seconds.

  • Page 17: Changing The Handset Name

    Cocoon 1100 • Press the up or down key repeatedly until ‘Handset’ is selected. • Press to confirm. • Press the up or down key repeatedly until ‘Contrast’ is selected. • Press to confirm. • Select the contrast with the up or down key •...

  • Page 18: Setting The Clock And Alarm

    Cocoon 1100 Handset Name: Handset Phone Book: Empty Call log: Empty Redial list: Empty Auto Answer: Setting the clock and alarm Date and time • Press the left menu key under • Press the up or down key repeatedly until ‘Time’ is selected.

  • Page 19: The Phone Book

    Cocoon 1100 • Press the up or down key repeatedly and select one of the 4 types of settings: ‘Once’, ‘On Daily’, ‘Mon to Fri’ or ‘OFF’. Confirm with . If you choose ‘Once’, ‘On Daily’ or ‘Mon to Fri’ the display will show:...

  • Page 20: Deleting One Or All Entries From The Phone Book

    Cocoon 1100 • Press ‘ Save • Press to delete each number one by one and use the keypad to enter the correct number. • Press ‘Save’ and choose a ringer melody. • Press ‘Save’ to save the changes made.

  • Page 21: Copy All Phonebook Entries To Another Handset

    Cocoon 1100 10.7 Copy all phonebook entries to another handset By copying all entries from one handset to another, you will erase all existing records at the destination handset. • Press the right menu key • Press ‘Option’ • Press the up or down key and select ‘Copy all’...

  • Page 22: The R Key (Flash)

    Cocoon 1100 • The current volume is shown and hearable. • Press the up or down key repeatedly to select the desired volume (0-5). • Press ‘Save’ to confirm your selection or press to leave the menu. 11.2 The R key (flash) With the Flash key R you can use certain services on your external line such as “call...

  • Page 23: Tools

    Cocoon 1100 12 Tools 12.1 Appointment You can set 5 appointments or reminders which you can give a name and an alarm by date and time. • Press the left menu key under • Press the up or down key repeatedly until ‘Tools’...

  • Page 24: Removing A Handset

    Cocoon 1100 • Press to confirm. • Select ‘Register’ and press • Select a base (‘1’-’4’) with the up and down keys and press • Enter the system PIN code (base PIN code; default=’0000’) and press • The handset will now search for a base and register when found. The standby screen will appear when successfully registered and handset name and number will be shown.

  • Page 25: Using Multiple Handsets

    Cocoon 1100 13.3.2 Manual selection If you set the handset to ‘manual selection’, the handset will only choose the base unit you have set. • Press the left menu key under • Press the up or down key repeatedly until ‘Handset’ is selected.

  • Page 26: Caller Id / Clip

    Cocoon 1100 13.4.5 Conference call (two internal handsets and one external caller) You can have a telephone conversation with one internal and one external caller at the same time. • While on the line with an external caller, press the INT key.

  • Page 27: Calling A Number From The Call List

    Cocoon 1100 14.2 Calling a number from the call list • Press the call log key to go into the call list. • Press the up or down key to look up the desired number. • Once the number is on the display, press the off hook key and the number is dialed automatically.

  • Page 28: Trouble Shooting

    Cocoon 1100 16 Trouble shooting Symptom Possible cause Solution No display; the display Batteries uncharged Check the position of the stays dark batteries Recharge the batteries Handset turned off Turn ON the handset No tone Telephone cord badly connected Check the telephone cord...

  • Page 29: Technical Characteristics

    Cocoon 1100 17 Technical characteristics Standard: DECT(Digital Enhanced Cordless Telecommunications) GAP ( Generic Access Profile ) Frequency range: 1880 MHz to 1900 MHz Number of channels: 120 duplex channels Modulation: GFSK Speech coding: 32 kbit/s Emission power: 10 mW ( average power per channel )

  • Page 30: Warranty

    Any repairs will be charged to you. 19 Service address and support Please see extra paper (Service address and support numbers) or www.ucom.be. 20 Declaration of conformity and manufacturer Topcom Europe Nv.
  • Page 35 SERVICE RETURN CARD Please fill in this card in CAPITAL LETTERS and attach to the product when you return in for service. Customer Details Name: Surname: Street: Nr.: Box: Location: Post code: Country: Tel.: E-mail: Product Details Model name: Serial Nr: Purchase date: (DD/MM/YYYY) Fault description:...
  • Page 36 Cocoon 1100 visit our website www.ucom.be MD2500208...
