Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 74230
Tools needed for assembly: Phillips Screwdriver, Hammer, and Slotted Screwdriver (not included).
Use only with a Power Wheels
®
6 Volt (4.0 Amp/Hr.) Battery, Power Wheels
®
25 Amp Fuse
and Power Wheels
®
6 Volt (4.0 Amp/Hr.) Charger (all included).
Requires three "AA" (LR6) alkaline batteries (not included) in Sound Box.
Advertisement
Table of Contents
Related Manuals for Fisher-Price POWER WHEELS 74230
Summary of Contents for Fisher-Price POWER WHEELS 74230

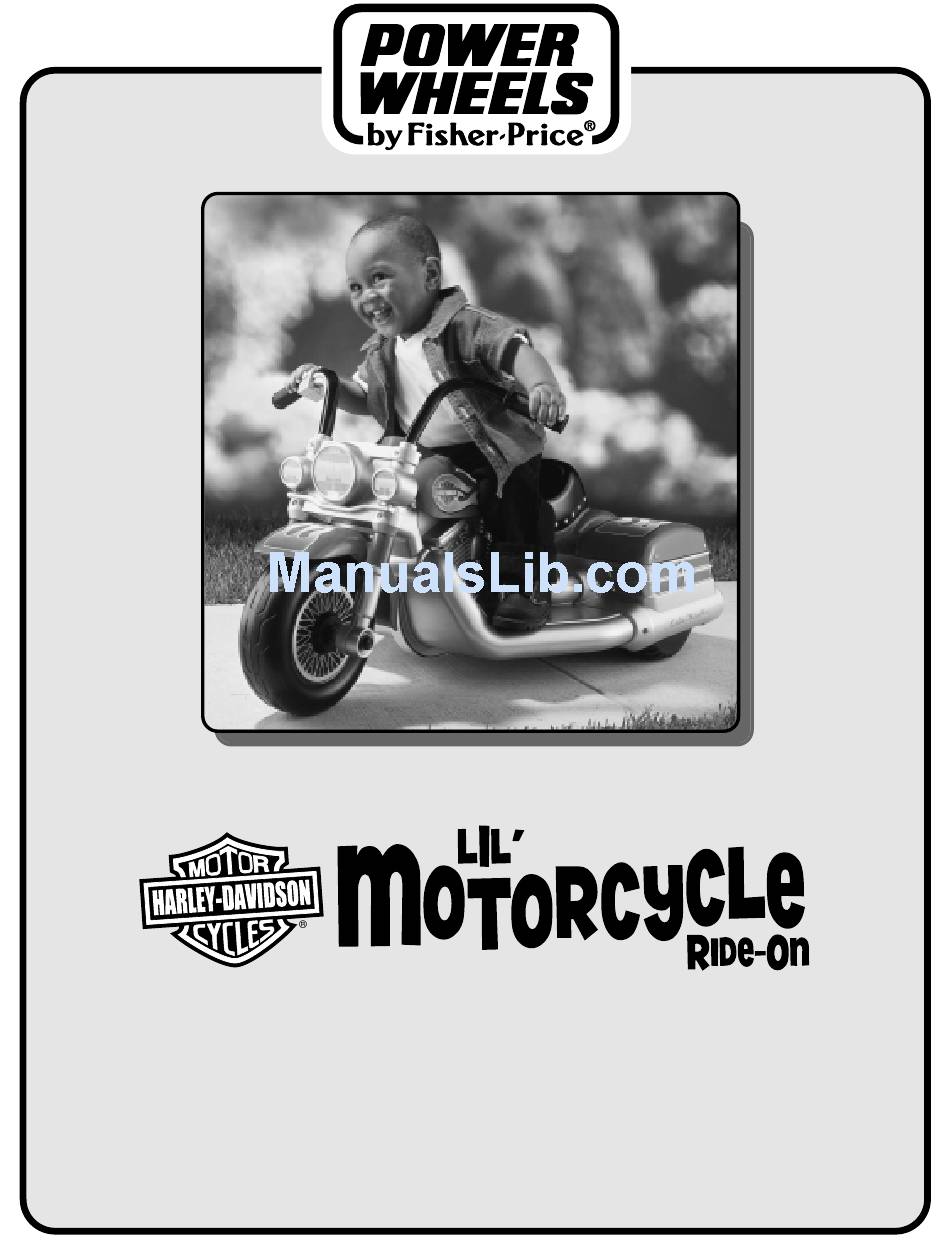

- Page 1 Product features may vary from the picture above. Harley-Davidson is a registered trademark and the motorcycle sound is a trademark of H-D Michigan, Inc. used under license. Owner’s Manual with Assembly Instructions Please read this manual and save it with your original sales receipt.
-
Page 2: Table Of Contents
Important Information ..............2 Warnings and Cautions . -
Page 3: Warnings And Cautions
ELECTRICAL HAZARD • Battery can fall out and injure a child if vehicle tips over. Always use battery clamp. • PREVENT FIRE - Do not bypass a Power Wheels - Use only a Power Wheels - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. -
Page 4: Parts
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. - Page 5 Right Left Handlebar Handlebar Steering Stop 25 Amp Fuse Exhaust Cover - 2 Wheel Bushing - 2 *For your convenience, one extra 25 amp Fuse is included. Not Shown: Label Sheet - 2 Washer - 2 *For your convenience, one extra .354 cap nut is included. Parts Power Button Cover...
-
Page 6: Parts Diagram
Note: Some parts shown are assembled on both sides of the vehicle. 1. Vehicle Frame 2. Back Fender 3. Right Handlebar 4. Left Handlebar 5. Handgrip - 2 6. Power Button Harness 7. Power Button Cover 8. 6 Volt Battery (4.0 Amp/Hr.) 9. -
Page 7: Battery Charging
ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery clamp. • PREVENT FIRE - Do not bypass a Power Wheels It is a safety device. - Use only a Power Wheels 25 Amp fuse. - Page 8 IMPORTANT! The battery must be removed from the vehi- cle back fender for the initial charge in order to complete assembly. After assembly is complete, you do not need to remove the battery from your vehicle to recharge it. Battery Clamp •...
-
Page 9: Assembly
WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehi- cle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the bat- tery, or help in assembly of the vehicle. - Page 10 Power Button Covers • Fit the power button covers together. Insert a screw into the power button cover. • Tighten the screw with a Phillips screwdriver. Do not over-tighten. Right Handlebar Power Button Harness Top Hole Bottom Hole • Insert the power button harness plug down through the top hole only in the headlight assembly.
- Page 11 • Separate the fork axle and the front axle. The fork axle is smaller than the front axle. • Place a cap nut on a flat surface, inside up. • Fit the end of the fork axle into the cap nut. •...
- Page 12 Arrow Handlebar • Position the vehicle upside down. • Note the arrow on the underside of the front fender. • Position the front fender so that the arrow points toward the front of the vehicle. Slide the front fender completely onto the ends of the handlebars.
- Page 13 Washer Shock Front Axle Wheel Wheel Bushing Bushing • Fit the wheel bushings into the center hole in the wheel (see inset). • Position the wheel between the shocks. • Slide the front axle through a shock, a washer, the wheel (with bushing), another washer and then out through the other shock.
- Page 14 Rear Wheel • Fit the saddlebag over a rear wheel. • Insert four screws through the saddlebag and into the vehicle. • Tighten the screws with a Phillips screwdriver. Do not over-tighten. • Repeat this procedure to assemble the other saddlebag. Battery Compartment Sound Box...
- Page 15 Motor Harness • Plug the power button harness and the motor harness together. Push firmly to snap the connectors together. Connectors • Fit the connectors between the tabs inside the vehicle. • Bend the wires down (90˚ angle). Back Fender •...
- Page 16 • Install the battery into the battery compartment (see step 2, page 19 in the Battery Installation section). • Plug the battery harness and the motor harness together. Push firmly to snap the connectors together. Power Button • Test to be sure you have assembled the power button harness correctly.
-
Page 17: Label Decoration
Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •... - Page 18 Label Decoration Right Side Left Side...
-
Page 19: Battery Installation
IMPORTANT! Use only a Power Wheels 6 Volt (4.0 Amp/Hr.) battery with a 25 amp fuse installed. Use of any other battery or fuse will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels 6 Volt (4.0 Amp/Hr.) charger before operating your ®... -
Page 20: How To Operate Your Vehicle
How to Operate Your Vehicle Power Press Here Button 2 mph Let’s Go... • Seat your child on the vehicle seat, with both hands on the handlebars and both feet on the footrests. • Press the power button on the handlebar. The vehicle moves forward at a maximum of 2 mph. -
Page 21: Battery Care And Disposal
Battery Care and Disposal Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician. -
Page 22: Rules For Safe Driving
RIDING HAZARD WARNING Prevent Injuries and Deaths • Direct Adult Supervision Required • Keep Children Within Safe Riding Areas These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers - away from steps, driveways, roads and alleys. -
Page 23: Problems And Solutions Guide
Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels Authorized Service Center list beginning on page 27. - Page 24 Problems and Solutions Guide Problem Vehicle was running but Vehicle is overloaded suddenly stopped (cont.) Driving conditions are too stressful Short run time Undercharged battery (Less than 1-3 hours per charge) Overcharged battery Battery is old and will not accept full charge Wrong type or improperly installed fuse Driving conditions are too stressful Vehicle runs sluggishly...
- Page 25 Problems and Solutions Guide Problem Sometimes the vehicle doesn’t Loose wire or connector run, but other times it does Motor or electrical switch damage When the handlebar button is Loose wire or connector pressed, the vehicle won’t run without a push “Dead Spot”...
-
Page 26: Bumper-To-Bumper Limited Warranty
Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on 6 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ® ride-on vehicle (purchased from Power Wheels ) against defects in materials and workmanship. -
Page 27: Authorized Service Centers
We are continually expanding our Authorized Service Center Network. Please check this listing for the Authorized Service Center nearest you. If there is not one in your area, please call Power Wheels ® Consumer Relations at 1-800-348-0751. ALABAMA BIRMINGHAM - Frigid Service & Sales, 701 Graymont Ave. - Page 28 CHICAGO (MORTON GROVE) - Brand Service Center, Inc., 5618 Dempster Street, 60053, (847) 965-5900 DECATUR - Rexx Battery of Decatur, Inc., 1330 East Eldorado, 62521, (217) 422-0281 FAIRVIEW HEIGHTS - Rapid Rentals, 720 Lincoln Highway, 62087, (618) 632-0630 GRANITE - Midwest Golf Car & Equipment Co, 904 Thorngate Road, 62040, (618) 797-2278 HAMILTON - Discount Battery Sales, #80 S 2nd Rte.
- Page 29 NEVADA LAS VEGAS - Burney’s Commercial Service, Inc., 4480 Aldebaran Avennue, 89103, (702) 736-0006 MINDEN - Valley Home & Sport Center, 1587 Highway 395, 89423, (775) 782-5111 NEW HAMPSHIRE MARLBOROUGH- Electronics Aid Inc., 32 Roxbury Road P.O. Box 325, 03455, (603) 876-4161 NEW JERSEY DENVILLE- Ranft's Denville Vacuum &...
- Page 30 KNOXVILLE - Appliance & Electric Service Company, 4816-M Kingston Pike, 37919, (865) 588-5395, (800) 585-5395 KNOXVILLE - Authorized Appliance Service Center, 1206 North Central Street, 37917, (865) 524-3376 MEMPHIS - Camp Electric Co., 647 Madison Avenue, 38103, (901) 527-7543, (800) 238-7345 NASHVILLE - Webb’s Appliance Service Center, Inc., 1519 Church Street, 37203, (615) 329-4079, (800) 899-4079...
- Page 32 IMPORTANT! DO NOT use this vehicle for the first time until you have charged the battery for 18 hours. Remember to… Insert a 25 amp fuse (included) into the battery. Charge the battery immediately after each use. Charge the battery once a month during storage, even if the vehicle has not been used.
