INSTALLATION INSTRUCTIONS

1. Remove all packing materials from the oven cavity. Check the unit for any damage, such as a
misaligned door, damaged door seals around the door or dents inside the oven cavity or on the door.
If there is any damage, please do not operate the oven until it has been checked by a SERVICE CENTRE
APPROVED BY SHARP and repaired, if necessary.
2. Accessories provided
1) Turntable 2) Roller stay
3) Operation manual and Cooking guides
3. Locate the roller stay in the centre of the oven, then fit the turntable on the roller stay as shown in the
OVEN DIAGRAM below. Make sure the turntable and roller stay are centrally located and locked
together. NEVER operate the oven without the roller stay and turntable.
4. The oven should not be installed in any area where excessive heat and steam are generated, for
example, next to a conventional oven unit.
The oven should be installed so as not to block ventilation openings.
Allow at least 15 cm on the top of the oven for free air space.
5. The A.C. voltage and frequency must be single phase 230-240V, 50Hz.
6. WARNING-THIS APPLIANCE MUST BE EARTHED.
If the socket outlet in your house is not compatible with the plug supplied, cut-off the mains plug and
fit an appropriate type, observing the wiring cord below.
If you are unsure how to do this get help from an electrician.
INPORTANT - The wires in power supply cord are coloured in accordance with the following code:
As the colours of the wires in the power supply cord of this appliance may not correspond with the
coloured marking identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is
marked with the letter E or by the earth symbol
The wire which is coloured blue must be connected to the terminal which is marked with the letter
N or coloured blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter
L or coloured brown.
NOTE: Under no circumstances should the cut-off plug be inserted into a socket outlet as a serious
electric shock may occur.

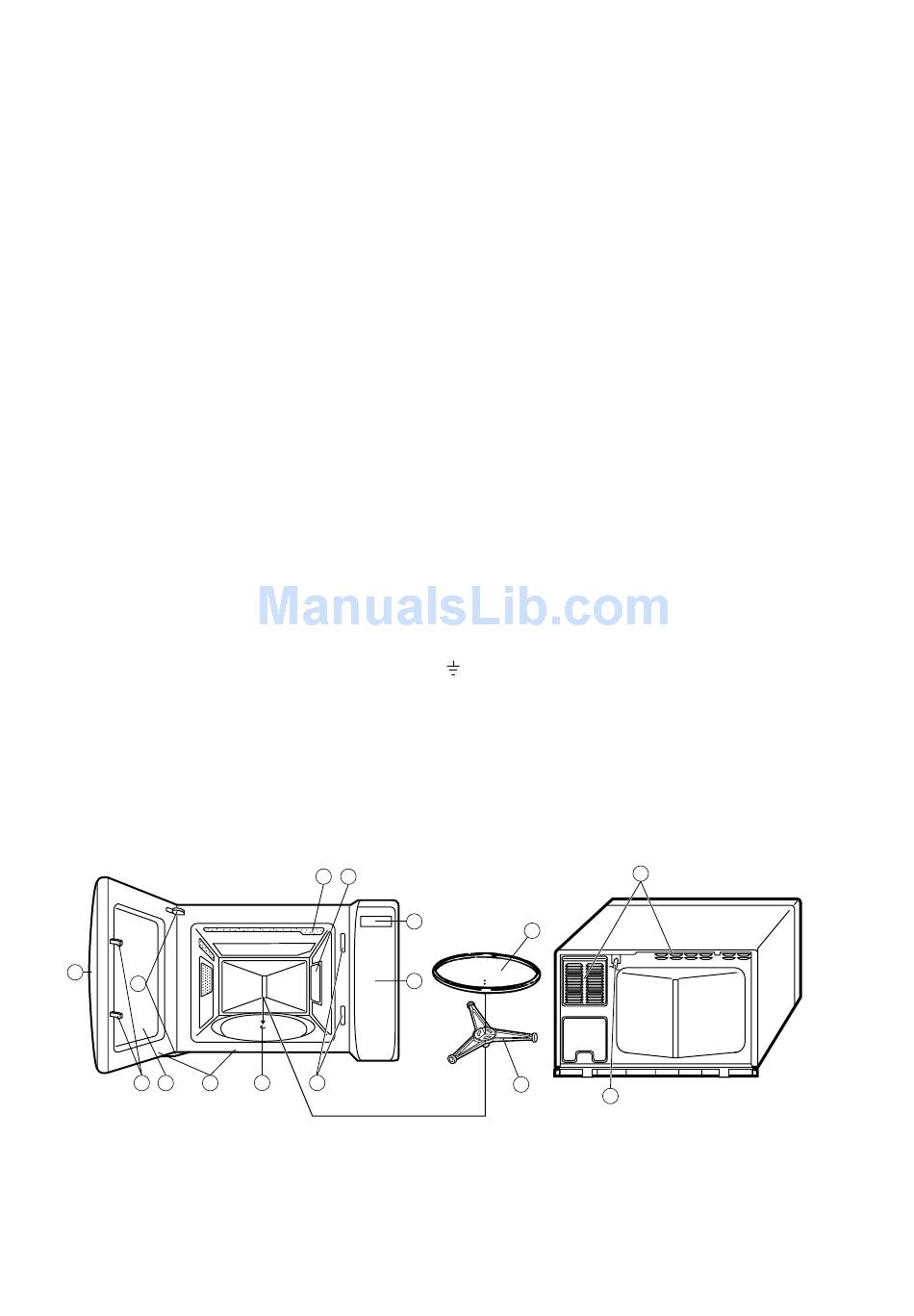

OVEN DIAGRAM

1
3
4 5 6
1. Door handle
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals and sealing surfaces
7. Coupling
Green-and-yellow :
Blue
Brown
2 10
9
8
4
7
Earth
: Neutral
: Live
or coloured green or green-and-yellow.
13
14
11
8. Touch control panel
9. Digital readout
10. Waveguide cover (Do not remove)
11. Power supply cord
12. Ventilation openings
13. Turntable
14. Roller stay
3
12
