Summary of Contents for EMP Tek E10s

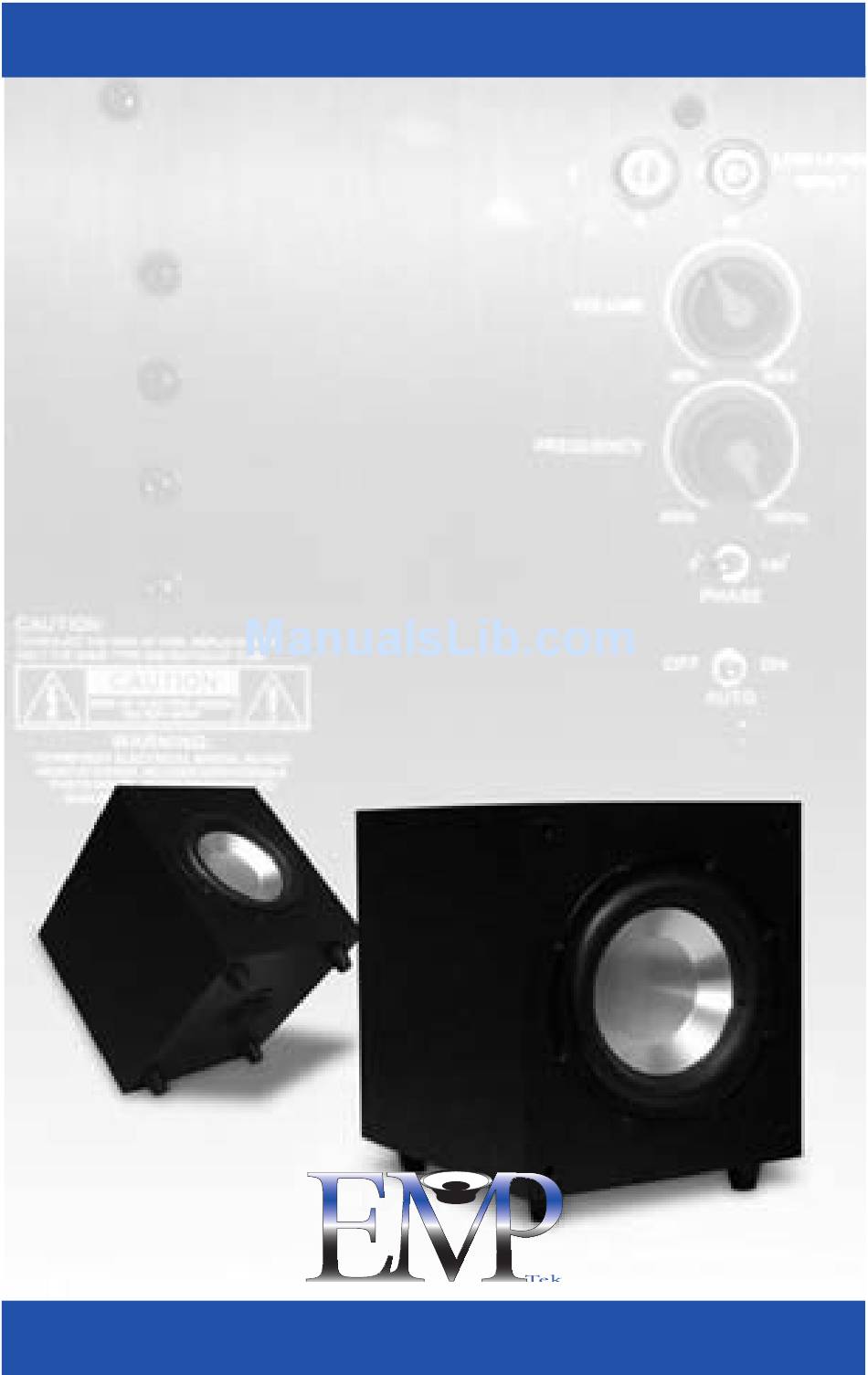

- Page 1 POW ER ED SU BWOOFER E10s Model POWER ED SUBWOOFER OW N ER’S M A N UA L...
-
Page 3: Important Safety Instructions
Introduction Congratulations on your purchase of an EMP Tek E10s powered subwoofer! Your subwoofer is the result of many years of research and development dedicated to producing powerful, accurate bass in home audio systems. This manual contains operating procedures and specifications. We recommend you thoroughly read through the material contained in this manual before connecting your subwoofer. -
Page 4: Powered Subwoofer
Powered Subwoofer Break In Period Allow several hours of listening time to adequately break-in the subwoofer. As the subwoofer breaks-in, the driver suspensions will loosen. The result of break-in will be an increase in low frequency response, improved definition, and increased clarity and detail. - Page 5 Features (continued) Variable crossover, adjustable phase control and auto on/off are also used for convenience and easy integration with other speakers. Audio can be supplied to the subwoofer by either interconnect (LFE/line level inputs). Cabinets are constructed from medium density fiberboard because of its inert properties.
- Page 6 Room Setup Suggestions (continued) Placement of the subwoofer will largely determine quality, quantity and extension of the bass frequencies within your listening room. Bass frequencies are reinforced by close room boundaries. Placing the subwoofer in a corner will make the subwoofer sound louder and boost the very lowest frequencies.
- Page 7 Subwoofer Amplifier Controls and Setup IMPORTANT NOTICE REGARDING BASS MANAGEMENT: It is important the signal being sent to the subwoofer be a non-boosted or “flat” signal. To be sure of this, check the settings on your receiver or processor to make sure any “bass boost”, “super bass” or “loudness” is set to Off. In most cases a home theater receiver or processor will determine the crossover frequency through bass management settings.
- Page 8 Subwoofer Amplifier Controls and Setup (continued) 6. Line Inputs: Line level input should only be used if no subwoofer crossover is being utilized through the receivers bass management. 7. LFE In: Line level input is used to connect to most receivers or processors. The “LFE” output of receiver and may be called “subout”.
-
Page 9: Specifications
Specifications Model E10s Driver: 10” (254mm) Aluminum Cone Subwoofer Amplifier Type: Class D Voltage : 110 and 220 Power Handling: 150 Watts Crossover Frequencies: 40-150Hz (variable) Frequencies Response: 32Hz-150Hz (variable) LFE Input: Line Level Input: Speaker Level Inputs: Speaker Level Outputs:... -
Page 10: Troubleshooting
Troubleshooting Situation: Probable Cause: Solution: No sound from Amplifier is not connected Make certain the amplifier is subwoofer(s) to constant power outlet. plugged into an unswitched A.C. power outlet. Amplifier is not receiving Make certain there is an audio an audio signal from signal from receiver or processor receiver or processor and audio connections resemble... -
Page 11: Warranty
EMP Tek any other liability in connection with the sale of the product. EMP Tek expressly disclaims liability for any incidental and consequential damages caused by the product or the result of failure of this product. - Page 12 382 Marshall Way, Layton, Utah • USA • 84041 Phone: (801) 991-1308 • Fax: (801) 543-3300 www.emptek.com It is EMP Tek policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2011 EMP Tek, LLC. All Rights Reserved.
