Yamaha STAGEPAS 300 Owner's Manual

Owner's Manual
Introduction
Thank you and congratulations on your
purchase of the Yamaha PORTABLE PA

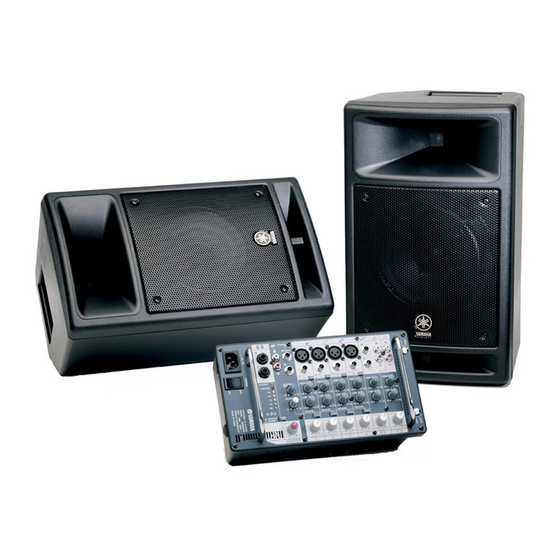

SYSTEM STAGEPAS 300. The STAGEPAS
300 is a versatile, compact PA system
consisting of two speakers and a mixer. In
order to get the most out of your new
STAGEPAS 300 and its sophisticated
functions, we suggest you read through
this manual thoroughly. Also keep it
in a safe place for future
reference.
Features
■
Two-way, 8-inch (20 cm) speaker system
The built-in speakers deliver high-quality powerful sound from an exceptionally compact cabinet. The scratch-
resistant speakers are rugged enough for outdoor use.
■
Powered mixer
The powered mixer is a convenient, high-performance all-in-one unit that includes EQ and reverb. With four mono
inputs and two stereo inputs, the STAGEPAS 300 can be connected to a wide range of instruments and devices.
■ Convenient storage
The STAGEPAS 300 can be used in even the most cramped quarters, inside or outside, since the mixer is
built into one of the speaker cabinets. The other speaker has a special compartment for storing speaker
cables and microphones, letting you put all you need for your performance in one convenient place.
Explanation of Graphical Symbols
CAUTION
RISK OF ELECTRIC SHOCK
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to
DO NOT OPEN
the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL. The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
The above warning is located on the bottom product.
of the mixer and the rear of the speakers.
IMPORTANT SAFETY INSTRUCTIONS
1 Read these instructions. outlet, consult an electrician for replacement of the obsolete outlet.
2 Keep these instructions. 10 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
3 Heed all warnings.
11 Only use attachments/accessories specified by the manufacturer.
4 Follow all instructions.
12 Use only with the cart, stand, tripod, bracket, or table specified by the
5 Do not use this apparatus near water.
manufacturer, or sold with the apparatus. When a cart is used, use
6 Clean only with dry cloth.
caution when moving the cart/apparatus combination to avoid injury from
7 Do not block any ventilation openings. Install in accordance with the
tip-over.
manufacturer's instructions.
13 Unplug this apparatus during lightning storms or when unused for
8 Do not install near any heat sources such as radiators, heat registers, stoves, or
long periods of time.
other apparatus (including amplifiers) that produce heat.
14 Refer all servicing to qualified service personnel. Servicing is required when the
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A
apparatus has been damaged in any way, such as power-supply cord or plug
polarized plug has two blades with one wider than the other. A grounding type
is damaged, liquid has been spilled or objects have fallen into the apparatus,
plug has two blades and a third grounding prong. The wide blade or the third
the apparatus has been exposed to rain or moisture, does not operate normally,
prong are provided for your safety. If the provided plug does not fit into your
or has been dropped.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
* Please keep this manual in a safe place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-
circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:
Power supply/Power cord Water warning
• Only use the voltage specified as correct for the device. The required voltage is • Do not expose the device to rain, use it near water or in damp or wet conditions,
printed on the name plate of the device. or place containers on it containing liquids which might spill into any openings.
• Use only the included power cord. • Never insert or remove an electric plug with wet hands.
• Do not place the power cord near heat sources such as heaters or radiators, and
do not excessively bend or otherwise damage the cord, place heavy objects on
If you notice any abnormality
it, or place it in a position where anyone could walk on, trip over, or roll anything
over it.
• If the power cord or plug becomes frayed or damaged, or if there is a sudden
loss of sound during use of the device, or if any unusual smells or smoke should
appear to be caused by it, immediately turn off the power switch, disconnect the
Do not open
electric plug from the outlet, and have the device inspected by qualified Yamaha
service personnel.
• Do not open the device or attempt to disassemble the internal parts or modify
them in any way. The device contains no user-serviceable parts. If it should • If this device should be dropped or damaged, immediately turn off the power
appear to be malfunctioning, discontinue use immediately and have it inspected switch, disconnect the electric plug from the outlet, and have the device
by qualified Yamaha service personnel. inspected by qualified Yamaha service personnel.
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or
other property. These precautions include, but are not limited to, the following:
Power supply/Power cord Handling caution
• Remove the electric plug from the outlet when the device is not to be used for • When turning on the AC power in your audio system, always turn on the device
extended periods of time, or during electrical storms. LAST, to avoid speaker damage. When turning the power off, the device should
be turned off FIRST for the same reason.
• When removing the electric plug from the device or an outlet, always hold the
plug itself and not the cord. Pulling by the cord can damage it. • Do not insert your fingers or hands in any gaps or openings on the device
(vents,, ports, etc.).
Location
• Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any
gaps or openings on the device (vents, ports, etc.) If this happens, turn off the
• Before moving the device, remove all connected cables.
power immediately and unplug the power cord from the AC outlet. Then have
the device inspected by qualified Yamaha service personnel.
• Do not use the device in a confined, poorly-ventilated location. Make sure that
there is adequate space between the mixer and surrounding walls or other
• Do not use the device for a long period of time at a high or uncomfortable
devices: at least 30 cm at the sides, 30 cm behind and 30 cm above. If the mixer
volume level, since this can cause permanent hearing loss. If you experience
is to be used installed into the speaker cabinet, make sure to allow adequate
any hearing loss or ringing in the ears, consult a physician.
space between the speaker and the surrounding walls or other devices: at least
30 cm at the sides, 30 cm behind and 30 cm above. Inadequate ventilation can
• Do not operate the device if the sound is distorting. Prolonged use in this
result in overheating, possibly causing damage to the device(s), or even fire.
condition could cause overheating and result in fire.
• Do not use the speaker's handles for suspended installation. Doing so can result
• Do not rest your weight on the device or place heavy objects on it, and avoid
in damage or injury.
use excessive force on the buttons, switches or connectors.
• Avoid setting all equalizer controls and LEVEL controls to their maximum.
Depending on the condition of the connected devices, doing so may cause
XLR-type connectors are wired as follows (IEC60268 standard): pin 1: ground,
feedback and may damage the speakers.
pin 2: hot (+), and pin 3: cold (-).
• Do not expose the device to excessive dust or vibrations, or extreme cold or heat
(such as in direct sunlight, near a heater, or in a car during the day) to prevent
Interference From Cell Phones
the possibility of panel disfiguration or damage to the internal components.
Using a cell phone near the speaker system can induce noise. If this occurs,
• Do not place the device in an unstable position where it might accidentally fall over. move the cell phone further away from the speaker system.
• Do not block the vents. This mixer has ventilation holes at the top to prevent the
internal temperature from becoming too high. In particular, do not place the
Yamaha cannot be held responsible for damage caused by improper use or
device on its side or upside down. Inadequate ventilation can result in
modifications to the device.
overheating, possibly causing damage to the device(s), or even fire.
• Do not use the device in the vicinity of a TV, radio, stereo equipment, mobile
Always turn the power off when the device is not in use.
phone, or other electric devices. Doing so may result in noise, both in the device
The performance of components with moving contacts, such as switches, volume
itself and in the TV or radio next to it.
controls, and connectors, deteriorates over time. Consult qualified Yamaha service
personnel about replacing defective components.
Connections
Illustrations in this manual are for explanatory purposes only,
• Before connecting the device to other devices, turn off the power for all devices. and may not match the actual appearance of the product during operation.
Before turning the power on or off for all devices, set all volume levels to minimum.
Company names and product names used in this Owner's Manual are trademarks
• For the SPEAKERS jacks, Use only the included speakers and speaker cables. Use of or registered trademarks of their respective owners.
other types of speakers and cables may result in damage to the device(s), or even fire.
EN
Package Contents
Two speakers, mixer, panel, power cord, two speaker cables, Owner's Manual (this booklet)
NOTE: The mixer and the panel are installed in the speakers when the STAGEPAS 300 leaves the factory.
Before turning on the mixer Before turning on the mixer Before turning on the mixer
Remove the mixer Remove the mixer Remove the mixer
1.
Be sure that the mixer's power switch is turned off.
2.
Use a screwdriver or coin to turn each screw on the mixer from LOCK to OPEN until it clicks.
LOCK
OPEN
3.
Securely hold the mixer's handles to remove it from the speaker.
Use only the mixer's handles when removing the mixer from the speaker and when carrying the
mixer separate from the speaker.
Caution
NOTE: The mixer can also be used when installed in the speaker.
When you install the mixer into the speaker, make sure to match the indentations on the speaker cabinet to
the corresponding parts on the mixer, and then turn each screw from OPEN to LOCK until it clicks.
(98-6500)
Power supply connections Power supply connections Power supply connections
1.
Make sure that the mixer's power switch is turned off.
2.
Connect the included power cord to the [AC IN] jack.
3.
Plug the power cord into a power outlet.
Turning the power on/ off Turning the power on/ off Turning the power on/ off
• To avoid any loud, unexpected noise from the speakers, first turn on the power to those connected
devices that are closest to the sound source.
Caution
Example: Sound source (CD player or instrument) → STAGEPAS 300
When turning off the power to the system, reverse the order described above.
• Before turning on the power, set the LEVEL controls and MASTER LEVEL control to their minimum
setting (zero).
Press the mixer's power switch to the ON position (the POWER indicator lights).
To turn the power off, press the power switch to the OFF position (the POWER indicator turns off).
(5)-3
Troubleshooting Troubleshooting Troubleshooting
Power does not turn on
Is the included power cord correctly connected to a power outlet?
Power shuts down suddenly
Is the volume set at high for an extended period of time?
If the mixer is used at a volume beyond the permissible level, the protection circuit automatically turns the power off.
Turn on the power again only after the mixer cools, since it cannot be turned on until the internal temperature goes down.
Reduce the volume with the MASTER LEVEL control so that the LIMITER indicator flashes only briefly in response to the
highest transient peaks.
Is the vent on the top panel of the mixer blocked?
Since inadequate ventilation can result in overheating the mixer, the protection circuit may come on
automatically and the power may be turned off.
Turn on the power again only after the mixer cools, since it cannot be turned on until the internal
temperature goes down.
No sound is heard
Are external instruments (including a microphone) or speakers correctly connected to the mixer?
Are the LEVEL controls of all relevant channels and/or the MASTER LEVEL control set to appropriate levels?
Are the SPEAKER L/R jacks connected to the included speakers?
Is the POWER indicator flashing?
There may be a short in the speaker cable or the connection may be faulty. Check that the speaker
cable is correctly connected to the mixer and reapply the power.
If sound is not still output, contact your Yamaha dealer.
Sound is interrupted
Is the volume set too high?
If the mixer is used at a volume beyond the permissible level, the sound may be interrupted as the
protection circuit automatically turns the power off and resets repeatedly.
Reduce the volume with the MASTER LEVEL control so that the LIMITER indicator flashes only briefly
on the highest transient peaks.
Sound is distorted or noise is produced
Are the LEVEL controls of all relevant channels and/or the MASTER LEVEL control set to appropriate levels?
Are the MIC/LINE switches of each channels set appropriately?
Are both XLR type and phone type jacks on channels 1–4 being used (connected) at the same time?
Please connect to only one of these jacks on each channel.
Is the input signal from the connected device set to an appropriate level?
Sound is not loud enough
Are the LEVEL controls of all relevant channels and/or the MASTER LEVEL control set to appropriate levels?
Are the MIC/LINE switches of each channels set appropriately?
Are both XLR type and phone type jacks on channels 1–4 being used (connected) at the same time?
Please connect to only one of these jacks on each channel.
Is the input signal from the connected device set to an appropriate level?
Reverb is not applied to the sound
Are the REVERB switches of each channels set to ON ( )?
Is the REVERB control set to an appropriate level?
Getting a more powerful sound from the speakers
Is the SPEECH/MUSIC switch set to MUSIC ( )?
Are the Equalizer controls (HIGH/LOW) set to appropriate levels?
Getting a clearer sound for announcements
Is the SPEECH/MUSIC switch set to SPEECH ( )?
Are the Equalizer controls (HIGH/LOW) set to appropriate levels?
Using a single speaker
You can use a single speaker. If you use a single speaker, the mixer outputs just one channel of the
stereo signal, left or right.
Outputting the signal for monitoring
Connect a powered speaker to the MONITOR OUT jack. The MONITOR OUT jack outputs the signal
prior to routing through the MASTER LEVEL control. Adjust the level of output signal from the
MONITOR OUT jack with the MONITOR OUT control. The MONITOR OUT control does not affect the
MASTER LEVEL control. If the signals are output from the L (left) MONITOR OUT jack, the mixer feeds
the mixed L and R signals to the jack.
Block Diagram
[-8dBu]
SP EQ LIMITER
[-60–+20dBu]
[-8dBu] LIMITER
INPUT HA EQ BA
(CH1–4) MASTER LEVEL
PAD:30dB
[-50–+30dBu] LEVEL
MIC/ LINE
SP EQ LIMITER
REVERB
[-8dBu]
BA
BA EQ
L
HPF
LEVEL
LOW HIGH [+4dBu]
INPUT L SPEECH BA
SUM
(CH5/6) MUSIC L/L+R
[-20–+20dBu] BA EQ BA MONITOR
MUSIC
R
OUT
HPF MONITOR OUT
R SPEECH BA
SUM
MUSIC R
SPEECH/ MUSIC
L BA EQ BA
[-10dBu]
L
INPUT
LEVEL REC OUT
(CH7/8) LOW HIGH
[-20–+20dBu] R
R BA EQ BA
DIGITAL
BA SUM
EFFECT
REVERB
Dimensions
Speaker
275 255
120
2-M8x25
Specifications
■ General Specifications Stereo Input Channel Equalization:
Maximum Output Power
150 W+150 W/6 Ω @10 % THD at 1 kHz (SPEAKER L/R)
100 W+100 W/6 Ω @1 % THD at 1 kHz (SPEAKER L/R)
Frequency Response
■ Speaker
-3 dB, 0 dB, +1 dB @20 Hz–20 kHz, 1 W Output/6 Ω (Without
MUSIC/SPEECH, EQ and SP EQ Circuit) (SPEAKER L/R) Enclosure
-3 dB, 0 dB, +1 dB @20 Hz–20 kHz, +4 dBu 10 kΩ Load
[MUSIC/SPEECH]switch=MUSIC (MONITOR OUT, REC OUT) Speaker Unit
Total Harmonic Distortion
1 % @1 kHz, 50 W Output Power (SPEAKER L/R)
0.5 % @20 Hz–20 kHz, +14 dBu 10 kΩ (MONITOR OUT, REC OUT) Cross Over Frequency
Hum & Noise (20 Hz–20 kHz, Rs=150 Ω, MIC/LINE switch=MIC)
-65 dBu Residual output noise (SPEAKER L/R) Frequency Range
-90 dBu Residual output noise (MONITOR OUT, REC OUT)
-67 dBu @MONITOR OUT control & one CH LEVEL control at nominal
Maximum Output Level
level (CH1–4)(MONITOR OUT)
Crosstalk (1 kHz)
Specifications and descriptions in this owner's manual are for information
-70 dB between input channels
purposes only. Yamaha Corp. reserves the right to change or modify
Weight
products or specifications at any time without prior notice. Since
18 kg (mixer and two speakers)
specifications, equipment or options may not be the same in every locale,
Power Consumption please check with your Yamaha dealer.
European models
70 W
Purchaser/User Information specified in EN55103-1 and EN55103-2.
Inrush Current: 46A
Conforms to Environments: E1, E2, E3 and E4
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! Compliance with FCC regulations does not guarantee that interference will not occur in all
This product, when installed as indicated in the instructions contained in this manual, meets installations. If this product is found to be the source of interference, which can be determined by
FCC requirements. Modifications not expressly approved by Yamaha may void your authority, turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following
granted by the FCC, to use the product. measures:
Relocate either this product or the device that is being affected by the interference.
2. IMPORTANT: When connecting this product to accessories and/or another product use only high
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line
quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation
filter/s.
instructions. Failure to follow instructions could void your FCC authorization to use this product
In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300
in the USA.
ohm ribbon lead, change the lead-in to co-axial type cable.
3. NOTE: This product has been tested and found to comply with the requirements listed in FCC If these corrective measures do not produce satisfactory results, please contact the local retailer
Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides authorized to distribute this type of product. If you can not locate the appropriate retailer, please
a reasonable level of assurance that your use of this product in a residential environment will not contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave,
result in harmful interference with other electronic devices. This equipment generates/uses Buena Park, CA90620
radio frequencies and, if not installed and used according to the instructions found in the users The above statements apply ONLY to those products distributed by Yamaha Corporation of America
manual, may cause interference harmful to the operation of other electronic devices. or its subsidiaries.
* This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.
IMPORTANT NOTICE FOR THE UNITED KINGDOM
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured
markings identifying the terminals in your plug proceed as follows:
o n n e c t i n g t h e P l u g a n d o r d
The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug which is
WARNING: THIS APPARATUS MUST BE EARTHED marked by the letter E or by the safety earth symbol
IMPORTANT. The wires in this mains lead are coloured in accordance with the following code: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or
GREEN-AND-YELLOW : EARTH coloured BLACK.
BLUE : NEUTRAL
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or
BROWN : LIVE coloured RED.
• This applies only to products distributed by Yamaha-Kemble Music (U.K.) Ltd.
For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.
NORTH AMERICA POLAND
Yamaha Music Central Europe GmbH
CANADA
Sp.z. o.o. Oddzial w Polsce
Yamaha Canada Music Ltd. ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland
135 Milner Avenue, Scarborough, Ontario, M1S 3R1, Tel: 022-868-07-57
Canada
THE NETHERLANDS/
Tel: 416-298-1311
BELGIUM/LUXEMBOURG
U.S.A.
Yamaha Music Central Europe GmbH, Branch Benelux
Yamaha Corporation of America
Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
6600 Orangethorpe Ave., Buena Park, Calif. 90620, U.S.A.
Tel: 0347-358 040
Tel: 714-522-9011
FRANCE
Yamaha Musique France
CENTRAL & SOUTH AMERICA
BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: 01-64-61-4000
MEXICO
ITALY
Yamaha de México S.A. de C.V.
Yamaha Musica Italia S.P.A. Combo Division
Calz. Javier Rojo Gómez #1149, Col. Guadalupe del Moral
Viale Italia 88, 20020 Lainate (Milano), Italy
C.P. 09300, México, D.F., México
Tel: 02-935-771
Tel: 55-5804-0600
SPAIN/PORTUGAL
BRAZIL
Yamaha-Hazen Música, S.A.
Yamaha Musical do Brasil Ltda.
Ctra. de la Coruna km. 17, 200, 28230
Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,
Las Rozas (Madrid), Spain
CEP 04534-013 Sao Paulo, SP. BRAZIL
Tel: 91-639-8888
Tel: 011-3704-1377
SWEDEN
ARGENTINA
Yamaha Scandinavia AB
Yamaha Music Latin America, S.A.
J. A. Wettergrens Gata 1
Sucursal de Argentina
Box 30053
Viamonte 1145 Piso2-B 1053, Buenos Aires, Argentina
S-400 43 Göteborg, Sweden
Tel: 1-4371-7021
Tel: 031 89 34 00
PANAMA AND OTHER LATIN
DENMARK
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES YS Copenhagen Liaison Office
Generatorvej 6A
Yamaha Music Latin America, S.A.
DK-2730 Herlev, Denmark
Torre Banco General, Piso 7, Urbanización Marbella,
Tel: 44 92 49 00
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá NORWAY
Tel: +507-269-5311 Norsk filial av Yamaha Scandinavia AB
Grini Næringspark 1
N-1345 Østerås, Norway
EUROPE
Tel: 67 16 77 70
THE UNITED KINGDOM
OTHER EUROPEAN COUNTRIES
Yamaha-Kemble Music (U.K.) Ltd.
Yamaha Music Central Europe GmbH
Sherbourne Drive, Tilbrook, Milton Keynes, Siemensstraße 22-34, 25462 Rellingen, Germany
MK7 8BL, England
Tel: +49-4101-3030
Tel: 01908-366700
GERMANY
AFRICA
Yamaha Music Central Europe GmbH
[+10dBu] [+23dBu]
BA PA Siemensstraße 22-34, 25462 Rellingen,Germany
Yamaha Corporation, Asia-Pacific Music Marketing Group
L
Tel: 04101-3030
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
SPEAKER OUT SWITZERLAND/LIECHTENSTEIN Japan 430-8650
Tel: +81-53-460-2313
BA -1 PA Yamaha Music Central Europe GmbH,
R
Branch Switzerland
Seefeldstrasse 94, 8008 Zürich, Switzerland MIDDLE EAST
Tel: 01-383 3990
AUSTRIA TURKEY/CYPRUS
Yamaha Music Central Europe GmbH, Branch Austria Yamaha Music Central Europe GmbH
Schleiergasse 20, A-1100 Wien, Austria Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: 01-60203900 Tel: 04101-3030
CZECH REPUBLIC/SLOVAKIA/ OTHER COUNTRIES
HUNGARY/SLOVENIA
Yamaha Music Gulf FZE
Yamaha Music Central Europe GmbH, LOB 16-513, P.O.Box 17328, Jubel Ali,
Branch Austria, CEE Department Dubai, United Arab Emirates
Schleiergasse 20, A-1100 Wien, Austria Tel: +971-4-881-5868
Tel: 01-602039025
Yamaha Pro Audio global web site: http://www.yamahaproaudio.com/
Yamaha Manual Library: http://www.yamaha.co.jp/manual/
160
Mixer
96.3
Unit: mm
Shelving turnover/rolloff frequency: 3 dB before maximum cut or boost.
±15 dB
HIGH 10 kHz shelving
LOW 100 Hz shelving
Bass-reflex type
LF: 8" (20 cm) Cone
HF: 1" (2.54 cm) Compression Driver
4 kHz
55 Hz–20 kHz
112 dB (1 m)
(class B)
or colored GREEN or GREEN-and-YELLOW.
(3 wires)
ASIA
THE PEOPLE'S REPUBLIC OF CHINA
Yamaha Music & Electronics (China) Co.,Ltd.
25/F., United Plaza, 1468 Nanjing Road (West),
Jingan, Shanghai, China
Tel: 021-6247-2211
INDONESIA
PT. Yamaha Music Indonesia (Distributor) PT. Nusantik
Gedung Yamaha Music Center, Jalan Jend. Gatot Subroto
Kav. 4, Jakarta 12930, Indonesia
Tel: 21-520-2577
KOREA
Yamaha Music Korea Ltd.
8F, 9F, Dongsung Bldg. 158-9 Samsung-Dong,
Kangnam-Gu, Seoul, Korea
Tel: 080-004-0022
MALAYSIA
Yamaha Music Malaysia, Sdn., Bhd.
Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: 3-78030900
SINGAPORE
Yamaha Music Asia Pte., Ltd.
#03-11 A-Z Building 140 Paya Lebor Road, Singapore
409015
Tel: 747-4374
TAIWAN
Yamaha KHS Music Co., Ltd.
3F, #6, Sec.2, Nan Jing E. Rd. Taipei. Taiwan 104, R.O.C.
Tel: 02-2511-8688
THAILAND
Siam Music Yamaha Co., Ltd.
891/1 Siam Motors Building, 15-16 floor Rama 1 road,
Wangmai, Pathumwan Bangkok 10330, Thailand
Tel: 02-215-2626
OTHER ASIAN COUNTRIES
Yamaha Corporation, Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2317
OCEANIA
AUSTRALIA
Yamaha Music Australia Pty. Ltd.
Level 1, 99 Queensbridge Street, Southbank,
Victoria 3006, Australia
Tel: 3-9693-5111
COUNTRIES AND TRUST
TERRITORIES IN PACIFIC OCEAN
Yamaha Corporation, Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2313
HEAD OFFICE
Yamaha Corporation, Pro Audio & Digital Musical
Instrument Division
Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: +81-53-460-2441
PA17
U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation
©2006 Yamaha Corporation
703MW-01C0 Printed in China
