W54P/W54P+ User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W54P and is the answer not in the manual?

Questions and answers

Related Manuals for Tenda W54P

Summary of Contents for Tenda W54P

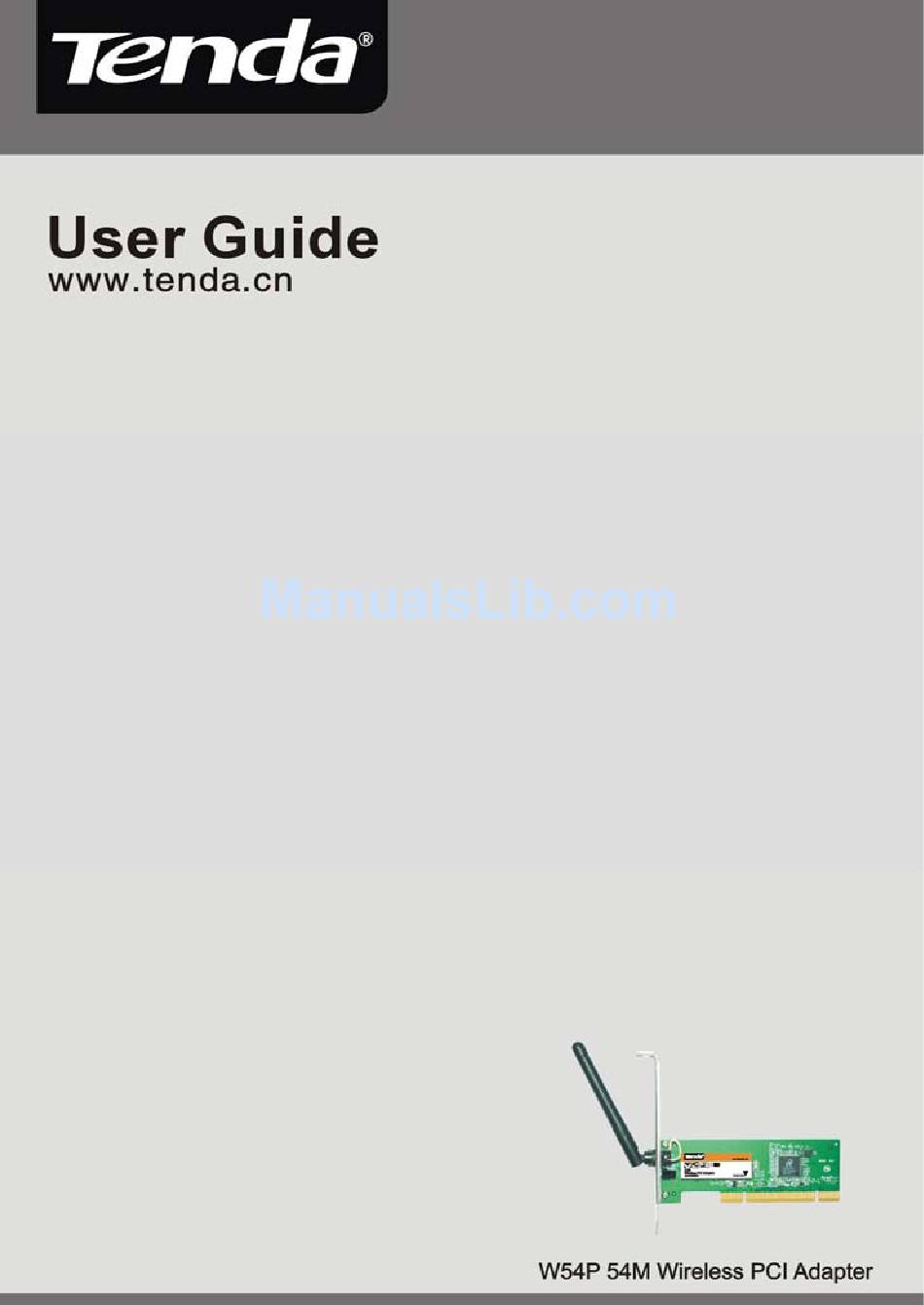

  • Page 1 W54P/W54P+ User Guide...

  • Page 2: Copyright Statement

    W54P/W54P+ User Guide Copyright Statement registered trademark Shenzhen Tenda Technology Co., Ltd. All the products product names mentioned herein trademarks registered trademarks their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd.

  • Page 3: Table Of Contents

    W54P/W54P+ User Guide Table of Content Chapter 1 Introduction ........1 1.1 Product Feature ........1 1.2 Product Deployment .........3 1.3 Package Contents........4 Chapter 2 Installation Guide.........5 Chapter 3 Client Utility Interface…………………………….10 3.1 Station Mode ......... 11 3.1.1 Station Mode Topology ...... 11 3.1.2 Status ..........

  • Page 4: Chapter 1 Introduction

    Soft AP supported by W54P/W54P+ can help you establish wireless LAN networking with lowest cost. Besides, PBC and PIN encryption methods (WPS, Wi-Fi Protected Setup) can free you from remembering the long passwords.

  • Page 5: Product Feature

    W54P/W54P+ User Guide Note: The only difference between W54P and W54P+ is that W54P+’s antenna can be detachable. 1.1 Product Feature  Supports IEEE 802.11g and IEEE 802.11b standards  Provides two work modes: Infrastructure mode and Ad-Hoc mode ...

  • Page 6: Product Deployment

    Supports WMM to make your voice and video more smooth  Easy-to-install, plug and play 1.2 Product Deployment W54P/W54P+ Wireless PCI Adapter offers fast, reliable and cost-effective solution for wireless access. Deployment as follows:  For staff who requires higher mobility in the...

  • Page 7: Package Contents

    Company or individual who avoids using expensive cables, renting cables or renting rights for access. 1.3 LED Indicator Description On W54P/W54P+’s front panel, there is one LED indicator blinking when the device is transmitting and receiving data. 1.4 Package Contents...

  • Page 8: Chapter 2 Installation Guide

    W54P/W54P+ User Guide Chapter 2 Installation Guide This chapter is to assist you how to use the included CD-ROM which comprises the Setup Wizard and the Client Utility Interface. The following steps on Setup Wizard are taken Windows XP as example.
  • Page 9 W54P/W54P+ User Guide 3. Inert the included CD-ROM into the CD-ROM drive of your computer. (If not appear, double click the “Setup.exe” icon.)
  • Page 10 W54P/W54P+ User Guide 4. Click “Next” to start installing. 5. Click “Change…” to select the directory path, or click “Next”.
  • Page 11 W54P/W54P+ User Guide 6. Select “OK” and “Next” in the following window. 7. During the installation, the following dialogue maybe appears. Click the “Continue Anyway” to continue. There is no security threat to your computer.
  • Page 12 W54P/W54P+ User Guide 8. Click “Finish” to complete the installation.

  • Page 13: Chapter 3 Client Utility Interface

    The included client utility is for the W54P/W54P+ Wireless PCI Adapter management. If it does not appear, select “Start”—“All Programs” —“TENDA” —“ W54P/W54P+”, or click the shortcut on your PC’s desktop. Note: In the Windows XP, you can select the included...

  • Page 14: Station Mode

    W54P/W54P+ User Guide 3.1 Station Mode 3.1.1 Station Mode Topology In this mode, serves as a client to W54P/W54P+ receive the wireless signals to access the Internet. -11-...

  • Page 15: Status

    W54P/W54P+ User Guide 3.1.2 Status In the Network Status window, it displays something on wireless adapter and wireless network’s status, including SSID, Authentication type, Encryption Type, IP address, subnet mask and gateway and so on. -12-...

  • Page 16: Site Survey

    W54P/W54P+ User Guide 3.1.3 Site Survey The Site Survey is used to scan the available wireless network around, showing the wireless network’s signal strength and other information which provides basis for you to access which wireless network. Connect: select one entry in the wireless network list and click the button to connect the device with the selected network.

  • Page 17: Profile Management

    W54P/W54P+ User Guide 3.1.4 Profile Management This window saves the general wireless parameters for different profiles, which is used to fast connect the wireless network you need. UP/DOWN: To change the profile’s sequence in the list. Connect: To activate one profile.
  • Page 18 W54P/W54P+ User Guide (Site Status) (Security Setting) -15-...

  • Page 19: Statistics

    W54P/W54P+ User Guide 3.1.5 Statistics Statistics is used to summarize Rx and Tx data packets, including the success and error packet amount. Clear: click this button to renew the statistics. 3.1.6 WPS Setting WPS setting is enabled only on WPS-compliant devices.
  • Page 20 W54P/W54P+ User Guide PIN： Enter the Pin code and click the “PIN” to automatically connect the wireless adapter with wireless devices around. PBC： Click the “PBC” to complete auto-check and connections between wireless adapter and other wireless device. Refresh: to update the Pin code.

  • Page 21: Ap Mode

    W54P/W54P+ User Guide 3.2 AP Mode 3.2.1 AP Mode Topology The device also can serve as an access point to transmit wireless signals and create wireless network, allowing other wireless clients to access the network. Click the AP Mode icon to enter the AP Mode interface.

  • Page 22: Basic Setting

    W54P/W54P+ User Guide 3.2.2 Basic Setting This window is used to configure the AP’s basic para- meters, including SSID, Wireless Mode and Channel. SSID: Wireless network’s ID name scanned by wireless adapter. Wireless Mode: 802.11b/802.11g/802.11b/g mixed. Channel: 1~11 channels provided.

  • Page 23: Security Setting

    W54P/W54P+ User Guide 3.2.3 Security Setting This window is used to configure the wireless network’s security authentication, providing WEP, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK encryption methods. WEP：10/26 bits Hex or 5/13 ASCII support. WPA-PSK：8~32 bits ASCII support. WPA2-PSK：8~32 bits ASCII support. WPA-PSK/WPA2-PSK： 8~32 bits ASCII support.

  • Page 24: Access Control

    W54P/W54P+ User Guide Note: 1. The Hex characters include 0~9 numbers and a~f letters. 2. ASCII characters include any numbers/letters and characters. 3.2.4 Access Control Access Control is based on the MAC address to decide that the specified client connects to the wireless network, or disables it to access the wireless network.
  • Page 25 W54P/W54P+ User Guide Filter Policy: Disabled: to disable the filter function. All Permitted: to permit all clients in the list to access the wireless network. All Blocked: to refuse all clients in the list to access the wireless network. MAC Address： to input the client’s MAC address to implement the corresponding filter policy.

  • Page 26: About

    W54P/W54P+ User Guide 3.2.5 About This window displays something about software version and wireless adapter. -23-...

  • Page 27: Appendix One: Acronyms And Terms

    W54P/W54P+ User Guide Appendix One: Acronyms and Terms WLAN Wireless Local Area Network 802.11 A family of specifications developed by the IEEE for WLAN technology. 802.11a An extension to 802.11 WLAN standard that provides up to 54 Mbps transmis- sion in the 5 GHz UNI radio band.
  • Page 28 W54P/W54P+ User Guide BSSID Basic Service Set ID DHCP Dynamic Host Configuration Protocol DSSS Direct Sequence Spread Spectrum. DSSS is one of two types of spread spectrum radio. other frequency-hopping spread spectrum (FHSS). Quality of Service OFDM Orthogonal Frequency Division...
  • Page 29 W54P/W54P+ User Guide Wired Equivalent Privacy. A security protocol for WLANs defined in the IEEE 802.11 standard. Wi-Fi Protected Access WPA2 Wi-Fi Protected Access 2. The next generation of Wi-Fi security, based on the 802.11i standard. WPA2-PSK Wi-Fi Protected Access 2-Pre-shared...

  • Page 30: Appendix Two: How To Connect With Psp

    W54P/W54P+ User Guide Appendix Two : Product Specification IEEE802.11g, IEEE802.11b Standard 32-bit PCI 2.2 interface Port 2.4～2.4835GHz Frequency Range 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps; Transmission Rate 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps 2.2dBi...
  • Page 31 W54P/W54P+ User Guide Appendix Three : How to connect with 1. Topology of PSP connecting with W54P /W54P+ 2. To configure PSP with Ad-Hoc mode Select Network Settings -28-...
  • Page 32 W54P/W54P+ User Guide Select Ad-Hoc mode Select Channel -29-...
  • Page 33 W54P/W54P+ User Guide 3. In W54P/W54P+ Utility Interface scan PSP and double-click to connect the wireless network. -30-...
  • Page 34 W54P/W54P+ User Guide 4. In Site Survey check “enable PSP connection mode” box. 5. To configure Xlink Kai Select “Start”→ “All programmers” → “Xlink Kai Evolution VII” → “Start Kai Config” to configure the user name, password and other parameters as follows.
  • Page 35 W54P/W54P+ User Guide 6. Login Xlink Kai Select “Start”→ “All programmers” → “Xlink Kai Evolution VII” → “Start Kai”. PSP will connect with Xlink Kai automatically. The following window will indicate the connection is established well now. -32-...
