Document ID: Synology_QIG_1bayCL_20100319

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DiskStation DS110+ and is the answer not in the manual?

Questions and answers

Related Manuals for Synology DiskStation DS110+

Summary of Contents for Synology DiskStation DS110+

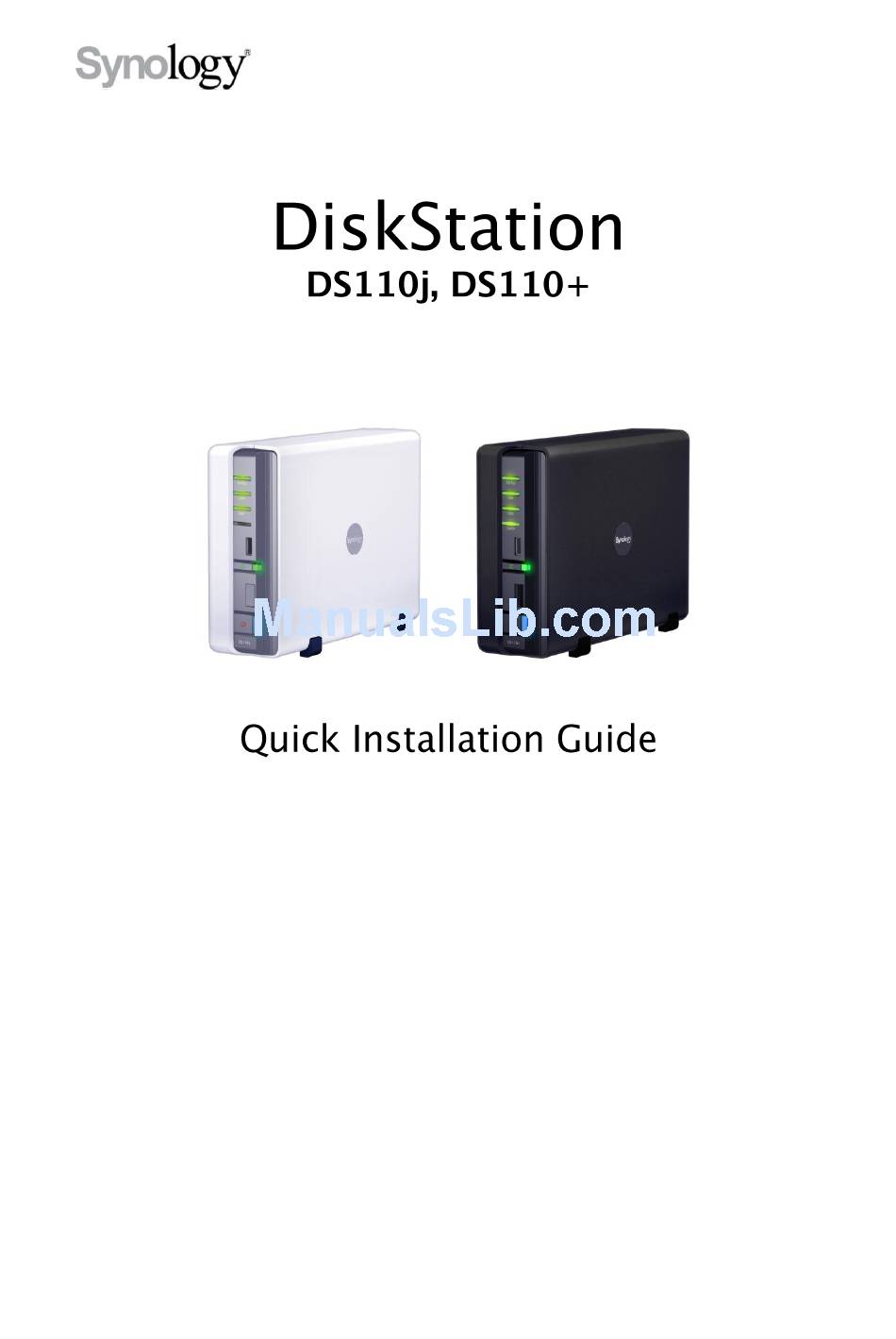

  • Page 1 Document ID: Synology_QIG_1bayCL_20100319...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Please read these safety instructions carefully before use, and keep this manual in a safe place for your future reference. Keep away from Do keep Synology Do not place the direct sunlight and product upright. Do Synology product...

  • Page 3: Package Contents

    AC power Main Unit X 1 Installation CD adapter 2M RJ-45 LAN AC power cord cable Assembling Kit Screws for Screws for fixing Hard fixing the Disk X 6 (2 Synology spares) Case X 3 (1 spare)

  • Page 4: Install Hard Disk

    INSTALL HARD DISK Disk Station requires one 3.5” SATA hard disk for installation. Refer to the following steps for details: Warning! If you use a hard disk with data on it to install, system will format the hard disk and erase all data in some cases. Please back up the data if you need it in the future.
  • Page 5 3. Pull up the upper case. 4. Place the hard disk inside the HDD bay. 5. Fix the hard disk with the 4 HDD screws provided. 6. Attach the upper case and slide it back.
  • Page 6 7. Fix the case with the 2 case screws provided.

  • Page 7: Turn On Server

    TURN ON SERVER 1. Connect the AC power adapter to the server and plug in the AC power cord to the power outlet. 2. Use the LAN cable to connect the server to your switch/router/hub. 3. Press the power button on the front panel to power up the server. Wait for the POWER LED to be constant blue.

  • Page 8: Install System Software

    Windows User 1. Insert the installation CD to your computer. 2. Choose Set up the Synology Server on the autorun menu. 3. Click Browse to select the “.pat” installation file in the installation 4. Follow the on-screen instructions to complete the setup process.
  • Page 9 3. Double click MacOSX. 4. Double click SYNOLOGY-Assistant.dmg. 5. Double click on the automatically generated thumbnail NOLOGY-Assistant.dmg on the desktop. 6. Double click Synology Assistant to run the Setup Wizard.
  • Page 10 7. Click Browse to select the “.pat” installation file in the installation 8. Follow the on-screen instructions to complete the setup process. Note: If you choose One-Click Setup, the admin password will be blank.
  • Page 11 CONGRATULATIONS! Server has been set up. Refer to the User’s Guide in the installation CD for advanced settings and management. For more information or online resources, please visit http://www.synology.com.
