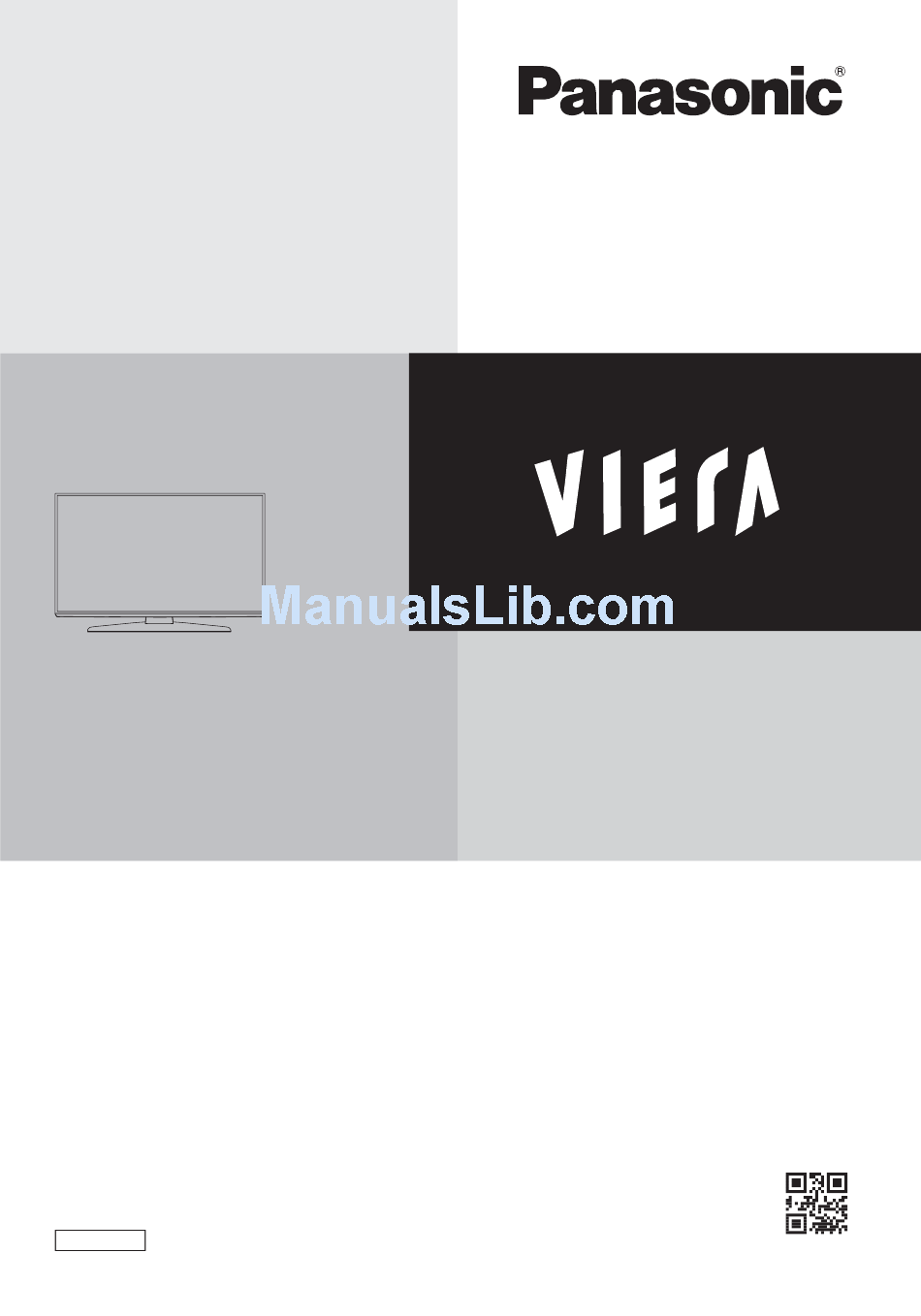

Operating Instructions
LCD Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and
retain them for future reference.
The images shown in this manual are for illustrative purposes only.
English
UK and Ireland model
Model No.
TX-L42WT50B
TX-L47WT50B
TX-L55WT50B
TQB0E2282

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Viera TX-L42WT50B and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic Viera TX-L42WT50B

Summary of Contents for Panasonic Viera TX-L42WT50B

  • Page 1 TX-L47WT50B TX-L55WT50B Operating Instructions LCD Television Thank you for purchasing this Panasonic product. Please read these instructions carefully before operating this product and retain them for future reference. The images shown in this manual are for illustrative purposes only. English...
  • Page 2 (p. 21, 89) wearing the 3D Eyewear. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet VIERA Touch Pad Controller contents such as videos, games, EPG, communication VIERA Touch Pad Controller is designed to operate the tools, etc.

  • Page 3: Table Of Contents

    The recording and playback of content on this or any other device may require permission from the owner of the Accessories / Options ···········································7 copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and Identifying Controls ············································· 11 explicitly disclaims any right, ability or intention to obtain Basic Connection················································14...

  • Page 4: Safety Precautions

    Safety Precautions Warning Mains plug and lead To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below: This TV is designed to operate on AC 220-240 V, 50 / 60 Hz. Insert the mains plug fully into the socket outlet. Ensure that the mains plug is easily accessible.
  • Page 5 Do not insert foreign objects into the TV through the air vents. Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.
  • Page 6 When noises occur due to the static electricity, etc., the TV might stop operating for the protection of the devices. In this case, turn the TV off with Mains power On / Off switch, then turn it on again. Additional information for built-in wireless LAN and access point may be on the following website. http://panasonic.jp/support/global/cs/tv/ Bluetooth wireless technology ®...

  • Page 7: Accessories / Options

    This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young children accidentally. Keep these parts out of reach of young children. Optional accessories Please contact your local Panasonic dealer to purchase the recommended optional accessories. For additional details, please read the manual of the optional accessories. Wall-hanging bracket Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.
  • Page 8 Otherwise the TV may fall over and become damaged, and personal injury may result. Do not use the pedestal if it becomes warped or physically damaged. If you use the pedestal while it is physically damaged, personal injury may result. Contact your local Panasonic dealer immediately.
  • Page 9 Assembly screw (4) Assembly screw (2) Cover Base (silver) XSS5+15FNK TBL5ZB32332 TBL5ZX04011 XYN4+F10FJ (TX-L42WT50B) TBL5ZX04021 TX-L47WT50B M5 × 15 TX-L55WT50B M4 × 10 Assembly screw (4) Bracket (black) TBL5ZA32771 XYN4+F10FJK M4 × 10 Preparations Take out the pedestal and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.) Use a firm table bigger than the TV.

  • Page 10: Preventing The Tv From Falling Over

    Moving the TV Hold the specified parts as shown to stand the TV up and move it with two people. Removing the pedestal from the TV Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV. 1 Put the TV onto a work table with the screen panel down on the clean and soft cloth.

  • Page 11: Identifying Controls

    Identifying Controls Remote Control [Option Menu] (p. 24) Easy optional setting for viewing, sound, etc. Coloured buttons (red-green-yellow-blue) Used for the selection, navigation and operation of various functions. Sound Mute Switches sound mute on or off. Teletext (p. 31) Switches to teletext mode. Volume Up / Down Numeric buttons Changes channel and teletext pages.
  • Page 12 VIERA Touch Pad Controller This touch pad controller is designed for the convenient operations, especially, on VIERA Connect or internet contents. You can operate the TV intuitively with this controller. The touch pad controller can be used by registering to this TV with Bluetooth wireless technology. Setup screen to register will appear in “Auto Setup”...
  • Page 13 Indicator / Control panel C.A.T.S. (Contrast Automatic Tracking System) sensor Senses brightness to adjust picture quality when [C.A.T.S.] in the Picture Menu is set to [On]. (p. 45) Front Logo LED To turn the LED on / off, set [Front Logo LED] in Setup Menu.

  • Page 14: Basic Connection

    Basic Connection External equipment and cables shown are not supplied with this TV. Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads. There are some restrictions on placement for viewing 3D images. For details (p.
  • Page 15 AV devices Player / 3D compatible player Player / 3D-compatible player HDMI cable DVD Recorder / VCR Terrestrial aerial DVD Recorder / AV1 (SCART) adaptor Aerial input terminal SCART cable RF cable RF cable DVD Recorder / VCR and Cable Cable Cable TV box HDMI cable...
  • Page 16 Network To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network environment. If you do not have any broadband network services, please consult your retailer for assistance. Prepare the internet environment for wired connection or wireless connection. Setup of the network connection will start after the tuning (when first using the TV).

  • Page 17: Auto Setup

    Auto Setup Search and store TV channels automatically. These steps are not necessary if the setup has been completed by your local dealer. Please complete connections (p. 14 - 16) and settings (if necessary) of the connected equipment before starting Auto Setup.
  • Page 18 Region selection screen may appear. select region Channel Sorting by Region GBR> Best signal quality (All Regions) access England Regions> (select repeatedly until you reach the available region) Setup the network connection Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p. 21, 89). Please note that this TV does not support wireless public access points.
  • Page 19 3. Enter the encryption key of the access point Wireless Network Settings Set characters Store Encryption key select A B C D E F G H J K L M N O P Q R S T U V W X Y Z v w x _ @ / “...
  • Page 20 How to input Owner ID Enter the PIN number (4 digits) Enter the PIN number twice at first setting. Owner ID Please enter new PIN * * * Select the item (NAME / HOUSE NO / POSTCODE) select Owner ID-Data Entry * * * * access NAME...

  • Page 21: Turn Power On

    VIERA Connect is a gateway to the internet services unique to Panasonic. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, EPG, communication tools, etc. from VIERA Connect home screen.

  • Page 22: Watching Tv

    Watching TV Turn power on Press for about 1 second. Mains power On / Off switch should be on. (p. 13) VIERA Connect introduction banner appears Every time you turn on the TV, this banner appears at the bottom of the screen.

  • Page 23: Last View

    Other useful functions Display Information banner Display Information banner Also appears when changing a channel. Example: DVB 20:35 HDTV HDTV Coronation Street All DVB Channels 20:00 - 20:55 Info Select favourites Mute Mute Bad signal Bad signal Dolby D+ STTL TEXT Multi Audio Channel position and name...

  • Page 24: Off Timer

    Display the selectable settings for the current status Confirm or change the current status instantly To change select select / change access store [Voice Guidance Settings] [Multi Audio] [Teletext Character Set] Guidance settings for visually (DVB) impaired users (p. 48) (Other Sat.
  • Page 25 Aspect Change the aspect ratio (image size) Enjoy viewing the image at its optimum size and aspect. Programmes usually contain an “Aspect Control Signal” (Widescreen signal, etc.), and the TV will choose the aspect ratio automatically according to the “Aspect Control Signal” (p. 107). To change the aspect ratio manually Display Aspect Selection list While the list is displayed, select the mode...

  • Page 26: Using Tv Guide

    Using TV Guide TV Guide í Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcasters). When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.
  • Page 27 To view a channel list of the selected genre To search programme types and view a channel list of the searched programmes (Channel Genre list) (blue) Channel Genre (yellow) All Channels (Search list) select type All Channels Search view Entertainment News &...
  • Page 28 To change the layout of TV Guide To view a channel list of the selected category [TV Guide View] (p. 49) (blue) (Category list) select category To the previous day (DVB) Category (red) All Channels view All Channels To the next day (DVB) All HD Channels (green) All DVB Channels...
  • Page 29 To check / change / cancel a timer To return to TV Guide programming event “Timer Programming” (p. 64, 65) If you select the current programme If a programme exists in both HD and SD broadcasts A confirmation screen asking whether you want to watch or record the programme appears.
  • Page 30 (Other Sat. / Satellite In Other Sat. or Satellite mode, TV Guide is not available. In stead, Channel List will appear. To tune in Other Sat. / Satellite Channels (p. 62) Select Other Sat. / Satellite (p. 22) Display the Channel List Example: Example: All Other Sat.

  • Page 31: Viewing Teletext

    Viewing Teletext You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster) The availability of teletext services for a programme is indicated by [TEXT] in the information banner. Information banner (p. 23) 20:35 Coronation Street All DVB Channels 20:00 - 20:55 BBC ONE WALES Select favourites...
  • Page 32 Analogue teletext Teletext services are the text information provided by the broadcasters. The features may vary depending on the broadcasters. What is FASTEXT mode? In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about one of these subjects, press the appropriate coloured button.
  • Page 33 FULL / TOP / BOTTOM (green) (TOP) (BOTTOM) Normal (FULL) (Expand the TOP half) (Expand the BOTTOM half) View in multi window Watch TV and Teletext in two windows at once Operations can be made only in Teletext screen. Each time pressed: Teletext TV and Teletext Store frequently viewed pages Store frequently viewed pages in the colour bar (List mode only)

  • Page 34: Watching External Inputs

    Watching External Inputs Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the input. To connect the equipment (p. 14 - 16, 105, 106) The remote control is capable of operating the contents or external equipment. (p.
  • Page 35 (p. 77) How to change the code Each type of the Panasonic equipment has its own remote control code. Change the code according to the equipment you want to operate. Press and hold Standby On / Off switch during the following operations...

  • Page 36: Viewing 3D Images

    Viewing 3D images You can enjoy viewing 3D images with contents or programmes corresponding to the 3D effect by wearing the 3D Eyewear. “Standard accessories” (p. 7) This TV supports [Frame Sequential] , [Side by Side] and [Top and Bottom] 3D formats.
  • Page 37 In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction. Lithium Battery Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. 3D Eyewear Use the supplied 3D Eyewear or Panasonic 3D Eyewear that has this logo and supports Bluetooth ® wireless technology.
  • Page 38 Part names and functions Power switch ON / OFF Slide the tab to the “ON” / “OFF” position to switch the power On / Off. MODE Slide the tab to the “MODE” position to change the mode between 3D and 2D (view a 3D image in 2D). This is also used when registering the 3D Eyewear to the TV.
  • Page 39 Registration again When connection with registered TV fails, or when using with another TV, re-register the 3D Eyewear. Turn the TV on Within 50 cm from the TV, hold the power switch on the “MODE” position for more than 2 seconds Release the power switch when registration starts.
  • Page 40 3D-supported broadcast Please consult the suppliers of contents or programmes for availability of this service. 3D photos and 3D videos taken by 3D-compatible Panasonic products Available in Media Player (p. 78) and Network services (p. 94) 2D images converted to 3D Set to [2D 3D] mode in [3D Mode Selection].
  • Page 41 To change 3D format manually When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting. During the above operation Select the mode select 3D Mode Selection (Manual) (red) Original Frame Sequential - 3D Frame Sequential - 2D Side by Side - 3D Side by Side - 2D...
  • Page 42 3D Settings If the 3D images are not displayed correctly or seem unusual, adjust and setup the 3D settings. Display the menu Select [Picture] select Picture access Select [3D Settings] select P-NR access Picture in Picture 3D Settings Access Screen Display Advanced Settings Reset to Defaults Select one of the following functions and set...

  • Page 43: How To Use Viera Tools

    How to Use VIERA TOOLS You can access some special features easily by using the VIERA TOOLS function. For [VIERA Link] function to operate correctly, ensure the connections and settings are completed. “Summary of Q-Link and VIERA Link features” (p. 97), “Preparations” (p. 100) After connection, turn the equipment on and then switch the TV on.

  • Page 44: How To Use Menu Functions

    How to Use Menu Functions Various menus allow you to make settings for the picture, sound, and other functions. Display the menu Displays the functions that can be set (varies according to the input signal). Select the menu select Main Menu access Picture Sound...

  • Page 45: Menu List

    Menu list Menu Item Adjustments / Configurations (alternatives) Selects your favourite picture mode for each input [Dynamic] / [Normal] / [Cinema] / [True Cinema] / [Game] / [Professional1] / [Professional2] [Dynamic]: Improves contrast and sharpness for viewing in a bright room. [Normal]: The [Colour Balance] default setting is set to [Cool].
  • Page 46 Menu Item Adjustments / Configurations (alternatives) Makes still or slow moving pictures more vivid [Off] / [On] Occasionally, while viewing still or slow moving pictures, colour patterning may 3D-COMB be seen. Set to [On] to display sharper and more accurate colours. For PAL / NTSC signal reception in TV mode or from composite (except 3D mode) Picture in Picture Displays two windows at once (p.
  • Page 47 Menu Item Adjustments / Configurations (alternatives) Selects your favourite sound mode [Music] / [Speech] / [User] The selected mode affects all input signals. [Music]: Improves sound quality for watching music videos, etc. [Speech]: Improves sound quality for watching news, drama, etc. In Music and Speech modes, you can adjust [Bass] and [Treble] settings, and Mode those settings will be stored for each mode.
  • Page 48 Sets to control the TV with the devices connected to the network (p. 91) Software Update Checks for available software updates from the Panasonic website Selects whether to give a notification message when new software is found via New Software Message...
  • Page 49 Menu Item Adjustments / Configurations (alternatives) Changes the layout of TV Guide [Normal] / [Full] / [Info] [Normal]: Default TV Guide screen TV Guide View [Full]: Displays channels and programmes full-screen without the operation guide [Info]: Displays details of the selected programme at the bottom without the operation guide Automatically sets the TV to the most suitable energy-saving mode If you press the OK button, the following items are set as below:...
  • Page 50 Menu Item Adjustments / Configurations (alternatives) Auto Setup Automatically searches for the receivable channels (p. 56) Channel Sorting by Automatically sorts tuned channels according to the available region (p. 60) Region For DVB mode Searches for the channels manually (p. 61) Manual Tuning Not valid on freesat mode Update Channel...
  • Page 51 [Off] / [On] Front Logo LED Lights the Panasonic logo on the TV front while the TV is on [Off] / [On] The settings in [Tuning Menu] are applicable only for the selected TV mode. The menu name varies depending on the TV mode.
  • Page 52 Overview (Picture, Sound, Network, Timer, Setup) How to operate (p. 44) Main Menu Viewing Mode Dynamic Contrast Picture Brightness For NTSC Colour Sharpness Not valid when [Viewing Mode] is set Sound Tint to [True Cinema] or [Professional1 / 2] Colour Balance Warm Not valid PC mode or when [Viewing Vivid Colour...
  • Page 53 Main Menu Timer Programming Access Timer Programming Wed 26 Oct 2011 10:46 Off Timer Function Channel Name Date Start Picture Auto Standby Ext Rec. Wed 26 Oct 72 BBC 2W 20:00 21:30 <TIMER> (90 min.) (p. 48) Reminder Wed 26 Oct 14 E4 21:00 22:00...
  • Page 54 Overview (Setup) freesat Tuning Menu How to operate (p. 44) Favourites Edit Access Channel List Access Main Menu Regional Channel Edit Access Auto Setup Access Signal Condition Access Picture For freesat (p. 58) Sound Network TV Guide Settings Access Eco Navigation Access Timer DVB Tuning Menu...
  • Page 55 freesat Favourites Editor freesat Channels Favourites freesat Channel List 1 BBC One Wales 101 BBC 1 Scotland freesat Auto Setup 7 BBC THREE 14 E4 102 BBC 2 Scotland CBBC Channel 103 stv 72 Cartoon Nwk Searching BBCi 104 stv Signal Quality BBC Radio Wales Signal Strength...

  • Page 56: Retuning From Setup Menu

    Retuning from Setup Menu Automatically retune the channels received in the area. This function is available if channel tuning is already performed. Only the selected mode is retuned. All the previous tuning settings are erased. If Child Lock PIN number (p. 66) has been set, the PIN number is required. freesat channels Select freesat (p.
  • Page 57 DVB or Analogue channels Select the mode (p. 22) Display the menu and select [Setup] select Setup access Select [DVB Tuning Menu] or [Analogue Tuning Menu] select access DVB Tuning Menu Access Analogue Tuning Menu Access The displayed item depends on the selected mode. Select [Auto Setup] Example: select...

  • Page 58: Tuning And Editing Channels

    Tuning and Editing Channels (freesat) You can retune channels or make your favourite channel lists, skip unwanted channels, etc. Select freesat (p.22) Display the menu and select [Setup] select Setup access Select [freesat Tuning Menu] select access freesat Tuning Menu Access Select one of the following functions select...
  • Page 59 Replace the regional channels [Regional Channel Edit] You can replace some regional channels with the available channels from another region channel. (if available) Select the channel to replace Select the channel to be replaced freesat Regional Channels Editor freesat Regional Channels Editor select select freesat Regional Channels...
  • Page 60 To edit Favourites list While the cursor is in the Favourites field to edit To move the channel To delete the channel Select the Select the Store new position turn (green) (green) To delete all channels (yellow) To name the Favourites Set characters (maximum 10 characters) Store select...
  • Page 61 Set DVB channel manually [Manual Tuning] Normally use [Auto Setup] or [Update Channel List] to retune DVB channels. If tuning has not been done completely or for adjusting the direction of the aerial, use this function. DVB Manual Tuning Frequency [CH21] 474,00 MHz Signal Quality...
  • Page 62 (Other Sat.) / (Satellite) You can tune all receivable digital satellite channels and create your channel list, etc. Some of Other Sat. / Satellite functions may work to differing specifications (depending on the broadcasters). Select freesat or Other Sat. / Satellite (p.
  • Page 63 Add Other Sat. / Satellite channels automatically [Add New Channels] You can add any new channels found automatically to Channel List. Check the signal condition It takes a while to check the connection for your selected satellite. Other Satellite Add New Channels - Satellite Selection Satellite Selection Astra2/Eurobird Ensure that the Signal Lock status is shown as “Locked”.

  • Page 64: Timer Programming

    Timer Programming Timer Programming from Menu The Timer Programming menu allows you to choose programmes that you want to remind watching or record to the external recorder, the USB HDD or the SD Card. At the correct time, the TV will tune to the correct channel even if the TV is in Standby mode.
  • Page 65 : Overlapped timer programming events Timer programming - Programmes according to the time setting Duration (automatic display) Timer Programming Wed 26 Oct 2011 10:46 Function Channel Name Date Start Records with subtitles (if available) Ext Rec. Wed 26 Oct 72 BBC 2W 20:00 21:30 <TIMER>...

  • Page 66: Child Lock

    Child Lock You can lock specific channels / AV input terminals and control who watches them. When the locked channel / input is selected, a message appears. Enter the PIN number to watch. Setting [Shipping Condition] (p. 67) erases the PIN number and all settings. Display the menu and select [Setup] select Setup...

  • Page 67: Shipping Condition

    Shipping Condition Resets the TV to its original condition, i.e. no channels tuned in. All settings other than [Owner ID] and [USB HDD Setup] are reset (channels, picture, sound settings, etc.). To retune TV channels only, e.g. after moving house “Retuning from Setup Menu”...

  • Page 68: Owner Id

    Owner ID Entry of the PIN number and personal information (your name, address and postcode). In the unfortunate event of theft, the Owner ID will help the Police to determine the owner. Display the menu and select [Setup] select Setup access Select [System Menu] select...

  • Page 69: Using Common Interface

    Using Common Interface The Common Interface Module menu provides access to software contained on Common Interface (CI) Modules. This TV works only for Pay TV modules complying with CI standard. Video and audio signals may not be output depending on broadcasts or services. CI slot Caution Turn off Mains power On / Off switch whenever inserting...

  • Page 70: Updating The Tv Software

    Updating the TV Software A new version of software may be released for download to enhance the performance or operations of the TV. In DVB mode, a notification banner will appear when one of the BBC channels is turned to if a new available software is found.

  • Page 71: Multi Window

    Multi Window Enjoy viewing the digital TV programme and external input (AV, Component or HDMI) at once. Display the menu and select [Picture] select Picture access Select [Picture in Picture] select access Picture in Picture Access Remote control operations apply to the main screen. 1 DVB Main screen Sub screen...

  • Page 72: Displaying Pc Screen On Tv

    Displaying PC Screen on TV The screen of the PC connected to the TV can be displayed on the TV. You can also listen to PC sound with the audio cable connected. To connect PC (p. 105) Select the external input Select [PC] select Input Selection...

  • Page 73: Advanced Picture Settings

    Advanced Picture Settings You can adjust and setup the detailed picture settings for each Viewing Mode. To use this function completely, set [Advance(isfccc)] to [On] in the Setup Menu. (p. 51) For PC input mode, some functions are available without setting [Advance(isfccc)]. Select the input mode to adjust and setup (p.

  • Page 74: Usb Hdd / Sd Card Recording

    Lock the picture setting [Lock Settings] [White Balance], [Colour Management] and [Gamma] can be locked for each Viewing Mode and each input. Additionally, [Contrast], [Brightness], [Colour], [Sharpness], [Tint] and [Reset to Defaults] in the Picture Menu can be locked for [Professional1] and [Professional2]. Enter the PIN number (4 digits) Select [Adjustment Lock] and set to [On] select...
  • Page 75 Preparation for USB HDD / SD Card USB HDD SD Card Connect the USB HDD to the USB 1 port with the USB Unlock the write-protection switch (on the left side of cable. the SD Card) to record and play back. Be sure to connect the USB HDD to the socket outlet.
  • Page 76 Caution and confirmation of using USB HDD Select [Yes] to proceed USB HDD Formatting USB HDD Formatting USB HDD Formatting To use this device for recording, This device will be formatted and The data recorded to the USB HDD with this TV can only it must be formatted first.
  • Page 77 One touch direct TV recording [One Touch Recording] - What you see is What you record Records the current programme in the USB HDD or the SD Card immediately. Confirm the code of the remote control is “73” (p. 35). Select the maximum recording time [30] / [60] / [90] / [120] / [180] (minutes) LED will turn to orange (flash) while One select...

  • Page 78: Using Media Player

    Using Media Player Media Player allows you to enjoy photo, video or music recorded on an SD Card and a USB Flash Memory, and contents recorded with this TV on the recording devices (SD Card / exclusive USB HDD). Photo mode: Still pictures recorded by digital cameras will be displayed.
  • Page 79 Starting Media Player Insert the SD Card or USB Flash Memory to the TV (p. 78) To play back contents in the USB HDD, check the connection and settings are completed. (p. 75) Confirm the message and start Media Player You can also start by pressing following button.
  • Page 80 Photo mode Supported file format (p. 107) The thumbnail of all the photos in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [All photos] To change the size of photos on a thumbnail screen Media Player Photo All photos select [Change Size]...

  • Page 81: Multi Shot 3D

    Multi Shot 3D This TV can create the 3D photo using a pair of photos in the SD Card and save it into the same SD Card. This TV can also create the 3D photo from photos in the USB Flash Memory, but cannot save it. This function is available with photos recorded by digital cameras.
  • Page 82 Menu Item Adjustments / Configurations (alternatives) Selects the frame type of the slideshow [Off] / [Multi] / [Collage] / [Drift (+ calendar)] / [Drift] / [Gallery (+ calendar)] / [Gallery] / [Cinema] [Multi]: 9 photos are displayed orderly at once. [Collage]: Each photo is displayed at a random position and random scale.

  • Page 83: Video Mode

    Video and Recorded TV mode Supported file format (p. 108, 109) Video mode (For SD Card / USB Flash Memory) The thumbnail of video titles in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Title view] The preview will start when the title / scene is highlighted if it supports Media Player Video...
  • Page 84 Video Setup Setup the settings for Video mode. Menu items and selectable options vary depending on the content. Display the option menu Select [Video Setup] Select the items and set select Option Menu Video Setup access / store Menu Item Adjustments / Configurations (alternatives) Sets to start the preview of the title or scene in the thumbnail view [Off] / [On] Image may not be displayed for an instant in the thumbnail view.
  • Page 85 Playback from the list Select the content Start playback If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning. (USB HDD only) If the content has multiple programmes with the different parental ratings, the highest restriction is valid for the content.

  • Page 86: Audio Output Settings

    To repeat between the starting point “A” and finishing point “B” To the previous / next chapter Set “A” and “B” in order (red) / (green) The points will be reset by pressing this button • (blue) A recorded content is automatically •...

  • Page 87: Music Setup

    Music mode Supported file format (p. 109) The thumbnail of music folders in the SD Card or USB Flash Memory will be displayed. Example: Thumbnail - [Folder view] To play back the selected folder Media Player Music Folder view Select the folder Start playback My Music_1 My Music_2 My Music_3...

  • Page 88: Using Network Services (Dlna / Viera Connect / Freesat)

    To use this function with your smartphone, set [Network Remote Control] of this TV to [On]. (p. 91) And you need to install the application for controlling VIERA in your smartphone. For the information of the application: http://panasonic.jp/support/global/cs/tv/ For the operations, refer to the support information of the application.
  • Page 89 VIERA Connect is a gateway to the internet services unique to Panasonic. VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as videos, games, EPG, communication tools, etc. from VIERA Connect home screen.
  • Page 90 Network connections To use only DLNA features, you need a home network environment and you can operate the features without broadband network environment. To use VIERA Connect features, you need a broadband network environment. If you do not have any broadband network services, please consult your retailer for assistance. Dial-up internet connections cannot be used.

  • Page 91: Network Link Settings

    Remote Device List Lists the accessible equipment to this TV on the home network Depending on the area, this function may not be available. For details, consult your local Panasonic dealer. Wired connection settings This setting is for the network connection by using the LAN cable.
  • Page 92 Select [Proxy Settings] and set the items After settings, return to the previous menu. select access Proxy Settings Access [Proxy] Sets Proxy address. This is the address of the relay server that is connected to the target server instead of the browser and sends data to the browser.

  • Page 93: Update Tv's Software

    Access the encryption key input mode Encryption Key Setting Connection will be made with the following settings:- Network Name(SSID) : Access Point A Security type : WPA-PSK Encryption type : TKIP If the selected access point is not encrypted, the confirmation screen will be displayed.
  • Page 94 Using DLNA features ® Ensure the preparation of the media server, network connections and network settings are completed. (p. 88 - 93) Display [VIERA TOOLS] and select [Media Server] select Media Server access Select one of the media servers to access Example: Media server list For the operations to access the other TV, select a Media Server...
  • Page 95 For video file Playback - Playback will start. If you stopped the last playback on the way, the confirmation screen is displayed to select whether to start from where you stopped last time or from the beginning. Example: Playback To display / hide the To operate the playback MEDIA SERVER V100025...
  • Page 96 Menu Item Adjustments / Configurations (alternatives) Selects the transition effect for switching the photo during the slideshow [Off] / [Fade] / [Slide] / [Dissolve] / [Motion] / [Random] [Fade]: The next photo fades in gradually. [Slide]: The next photo slides and appears from the left side. Transition Effect [Dissolve]: Each photo is dissolved when switching to the next photo.

  • Page 97: Link Functions (Q-Link / Viera Link)

    Connect the equipment supporting VIERA Link to the TV’s HDMI1, HDMI2, HDMI3 or HDMI4 terminal via an HDMI cable. About HDMI cable for connecting Panasonic HD Video Camera or LUMIX Camera, read the manual of the equipment. VIERA Link (HDMI and SCART connections)
  • Page 98 VIERA Link (HDMI and Audio out connections) Connected equipment Blu-ray Disc theatre Player theatre with Amplifier with with VIERA Link VIERA Link function VIERA Link function Features function Analogue channel download – – – Easy playback – Power on link –...

  • Page 99: Power Off Link

    Q-Link Preparations Connect the DVD Recorder / VCR with the following logos: “Q-Link”, “NEXTVIEWLINK”, “DATA LOGIC (a trademark of Metz Corporation)”, “Easy Link (a trademark of Philips Corporation)”, “Megalogic (a trademark of Grundig Corporation)”, “SMARTLINK (a trademark of Sony Corporation)” Q-Link connection (p.

  • Page 100: Easy Playback

    As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed. Please refer to individual manuals for other manufacturers’ equipment supporting VIERA Link function. For information about applicable Panasonic equipment, consult your local Panasonic dealer or refer to www.panasonic.co.uk Preparations Connect the equipment supporting VIERA Link.
  • Page 101 Reduce unnecessary power consumption in Standby [Standby Power Save] Set Standby Power Save [On] in the Setup Menu to use this function [Standby Power Save] (p. 49) The power consumption in Standby mode of the connected equipment is controlled higher or lower in synchronisation with the TV on / off state to reduce the consumption.
  • Page 102 Pause Live TV programme [Pause Live TV] You can pause the current TV programme and resume later. The current TV programme will be recorded on HDD of the connected DIGA Recorder. This function is available with a DIGA Recorder which has HDD. If you connect a variety of recorders including other manufacturers’...
  • Page 103 Select [VIERA Link Control] select VIERA Link Menu Pause Live TV Start access Direct TV Rec Start VIERA Link Control Recorder Speaker Selection Home Cinema Select the equipment to access Select the type of the connected equipment and access. select VIERA Link Menu Pause Live TV Start...
  • Page 104 Speaker control [Speaker Selection] You can control the theatre speaker with this TV remote control pointing at the TV’s signal receiver. If you cannot operate, check the settings and the equipment. “Summary of Q-Link and VIERA Link features” (p. 97, 98), “Preparations” (p. 100) Display [VIERA TOOLS] and select [VIERA Link] select access...

  • Page 105: External Equipment

    External Equipment These diagrams show our recommendations for connection of your TV to various pieces of equipment. For other connections, consult the instructions for each piece of equipment, the basic connection (p. 14 - 16), the table (p. 106), and the specifications (p. 125 - 127). Check the type of terminals and cable plugs are correct when connecting.
  • Page 106 Rear of the TV Headphones (M3 stereo mini plug) To adjust volume [Headphone Volume] (p. 47) To listen with speakers Optical digital audio cable Amplifier with speaker system To enjoy the sound from the external equipment in multi-channel sound (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier.

  • Page 107: Technical Information

    Technical Information Auto Aspect The optimum size and aspect can be chosen automatically, and you can enjoy finer images. (p. 25) Aspect Control Signal [WIDE] will appear in the top left of the screen if a Widescreen signal (WSS) or a Control signal through SCART / HDMI terminal is found.
  • Page 108 DivX4 Dolby Digital DivX5 DivX6 .f4v Dolby Digital This TV supports this container H.264 BP/MP/HP Plus .m4v recorded by Panasonic products. For MPEG1 details, read the manual of the products. HE-AAC .mp4 MPEG2 MPEG Audio MPEG4 SP/ASP .flv H.264 –...
  • Page 109 Container File extension Video codec Audio codec Details / Restrictions .3gp H.264 3GPP – .3g2 MPEG4 SP/ASP HE-AAC AAC Dolby Digital H.264 .mpg Dolby Digital Plus 2: This codec can be played back only in .mpeg MPEG1 HE-AAC Media Player. .vob MPEG2 VC-1...
  • Page 110 Electrical interference, static electricity, or erroneous operation may damage the data or device. Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the TV. Panasonic is not liable for any deterioration or damage of recorded data.
  • Page 111 Recording time for the USB HDD / SD Card Recording Recording device Recording mode USB HDD SD Card 1 TB 2 GB 16 GB 48 GB 64 GB For HD broadcast 87 hours 9 minutes 1.5 hours 4.5 hours 6 hours [DR] For SD broadcast 217 hours...
  • Page 112 You cannot connect any devices by using USB card reader. You cannot use two or more same kind of USB devices simultaneously except USB Flash Memory or USB HDD. Additional information for the devices may be on the following website. http://panasonic.jp/support/global/cs/tv/ Bluetooth Setup You can use Bluetooth keyboards and Bluetooth audio devices (headphones, etc.) with this TV by setting...
  • Page 113 USB Gamepad Some of the keys of gamepads correspond to the operation of the remote control. Example: Remote Control Remote Control Volume Up / Down VIERA TOOLS Channel Up / Down EXIT Select Start GUIDE INPUT (AV) BACK/RETURN MENU INTERNET Cursor buttons Input signal that can be displayed COMPONENT (Y, P...

  • Page 114: Hdmi Terminal

    Characters table for numeric buttons You can enter characters by using numeric buttons for free input items. Press the numeric button repeatedly until you reach the User input desired character. Name A B C D E F G H J K L M N O P Q R S T The character is set automatically if you leave for 1 second.
  • Page 115 How to use Windows 7 as a media server Follow the examples below to set up Windows 7 for use as a media server. Confirm the MAC Address of VIERA in [Network Status] (p. 48). The following procedure and screens are examples. For more information, refer to the help functions of Windows 7. Open the Windows start menu and select [Control Panel].

  • Page 116: Faqs

    Before requesting service or assistance, please follow these simple guides to resolve the problem. If the problem still persists, please contact your local Panasonic dealer for assistance. Block noise, frozen or disappearing image occurs in DVB mode / White spots or shadow image (ghosting) occurs in Analogue mode / Some channels cannot be tuned Check the position, direction and connection of the aerial or dish.
  • Page 117 Problem Causes / Actions Set [P-NR] in the Picture Menu to remove noise. (p. 45) Chaotic image, noisy Check nearby electrical products (car, motorcycle, fluorescent lamp). Is [Contrast], [Brightness] or [Colour] in the Picture Menu set to the minimum? No image can be (p.
  • Page 118 TV off with Mains power On / Off switch, then turn it on again. message appears Check foreign objects are not inside the USB port. Follow the message’s instructions. An error message appears If the problem persists, contact your local Panasonic dealer or the authorised service centre.

  • Page 119: On-Screen Messages

    Please check aerial or local Please also refer to p. 116. signal availability. If channels are still not found, consult your local Panasonic dealer. Press OK to start Auto Setup. No module inserted Check the CI module is inserted completely (p. 69).
  • Page 120 Message Meaning / Action No recording - Check media The tape or disc may be “write protected”, full, missing or damaged. No recording - Playing The equipment may be playing the tape or disc. No recording - Unknown The recording may not be performed. Check the equipment. reason The broadcaster has stopped the service.

  • Page 121: Glossary

    Media Player / Network Message Meaning / Action An internal error occurred. Check the settings. (p. 90 - 93) Cannot read file The file is broken or unreadable. Check applicable data format. (p. 107 - 109) Communication with the This might be a problem of the media server. server failed.

  • Page 122: Maintenance

    ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. SDXC Logo is a trademark of SD-3C, LLC.
  • Page 123 MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. At least three (3) years from delivery of products, Panasonic will give to any third party who contact us at the contact information provided below, for a charge no more than our cost of physically performing source code distribution, a complete machine-readable copy of the corresponding source code covered under LGPL.

  • Page 124: Index

    Index Accessories ·······························7 HDMI ······················111, 114, 126 Radio Mode ·····························51 Advanced Settings·············46, 73 HDMI Content Detection··········49 Remote control ················ 7, 8, 11 Analogue Tuning Menu······57, 58 Home Cinema························104 Reset to Defaults ···············46, 48 Aspect······························25, 107 Hotbird ·····································62 Rewind LIVE TV ······················77 Astra ··························...

  • Page 125: Specifications

    Specifications Product fiche Manufacturer Panasonic Corporation Model No. TX-L42WT50B TX-L47WT50B TX-L55WT50B Energy efficiency class Visible screen size 107 cm / 42 inches 119 cm / 47 inches 139 cm / 55 inches (diagonal) On mode average power 56 W 69 W...
  • Page 126 DVB-T Digital terrestrial services the following website. VHF A - J UHF E21 - E69 http://panasonic.jp/ PAL I CATV S1 - S20 CATV S21 - S41 (Hyperband) support/global/cs/tv/ Playback of NTSC tape from some PAL Video recorders (VCR)
  • Page 127 EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024 LCD Television Declaration of Conformity (DoC) “Hereby, Panasonic Corporation declares that this TV is in compliance with the essential requirements and other relevant provisions of the Directive 1999/5/EC, Directive 2004/108/EC, Directive 2006/95/EC and Council recommendation 1999/519/EC.”...
  • Page 128 Or go on line through our Internet Accessory ordering application at www.pas-europe.com. • Most major credit and debit cards accepted. • All enquiries transactions and distribution facilities are provided directly by Panasonic UK. • It couldn’t be simpler! • Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on •...
