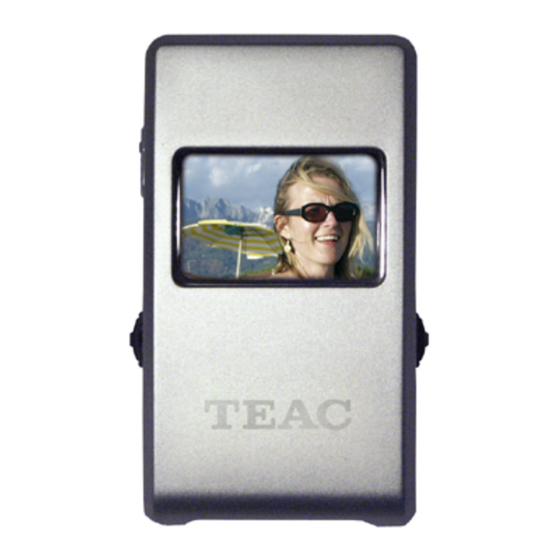

MP3 Player MP-300
User Manual
To ensure the smooth handling of your warranty please write the serial number
of your device into the box. In the case of warranty you are expected to send it
together with a copy of your invoice to your nearest TEAC sales representative.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teac MP-300

  • Page 1 To ensure the smooth handling of your warranty please write the serial number of your device into the box. In the case of warranty you are expected to send it together with a copy of your invoice to your nearest TEAC sales representative.
  • Page 2 Changes in specifications and features may be made without notice or obligation. Copyright © 2005-2006, TEAC Europe GmbH. All rights reserved. Edition: January 2006 Company and product names provided herein are trademarks of their respective companies.
  • Page 3: Table Of Contents

    Language ......................13 Equalizer ......................13 Playback Mode ....................13 A-B Repeat Function ..................13 Voice Recording ....................14 Copying Files to MP-300 .................. 15 Folder Function ....................15 Deleting Files ....................16 FM Tuner ......................16 LINE-IN Recording ................... 18 Edit ID3 Tags ......................
  • Page 4: Features

    The TEAC MP-300 is one of the most powerful MP3 players on the market. FEATURES Playback of MP3/WMA files 65k COLOR OLED display Screen saver Big screen with picture display USB 2.0 FM tuner FM digital recording Line-In receptacle High-Quality digital recording...
  • Page 5: Important Informations

    PC via the USB line. Important information: Please read and retain all the operating instructions before operating the unit, we do not assume any liability arising out of improper operation or incidental damages. GB – 5 | MP-300...
  • Page 6: Introduction Of Controls

    8. Volume - (V-) 2. LINE-IN input jack 9. OLED display 3 Earphone jack 10. POWER ON/OFF Play/pause/stop 11. Previous, RW 5. USB jack 12. MENU 6. Volume + (V+) 13. Next, FF 7. Recording R/A-B repeat GB – 6 | MP-300...
  • Page 7: Symbols On Screen

    Note: It’s unnecessary to employ the power switch unless the player will not be used for a longer period of time or it works abnormally. Please keep the switch in the ON position in normal operation. GB – 7 | MP-300...
  • Page 8: Driver Software

    Insert the provided CD into your CDROM drive or download the driver from our web site. Double click on SETUP.EXE and follow the instructions on the screen. Con- nect the MP-300 and the PC with the provided USB cable after finishing the installation. Windows 2000/XP/ME There is no need for a driver installation under Windows 2000/ XP/ME.
  • Page 9: Disconnecting

    After carrying out the above steps the unit can be discon- nected. Note: The driver software may be not compatible to other MP3 products. If problems occur try to install the driver manually or call our hotline. GB – 9 | MP-300...
  • Page 10: Manual Installation Of Driver Software

    Manual Installation of Driver Software 1. Windows 2000/XP: Click with the right mouse button on My Computer>Properties>Device Manager. Double click on Player Recovery Device Class. Now click on Driver>Update Driver. Click on Next in any of the following windows. GB – 10 | MP-300...
  • Page 11 Manager. Please check if the entry of the player is shown with an exclamation mark or a question mark. Double click on the symbol of the MP-300 (Player Recovery Device Class). Now click on Driver>Upgrade Driver. Click on Next in any of the following windows and on Finish to finish driver installation.
  • Page 12: Basic Operation

    Shortage Power OFF”, and the MP player will turn off auto- matically. The charging process should be finished within 8 hours; Note: It’s advised to charge the player after power off, with a charging period of 4 hours. GB – 12 | MP-300...
  • Page 13: Playback

    During playback you press R/A-B to mark the beginning of the range to be repeated. The symbol is shown. The end of the range is marked by pressing R/A-B again. Now the symbol shown and the marked section is permanently repeated. Press GB – 13 | MP-300...
  • Page 14: Voice Recording

    Select MIC and then select Record with MENU. The unit starts recording immediately. Pressing MENU stops recording. Recording can be stopped and resumed at any time by press- ing R/A-B (symbol If recording with the integrated microphone Vxxx.WAV files are stored in the directory VOICE. GB – 14 | MP-300...
  • Page 15: Copying Files To Mp-300

    Copying Files to MP-300 Seen from PCs side the MP-300 is a normal mass storage de- vice. File transfer therefore is possible in the common way in Windows Explorer. Important Do not disconnect the unit while files are copied. Otherwise this may cause losses of data.
  • Page 16: Deleting Files

    FF or RW button the frequency will increase or decrease by 0.1 MHz. Storing Under searching status, press MENU key to shift to storing mode (Save), press FF or RW button to select the channel GB – 16 | MP-300...
  • Page 17 Recording starts immediately after releasing the key. Pressing MENU stops recording. Recording can be stopped and resumed at any time by press- ing R/A-B (symbol If FM recording Fxxx.WAV files are stored in the directory FM. GB – 17 | MP-300...
  • Page 18: Line-In Recording

    Record starts recording while Cancel stops the whole process. Select LineIn, start the external audio device and select Record on the MP-300 with MENU. The unit starts recording immediately. Pressing R/A-B stops recording. If line in recording Lxxx.WAV files are stored.
  • Page 19: Auto Power Off Time Setting

    Select Settings in main menu and then AutoPowerOff. Navigate with FF and RW through the switch off options. Settable are time intervals of ∞ (inactivity), 1 Min, 2 Min, 5 Min, and 10 Min to switch off the unit. Confirm with MENU. GB – 19 | MP-300...
  • Page 20: Screensaver

    2 Sec, 5 Sec, and 10 Sec. Navigate with FF and RW and confirm with MENU. Note: The picture has to be saved into the IMAGES menu, other- wise, it would be unable to browse them. GB – 20 | MP-300...
  • Page 21: User-Customized On/Off Logo

    So pictures must be resized before put into the unit. Run Corel Photo-Paint, Photoshop, or ACDsee etc. to open the picture you like to resize. Please view the Corel Photo Paint example Loading the picture Set the new picture size GB – 21 | MP-300...
  • Page 22 Keep the width/height relation (aspect ratio). It is mandatory to save the ed- ited picture in BMP format. Copy the resized picture into the IMAGES folder of the player. Then the picture can be displayed. GB – 22 | MP-300...
  • Page 23: Upgrading The Firmware

    3. Connect the USB cable and set the POWER button of the player to ON. In My Computer a mass storage device is shown. Very important: Press and hold the key during the whole upgrade process. 4. Further proceeding: Start>Programs>SigmaTel MSCN Audio Player>SigmaTel MSCN Firmware Download. GB – 23 | MP-300...
  • Page 24 5. Click on Start and start the upgrading software as shown in the following. 6. After upgrading click on Close. After finishing the upgrade, release the key, savely re- move the player, and disconnect the USB cable. GB – 24 | MP-300...
  • Page 25: Formatting The Memory

    2. Click with the right mouse button on My Computer and select Formating. 3. The Formatting windows opens. 4. Click on Start followed by OK. Formatting of the flash memory is started. 5. After formatting click on OK. GB – 25 | MP-300...
  • Page 26: Deinstalling Driver Software

    3. Click on Cancel if the driver should not be deinstalled. 4. Click on OK to start the deinstallation process. Follow the instructions on the screen. 5. Click on Finish to finish the deinstallation. GB – 26 | MP-300...
  • Page 27: Trouble Shooting

    What if the MP3 player works abnormally, i.e, shutting down? When abnormal situation occurred due to improper opera- tion, push the POWER ON switch to OFF and then toward ON. The restart of the unit will return it to normal operation. GB – 27 | MP-300...
  • Page 28: Specification

    MP3 (Layer 3 of MPEG1, MPEG2, MPEG2.5), WMA Microphone: built-in capacitor microphone Input: LINE IN Output: double-channel earphone, impedance above 8 ohm. Range of FM frequencies: 87.5 - 108 MHz Operating temperature: 0°C - 40° C GB – 28 | MP-300...
