Safety guidelines .............................................................. 2
Important safety instructions ............................................. 2
Grounding instructions & Extension cords ........................ 3
Starting up - Usage ........................................................... 4-5
Usage ............................................................................... 6
Parts drawing & Parts list - Caution .................................. 7
Storage - Trouble shooting guide ..................................... 8
Carefully read and understand these instructions
before operating this pressure washer.
Only For Cold Water Application
Sistema USA Inc. 1520 Yokel Rd - Evansville, IN 47711 - USA
General e-mail: info@sistemausa.com - Web: www.sistemausa.com
Customer Support: support@sistemausa.com
Toll Free Customer Support Line: 1-866-463-3000

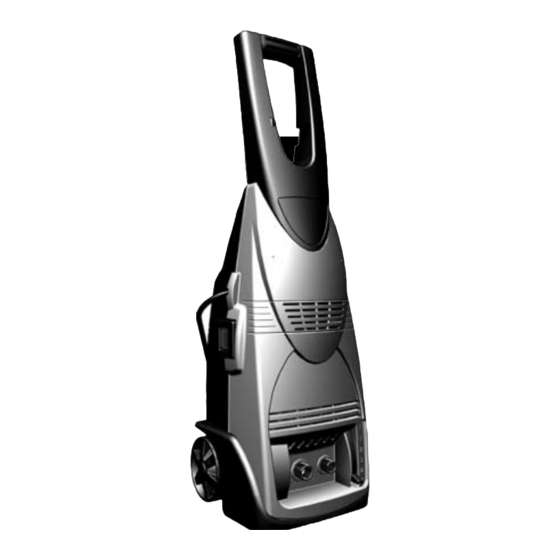

Pressure Washer
Product Manual
General warning.
Read carefully.
Ear protection is advised.
Wear safety goggles.
Table of contents
ART. 3920224
TR2
1700 psi
REV. 1 - 25/05/06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SISTEMA TR2-1700
Summary of Contents for SISTEMA TR2-1700
-
Page 1: Pressure Washer
Carefully read and understand these instructions before operating this pressure washer. Only For Cold Water Application Sistema USA Inc. 1520 Yokel Rd - Evansville, IN 47711 - USA General e-mail: info@sistemausa.com - Web: www.sistemausa.com Customer Support: support@sistemausa.com Toll Free Customer Support Line: 1-866-463-3000... -
Page 2: Important Safety Instructions
Model Voltage Frequency Current Pressure max Operating pressure Cleaning power Max flow rate Inlet pressure max Hz. Amp psi psi gpm TR2 1700 psi 120 10.5 1700 1400 2100 1.6 100 Safety guidelineS - definitionS Th i s m a nual co ntains i n fo rma ti o n t h a t i s i m p o r ta n t for y ou to k no w an d u nd er - s t a n d . - Page 3 grounding inStructionS & eXtenSion cordS GROUNDING: This product must be grounded. If it should malfunction or breakdown, grounding pro- vides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
-
Page 4: Starting-Up
Starting - up BEFORE START-UP PLEASE READ ThE INSTRUCTIONS CAREFULLY. The water jet can be dangerous if used incorrectly; never direct the water jet towards yourself or others, do not use water jet to clean clothing or footwear, never direct the water jet towards ani- mals or electrical appliances. -
Page 5: Usage
Starting - up 6. Plug into 120 Volt 15 Amp. circuit. This high pressure cleaner is provided with a ground fault circuit interrupter GFCI: push “RESET” button on GFCI plug. 7. Pull the gun trigger to release the trapped air. Wait for a steady flow of water to emerge from the spray nozzle. -
Page 6: Nozzle Cleaning
uSage NOZZLE CLEANING if the water jet is irregular during the operation or the thermic safety switch shuts off the machine, the nozzle is likely to be blocked. Proceed as follows: 1) Turn the starting switch to the “OFF” position; 2) Remove plug from power socket;... - Page 7 partS draWing & partS liSt POS. No. CODE No. DESCRIPTION Water inlet Water outlet 2410073 ON/OFF switch 2440018 Power supply cord with GFCI plug 2440025 Power supply cord with NEMA plug 3310182 Handle 2210004 Detergent bottle 1410009 Detergent spraying attach. 1410059 Gun and hose 1410062...
- Page 8 Storage This pressure washer should be stored in such a way to protect it from freezing. Do not store this unit outdoors or in area where temperatures will fall below 32°F (0° C). This can cause extensive damage to this unit. Drain as much water as possible as follows: 1.
Need help?
Do you have a question about the TR2-1700 and is the answer not in the manual?
Questions and answers
A wheel was broken during a move. How can it be replaced?

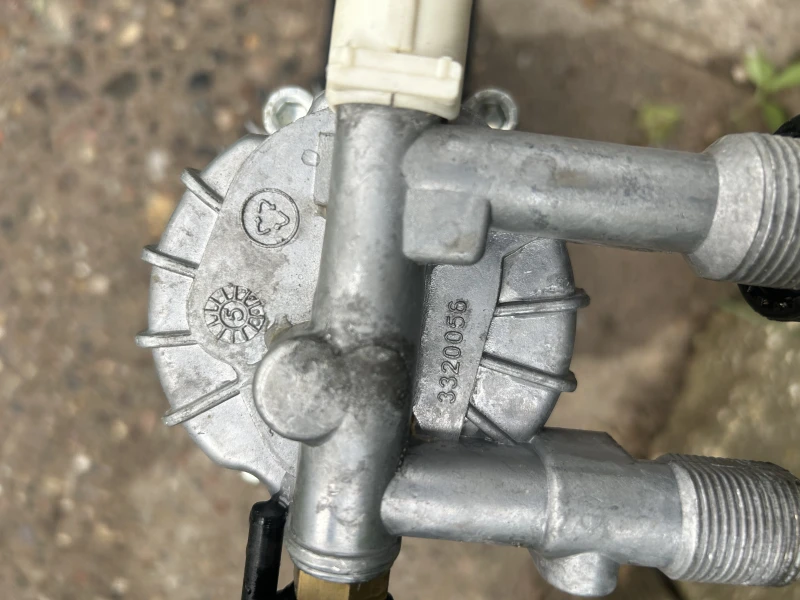

Looking for a replacement inlet/ outlet manifold. Mine is cracked .
