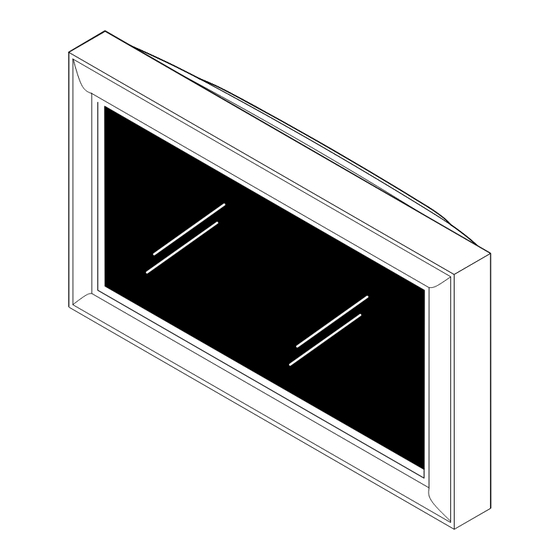

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Decorative Display Frame and Optical Filter Kit 32", 42", and 50"...
- Page 2 32", 42", and 50" Installation Instructions DISCLAIMER INTRODUCTION CSAV, Inc., and its affiliated corporations and subsidiaries TOOLS REQUIRED FOR INSTALLATION (collectively, "CSAV"), intend to make this manual accurate and • No tools are required for this installation complete. However, CSAV makes no claim that the information INSPECT MOUNT BEFORE ASSEMBLY contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection...
- Page 3 Installation Instructions 32", 42", and 50" For the frame to properly fit it must completely cover the bezel NOTE: Right and left bezels should be the same so only one on the display. side needs to be measured. Use the figure below and the Display Compatability Tables on Record measurement.
- Page 4 32", 42", and 50" Installation Instructions INSTALLATION Lower Spacer Mounting Bracket WARNING: IMPROPER INSTALLATION CAN LEAD TO ACCESSORY OR DISPLAY FALLING CAUSING SERIOUS Alignment PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installer’s responsibility to make sure the combined weight of all components attached to display does not exceed the weight capacity of the display mount! IMPORTANT ! : If optional optical filter is being used it...
- Page 5 Installation Instructions 32", 42", and 50" 7. Tighten three wing nuts on spacer assembly. 8. Slide top of LOWER spacer mounting bracket into IR Receiver UPPER spacer mounting bracket until it stops. (example Location) (See Figure 5) NOTE: Wing nuts should be facing towards rear of frame when spacer assembly is properly installed.
- Page 6 32", 42", and 50" Installation Instructions 18. Route mounting straps under and through two anchors at each bottom corner of frame. (See Figure 8) Frame Insert 19. Pull each strap upward until snug and secure by pressing hook side of velcro straps to loop side of Hold Down velcro straps.(See Figure 8) Anchors...
- Page 7 Installation Instructions 32", 42", and 50"...
- Page 8 32", 42", and 50" Installation Instructions USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378 P 800.359.5520 / 651.484.7988 F 651.636.0367 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Asia Pacific A Room 30I, Block D, Lily YinDu International Building LuoGang, BuJi Town, Shenzhen, CHINA.
