Others

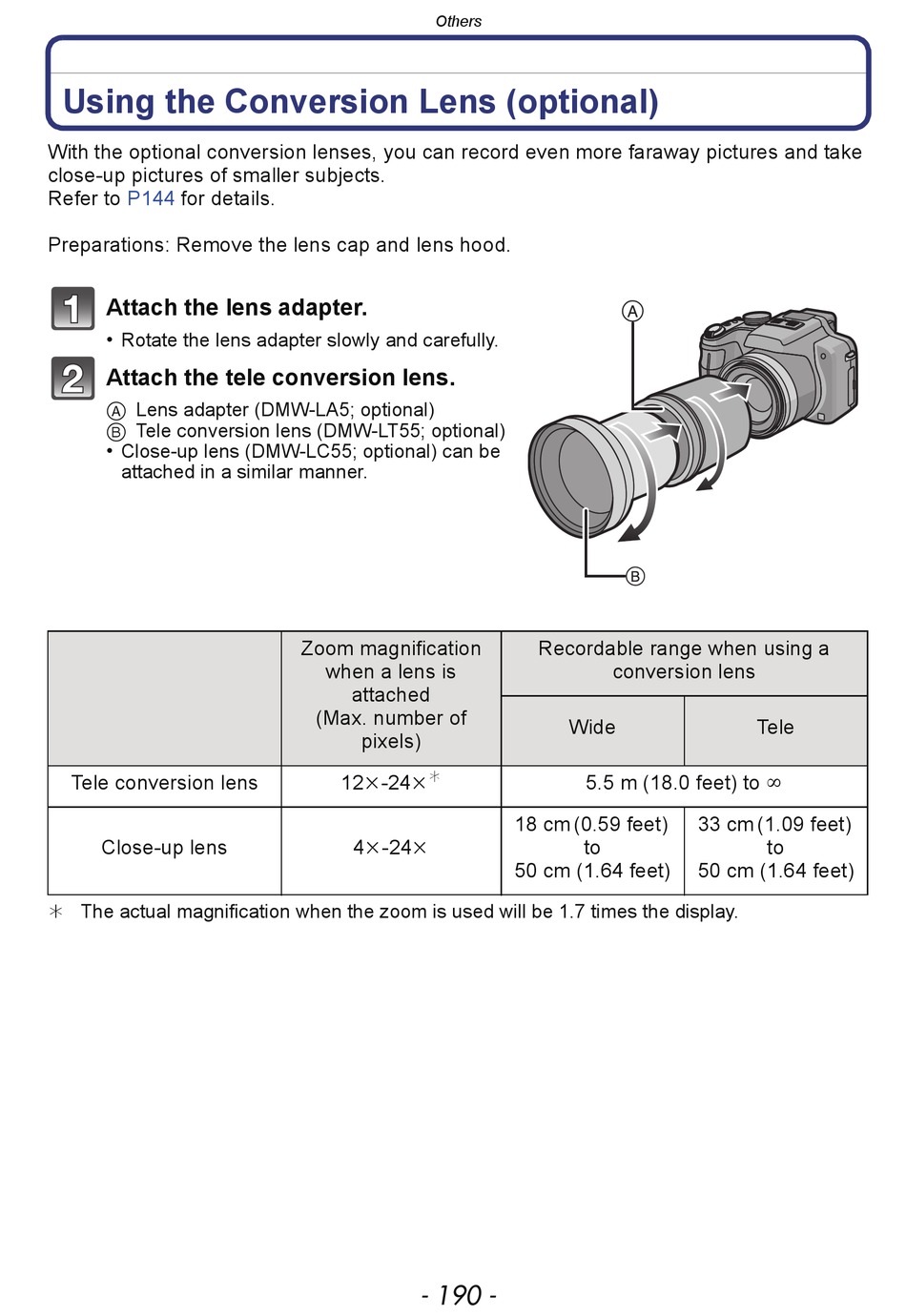

Using the Conversion Lens (optional)

With the optional conversion lenses, you can record even more faraway pictures and take
close-up pictures of smaller subjects.
Refer to P144 for details.
Preparations: Remove the lens cap and lens hood.
Attach the lens adapter.
•
Rotate the lens adapter slowly and carefully.
Attach the tele conversion lens.
A Lens adapter (DMW-LA5; optional)
B Tele conversion lens (DMW-LT55; optional)
•
Close-up lens (DMW-LC55; optional) can be
attached in a similar manner.
Tele conversion lens
Close-up lens
¢ The actual magnification when the zoom is used will be 1.7 times the display.
Others
Zoom magnification
when a lens is
attached
(Max. number of
pixels)
¢
12k-24k
4k-24k
- 190 -
Recordable range when using a
conversion lens
Wide
5.5 m (18.0 feet) to ¶
18 cm (0.59 feet)
to
50 cm (1.64 feet)
Tele
33 cm (1.09 feet)
to
50 cm (1.64 feet)
