  6. Assembly and operating instructions manual

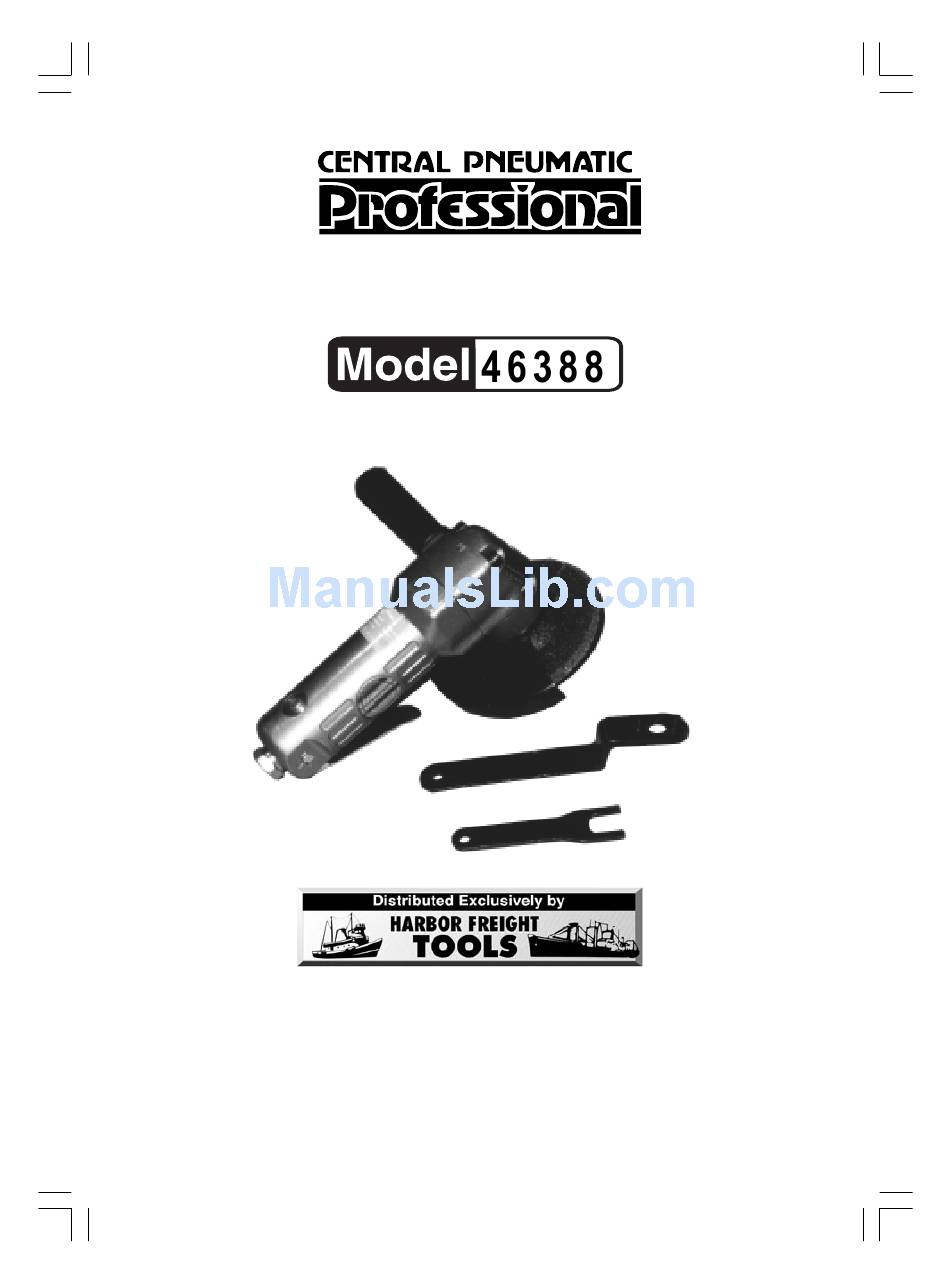

Chicago Pneumatic 46388 Assembly And Operating Instructions Manual

4” air angle grinder
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
4" AIR ANGLE GRINDER
4" AIR ANGLE GRINDER
4" AIR ANGLE GRINDER
4" AIR ANGLE GRINDER
4" AIR ANGLE GRINDER
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright © 2001 by Harbor Freight Tools
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
®
®
®
. All rights reserved. No portion of this

Advertisement

Table of Contents
loading

Related Manuals for Chicago Pneumatic 46388

Summary of Contents for Chicago Pneumatic 46388

  • Page 1 Copyright © 2001 by Harbor Freight Tools manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions and replacement parts, please call 1-800-444-3353 ®...

  • Page 2: Specifications

    Do not force tool. It will do the job better and more safely at the rate for which it was intended. Do not use inappropriate attachments in an attempt to exceed the tool capacity. SKU 46388 Specifications DESCRIPTION 6-3/4”W x 7-1/2”L x 3-5/8”H 1”Dia.
  • Page 3 16. Check for damaged parts. Before using any tool, any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment and binding SKU 46388 Page 3...
  • Page 4 Use of any other parts will void the warranty. Only use accessories intended for use with this tool. Approved accessories are available from Harbor Freight Tools. 19. Do not operate tool if under the influence of alcohol or drugs. Read warning labels on prescriptions to determine if your judgment or reflexes are impaired while taking drugs.

  • Page 5: Air Connection

    Angle Grinder. When unpacking, check to make all parts listed on Page 8 are included. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual.

  • Page 6: Operation

    Screw the Handle [35] into the threaded inlet on the side of the Angle Housing [13] as shown in the Assembly Diagram on Page 8. Set the Air Compressor’s pressure regulator to 90 PSI. Connect the Grinder to the Air Compressor’s hose.
  • Page 7 Wheel slows down as you work with your material, you are applying too much pressure. Once you have turned the Grinder off, continue to hold onto the tool with both hands until the motor stops completely before you set it down.

  • Page 8: Assembly Drawing

    Retaining Ring Ball Bearing Spacer Angle Housing Screw Screw Packing Pinion Gear Front Plate SKU 46388 NOTE: Some parts are listed and shown for illustration purposes only and are not available individually as Parts List replacement parts. ITEM DESCRIPTION Bearing Spacer...
