The Quick Reference is given to provide basic operation of the unit.
Please completely read the user's guide to take advantage of all the
features this unit has to offer.
Disney Elements © Disney

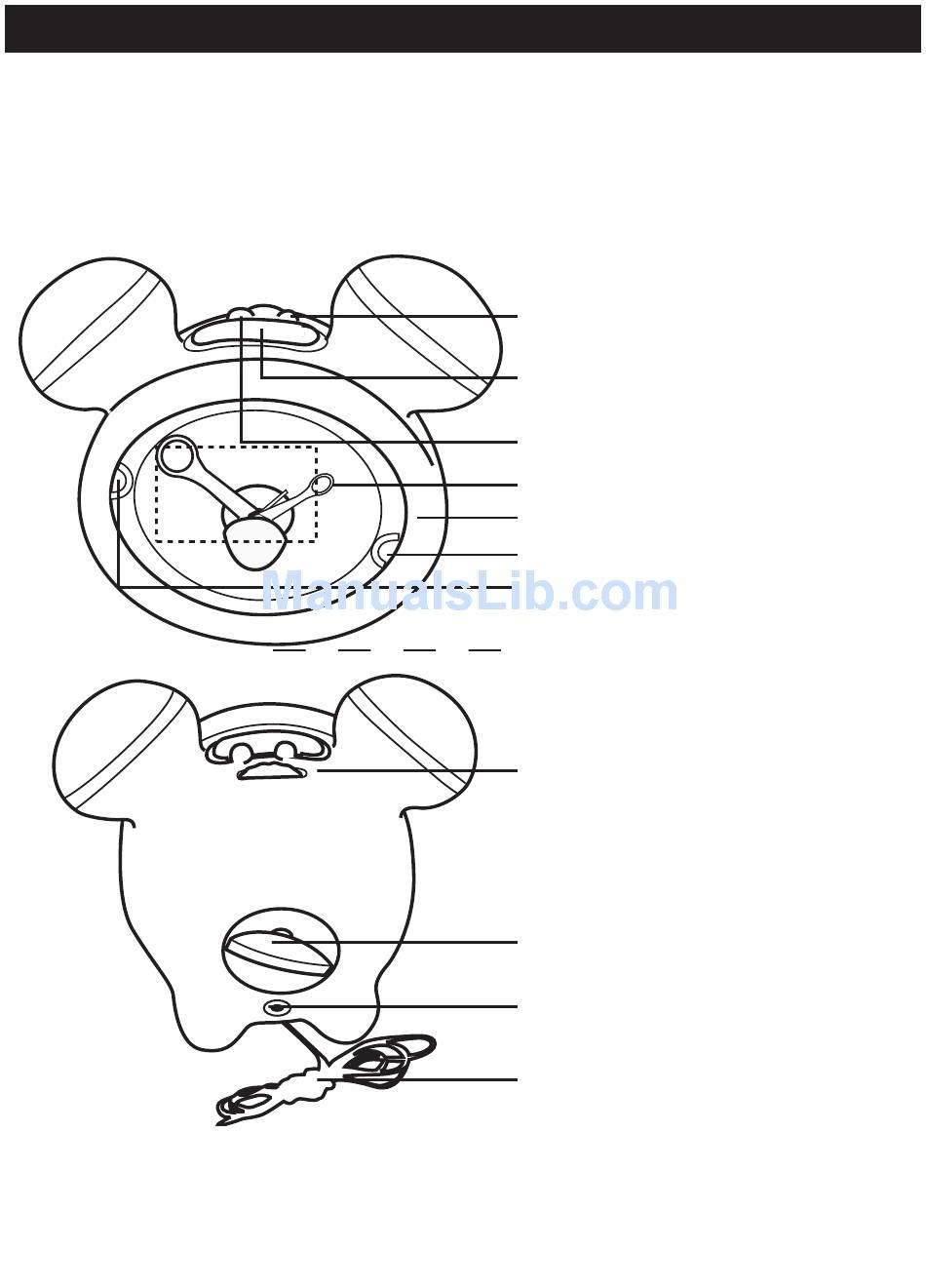

QUICK REFERENCE
Slide to select the alarm (AUTO: Radio
or BUZZ: Buzzer) or to turn the
unit ON or OFF
Press to temporarily turn off the alarm
for 7 minutes and turn on the
backlight for 5 seconds
Slide to select AM or FM
Minute/Hour/Second/Alarm hands
Rotate to set the radio station
AM Dial Scale Pointer and Backlight
FM Dial Scale Pointer and Backlight
Battery Compartment
Insert three (3) "AA" batteries to operate
the clock, radio and alarm
Rotate to adjust the volume
Gently pull out and rotate to
adjust the time. Rotate to
adjust the alarm time.
DC IN 4.5V Jack (Center Positive)
Fully extend for best FM reception
1
Advertisement
Table of Contents
Related Manuals for Medion DISNEY CLOCK RADIO
Summary of Contents for Medion DISNEY CLOCK RADIO
- Page 1 QUICK REFERENCE The Quick Reference is given to provide basic operation of the unit. Please completely read the user’s guide to take advantage of all the features this unit has to offer. Slide to select the alarm (AUTO: Radio or BUZZ: Buzzer) or to turn the unit ON or OFF Press to temporarily turn off the alarm for 7 minutes and turn on the...
- Page 2 QUICK REFERENCE (CONTINUED) TO LISTEN TO THE RADIO: 1. Slide the AUTO/BUZZ/ON/OFF switch to the ON position to turn the unit on. 2. Slide the Band switch to the desired band, AM or FM. 3. Tune a station by rotating the TUNING ring. 4.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ATTENTION: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and... - Page 4 SAFETY PRECAUTIONS (CONTINUED) INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Before using the unit, be sure to read all be moved with care. Quick PORTABLE CART WARNING (symbol provided by RETAC) operating instructions carefully. Please note stops, excessive force and that these are general precautions and may uneven surfaces may cause not pertain to your unit. - Page 6 IMPORTANT SAFETY INSTRUCTIONS point where they exit from the appliance. perform safety checks to determine that the 13. LIGHTNING product is in proper operating condition. 20. WALL OR CEILING MOUNTING To protect your product from a lightning storm, or when it is left unattended and The product should be mounted to a wall or unused for long periods of time, unplug it ceiling only as recommended by the...
-
Page 7: Location Of Controls
LOCATION OF CONTROLS FRONT 1. Left Speaker 2. Right Speaker 3. AUTO/BUZZ/ ON/OFF Switch 4. SNOOZE Button 5. Band (FM/AM) Switch 6. Minute Hand 7. Hour Hand 8. Second Hand 9. Alarm Hand 10. AM Dial Scale Pointer and Backlight REAR 11. -
Page 8: Power Sources
POWER SOURCES CLOCK OPERATION To operate the clock, one (1) AA battery must be installed as follows: 1. Remove battery compartment door on the bottom of the unit by inserting a small screwdriver, paper clip or similar item into the tab while gently pushing, then lifting it out. - Page 9 POWER SOURCES (CONTINUED) BATTERY PRECAUTIONS Follow these precautions when using batteries in this device: 1. Use only the size and type of batteries specified. 2. Be sure to follow the correct polarity when installing the batteries as indicated next to the battery compartment.
-
Page 10: To Listen To The Radio
OPERATION TO LISTEN TO THE RADIO Slide the AUTO/BUZZ/ON/OFF Tune a station by rotating the switch 1 to the ON position to turn TUNING ring. the unit on. Slide the Band switch 2 to the desired band, AM or FM. Antennas FM: Extend the FM antenna wire (located... - Page 11 OPERATION (CONTINUED) TO SET OR RESET THE ACTUAL TIME Rotate the Clock/Alarm Time Set Gently pull out the Clock/Alarm knob on the rear of the unit until the Time Set knob on the rear of the current time appears on the front unit.
- Page 12 OPERATION (CONTINUED) TO SET THE ALARM TO WAKE TO RADIO Set the alarm time as previously Slide the AUTO/BUZZ/ON/OFF instructed. Select a radio station as switch to the AUTO position. When described on page 10 and make sure the actual time matches the the Volume control is set as desired.
-
Page 13: To Set The Alarm To Wake To Buzzer
OPERATION (CONTINUED) TO SET THE ALARM TO WAKE TO BUZZER Set the alarm time as previously Slide the AUTO/BUZZ/ON/OFF instructed. Make sure the Volume switch to the BUZZ position. When control is set as desired. the actual time matches the selected preset alarm time, the NOTE: Make sure the volume is not disney alarm will automatically turn... -
Page 14: To Shut The Alarm Off
OPERATION (CONTINUED) SNOOZE TO SHUT THE ALARM OFF To shut the alarm off, slide the The alarm can be temporarily turned off manually by pressing the SNOOZE AUTO/BUZZ/ON/OFF switch to the button; the alarm will turn back on position. Slide automatically 7 minutes later. -
Page 15: Troubleshooting Guide
TROUBLESHOOTING GUIDE Should this unit exhibit a problem, check the following before seeking service: POSSIBLE POSSIBLE SYMPTOM CAUSE SOLUTION RADIO No sound. AUTO/BUZZ/ON/OFF Set AUTO/BUZZ/ON/OFF switch not set to ON. switch to ON. Volume control at Increase the volume. minimum position. Noise or sound AM–Interference from Turn the radio for...
