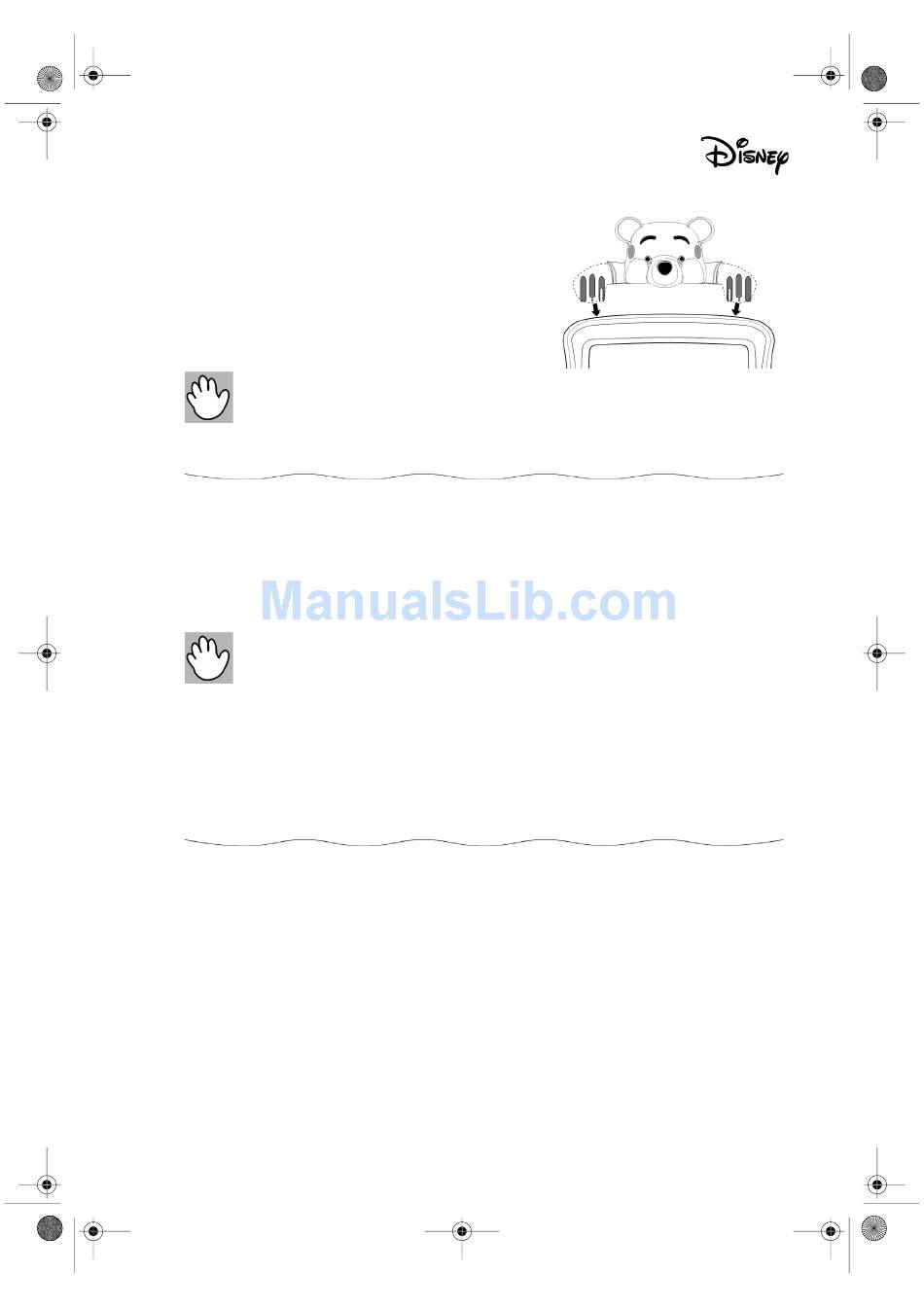

Fitting the loudspeaker
For sound output, the loudspeaker must be fitted.
• Fit the loudspeaker "Winnie-the-Pooh" on the top
of the TV set. The underside of the loudspeaker
must be flush with the TV set.
CAUTION!
Do not use any loudspeaker other than the one provided with this set. Do not plug any
other accessories into these sockets.

Connectors

Antenna connector
To connect to the house antenna or cable system, connect a double-screened cable from the
antenna socket to the television set.
Headphone connection
On the front of the set is a headphone socket, suitable for any normal headphones fitted with
a 3.5-mm jack plug. When headphones are in use, the loudspeakers are turned off.
CAUTION!
Too high a volume, especially when using headphones, can damage your hearing. For
this reason, you should turn the volume right down before connecting the headpho-
nes.
Power connection
Do not connect the appliance to the mains until you have made all the other connections. Insert
the device's plug into a mains socket (230 V ~ 50 Hz) that is close to the place where you
have set up the device.

Connecting other equipment

The SCART socket on the rear and the Audio/Video inputs on the front panel can be used to
connect various audio and video appliances (video-recorders, satellite receivers etc.).
To connect an external appliance, connect it:
• either with a SCART cable (SCART socket on rear of TV),
• or with audio Cinch cables (AV connectors on front panel of TV).
Please note the instructions regarding additional equipment in the operating instructions.
