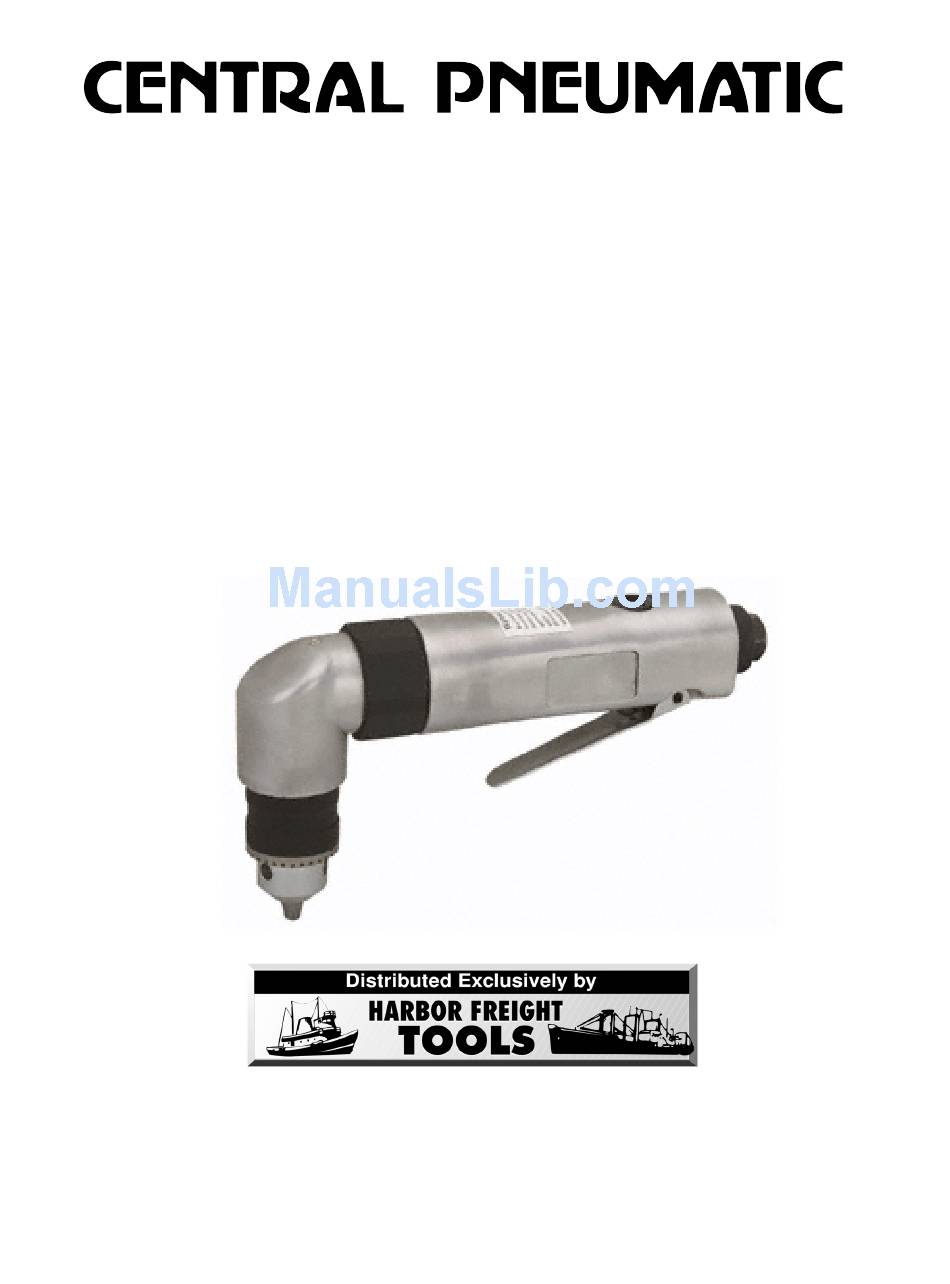

3/8" AIR ANGLE DRILL
Model 2439
ASSEMBLY and OPERATING
INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
®
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
Copyright
©
2002 by Harbor Freight Tools
®
. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions and replacement parts, please call 1-800-444-3353
Advertisement
Table of Contents
Related Manuals for Central Pneumatic 2439
Summary of Contents for Central Pneumatic 2439
-
Page 1: Assembly And Operating
. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. For technical questions and replacement parts, please call 1-800-444-3353... -
Page 2: Specifications
Wear a full face shield if you are producing metal filings or wood chips. Wear an ANSI approved dust mask or respirator when working around metal, wood, and chemical dusts and mists. SKU 2439 Specifications 1/4” - 18 NPT 90 PSI 4.5 SCFM... - Page 3 20. Compressed air only. Never use combustible gases as a power source. Note: Performance of the compressor (if powered by line voltage) may vary depending on variations in local line voltage. Extension cord usage may also affect tool performance. SKU 2439 Page 3...
- Page 4 When unpacking, check to make sure the parts listed on page 6 are included. If any parts are missing or broken, please call Harbor Freight Tools at the number on the cover of this manual as soon as possible 1/4”...
- Page 5 Trigger (3). Never force the tool. Only apply light pressure when horizontal drilling. 7. When driving screws, use bits suitable for the type and size of screw you are using. Drill a pilot hole for the screw head to bite into. Use the lowest torque setting. Grasp the drill firmly with both hands and slowly squeeze the Trigger (3).
-
Page 6: Parts List
REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. NOTE: Some parts are listed and shown for illustration purposes only and are not available individually as replacement parts. SKU 2439 Parts List Qty. Part No. - Page 7 Assembly Drawing Page 7 SKU 2439...
