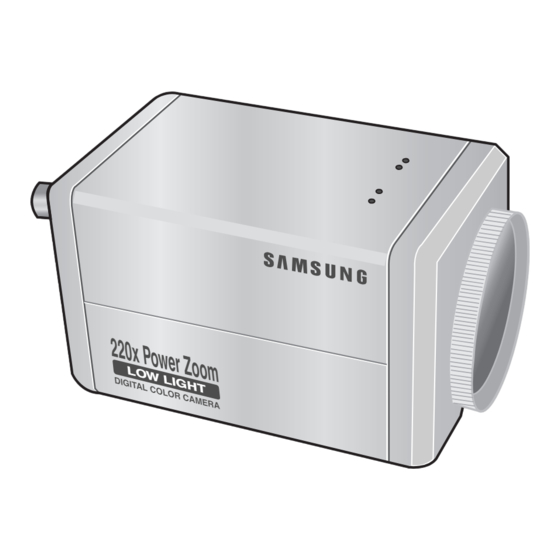

220X POWER ZOOM CAMERA
SCC-C4201(P), C4203(P),
C4301(P), C4303(P)
Owner's Instructions
Gebrauchsanleitung
Guide d'utilisation
Guía del usuario
Istruzioni per l'uso
✽ Be sure to read the "Safety Precautions" in this manual
to ensure correct use and operation of this product.
E
D
F
Es
I
Advertisement
Table of Contents
Related Manuals for Samsung SCC-C4201(P)
Summary of Contents for Samsung SCC-C4201(P)
- Page 1 220X POWER ZOOM CAMERA SCC-C4201(P), C4203(P), C4301(P), C4303(P) Owner’s Instructions Gebrauchsanleitung Guide d’utilisation Guía del usuario Istruzioni per l’uso Part : AB68-00366A Printed in Korea ✽ Be sure to read the "Safety Precautions" in this manual to ensure correct use and operation of this product.
-
Page 2: Safety Precautions
Safety Precautions The purpose of safety precautions is to prevent 4. Securely plug the power cord into the power accidental injury or property damage. Always observe receptacle. (A loose connection may result in fire.) all safety precautions. ✽ The precautions are divided into "Warnings" and 5. -
Page 3: Table Of Contents
Contents Cautions 1. Overview.............5 1. Do not drop objects on the product or apply strong 2. Part Names and Functions .......6 shock to it. Keep away from a location subject to 3. Installation ............8 excessive vibration or magnetic interference. Checking the Package Contents ....... -
Page 4: Overview
Overview Part Names and Functions This camera is a high performance surveillance camera that provides a maximum of 220x zoom surveillance capability with its 22x optical zoom lens and digital zoom IC. It is a multifunction camera that is equipped with all of the key features of the existing surveillance cameras : Day &... -
Page 5: Installation
Installation In Setup Menu Mode - UP/ DOWN buttons: Use to move the cursor up or down. - LEFT/ RIGHT buttons: Use to move the cursor left or Before Installation right, or to sequentially view the values that can be assigned to a parameter. -
Page 6: Preparing The Cables
Preparing the Cables Connecting the Cables To install and use the camera, first prepare the following 1. Connect one end of the BNC cable to the VIDEO OUT. cables. 2. Connect the other end of the BNC cable to the VIDEO IN The requirements for the power adapter, which connects to of the monitor. -
Page 7: Navigating The Setup Menu
5. If the camera operates normally, the following screen will be displayed for 5 seconds and then disappears. IRIS ALC.../MANU... OFF/1/100(1/120) ~ 1/10K SHUTTER /AUTO X2~X128/FIX X2~X128 SAMSUNG PROTOCOL OFF/LOW/HIGH ADDR : 0 TYPE : RS-485, HALF MOTION S.S/SLOW/NORMAL/FAST/F.F BAUD : 9600... - Page 8 Structure of the Setup Menu Structure of the Setup Menu of the SCC-C4301(P) Structure of the Setup Menu of the SCC-C4203(P) CAMERA ID OFF/ON... CAMERA ID OFF/ON... IRIS ALC.../MANU... IRIS ALC.../MANU... OFF/1/100(1/120) ~ 1/10K OFF/1/100(1/120) ~ 1/10K SHUTTER SHUTTER /AUTO X2~X128/FIX X2~X128 /AUTO X2~X128/FIX X2~X128 OFF/LOW/HIGH OFF/LOW/HIGH...
-
Page 9: Camera Id
Structure of the Setup Menu (SET UP) (SET UP) CAMERA ID CAMERA ID IRIS ALC... IRIS ALC... SHUTTER SHUTTER Structure of the Setup Menu of the SCC-C4303(P) WHITE BAL WHITE BAL SPECIAL SPECIAL AUTO FOCUS ONEAF AUTO FOCUS ONEAF MOTION DET MOTION DET CAMERA ID OFF/ON... -
Page 10: Iris
IRIS If you set the AREA option to USER and press the ENTER button, you can customize the area to which the BLC function The level of video output to the monitor can be controlled by will be applied. You can specify the size of the area by using the iris lens according to the intensity of the incoming light. -
Page 11: Shutter
SHUTTER AGC (MOTION) In the AGC (Automatic Gain Control) option, you can specify In the SHUTTER option, you can specify the speeds of the whether to automatically control the GAIN when the obtained high-speed electronic shutter, auto low-speed shutter, and fix video is below a certain level of brightness because it was low-speed shutter. -
Page 12: White Bal
WHITE BAL SPECIAL You can manually adjust the LANGUAGE, V-SYNC, CTRL TYPE, In the WHITE BAL option, you can set the White Balance RS485, PIP, MIRROR, D-ZOOM, POSI/ NEGA, ZOOM SPEED, function, which enables you to see the white color correctly and DETAIL. -
Page 13: Auto Focus
AUTO FOCUS CTRL TYPE : You can select the A, B, C, or D mode depending on the input of the wired remote control terminal. In the AUTO FOCUS option, you can specify the Focus (See page 7.) method to AF, MF, or ONEAF. RS-485 : It sets up ADDRESS, PROTOCOL, and BAUD RATE of RS-485 communication. -
Page 14: Preset
If you select ON and press the ENTER button, the MOTION (PRESET MAP) PRESET NO. 0 DET screen will come up. You can set the AREA to which the 0 H 1 Motion Detection function will be applied to either PRESET or POSITION SET USER. -
Page 15: Exit
In low light conditions, the IR Filter is turned OFF and the EXIT sensitivity to low light is increased by switching to the BW The EXIT option is used to quit the Setup Menu mode and mode, but in bright light conditions, the IR Filter is turned return to the Normal Operation mode. - Page 16 Specifications SCC-C4201/C4203 SCC-C4201P/C4203P Item Description Remark Item Description Remark Product Type - 22x Zoom Camera Product Type - 22x Zoom Camera Power Supply Voltage - DC 12V ± 10% Power Supply Voltage - DC 12V ± 10% Power Consumption - 5.0 W Power Consumption - 5.0 W Broadcast System...
-
Page 17: Specifications
Specifications SCC-C4301/C4303 SCC-C4301P/C4303P Item Description Remark Item Description Remark Product Type - 22x Zoom Camera Product Type - 22x Zoom Camera Power Supply Voltage - AC 24V (60Hz) or DC 12V ± 10% Power Supply Voltage - AC 24V (50Hz) or DC 12V ± 10% Power Consumption - 5.5W Power Consumption... -
Page 18: Others
Others 1 : With the menu "off", if voltage is applied for shorter than 2 ZOOM/FOCUS Remote Terminals seconds, the AF function will be activated, and if voltage is These terminals are to activate the ZOOM/FOCUS, applied for longer than 2 seconds, the menu will be "on". MENU CONTROL, HOME RETURN, and AF functions With the menu "on", if voltage is applied, the ENTER by using an external controller. - Page 19 Memo Memo...
