Summary of Contents for Polaroid PDM-2727M

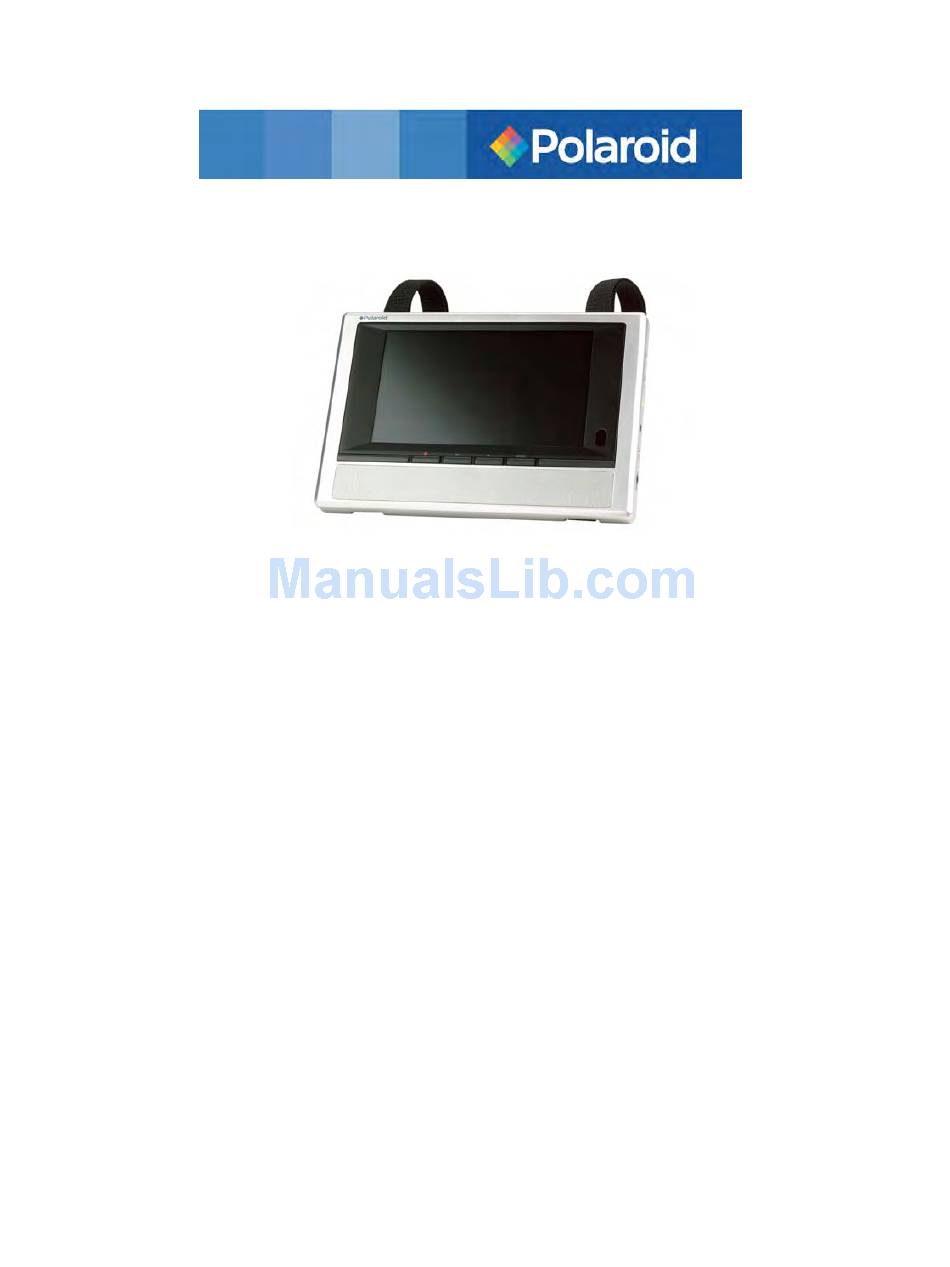

- Page 1 7” Two Screen Car DVD Player: Extra Screen PDM-2727M 20060426...
-
Page 2: Table Of Contents
Contents …………………………………………… ………..2 Contents ………………...…………………………………….3 Safety Instructions …………………………………...………………….4 View of Front Panel ……...……………………………………………….5 View of Side Panel ……...……………………………………………….6 System Connection ……………………………………………………….7 Power Supply Preparation ……………………………………………………….8 Troubleshooting ……………………………………………………….9 Specifications... -
Page 3: Safety Instructions
Safety Instructions The lighting flash with arrowhead symbol, within a triangle, alerts the user to “dangerous voltage” which could cause electric shock. The exclamation point within a triangle is indicates to the user to read important operating and maintenance instructions in the manual. Notes 1) Read these instructions. -
Page 4: View Of Front Panel
View of Front Panel POWER button Press to access to or exit from the standby mode. -/+ button Press to adjust the value of brightness and color MODE button Press to change the brightness and color level, press and hold for 1-2 seconds to change the aspect ratio. -
Page 5: View Of Side Panel
View of Side Panel Volume Control Used to adjust the volume of the headphone and speaker. Headphone Jack Used to connect headphones for private listening. When the headphones are connected to this jack, the speaker will be turned off automatically. Audio Input Jack Used for audio input. -
Page 6: System Connection
System Connections Connect to Master DVD player Make sure that the master DVD player, slave LCD screen and any other electrical equipment are off before connection. Connect the AC adapter to the slave LCD screen and connect the slave LCD screen with the master DVD player using power supply cord to supply power to the master DVD player. -
Page 7: Power Supply Preparation
Power Supply Preparation Using the AC Adapter Connect AC adapter to the jack marked DC IN on the right side of the slave LCD screen in, as shown below. Plug the two-prong end of the power cord into a grounded electrical outlet. Note: Turn player's power off before unplugging. -
Page 8: Troubleshooting
Troubleshooting SYMPTOM HOW TO CHECK - Make sure system connection is correct. There is no sound. - Make sure the speakers are turned on. - Make sure the audio source is correct. - Make sure LCD screen is on and in correct video mode. There is no picture. -
Page 9: Specifications
230mm x 154mm x 22mm (L*W*D) Weight 0.37kg DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE "Polaroid" and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA. For service, support and warranty information, visit www.polaroid.com or in Mexico call 01-800-400-2443.
