Panasonic KX-P7100 Setup Manual

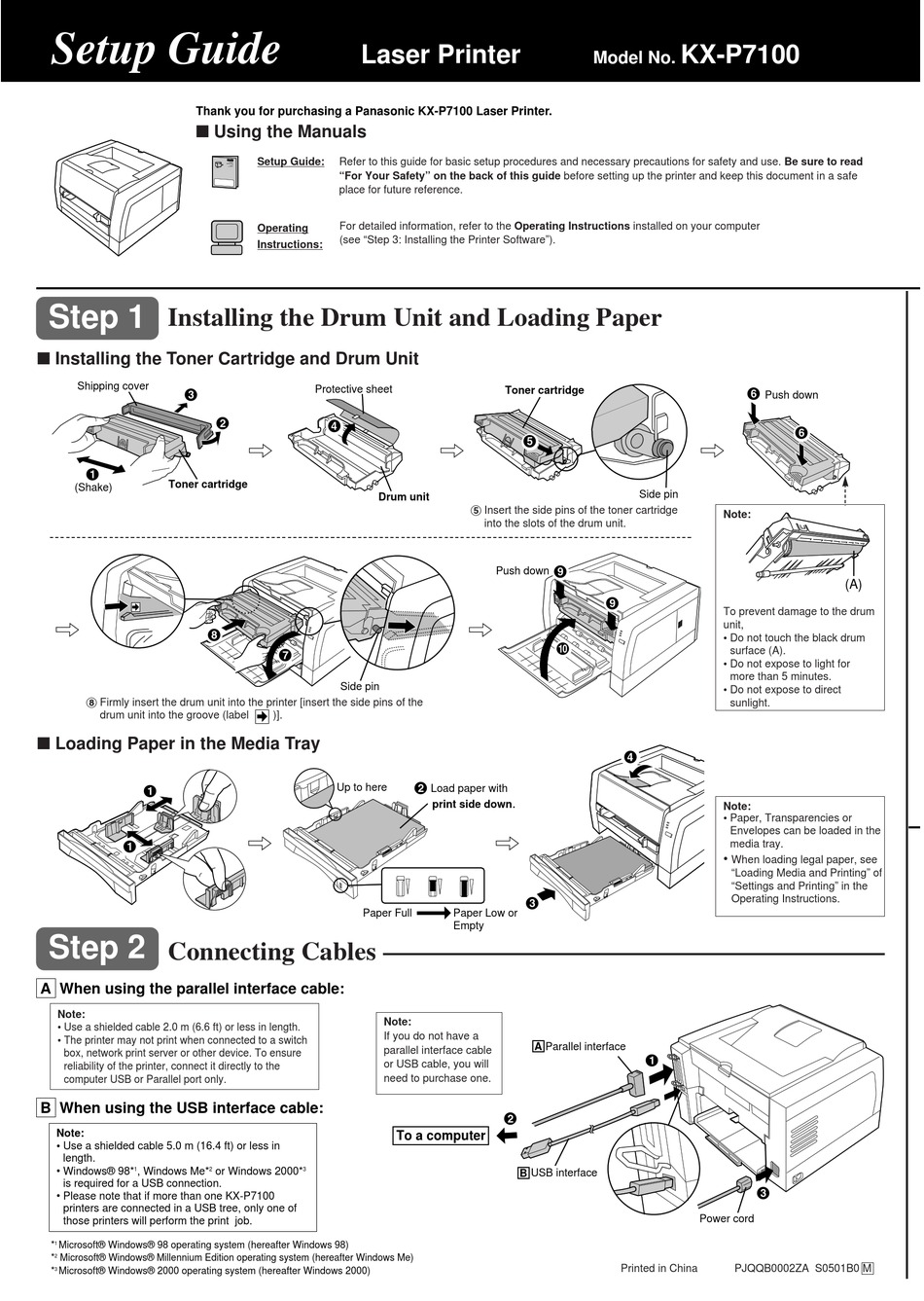

Setup Guide
Thank you for purchasing a Panasonic KX-P7100 Laser Printer.
Step 1
Installing the Drum Unit and Loading Paper
Installing the Toner Cartridge and Drum Unit
Shipping cover
%
#
Toner cartridge
(Shake)
*
* Firmly insert the drum unit into the printer [insert the side pins of the
drum unit into the groove (label
Loading Paper in the Media Tray
#
#
Step 2

Connecting Cables

A When using the parallel interface cable:
Note:
• Use a shielded cable 2.0 m (6.6 ft) or less in length.
• The printer may not print when connected to a switch
box, network print server or other device. To ensure
reliability of the printer, connect it directly to the
computer USB or Parallel port only.
B When using the USB interface cable:
Note:
• Use a shielded cable 5.0 m (16.4 ft) or less in
length.
• Windows® 98*
1 , Windows Me* 2
is required for a USB connection.
• Please note that if more than one KX-P7100
printers are connected in a USB tree, only one of
those printers will perform the print job.
* 1 Microsoft® Windows® 98 operating system (hereafter Windows 98)
* 2 Microsoft® Windows® Millennium Edition operating system (hereafter Windows Me)
* 3 Microsoft® Windows® 2000 operating system (hereafter Windows 2000)
Laser Printer

Using the Manuals

Setup Guide: Refer to this guide for basic setup procedures and necessary precautions for safety and use. Be sure to read
"For Your Safety" on the back of this guide before setting up the printer and keep this document in a safe
place for future reference.
For detailed information, refer to the Operating Instructions installed on your computer
Operating
(see "Step 3: Installing the Printer Software").
Instructions:
Protective sheet
$
&
Drum unit
)
Side pin
)].
Up to here
Paper Full
Note:
If you do not have a
parallel interface cable
or USB cable, you will
need to purchase one.
or Windows 2000* 3
Toner cartridge
'
' Insert the side pins of the toner cartridge
into the slots of the drum unit.
+
Push down
,
$
Load paper with
.
print side down
%
Paper Low or
Empty
A Parallel interface
$
To a computer
USB interface
B
KX-P7100
Model No.
(
Push down
Side pin
Note:
+
To prevent damage to the drum
unit,
• Do not touch the black drum
surface (A).
• Do not expose to light for
more than 5 minutes.
• Do not expose to direct
sunlight.
&
Note:
• Paper, Transparencies or
Envelopes can be loaded in the
media tray.
•
When loading legal paper, see
"Loading Media and Printing" of
"Settings and Printing" in the
Operating Instructions.
#
%
Power cord
Printed in China PJQQB0002ZA S0501B0 M
(
(A)
