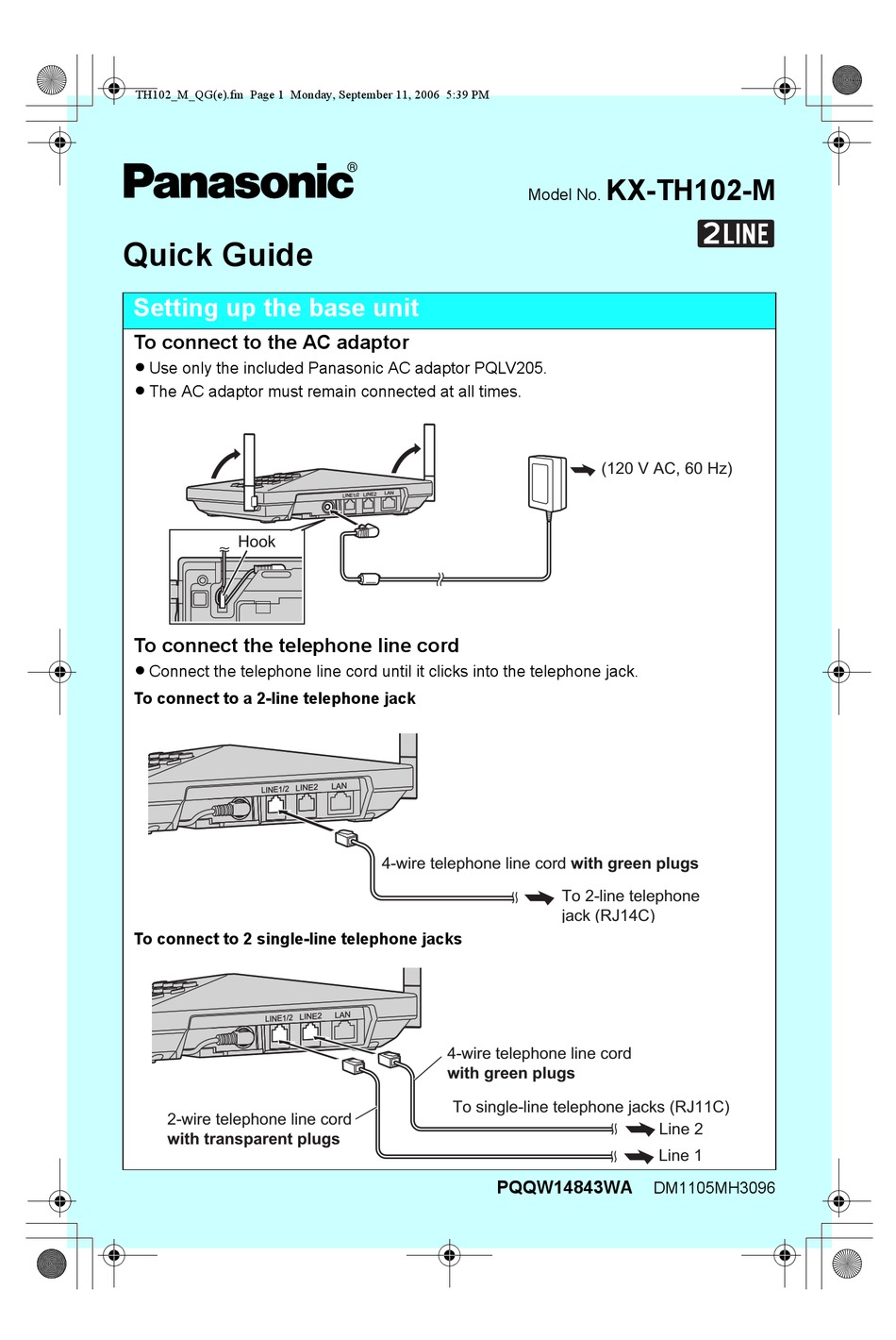

Quick Guide

Setting up the base unit

To connect to the AC adaptor
L Use only the included Panasonic AC adaptor PQLV205.
L The AC adaptor must remain connected at all times.
Hook
To connect the telephone line cord
L Connect the telephone line cord until it clicks into the telephone jack.
To connect to a 2-line telephone jack
LIN E1 /2 LIN E2
To connect to 2 single-line telephone jacks
LIN E1 /2 LIN E2
2-wire telephone line cord
with transparent plugs
LA N
4-wire telephone line cord with green plugs
LA N
4-wire telephone line cord
with green plugs
To single-line telephone jacks (RJ11C)
PQQW14843WA
KX-TH102-M
Model No.
(120 V AC, 60 Hz)
To 2-line telephone
jack (RJ14C)
Line 2
Line 1
DM1105MH3096
