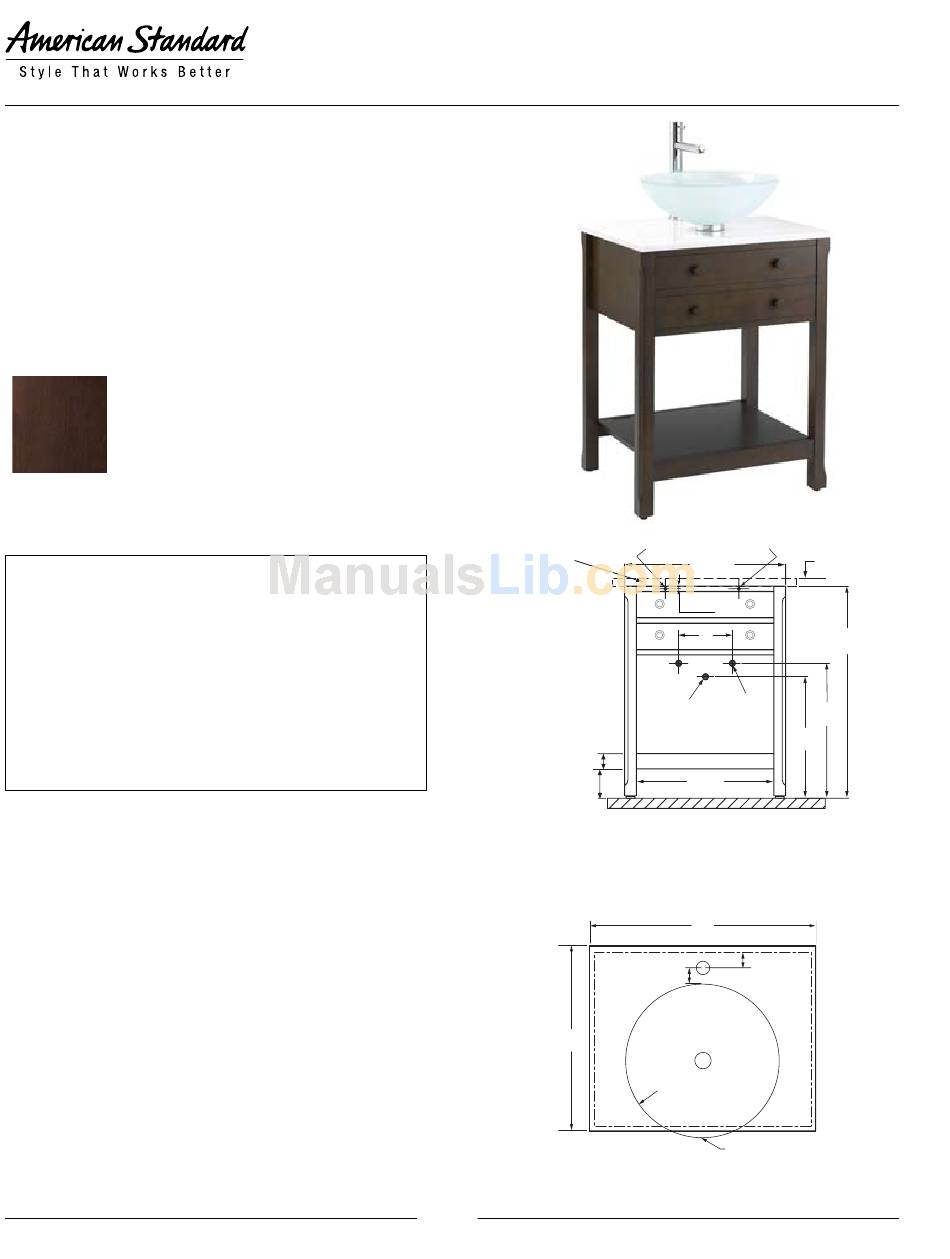

FREEDOM OF CHOICE™ RTU COLLECTION
❏ 9380.000 Cambridge Console Table
• Transitional style vanity
• Poplar wood construction with birch veneers
• Warm Walnut finish
Nominal Dimensions:
24" x 20" x 31-1/4"
(610 x 508 x 794mm)
Warm Walnut
To Be Specified (Required):
❏ 9477.025 Laminated marble top pre-drilled for
vessel and vessel faucet (specify color: White - 252,
Cream - 250, Black - 154)
with
❏ 0978.000 Tempered glass vessel sink (specify finish:
Clear - 200, Frosted - 321), 17" diameter, 6" height
or
❏ 0960.000 Vitreous china vessel sink, White-020,
16-7/8" diameter, 6-1/4" height
NOTES:
*
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P"
TRAP ARE SUGGESTED.
- FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within
the range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No
responsibility is assumed for use of superseded or voided pages.
© 2008 AS America Inc.
FREEDOM OF CHOICE™ RTU COLLECTION
CAMBRIDGE CONSOLE TABLE
I8
LAMINATE
Anchoring holes 3/8" need to be drilled.
MARBLE TOP
24"
(610mm)
3/8"
(10mm)
8"
(203mm)
SUPPLIES
1-1/4" OD
AS REQ'D
WASTE
2 1/4"
(57mm)
20-1/2"
4 3/8"
(521mm)
(111mm)
9477.025 Optional Laminate Marble Top
FINISHED FLOOR
9380.000
Cambridge Console Table
9380.000 Cambridge Console Table
25"
(635mm)
1- 3/4"
(44mm)
20-1/2"
(520mm)
Ø17
3/4"
(19mm)
9477.025
Laminated Marble Top
WOOD
3/4"
(19mm)
31-1/4"
(794mm)
20"
(508mm)
18"
(457mm)
1- 3/4" (44mm)
OVERHANG
Revised 2/08
