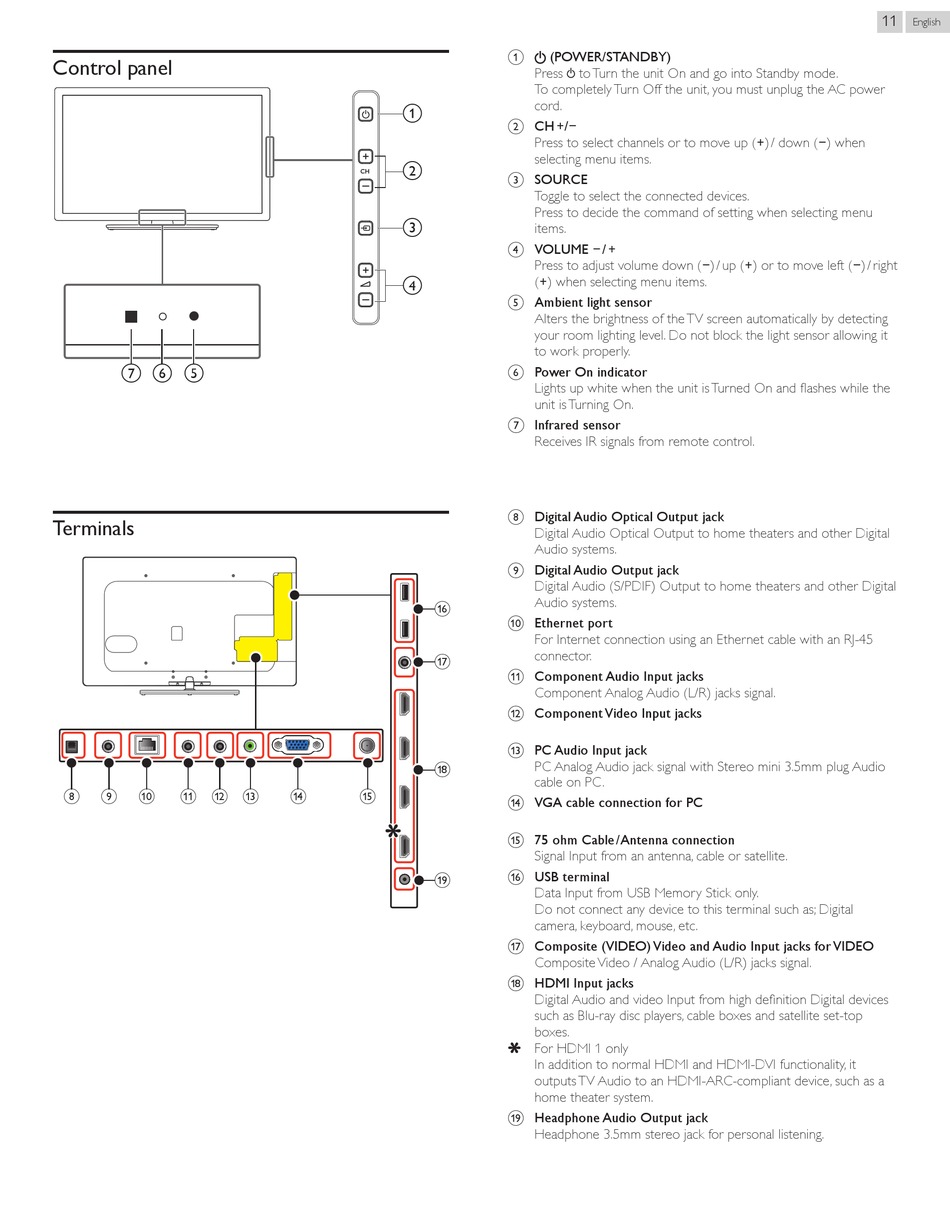

Control Panel; Terminals - Philips 55PFL5907 User Manual

Control panel

g f e

Terminals

h i j k l
a
b
c
d
m n o
(POWER/STANDBY)
a
P ress to Turn the unit On and go into Standby mode.
T o completely Turn Off the unit, you must unplug the AC power
cord.
CH +/−
b
P ress to select channels or to move up (+) / down (−) when
selecting menu items.
SOURCE
c
T oggle to select the connected devices.
Press to decide the command of setting when selecting menu
items.
VOLUME − / +
d
P ress to adjust volume down (−) / up (+) or to move left (−) / right
(+) when selecting menu items.
Ambient light sensor
e
A lters the brightness of the TV screen automatically by detecting
your room lighting level. Do not block the light sensor allowing it
to work properly.
Power On indicator
f
L ights up white when the unit is Turned On and flashes while the
unit is Turning On.
Infrared sensor
g
Receives IR signals from remote control.
Digital Audio Optical Output jack
h
D igital Audio Optical Output to home theaters and other Digital
Audio systems.
Digital Audio Output jack
i
D igital Audio (S/PDIF) Output to home theaters and other Digital
Audio systems.
p
Ethernet port
j
F or Internet connection using an Ethernet cable with an RJ-45
connector.
q
Component Audio Input jacks
k
C omponent Analog Audio (L/R) jacks signal.
Component Video Input jacks
l
PC Audio Input jack
m
P C Analog Audio jack signal with Stereo mini 3.5mm plug Audio
r
cable on PC.
VGA cable connection for PC
n
75 ohm Cable / Antenna connection
o
Signal Input from an antenna, cable or satellite.
USB terminal
p
s
D ata Input from USB Memory Stick only.
D o not connect any device to this terminal such as; Digital
camera, keyboard, mouse, etc.
Composite (VIDEO) Video and Audio Input jacks for VIDEO
q
C omposite Video / Analog Audio (L/R) jacks signal.
HDMI Input jacks
r
D igital Audio and video Input from high definition Digital devices
such as Blu-ray disc players, cable boxes and satellite set-top
boxes.
For HDMI 1 only
I n addition to normal HDMI and HDMI-DVI functionality, it
outputs TV Audio to an HDMI-ARC-compliant device, such as a
home theater system.
Headphone Audio Output jack
s
Headphone 3.5mm stereo jack for personal listening.
