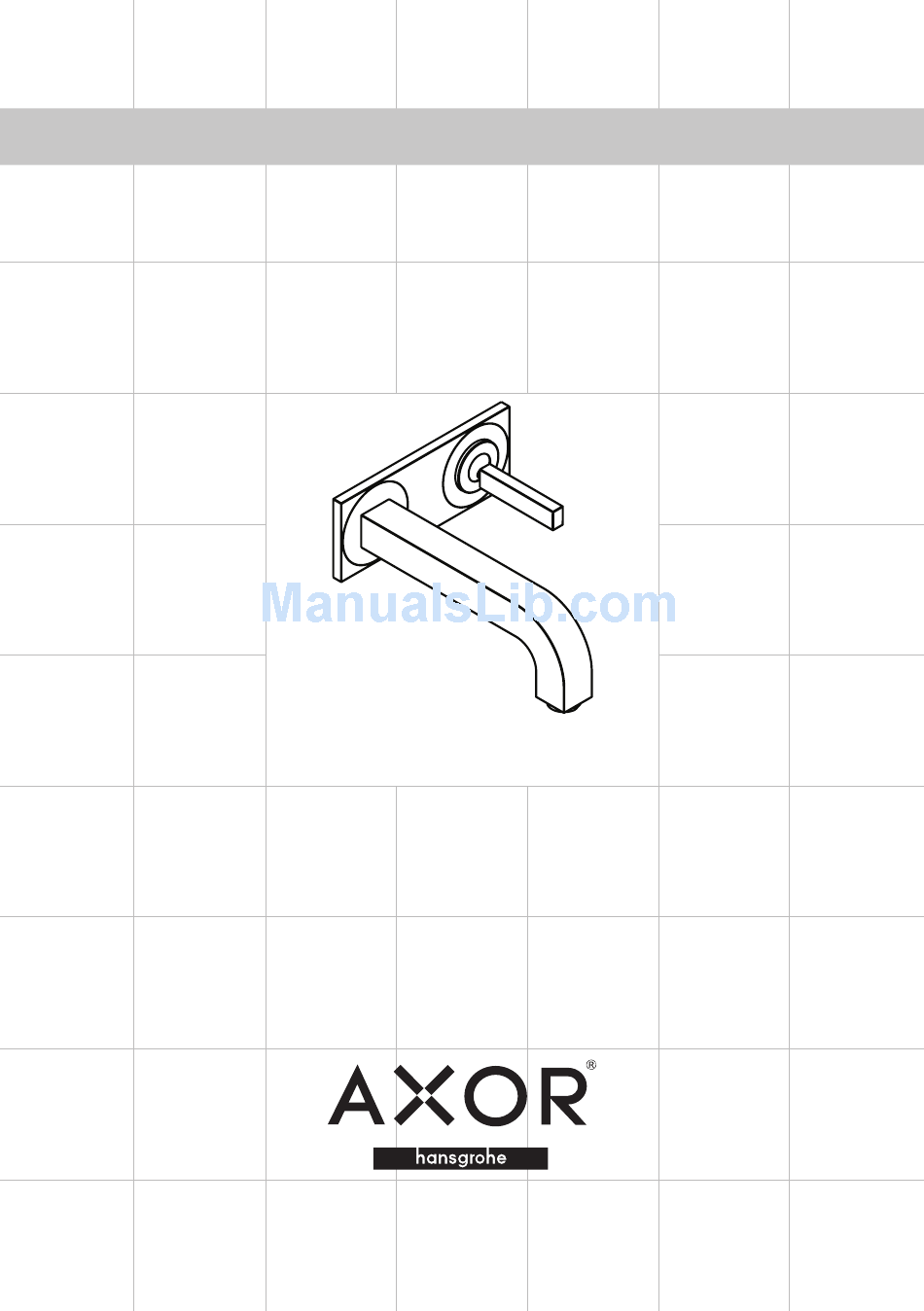

- Page 1 Installation Instructions / Warranty Axor Citterio 39115XX1...
-
Page 2: Technical Data
Axor Citterio Wall-Mount Lavatory Trim 39115XX1 ��� Technical Data Max. water pressure Recommended pressure Recommended hot water temp Flow rate The hot and cold supplies must be of equal pressure for proper operation of the faucet. *Know and follow all applicable local codes when setting the temperature of the water heater. Installation Considerations •... -
Page 3: Installation Instructions
Installation Instructions Turn off the water at the supply before beginning the installation. Remove the caps from the plaster shields. Cut the plaster shields 1 mm (1/16”) from the surface of the finished wall. Seal around the plaster shields with waterproof sealant. - Page 4 Install the springs and cup washers in the valve body. Install the cartridge assembly. Install the handle. Tighten the set screw using the en- closed mm allen wrench. Measure the distance from the surface of the finished wall to the end of the handle.
- Page 5 If the distance is 3 9/16” – 3 15/16”, select the two “A” sleeves (1-1/4” long). If the distance is 4” – 4 1/4”, select the two “B” sleeves (7/8” long) If the distance is 4 1/4” - 4 7/16”, select the two “C” sleeves (1/”...
- Page 6 Measure the distance from the outside surface of the finished wall to the spout port (“X”). Add ” to X. Measure the spout connector. Using proper tools and safety practices, cut the spout connector so that it is X + ” long. x + ”...
- Page 7 Use the service key to tighten the escutcheon retain- ers against the plate. Lightly coat the threads on the flanges with the includ- ed lubricant. Screw the flanges onto the retainers. Push the cap over the handle assembly. Push the spout over the connector and tighten the set screw.
- Page 8 User Instructions Lift the handle to turn the faucet on. Pivot the handle to the left for warmer water, to the right for cooler water. Push the handle down to turn the water off.
-
Page 9: Replacement Parts
Replacement Parts flange handle flange for handle flange for spout face plate cartridge aerator spout anti-twist device spout connector fixing set 96908XX0 3909XX0 9691XX0 97695XX0 96914XX0 96339000 13185XX0 9739XX0 9780000 978000 97971000 97601000 set screw extension kit *optional - not included XX = color 00 = chrome 8 = brushed nickel... -
Page 10: Limited Lifetime Consumer Warranty
Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. - Page 11 this warranty extends for as long as you own the product and the home in which the product is originally installed. If you purchased the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products.
- Page 12 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770 360-9880 • Fax 770 360 9887 www.hansgrohe-USA.com...
