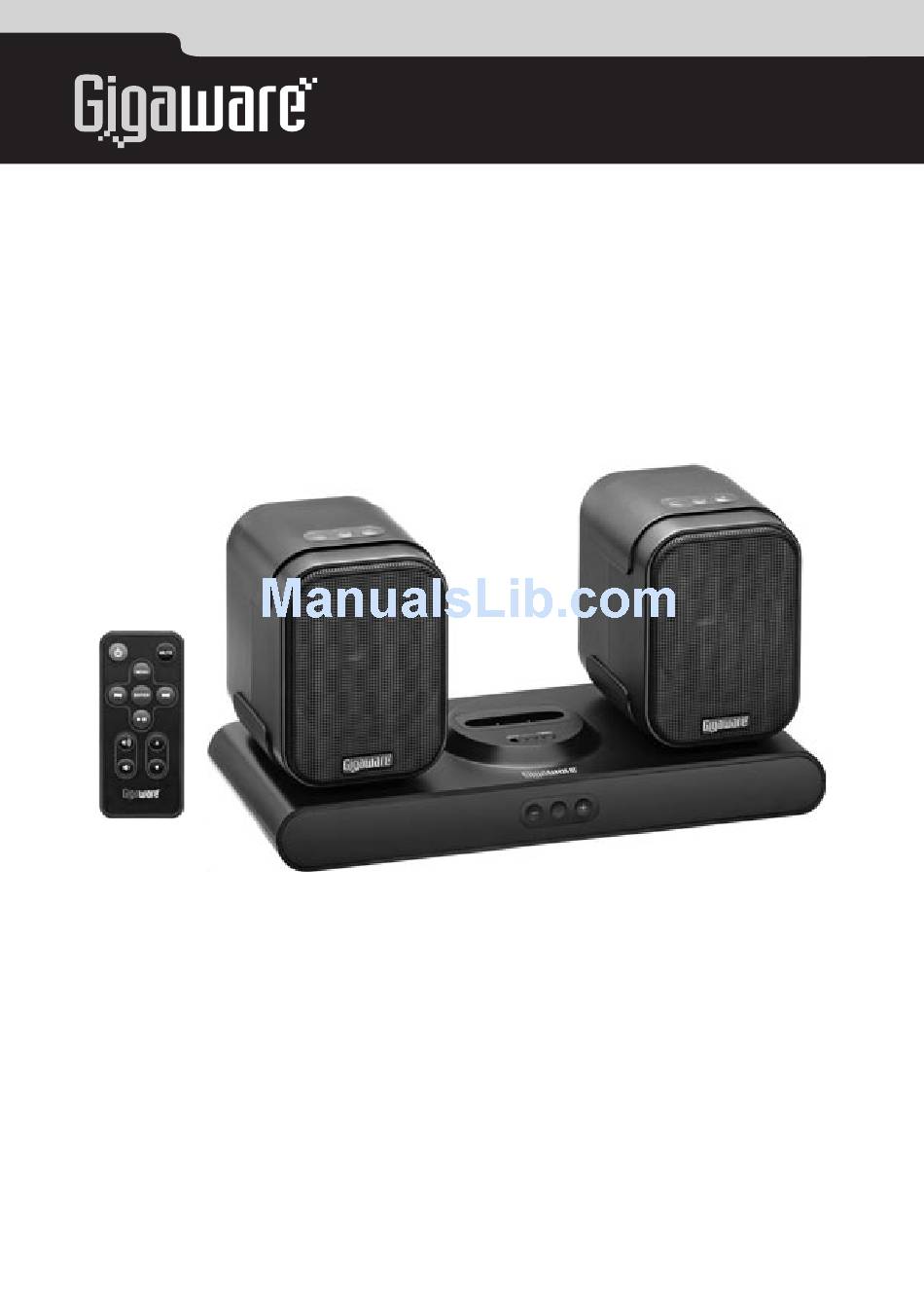

- Page 1 40-285 User’s Guide Wireless Speaker System for iPod ® Please read this user’s guide before using your new Speaker System.
-
Page 2: Package Contents
Package contents • Charging Dock/Transmitter • Wireless Speakers (2) • Remote Control (with Battery) • Audio Cable • AC Adapter • Cradles (5) • User’s Guide • Quick Start Features • Rechargeable speakers with built-in lithium battery can be placed up to 130 feet (40m) away so you can listen to your tunes anywhere in your home. • Aux-in jack and cable for connecting other audio devices with a standard ” (3.5mm) headphone jack. • Includes five cradles to keep most dockable iPod models securely connected while they charge and play. • Remote control enables you to change songs or scan through playlists without having to get up. Power Your Speaker System Charge the speakers for at least 4 hours before using them for the first time. Normally it takes about 3 hours to fully charge the speakers. 1. Connect the supplied AC adapter to the DC IN jack and plug into a standard household outlet. -
Page 3: Prepare The Remote Control
Prepare the Remote Control Remove the insulating plastic tab from the battery compartment before using the remote control. Listen to Your iPod 1. Insert the cradle that fits your iPod model (See “Select a Cradle for your iPod“ on page 7), then plug in your iPod. º 2. Press on the charging dock and the speakers to turn on the system. . Slide CH1, CH2, CH3 to the same channel for both speakers. MENU 4. Use + or − on the docking system or on the remote control to adjust the volume. 5. Freely move the speakers from room to room to listen to your iPod. Notes: • If the unit experiences interference (signal loss or distortion) during playback, select another channel to obtain the best reception. - Page 4 DC IN Plug in the supplied AC adapter. CH1, CH2, CH3 AUX JACK Select the same Connect an external channel for both audio source to use speakers. speaker system.
- Page 5 Volume up/ down Power on/off MENU Cradle Power Mono/Stereo on/off Volume up/down...
-
Page 6: Remote Control
Remote Control Menu º Access the main menu. Turn on/off. Mute Mute or unmute sound. Enter Confirm menu selection. F /J • Go to the previous/ next track. • Press and hold to rewind/ fast forward. Play or pause tracks. e /d Navigate menus. - Page 7 • Sometimes the speakers will emit noise when it is searching for the wireless connection, which will stop after the connection is paired. • To avoid interference, do not turn on other wireless devices at the same time. • The docking system will automatically enter standby mode if no audio source input is received within 3-5 minutes.
- Page 8 Play Auxiliary Audio Sources 1. Remove the iPod from the charging dock. Two devices will not work at the same time. 2. Use the inch (3.5mm) audio cable to connect your MP3 or other auxiliary audio source to the AUX JACK in the rear of the charging dock. . Adjust the controls on your connected device to play. Replace the Remote Batteries Your remote comes with a battery installed. Remove the plastic tab before using the remote. Replace the battery if the remote stops working. Press the tab on the battery compartment tray and slide the tray out. Insert a new 3V, CR2025 battery, positive (+) side up. Slide the tray back Slide out into the battery compartment until it clicks.
-
Page 9: Specifications
Important Battery Information: • Dispose of batteries promptly and properly. Do not burn or bury them. Use only fresh batteries of the required size and type. • If you do not plan to use the speaker system for a long time, remove the battery. -
Page 10: Fcc Information
• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Ignition L.P . may cause interference and void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Product Wireless Speaker System for iPod Model 40-285 Ignition L.P . Responsible 3102 Maple Ave. Suite 450 Party Dallas, TX 75201 Phone 866-315-0426 Limited Warranty Ignition L.P . warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase. IGNITION L.P . MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a Ignition L.P . Authorized Service Facility; (c) consumables such as fuses or batteries;... - Page 11 Should a problem occur that is covered by this warranty, take the product and the sales receipt as proof of purchase date to the place of purchase. Ignition L.P . will, at its option, unless otherwise provided by law: (a) repair the product without charge for parts and labor; (b) replace the product with the same or a comparable product; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of Ignition L.P . New or reconditioned parts and products may be used in the performance of warranty service. Repaired or replaced parts and products are warranted for the remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period. IGNITION L.P . EXPRESSLY DISCLAIMS ALL WARRANTIES AND CONDITIONS NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND, IF APPLICABLE, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, SHALL EXPIRE ON THE EXPIRATION OF THE STATED WARRANTY PERIOD. EXCEPT AS DESCRIBED ABOVE, IGNITION L.P . SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO THE PURCHASER OF THE PRODUCT OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE AND ANY LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT AND ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF IGNITION L.P . HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some States do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State. You may contact Ignition L.P . at: Ignition L.P ., 3102 Maple Ave. Suite 450, Dallas, TX 75201 02/09 For product support, call 1-866-315-0426...
- Page 12 Recycle Rechargeable Batteries Recycle your old rechargeable batteries at one of the many collection sites in the U.S. and Canada. To find the site nearest you, visit www.call2recycle.org or call toll-free 1-877-2-RECYCLE. iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. This product is not designed, manufactured, sponsored, or endorsed by Apple Computer, Inc. Protect the environment by recycling used electronics. Go to E-CyclingCentral.com to find an electronic recycling center near you. © 2009. Ignition L.P . All rights reserved. Printed 08A09 Gigaware is a trademark used by Ignition L.P . in China 40-285...
