Summary of Contents for Tivax HiRez7

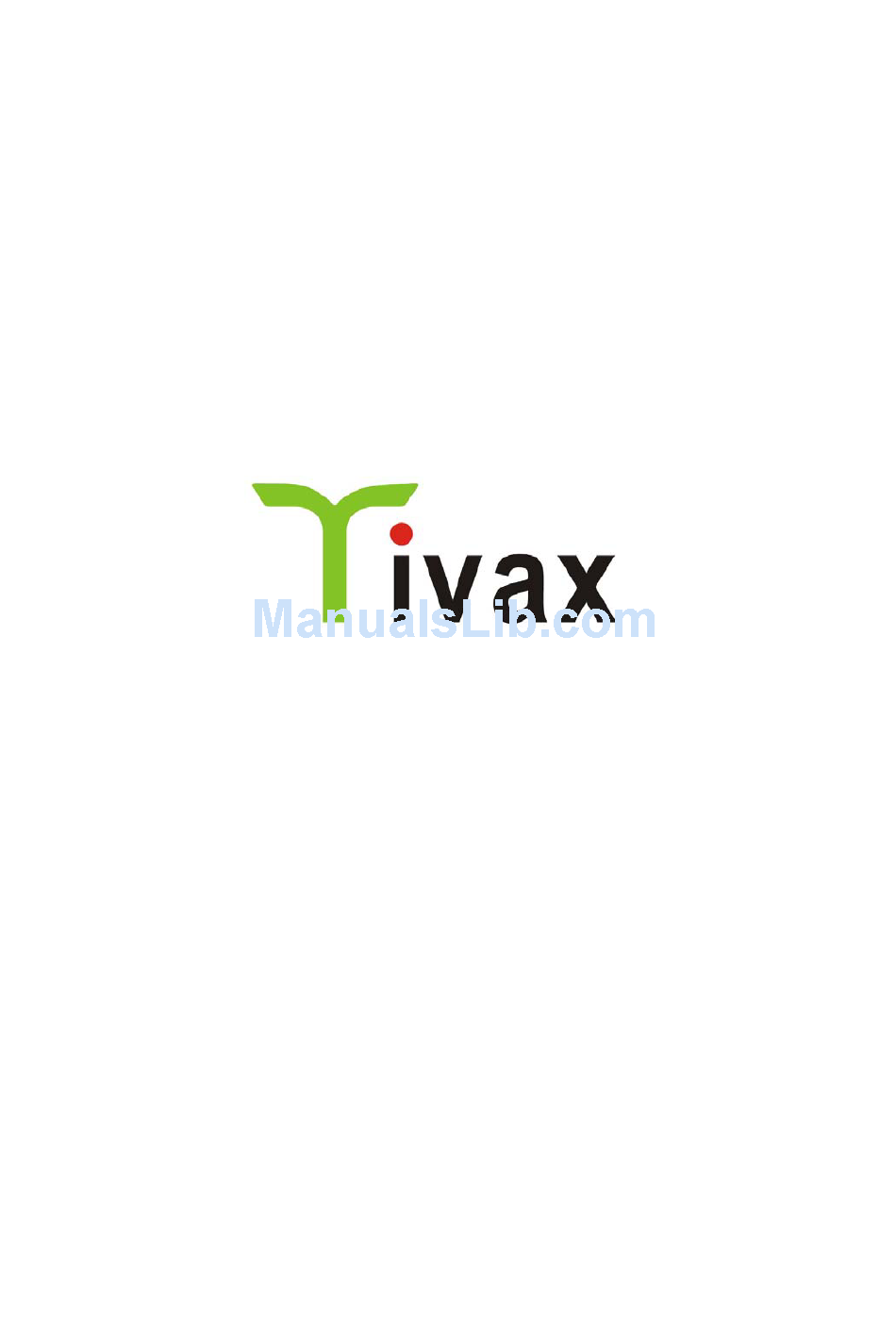

  • Page 1 Tivax HiRez7 Portable TV User Manual...

  • Page 2: Important Safety Instructions

    WARNING! IMPORTANT SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electric shock, do not remove cover or back. No user serviceable parts inside. Refer all servicing to qualified personnel. This symbol indicates that high voltage This symbol alerts you that important is present inside.
  • Page 3 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
  • Page 4 Unplug this PORTABLE LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power cord or plug is damaged or frayed. If liquid has been spilled into the PORTABLE LCD TV. If the PORTABLE LCD TV has been exposed to rain or water.

  • Page 5: Table Of Contents

    Tivax HiRez7 Portable TV Contents • Getting Started ……………………………………………………….. 5 • Introduction To Your Tivax HiRez7 Portable LCD Television 1. Accessories ……………………………………………………. 6 2. Installing the 2 large Li-Ion Batteries…………………………. 7 3. TV Control Functions …………………………………………. 8 4. Remote Control Functions …………………………………….. 9 5.

  • Page 6: Getting Started

    Tivax HiRez7 Portable TV Getting Started (Preparation) PLACEMENT RECOMMENDATIONS: Place your portable LCD TV on a flat and stable surface, or grip it when holding by hand. Avoid dropping it to the ground, as it can cause serious damage to the unit.

  • Page 7: Introduction To Your Tivax Hirez7 Portable Lcd Television

    Introduction to Your Tivax HiRez7 Portable LCD Television Notes: Conserving Battery Life. The Tivax HiRez7 Portable TV does not have a “Standby Feature”. It uses a switch on the side of the unit to turn the device on/off in order to conserve battery life. In addition, it has a “Screen Saver”...

  • Page 8: Installing The 2 Large Li-Ion Batteries

    Tivax HiRez7 Portable TV Installing the 2 large Li-Ion batteries 1. The TV set comes with 2 large Li-Ion batteries (slightly different in size) packed separately. 2. Hold the TV facing down, push in and down with your thumb in the slot. The battery cover will slide down.

  • Page 9: Tv Control Functions

    Tivax HiRez7 Portable TV Notes: 1. The 2 Li-Ion batteries are charged approximately 60% before they are shipped. 2. Initial Charge. The batteries should be charged for at least 8 hours before first use. Ideally 12 hours. For the first time only, please keep recharging even after the LED on the front of the TV turns green (for up to 12 hours) 3.

  • Page 10: Remote Control Functions

    Tivax HiRez7 Portable TV Remote Control Functions The key functions of the remote control are listed in the table below: MUTE Press this key to turn off the sound. Press the "MUTE" button again or press "VOL +.-" to enable sound.

  • Page 11: Replacing The Remote Control Battery

    Tivax HiRez7 Portable TV Replacing the Remote Control Battery The remote control comes with a CR2025 button battery (already installed) To replace the battery push the A latch slightly with your nail towards the left, then pull out the battery tray, by pushing down with your finger. Please refer to figure below.

  • Page 12: Keypad Button Control Functions

    Tivax HiRez7 Portable TV Keypad Button Control Functions You can also control the TV functions by using the keypad on your TV system. Keys are shown in the figure below. Press this button to display the OSD menu. It contains all options to MENU configure your TV's settings in TV input mode.

  • Page 13: Part 1: Tv Operation

    Tivax HiRez7 Portable TV PART 1: TV OPERATION 1. On Screen Display (OSD) and Menu 1.1 Basic Operations The OSD and Menu are controlled by the following keys: [1] “MENU” button - calls the Main Menu and display on the screen;...

  • Page 14: Main Menu

    Tivax HiRez7 Portable TV 1.2 Main Menu [1] Auto Search (searching for channels) [1.1] L/R key: enter “Auto Search” sub-menu [1.2] U/D key: select previous item or next item Note：For more details, please refer to chapter 1.2.1 - How to Start Auto...

  • Page 15: Auto Search

    Tivax HiRez7 Portable TV [6.1] L/R key: enter “System Setup” sub-menu [6.2] U/D key: select previous item or next item [7] Program List [7.1] L/R key: enter “Program List” sub-menu [7.2] U/D key: select previous item or next item [8] EPG [8.1] L/R key: enter “Guide”...
  • Page 16 Tivax HiRez7 Portable TV g. Wait for your TV to finish searching all digital stations in your area. Note: Quick channel search by using buttons is described in chapter 1.6: Channel Input Menu. 1.2.1.1 Auto Search Menu Searching Digital channels.

  • Page 17: Channel Setup

    Tivax HiRez7 Portable TV 1.2.2 Channel Setup [1] Channel: [1.1] L/R key: changes the Channel Number. [1.2] U/D key: selects previous item or next item [1.3] Default: current channel [2] Skip: [2.1] L/R key: toggles Skip status between On and Off [2.2] U/D key: selects previous item or next item...
  • Page 18 Tivax HiRez7 Portable TV [2.1] L/R key: selects the CC type option list [2.2] U/D key: selects previous item or next item [2.3] Options: Service 1, Service 2, Service 3, Service 4, Service 5, Service6 [2.4] Default: Service 1 [3] CC Mode: [3.1] L/R key: selects the CC mode option list...

  • Page 19: Parental Control

    Tivax HiRez7 Portable TV [3.3] Options: Solid, Flashing, Translucency, and Transparency [3.4] Default: Solid [4] CC Color: [4.1] L/R key: selects the CC color option list [4.2] U/D key: selects previous item or next item [4.3] Options: Black, White, Red, Green, Blue, Yellow, Magenta, and Cyan [4.4] Default: White...
  • Page 20 Tivax HiRez7 Portable TV [1.2] Default: ---- Note: Method 1:(With Remote Control Unit): Press the numeric keys directly. Method 2(With U/D, L/R & OK keys): Press the CH+/- button to adjust the input number from 0~9, and press the V+ button to move the cursor, then press the OK button to confirm.
  • Page 21 Tivax HiRez7 Portable TV [4] Unrated [4.1] L/R key: toggles Unrated between on and off [4.2] U/D key: selects previous item or next item [4.3] Options: on, off [4.4] Default: on [5] Change Pass-code [5.1] L/R key: enters Change Pass-code sub-menu [5.2] U/D key: selects previous item or next item...
  • Page 22 Tivax HiRez7 Portable TV 1.2.4.1.1 Movie Ratings [1] G-Y: [1.1] OK key: Enables/Disables the selected item [1.2] U/D key: selects previous item or next item 1.2.4.1.2 USA TV Content Ratings [1] Y to MA: [1.1] OK key: Enables/Disables the selecting item...
  • Page 23 Tivax HiRez7 Portable TV 1.2.4.1.3 Canada English TV Content Ratings [1] C to 18+: [1.1] OK key: Enables/Disables the selecting item [1.2] U/D key: selects previous item or next item 1.2.4.1.4 Canada French TV Content Ratings [1] G to 18ans+: [1.1] OK key: Enables/Disables the selecting item...
  • Page 24 Tivax HiRez7 Portable TV 1.2.4.2 RRT (Regional Rating Table) Setting [1] RRT Setting: [1.1] OK key: enter Rating Value setting in current Dimension Name. [1.2] U/D key: select item in the Dimension Names [1.3]L/R key: Page +/- 1.2.4.2.1 Rating value setting [1] Rating value Setting: [1.1] OK key: set Block or View in current Rating Value.

  • Page 25: System Setting

    Tivax HiRez7 Portable TV Method 1:(With Remote Control Unit): Press the numeric keys directly. Method 2(With U/D, L/R & OK keys): Press the CH+/- button to adjust the input number from 0~9, and press the V+ button to move the cursor, then press the OK button to confirm.

  • Page 26: Time Setup

    Tivax HiRez7 Portable TV [4.3] Options: English, Spanish and French [4.4] Default: English [5] Screen: [5.1] L/R key: selects the Screen option list [5.2] U/D key: selects previous item or next item [5.3] Options: 4:3/16:9 [6] Format: [6.1] L/R key: selects the Format option list [6.2] U/D key: selects previous item or next item...

  • Page 27: Program List

    Tivax HiRez7 Portable TV 1.3 Program List [1.1] L/R key: Page +/- [1.2] U/D key: selects item in the program list [1.3] OK key: switch to selected CH. 1.4 Favorite List [1.1] L/R key: sets favorite channel in the favorite list [1.2] U/D key: selects item in the favorite list...

  • Page 28: Signal Level Menu

    Tivax HiRez7 Portable TV There are two ways to switch to a desired channel directly. For example: if you want to switch and watch CH25-1: Method 1 (by using the Remote Control Unit): Press the numeric keys on the RCU and than press OK key to switch.

  • Page 29: Part 2: Memory Card/Usb

    Tivax HiRez7 Portable TV PART 2 : Memory Card/USB USB/ SD Interface OSD and Menu 2.1 Basic Operations The OSD and Menu are controlled by using the following keys: [1] “MENU” button – takes user back to HOME OSD. [2] “SOURCE” button - select the input from the following sources: TV, USB/SD or A/V.

  • Page 30: Home Osd

    Tivax HiRez7 Portable TV 2.2 HOME OSD [1] L/R key: selects the item. [2] OK key: enters the sub menu of the selected item. Note: when either the USB or Memory Card is plugged in, the respective icon will be displayed, otherwise only the “SETTINGS”...
  • Page 31 Tivax HiRez7 Portable TV [5] Default: English 2.3.2 Slideshow duration [1] U/D key: selects previous or next item [2] L/R key: selects the Slideshow duration timer option list [3] OK key: the option becomes active after selected. [4] Options: 3s, 5s, 15s, 1min, 15min, 1hr.

  • Page 32: Usb/Sd Mmc Ms Card Osd

    Tivax HiRez7 Portable TV Note: this item is disabled. 2.3.8 Autorun [1] U/D key: selects previous or next item [2] L/R key: selects the Autorun mode option list [3] OK key: the option becomes active after selected. [4] Options: On/Off...
  • Page 33 Tivax HiRez7 Portable TV L/R key: se lects previou s or next item [6] OK key: enables the selected item ote：only the photo file can be display ed in this section 2.4.2 MUSIC [1] U/D key: sel ects previous or next music track...
  • Page 34 Tivax HiRez7 Portable TV Note：only the text file can be displayed in this section 2.4.5 FILE [1] U/D key: selects previous or next item [2] R key: selects or de-selects the current f [3] L key: calls the COPY & DELETE OSD [4] OK key: play or pause.
  • Page 35 Tivax HiRez7 Portable TV Updating Software： [1] Copy the updated file to USB/SD [2] Select the file and press OK key to update. [3] Will automatically restart after the update is finished...

  • Page 36: Usb/Sd Audio/Video/Picture/Text Features

    Tivax HiRez7 Portable TV USB/SD Audio/Video/Picture/Text Features Category Decoding File Type Maximum Resolution Bit-rate MPEG1 MPEG1 MPEG2 MPEG2 MPG4 RMP4 *.mpg DivX5 *.mpeg DivX4 *.mp4 *.dat 720*576 15Mbps Xvid MPEG4 *.vob DIVX (ASP) *.avi VIDEO MP4V DIV3 MP43 COL1 DivX 6.2...

  • Page 37: Part 3: Av Input

    Tivax HiRez7 Portable TV PHOTO JPEG TIFF 8000*8000 TEXT PART 3: AV Input 3.1 Basic Operations The OSD and Menu are controlled by using the following keys: [1] “MENU” button - not used in this mode. [2] “SOURCE” button - allows user to set the input from these sources: TV, USB/SD or A/V.

  • Page 38: Part 4: Advanced Settings

    Tivax HiRez7 Portable TV PART 4: ADVANCED SETTINGS 1. BRIGHT: V+/V- button: increases or decreases brightness. Hold down the button to increase or decrease brightness. 2. CONTRAST: V+/V- button: increases or decreases the CONTRAST. Hold down the button to increase or decrease CONTRAST.

  • Page 39: Errata

    Tivax HiRez7 Portable TV Errata The 2 input from the top on the side of the TV is mislabeled. It is marked as Audio in, and should be A/V in. This input is to be used when connecting to a device such as a DVD player to get both and audio and video.

  • Page 40: Warranty Information

    This warranty shall be void upon transfer of ownership of this product and is effective only when used in the United States. Michley/Tivax agrees to repair or replace this unit at no charge, within the warranty period, providing that the product is delivered to Michley/Tivax in its original package or equivalent, fully insured, with all shipping charges prepaid and a return authorization number listed on the outside of the packaging.
  • Page 41 Tivax HiRez7 Portable TV Michley Electronics Inc. / Tivax 530 Showers Dr., Suite #7-204 Mountain View, CA 94040 Tel. 1-888-33-Tivax (1-888-338-4829) Fax. 1-650-963-3585 Web. www.tivax.com info@tivax.com 1-888-33-Tivax (1-888-338-4829) General Information: support@tivax.com Customer Support: www.tivax.com...
