Summary of Contents for Tivax MiniVu7C

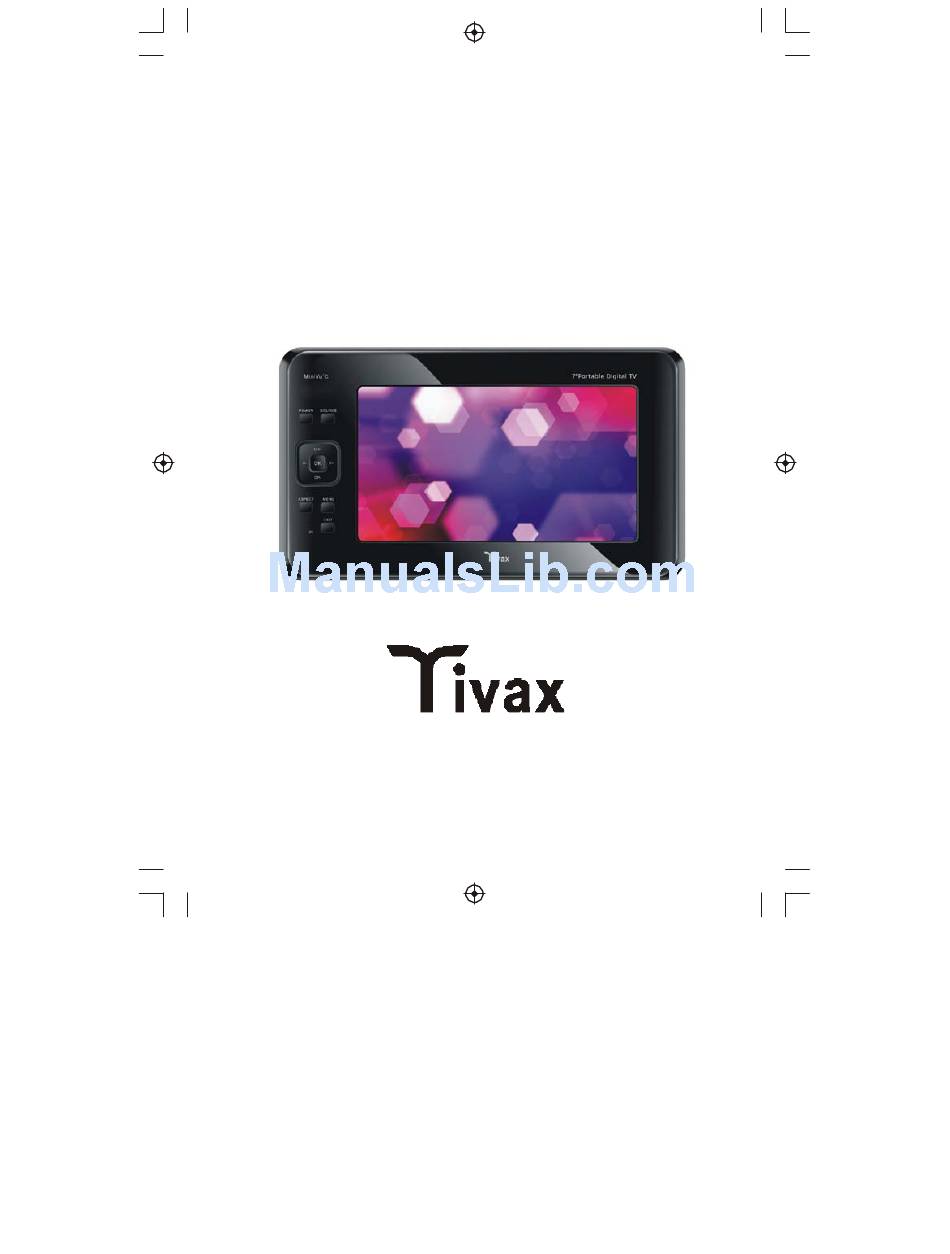

- Page 1 Tivax MiniVu C Portable TV User Manual...
-
Page 2: Table Of Contents
Getting Started PICTURE Menu AUDIO Menu TIMER Menu SETUP Menu V-CHIP Menu CHANNEL Menu... -
Page 3: Safety Precautions
Safety Precautions Introduction WARNING: This symbol indicates that high voltage is present inside. It is THE MAIN PLUG/APPLIANCE COUPLER IS dangerous to make any kind of USED AS THE DISCONNECT DEVICE, THE contact with any internal part of DISCONNECT DEVICE SHALL REMAIN this product. -
Page 4: Important Safety Instructions
Introduction Important Safety Instructions 1. Read, follow and keep these instructions 9. Outdoor Antenna Grounding If an outside antenna or cable system is connected All Safety and operating instructions in this manual to the product, be sure the antenna or cable system should is grounded so as to provide some protection be read and followed before the product is operated. - Page 5 Important Safety Introduction Instructions 14. Servicing Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 15. Damage Requiring Service Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: A)When the power-supply cord or plug is...
- Page 6 Introductio Safety Information Thank you for purchasing this product which has been designed and manufactured to give you many years of trouble-free serv ice. About This User Guide This user guide contains all the information you need to know about how to setup and watch free off the air channels using your Port able ATSC TV.
-
Page 7: Safety Information
Safety Information Do not expose the Portable ATSC TV do dripping or splashing and not not place around any objects filled with liquids, such as vases. The main plug is used as the disconnect device. Always remember to remove the plug from the main socket before disconnecting the power lead from the back of the unit. -
Page 8: Remote Control
Remote Control Remote Key Function: POWER: Powers TV on or sets standby mode. P .M.: Switches picture mode. NUMBER KEYS: Numeric keys to select desired channel. RECALL: Recalls last channel. VOL+: Increases volume. MENU: Displays TV menu or returns to previous menu. EPG: Displays/Removes all program information . - Page 9 Using the Remote Control Point the remote control at the remote sensor in order for the player to function correctly. The remote will function to approximately 21' from the remote sensor at an angle of approximately 30 in each direction. Note: Directing the remote sensor toward any light source, such as direct sunlight, may cause the unit to malfunction.
- Page 10 Front Panel SOURCE: Selects the input source. POWER: Powers TV on or sets standby mode. CH+: Navigates the menu screens or selects the channels in non-menu state. OK: Confirms a selection within a menu. VOL-: Navigates the menu screens or adjusts the volume in non-menu state. VOL+: Navigates the menu screens or adjusts the volume in non-menu state.
-
Page 11: Getting Started
Getting Started Switch the button to ON position to power on the system Switching on the first time 1.Connect the antenna to the antenna jack on the left side of the unit. 2.Connect the power adaptor to the “DC IN 12V” jack on the right side of the unit 3.Switch on the portable LCD TV using the power key on the right side of the unit. - Page 12 Getting Started For good reception, place the antenna as close as possible to the window of your house, and as far away as possible from the portable TV. Don't place the antenna near other machine/appliances (such as motors, computers, switching power, TVs, power amplifiers, speakers... etc), since these machines/ appliances can cause interferences to the antenna.
- Page 13 1. PICTURE MODE The first item of the Main MENU is the PICTURE MODE. You can adjust the contrast, brightness, etc. Press to select, press to adjust, press MENU to exit. Note: If you want to adjust contrast, brightness, color and sharpness , the picture mode must return to personal status.
-
Page 14: Setup Menu
3.TIMER MENU The third item of the Main MENU is the TIMER MENU. Press to select, press to adjust, press MENU to exit. 1).SLEEP TIMER: adjust this item , you can set the sleep timer . 4. SETUP MENU 1).The forth item of the Main MENU is the SETUP MENU for system setup. -
Page 15: V-Chip Menu
2). Closed Caption: Toggles on/off . Press button to select Closed Caption ,Press button, the screen will display: 5. V-CHIP MENU The fifth item of the MENU is the V-CHIP MENU for setting up Parental Control. Press to select, press to adjust, press MENU to exit. - Page 16 1). Change Password: Press button, the screen will display: 1).Enter Old Password: Input the old password. 2).Enter New password: Input the new password. 3).Confirm password: Input the new password again. 5.2 V-CHIP switch: When the System Lock is ON, the options below can be adjusted. 5.3 US: Press button, the screen will display: 1):TV: Press...
- Page 17 And use the OK key to switch lock/ unlock the Parental Control feature. 2).MPAA:switch the movie-rating control level; N/A, G,PG, PG-13,R,NC-17,X. 5.4 Canada: Press button, the screen will display:...
- Page 18 1): Canadian English: switch the english rating control level:E,C,C8+,G,PG,14+,18+. Rating Description Exempt: Includes news, sports, documentsand other information programming: talkshows, music videos, and variety programming. Children: Intended for youngerchildren under the age of8. Pays careful attentionto themes that could threaten t heir sense of security and well-being. Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only wayto resolve conflict;...
-
Page 19: Channel Menu
6. Channel MENU The right most icon is Channel MENU for adjusting the TV Channels. Press to move, press to adjust here. 1). TV Source: select Air TV signal or cable TV signal. 2). Auto Scan: press the button to confirm, you will see below menu : 3). - Page 20 External Storage MENU Please use the CURSOR key and OK key to operate. Play Control Bar: Fast Six window navigation Fast Volume backward Forward level (only for JPG file) Next Repeat all JPG play interval time Previous Play/Pause Repeat one Normal play Stop...
-
Page 21: Specifications
Service & Support Problem Probable cause What to do Antenna is disconnected Check No signal found Antenna is Antenna damaged/misaligned Out of Check aerial No picture or sound In standby mode Press the POWER button Encrypted channel message It is a pay per view channel Select an alternative channel Aim remote control at front panel Remote control is not aimed correctly... - Page 22 This warranty shall be void upon transfer of ownership of this product and is effective only when used in the United States. Michley/Tivax agrees to repair or replace this unit at no charge, within warranty period,...
- Page 23 Michley Electronics Inc. / Tivax 530 Showers Dr., Suite #7-204 Mountain View, CA 94040 Tel. 1-888-33-Tivax (1-888-338-4829) Fax. 1-650-963-3585 Web. Www.tivax.com General Information: info@tivax.com1-888-33-Tivax (1-888-338-4829) Customer Support: support@tivax.com www.tivax.com...
