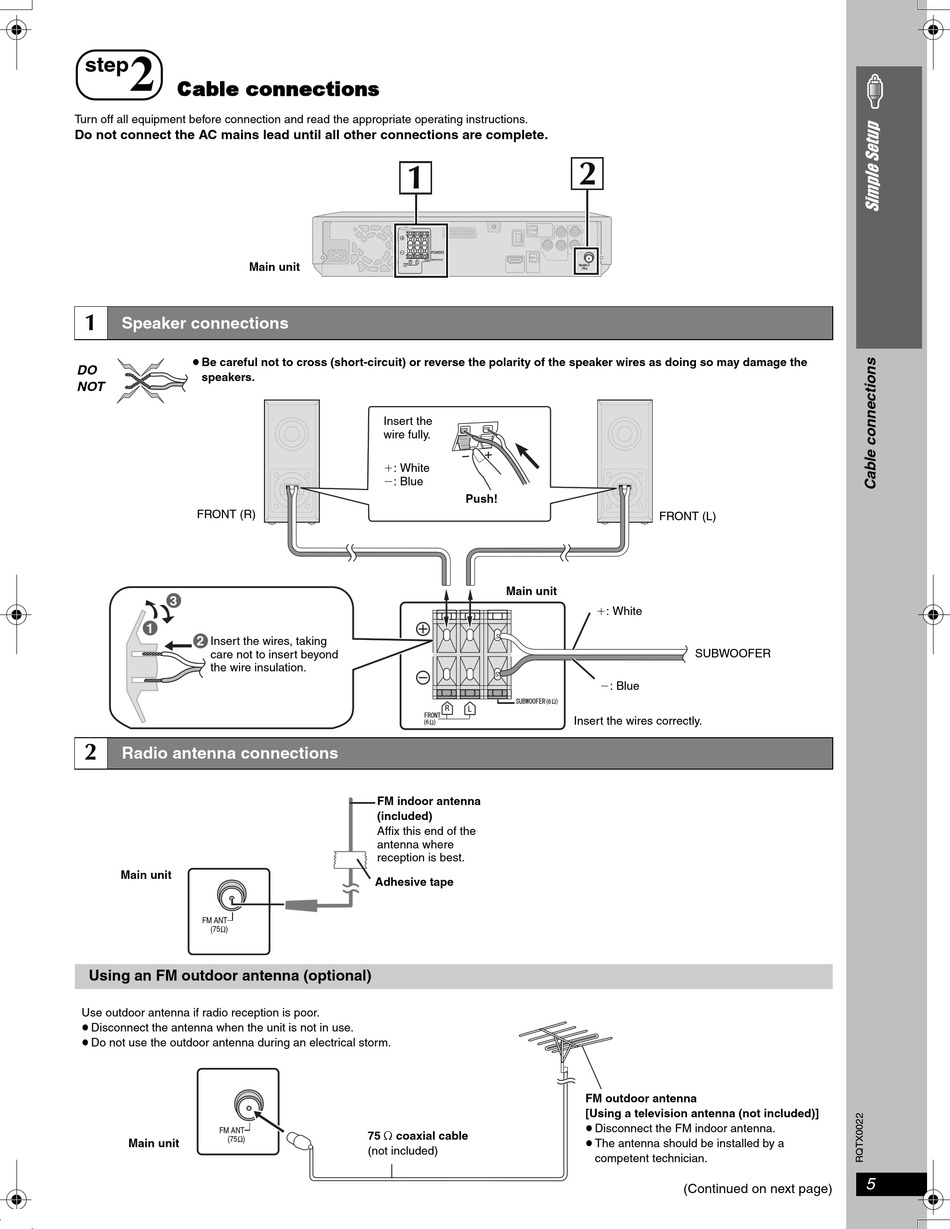

Cable connections
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are complete.
1

Speaker connections

≥ Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the
DO
speakers.
NOT
FRONT (R)
3
1
2
Insert the wires, taking
care not to insert beyond
the wire insulation.
2

Radio antenna connections

Main unit
FM ANT
75
Using an FM outdoor antenna (optional)
Use outdoor antenna if radio reception is poor.
≥ Disconnect the antenna when the unit is not in use.
≥ Do not use the outdoor antenna during an electrical storm.
FM ANT
75
Main unit
1
R
Main unit
Insert the
wire fully.
i: White
j: Blue
FM indoor antenna
(included)
Affix this end of the
antenna where
reception is best.
Adhesive tape
75 ≠ coaxial cable
(not included)
2
L
FM ANT
Push!
Main unit
6
R
L
Insert the wires correctly.
6
75
FRONT (L)
i: White
SUBWOOFER
j: Blue
FM outdoor antenna
[Using a television antenna (not included)]
≥ Disconnect the FM indoor antenna.
≥ The antenna should be installed by a
competent technician.
(Continued on next page)
